ADAM Audio S2V Active Vertical 2-way Nearfield 7-Inch Powered Studio Monitor

Manufacturer’s Description

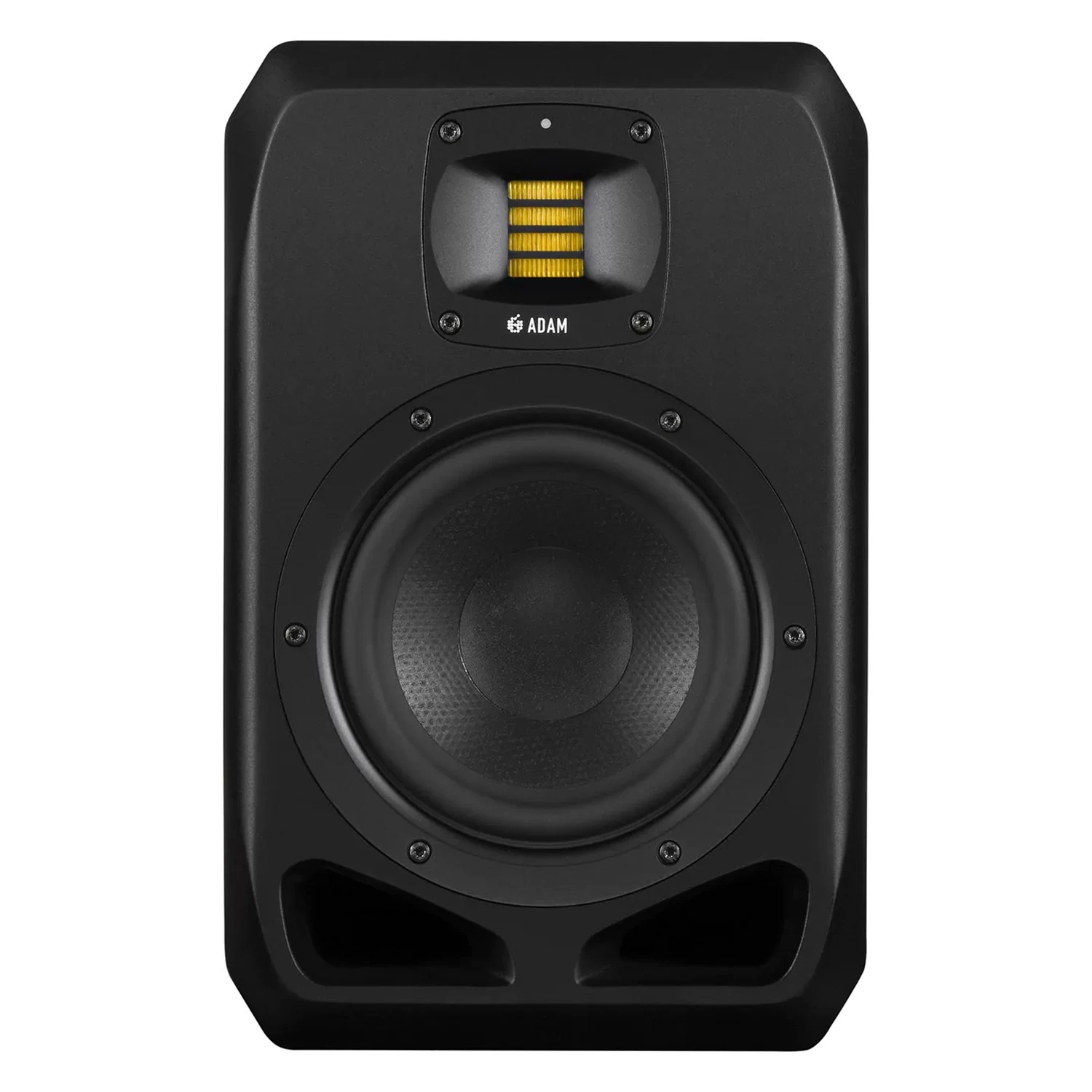

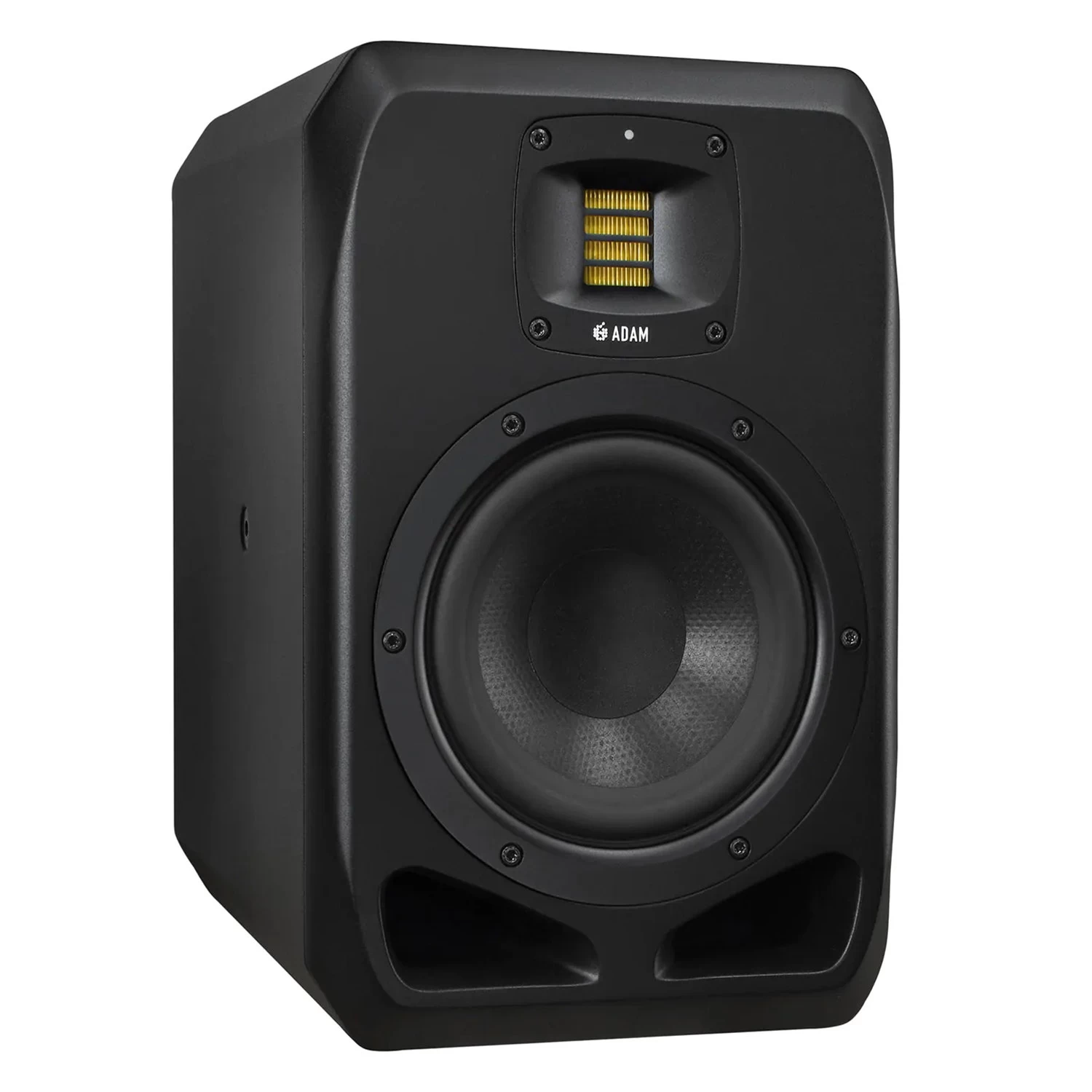

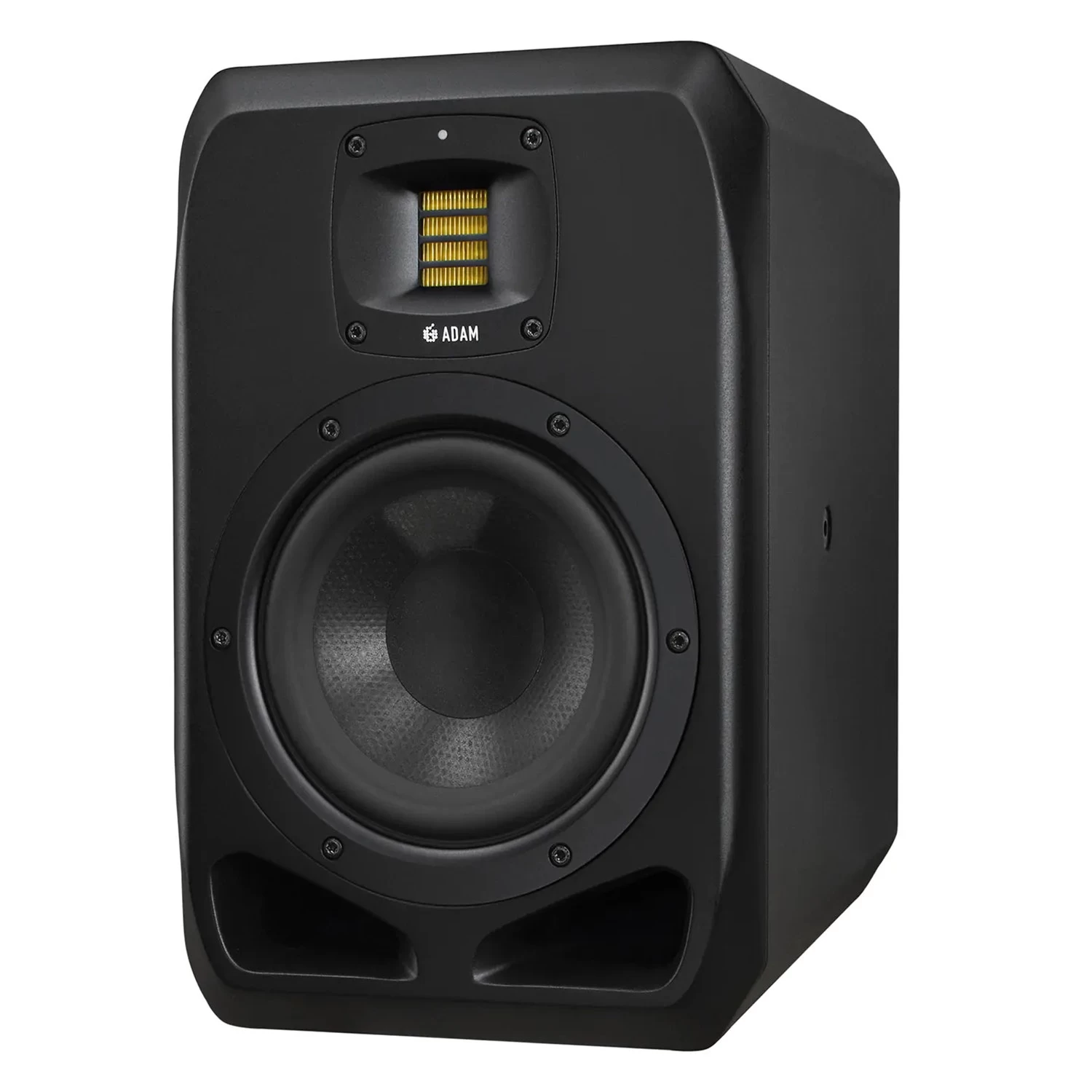

ADAM Audio S2V

The S2V is a classic two-way nearfield monitor designed for use in small-to-medium-sized control rooms.

The 7-inch bass driver, newly created from the ground up for the S Series, covers frequencies ranging from 35 Hz to 3 kHz and delivers a powerful, distortion-free low-end with a wide dynamic range. The carefully refined S-ART tweeter, handbuilt as ever at the ADAM Audio factory in Berlin, works seamlessly in tandem with the newly developed HPS waveguide, creating absolutely precise imaging within a generously proportioned sweet spot.

The S2V’s compact dimensions belie its impressive power. A 300 W Class D amplifier drives the woofer while a 50 W Class A/B unit handles the S-ART tweeter; the combined output produces SPLs of up to 120dB per pair.

The S Series’ custom-designed DSP optimizes the loudspeaker crossovers to create linear responses for the entire range, as well as providing user equalization and in-room tuning/voicing functions. The DSP also handles the limiter-based high-frequency driver protection, processes the signals from the AES3 digital inputs, and will in time facilitate various expansion options. Software updates can be carried out with ease via the associated USB port, which also allows users to connect computers and control the speakers’ DSP functions via a software front-end.

With its highly accurate frequency response and balanced, razor-sharp imaging, the S2V allows users to pinpoint even the most subtle audio details, making it an ideal choice for use in demanding studio environments.

Features

• German Handmade Precision S-ART Tweeter with HPS Waveguide
• 7“ Woofer (Hexacone)
• Cumulated Amp. Power RMS: 350 W
• Frequency Response: 35 Hz – 50 kHz (-20 dB)
• Max. SPL Per Pair at 1 m: ≥120 dB
• AES3 Digital Input
• S-ART tweeter, handmade in Berlin and manufactured to the tightest tolerances in ADAM Audio’s history
• The air velocity ratio of 4:1 during the sound generation by folded S-ART membrane
• Newly designed HPS waveguide, milled from a solid block of aluminum
• Custom-built Extended Linear Excursion (ELE) bass drivers
• Custom-designed Symmetrical Magnet Assembly (SMA)
• Vertical 2-way system with 7” woofer
• Spacious bass reflex ports on the front
• Highly efficient PWM ICE Power amplifier for the woofer coupled with an A/B amplifier for S-ART tweeter
• Linear frequency response of 35 Hz to 50 kHz (-20 dB)
• Maximum peak sound pressure per pair in 1 m ≥ 120 dB
• Custom DSP engine
• Analog XLR input
• Acoustically optimized and weightily constructed cabinets
• 2 years warranty with optional extension to 3 years with the registration of the product

Specifications

Woofer

• Number: 1
• Basket Ø: 7″ (178 mm)
• Voice Coil Ø: 1.5″ (39 mm)
• Cone Material: HexaCone

Tweeter

• Number: 1
• Type: S-ART
• Diaphragm Area: 4 inch² (2420 mm²)
• Equiv. Diaphragm Ø: 2″ (56 mm)
• Velocity Transform Ratio: 4:1
• Diaphragm Weight: 0.17 g
• Waveguide: HPS

Built-in Amplifiers

• Number: 2
• Woofer: 1
• Type: PWM
• Amp. Power RMS: 300 W
• Tweeter: 1
• Type: A/B
• Amp. Power RMS: 50 W

Control Options

• Input Sensitivity: Adjustable
• Parametric EQs: 6
• Room Compensation High-Shelf EQ: 1
• Room Compensation Low-Shelf EQ: 1
• Preset Memories: 5
• Delay: 0 ms to 5 ms

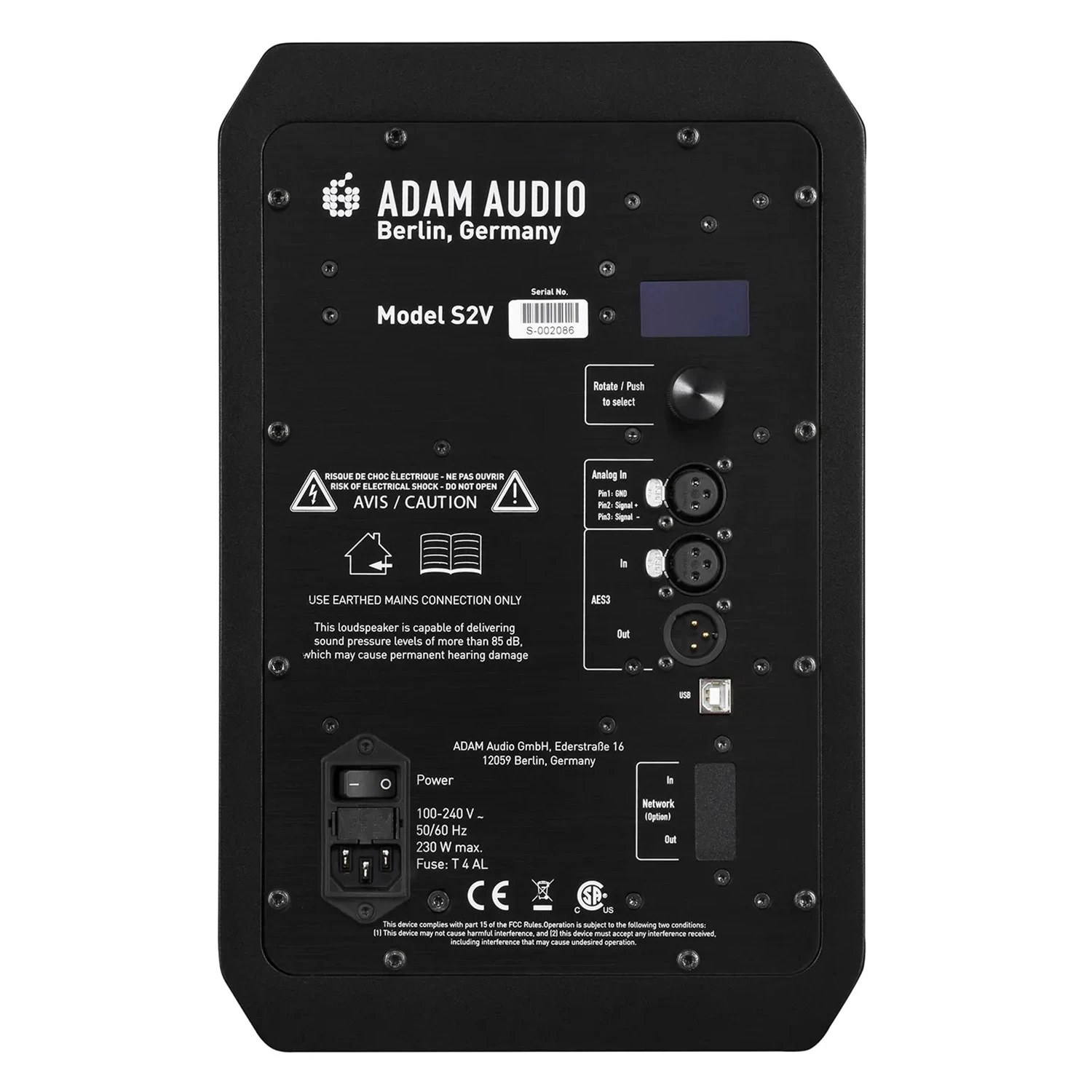

Input Connectors

• Analog: XLR
• Input Impedance: 48 kOhm
• Max. Input Level: +24 dBu
• Digital: AES3

General Data

• Panel: Rear
• Frequency Response: 35 Hz – 50 kHz (-20 dB)
• THD > 100 Hz: ≤0.4 %
• Max. SPL per pair at 1 m: ≥120 dB
• Crossover Frequencies: 3 kHz
• Max. Power Consumption: 230 W
• Weight: 24.2 lb (11.0 kg)
• Height x Width x Depth: 13,6″ (346 mm) x 8,7″ (222 mm) x 13,3“ (338 mm )
• Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
• Delivery Contents: Power cord, Manual
