ADJ American Audio APX CS8 Powered Column PA Loudspeaker System

Manufacturer’s Description

The American Audio APX CS8 Column AC Powered PA System is lightweight, portable and feature packed. Offering an impressive output from a very compact column system, it is a great choice for live PA, musicians, and mobile entertainers looking for an extremely portable PA setup. The system features an 8-input mixer with Bluetooth TWS (True Wireless) playback, SD Card input, USB input, mini jack input, two XLR inputs and two ¼-inch stereo inputs.

The APX CS8 is powered by a Class-D amplifier with an 8-inch woofer. It has 3 columns, one with four (4) 2.5-inch drivers, and two spacers.

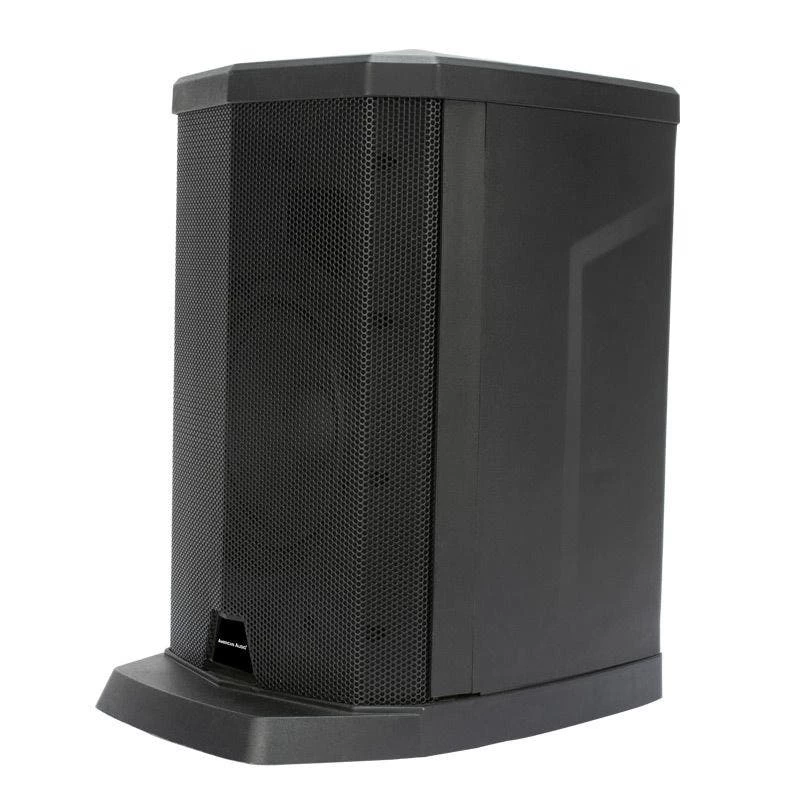

The System includes: (1) 8-inch active subwoofer, (1) column speaker with four 2.5-inch drivers, (2) spacer.

Specifications

SYSTEM INCLUDES:

• (1) 8-inch Subwoofer
• (1) Column with four 2.5-inch neodymium Speakers
• (2) Spacers

General

• Speakers: 8-inch Column Speaker with subwoofer and 4x 2.5inch drivers
• System type: AC Powered subwoofer with four treble-reflex enclosures
• SPL Output: 108 dB max
• AC Input: AC115V~230V 50/60HZ
• Amplifier: 100W Class-D Power System
• Output Connectors: XLR output
• Mixer Input Impedance: Ch1-4 inputs (2 Mono Mic/Line, Stereo)
• Signal Indicators: Main Output LED Ladder
• Grill: Power coated perforated steel

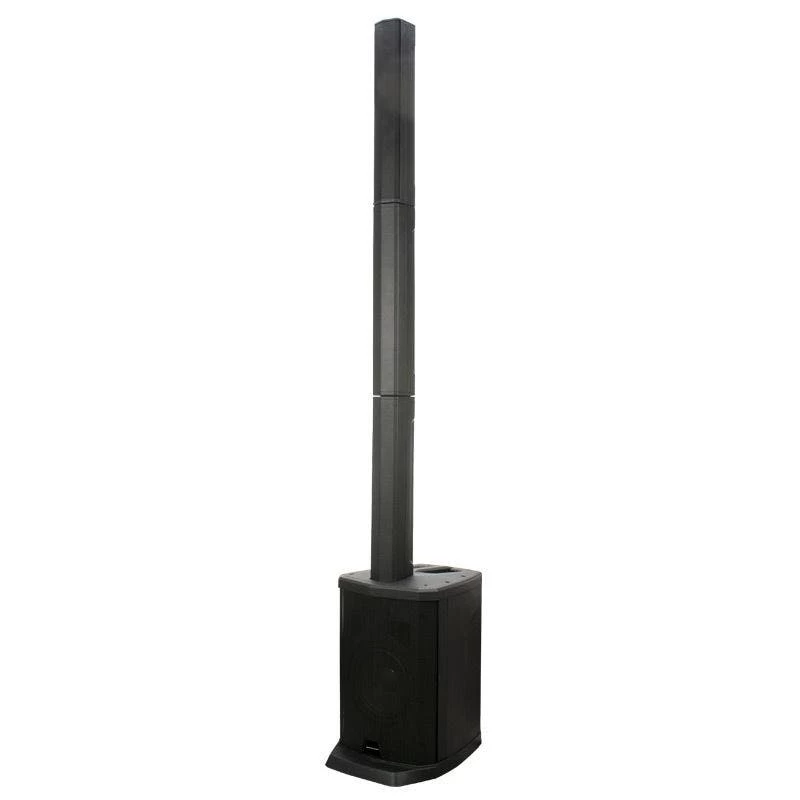

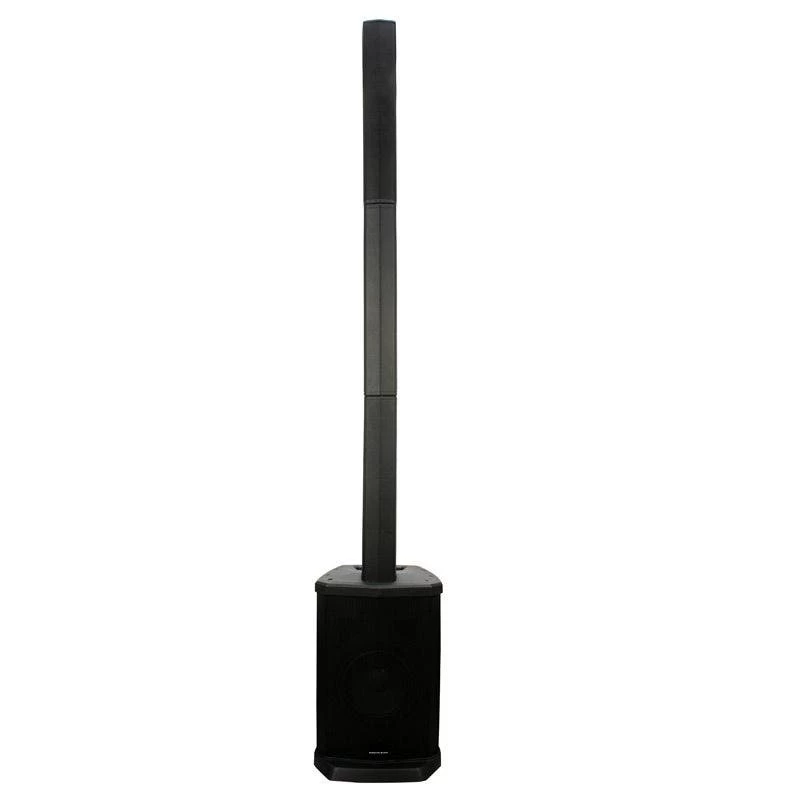

Extended Position (3 columns):

Dimensions: 15.7”x12.5”x73.1” / 399×317.9×1856.6mm
Weight: 40 lbs. / 18 kg.Compact Position 2 (only 2 column):

Dimensions: 15.7”x12.5”x54.6” / 399×317.9×1386.6mm

Compact Position 1 (only 1 column):

Dimensions: 15.7”x12.5”x36.1” / 399×317.9×916.6mm

Rear Panel Features:

• 8 input mixer with line out
• Two (2) Mic/Line Input (XLR)
• Two (2) Guitar/Line Input (1/4″ Stereo)
• 1/8” stereo Aux Input
• TWS (True Wireless Stereo) BLUETOOTH® Connection
• SD Card reader
• USB Input
• Line Output (XLR)
• Two (2) Echo Adjustment Potentiometers
• Three (3) Channel Volume Adjustment Potentiometers
• One (1) Master Volume Adjustment Potentiometers
• One (1) Bass Boost Volume Adjustment Potentiometers
