ADJ American DJ DMX Operator 384 384-Channel DMX Lighting Controller

Manufacturer’s Description

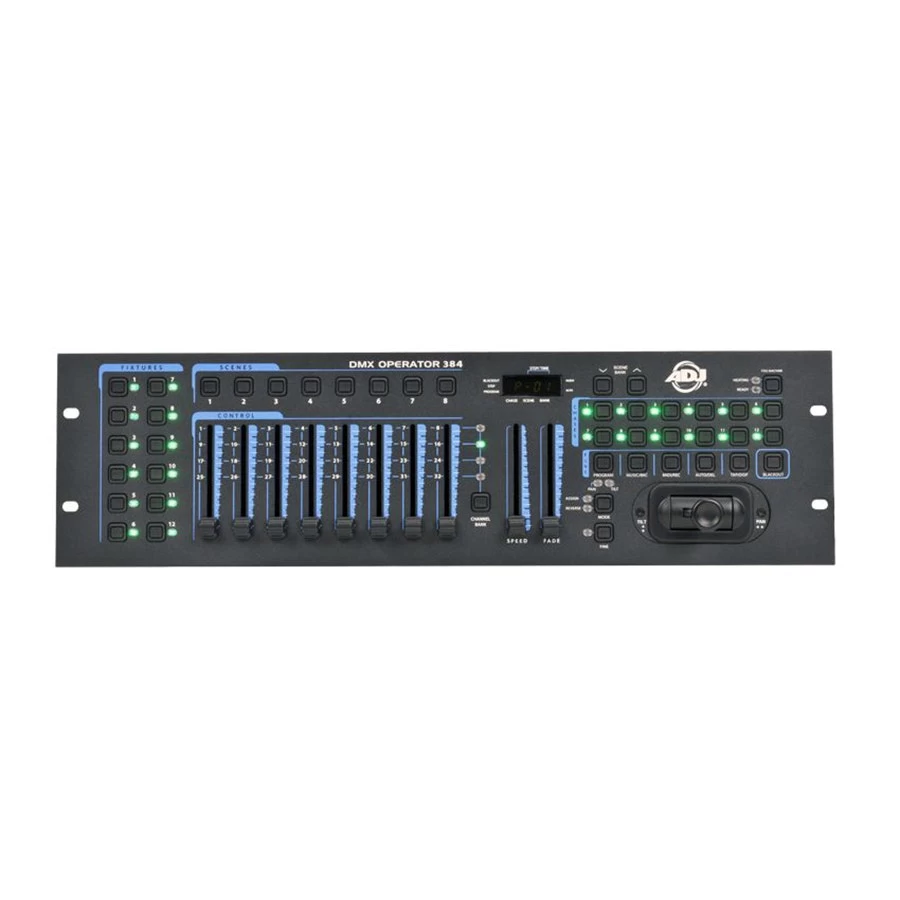

The DMX Operator 384 is a 19-inch rack mount DMX hardware controller for lighting effects that are compatible with DMX protocol. It also doubles as a Midi trigger devise. It will control up to 12 fixtures what 32 DMX channels each (384 total channels). There are 30 programmable scene banks with 240 total programmable scenes.

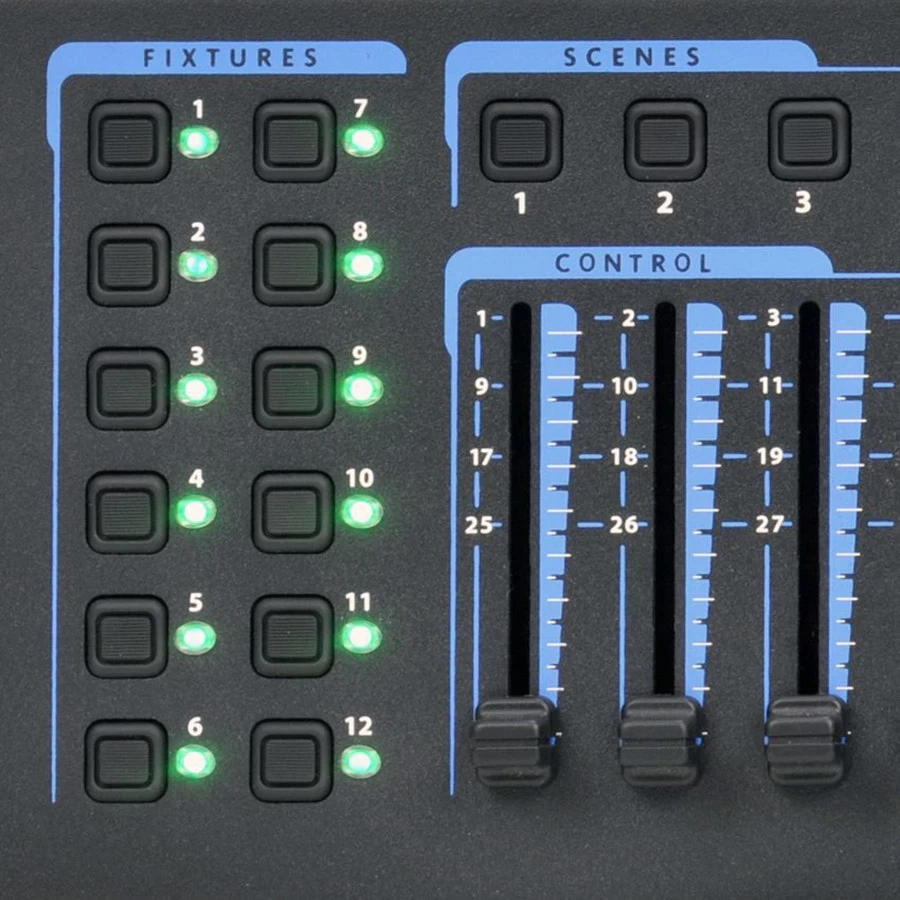

The DMX Operator 384 features an assignable joystick for better programming control, 8 control faders with 4 channel banks, a fog machine trigger (compatible with specific ADJ Foggers).

Specifications

• 2 controllers in 1 (DMX and Midi controller)
• 12 Fixtures- 32 DMX channels each, 384 total channels
• 30 programmable scene banks- 240 total programmable scenes
• 12 programmable chases

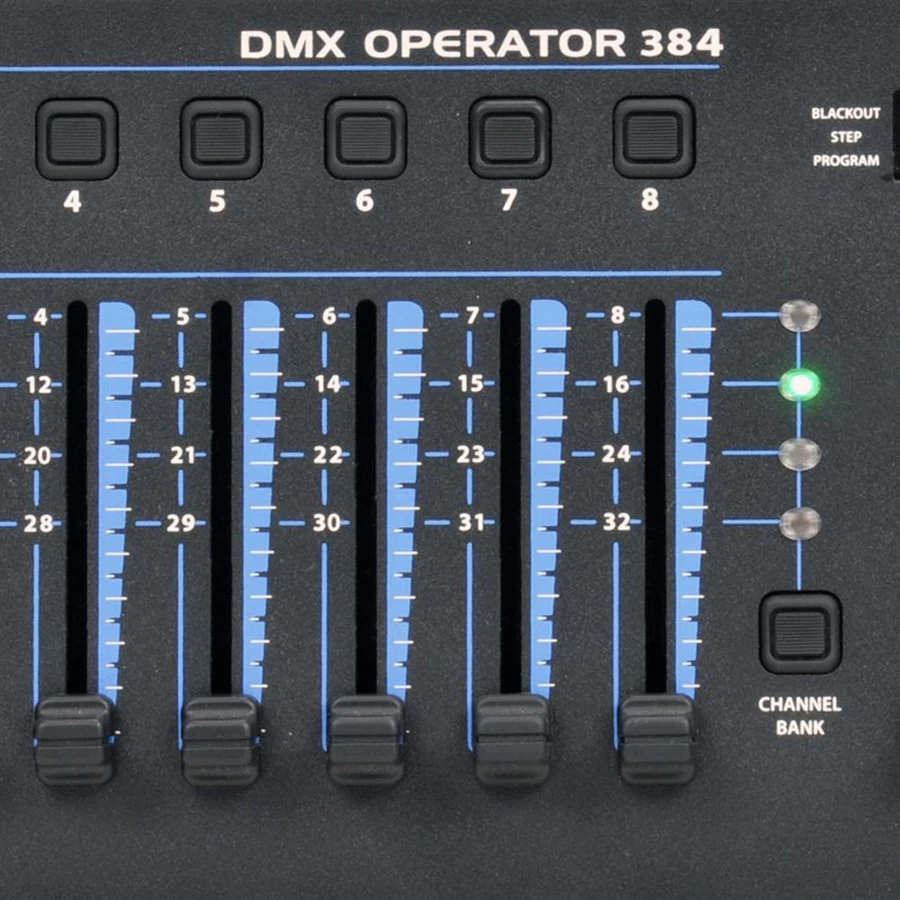

• 8 control faders x 4 channel banks

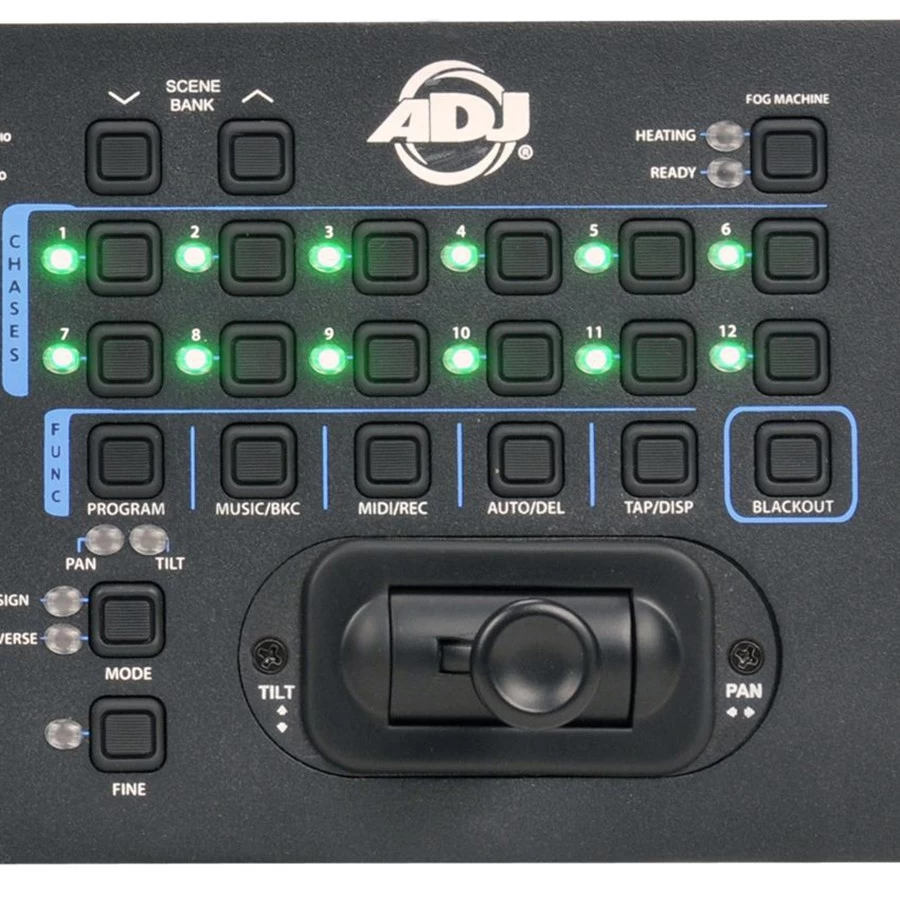

• Assignable Joystick

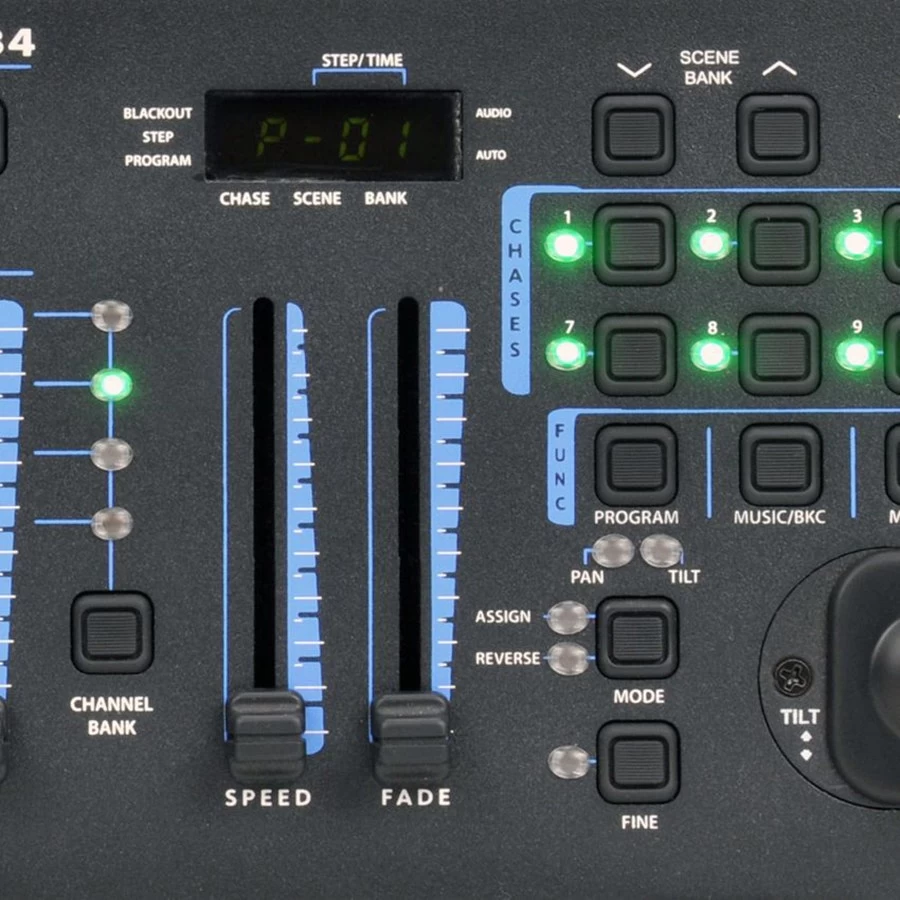

• Speed and Fade faders

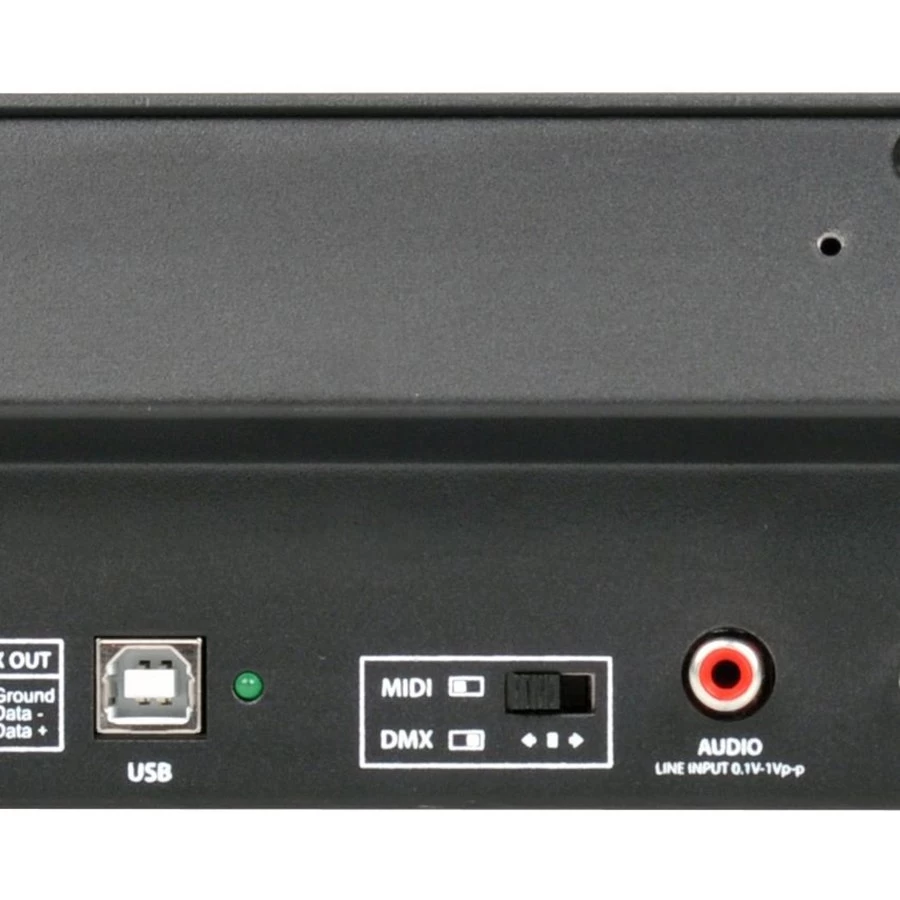

• Built-in microphone or Line level RCA audio input for music trigger

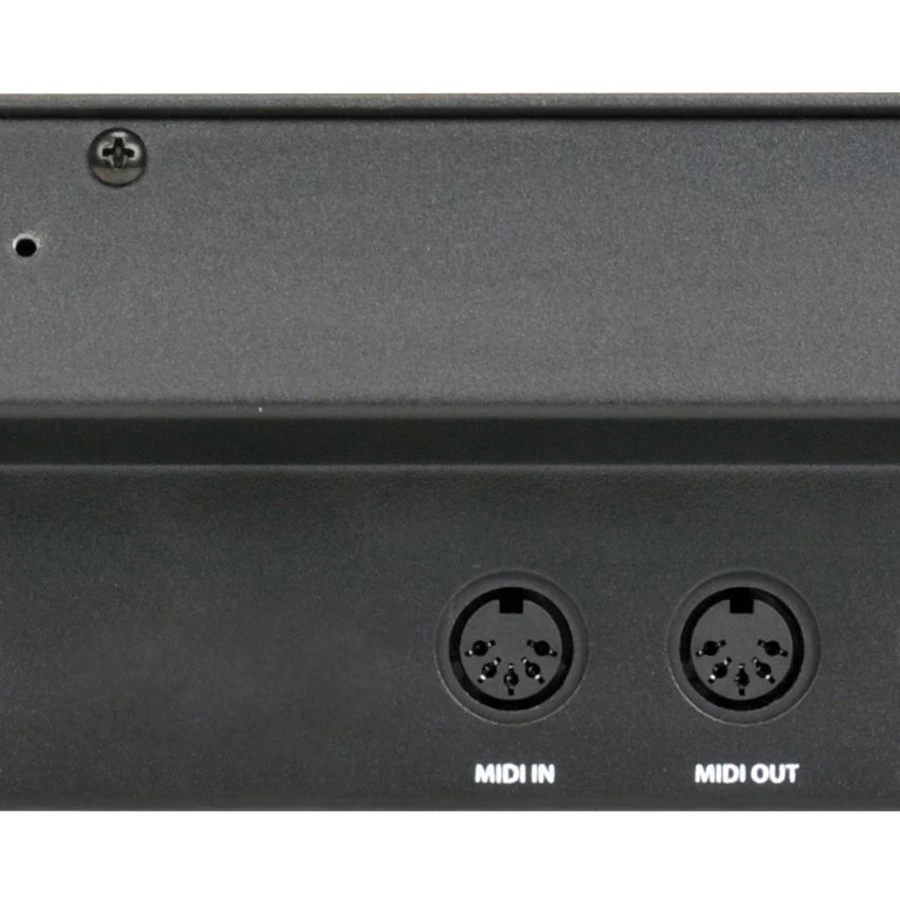

• MIDI input for scene, chase or blackout trigger
• Tap Sync button for chase speed over-ride

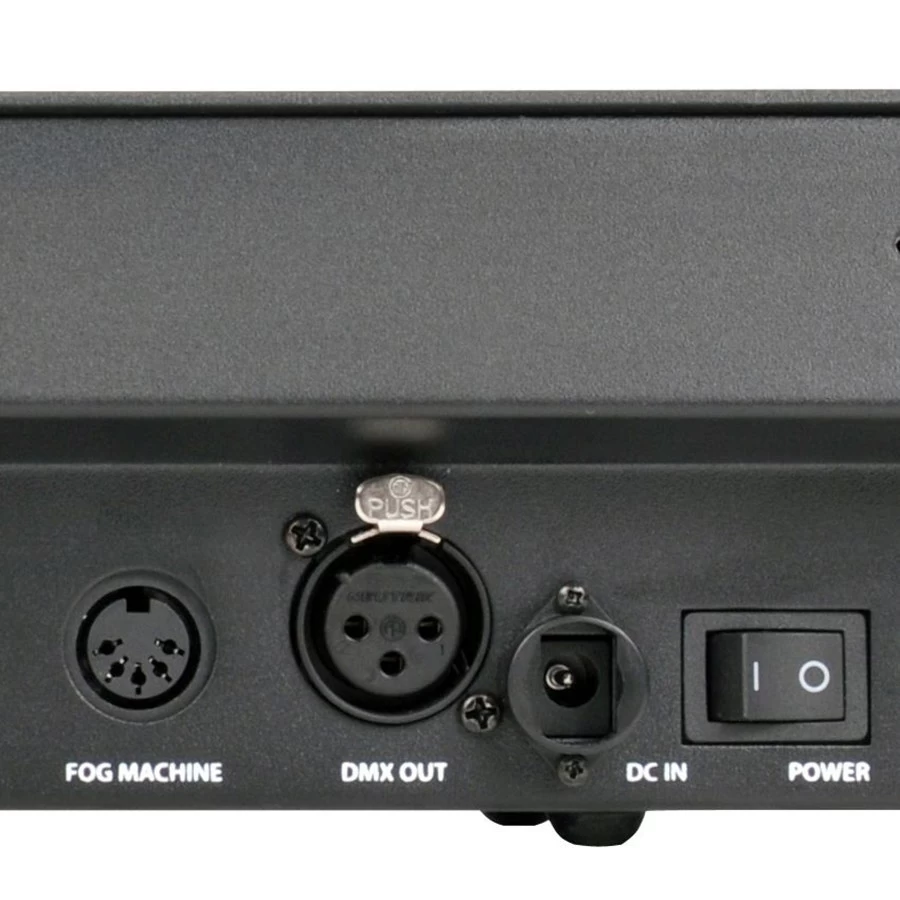

• Fog Machine input and trigger button (For use with ADJ VF1300 only)
• Blackout button
