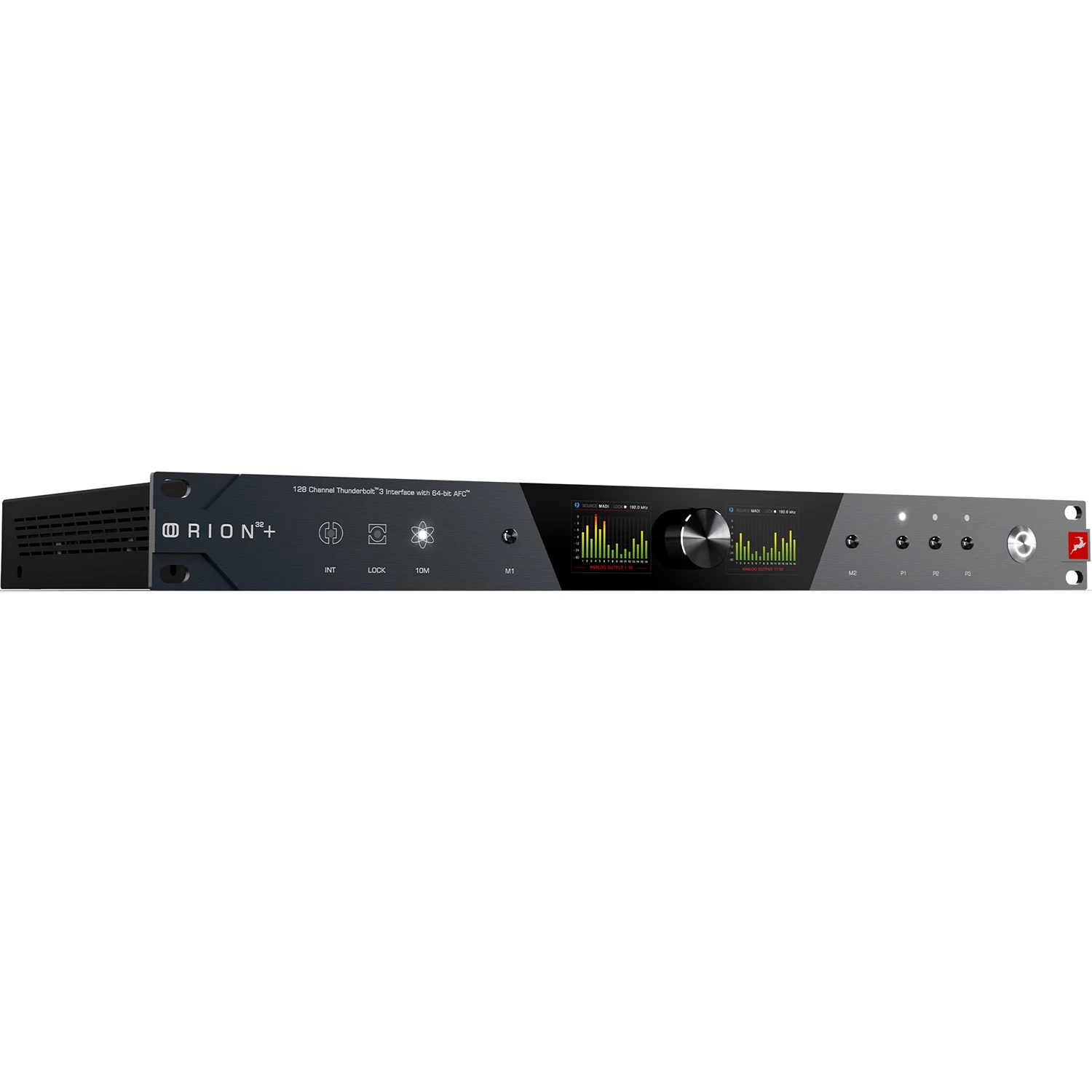

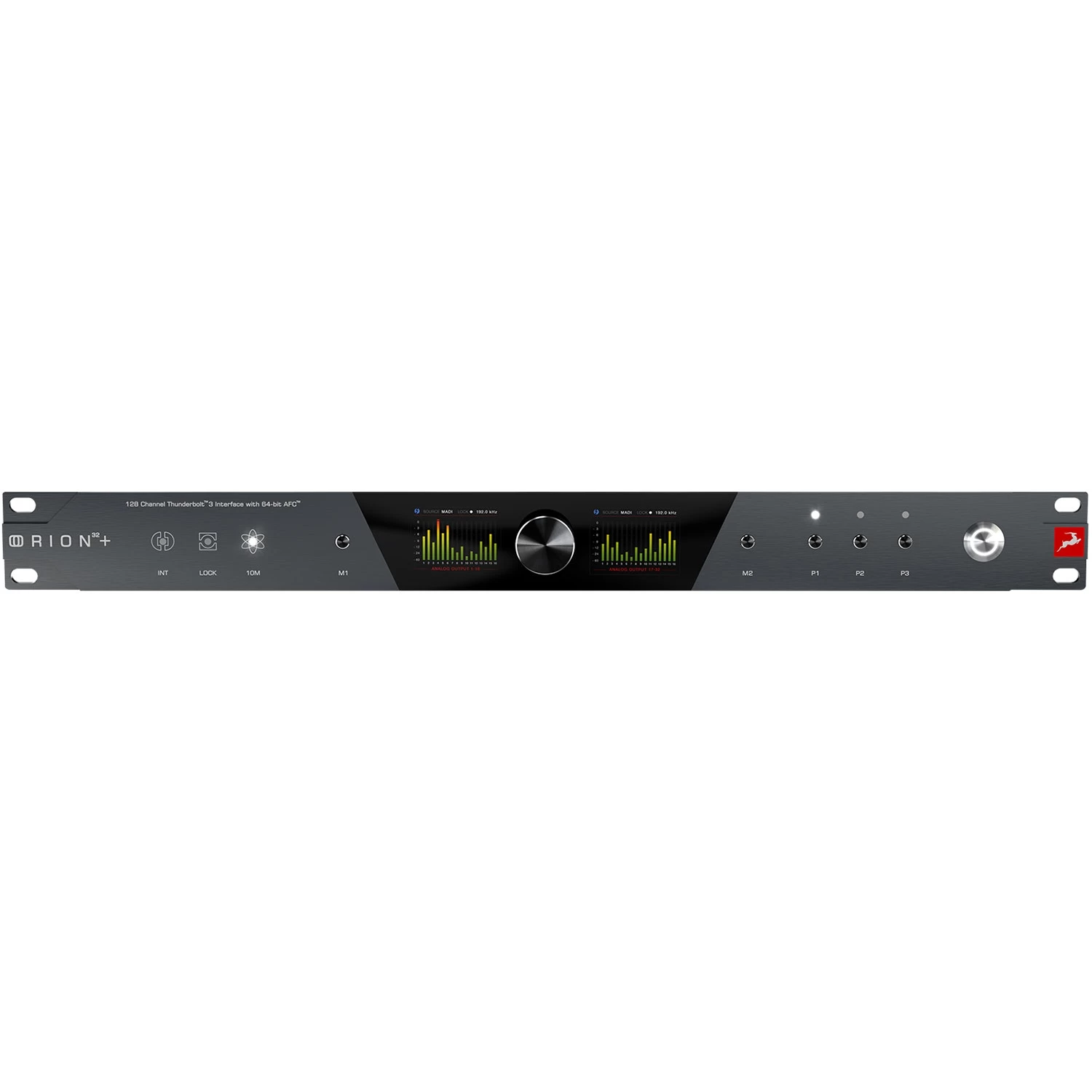

Antelope Audio Orion 32+ Gen 4 Thunderbolt / USB Audio Interface

Manufacturer’s Description

UNMATCHED PRECISION. UNWAVERING LEGACY.

For over a decade now the Orion 32 line of interfaces has been revolutionizing the world of professional audio recording and production. The latest revision of this iconic 1U studio centerpiece steps up the game by taking the best of its predecessors and adjusting it to the ever- growing needs and standards of the industry. Orion 32+ Gen4 incorporates the latest Antelope Audio tech, drastically boosting the unit’s potential.

STANDARD-SETTING CONVERSION

Antelope Audio interfaces are globally renowned for their industry-leading conversion and clocking, and the new Orion 32 is, as always, at the forefront. Its AD/DA converters perform at up to 130dB dynamic range, ensuring Gen4’s leading position among high-end multichannel interfaces. The high-performing conversion is powered by the same proprietary 64-bit Acoustically Focused Clocking technology & jitter management algorithm, which over the years has proven irreplaceable for countless productions.

MORE AUDIO THAN YOU CAN HANDLE

The Orion 32+ Gen4 offers double the Thunderbolt™ channel streaming and MADI connectivity compared to its predecessor. With 128 channels available, up to four units can be daisy-chained through a single computer connection, making it ideal for large recording sessions, live sound, complex post-production setups, and broadcast facilities. It is the preferred companion for large mixing consoles, hardware effects processing, analog summing boxes, reel-to-reel setups, hardware synthesizers, and more.

EMBRACE THE FUTURE OF AUDIO PRODUCTION

A complete Atmos-ready surround and immersive audio monitoring system is supported by the interface, compatible with over 23 audio formats from stereo to Dolby Atmos 9.1.6. It offers precise speaker and room calibration tools as well as intuitive monitoring controls and fast preset recall functionality, designed to increase productivity. It is available as an optional upgrade for the Orion 32+ Gen4.

MRC

As a physical extension of the system, the compatible Antelope MRC hardware controller provides streamlined and tactile controls that are key for effortless yet advanced monitoring.

MORE THAN JUST A PRETTY FACE

Orion 32+ Gen4 comes not only with an updated look and dramatically boosted hardware but with a redesigned Software Control Panel for an even smoother workflow. It now features a powerful preset recall system complete with signal routing, level adjustments, mixer settings and monitoring controls, among others. A handy monitoring pop-out widget has been introduced for hands-on output level control and preset recall, featuring an always-on-top function. The unit’s signal routing matrix is now fully customizable with convenient patching and less complexity in mind.

EASY INTEGRATION IN ANY SETUP

Orion 32+ Gen4 is designed for quick and effortless integration in a variety of studio configurations – be that Thunderbolt or USB based. The interface is compatible with both Windows and macOS systems and is guaranteed to fit all possible applications – from recording, mixing, interfacing, and conversion to being used as an advanced patch bay or monitor controller. It is also your modular synth’s best friend with its DC Coupled I/O for sending CV signals from your DAW of choice straight to your hardware instruments.

DESIGNED FOR PERFECTION

Since 2012 the Orion 32 has been a mainstay in high-profile studio facilities around the globe. Preserving this impeccable legacy, the fourth generation is designed and manufactured in our European headquarters. Each unit is carefully tested to ensure flawless performance and the best possible user experience on the market.

CONNECTIVITY

• 32 analog input channels over 4 × D-Sub 25 connectors with AC/DC coupling switch (TASCAM standard)
• 32 analog output channels over 4 × DC-coupled D-Sub 25 connectors (TASCAM standard)
• 1 × Dedicated stereo monitor output over 1⁄4 TRS
• Computer connectivity via single USB-C port supporting either Thunderbolt™ 3 or USB 2.0, for 128 and 32
• channels of I/O respectively, at up to 192kHz (Thunderbolt™ 2 also supported via а Thunderbolt™ 3 to 2 adapter)
• Custom macOS & Windows drivers for low latency performance in native DAW applications over both Thunderbolt™ and USB
• Digital I/O: 128 channels of optical MADI (up to 48kHz, reduced at higher SRs), 8 channels of ADAT (up to 48kHz, reduced at higher SRs), and 2 channels over S/PDIF (up to 192kHz)
• Clocking I/O: 1 × word clock input, 2 × word clock outputs, 1 × 10М input

CLOCKING & CONVERSION

• Proprietary 64-bit AFC™ (Acoustically Focused Clocking) technology delivering spacious stereo image with distinct separation for an unrivalled level of detail
• High-resolution A/D and D/A conversion ensuring artefact-free audio with 130dB dynamic range on line and monitor outputs and 122dB on line inputs.

OPTIONAL MULTI CHANNEL MONITORING SYSTEM*

• 23+ formats readily compatible, from stereo through surround and immersive audio
• Speaker calibration processing for up to 16 channels or 9.1.6 Dolby Atmos
• Extensive monitoring control functionality designed for seamless workflow
• MRC remote controller compatible as an optional system add on
• *Features can be unlocked either via a purchasable license available in our software store or with the purchase of an MRC remote controller.

WORKFLOW-ENHANCING FEATURES

• Customizable virtual patch-bay allowing execution of complicated input/output signal routing with a simple drag and drop
• Comprehensive presets system with signal routing, level adjustments, mixer settings and effects
• Handy monitoring pop-out widget with output level controls and 5 quick preset recall buttons
• 4 x onboard low-latency stereo mixers with 32 input channels each, with adjustable levels, panning and reverb settings – suitable for monitoring or summing
• All analog and digital ports can be used simultaneously for easy integration with multiple systems and different setups
• Two 1.8′′ IPS display screens for independent signal metering
• Standalone use without a computer connection available, with routing, metering and monitoring controls from the two front panel displays.

Specifications

• IN-THE-BOX CONTENT
  • Orion 32+ Gen4
  • Getting started guide
  • Power adapter
  • USB cable
• DIMENSIONS
  • Device: W: 48,3 cm (19 in) D: 28 cm (11 in) H: 4,4 cm (1,73 in) 3,4 kg (7,4 lbs)
  • Box: W: 63,6 cm (25 in) D: 34 cm (13,4 in) H: 11 cm (4,3 in) 5 kg (11 lbs)
