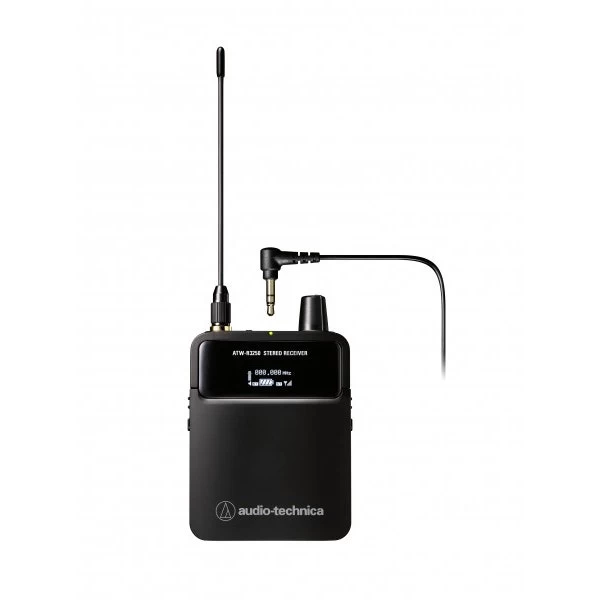

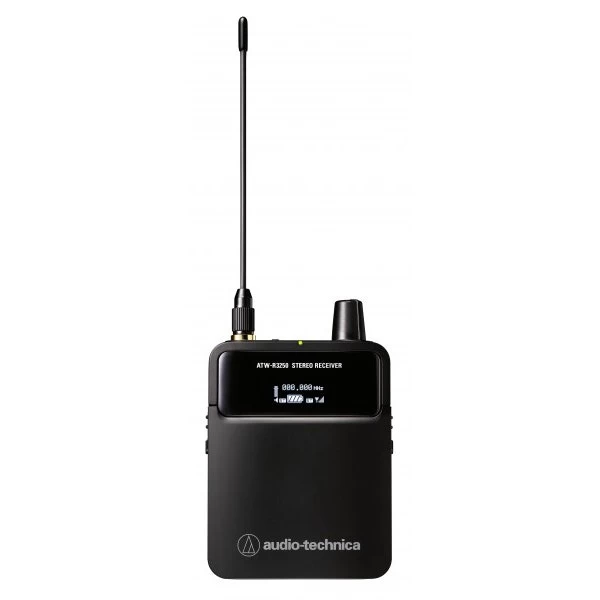

Audio-Technica ATW-R3250 3000 Series IEM In-Ear-Monitor Receiver Bodypack, Band DF2

Manufacturer’s Description

3000 Series IEM Receiver (ATW-R3250

Features

• Durable wireless in-ear monitor system delivers high-quality sound and stable RF
• Ideal for use in houses of worship and performance venues
• Optimized internal digital signal processing provides exceptional stereo separation
• Wide UHF tuning bandwidth of 138 MHz for maximum versatility in an increasingly congested RF environment; available in frequency bands DF2 (470 – 608 MHz) and EG2 (580 – 714 MHz)
• Shares design elements with the 3000 Series UHF Wireless Systems for easy integration and compatibility
• Transmitter and receiver include OLED screens for optimal readout of key settings and alerts
• Offers network monitoring and control via Wireless Manager software
• A channel plan can be deployed to all network-connected transmitters via an RF scan from a single receiver, with no interference or third-order intermodulation
• Body-pack receiver operates continuously for up to 7 hours when powered by NiMH batteries and charged in the ATW-CHG3 or ATW-CHG3N charging station (sold separately)
• Stereo or mono operation with pan/personal mix controls
• Receiver is equipped with an efficient headphone amp to ensure clear, natural sound quality
• Custom audio settings include EQ, limiter, gain control and balance
• Receiver’s antenna diversity improves RF stability
• Included ATH-E40 professional in-ear monitor headphones feature propriety dual phase push-pull drivers for exceptional accuracy and clarity
• Transmitter is equipped with balanced XLR inputs and loop output, plus network port

Specifications

• Operating Frequencies: Band DF2: 470.125 to 607.875 MHz
• Minimum Frequency Step: 25 kHz
• Modulation Mode: FM
• Frequency Response: 40 Hz to 14,100 Hz
• Operating Range: 90 m (300′), 2 Open range environment with no interfering signals
• Dynamic Range: >90 dB, A-weighted, typical
• Total Harmonic Distortion: <0.2% (at 1 kHz, +4dBu input)
• Notes: For product improvement, the product is subject to modification without notice.
