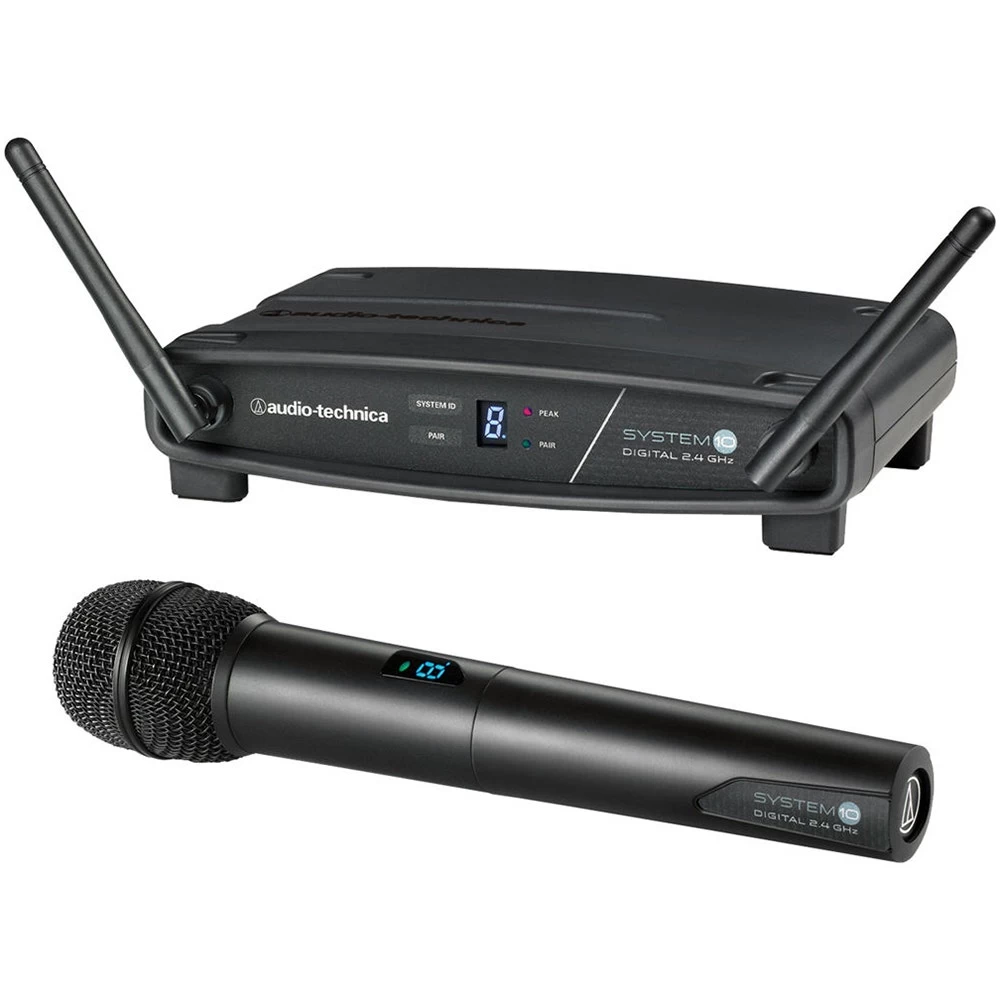

Audio-technica Audio Technica ATW-1102 System 10 Stack-Mount Digital Handheld Wireless System

Overall System

• Operating Frequencies: 2.4 GHz ISM band
• Frequency Response: 20 Hz to 20 kHz Depending on microphone type
• Operating Range: 30 m (100′) Open range env. with no interfering signals
• Dynamic Range: >109 dB (A-weighted), typical
• Total Harmonic Distortion: <0.05% typical
• Operating Temperature Range: 0° C to +40° C (32° F to 104° F) Battery performance may be reduced at very low temperatures
• Audio Sampling: 24 bit / 48 kHz
• Latency: 3.8 ms

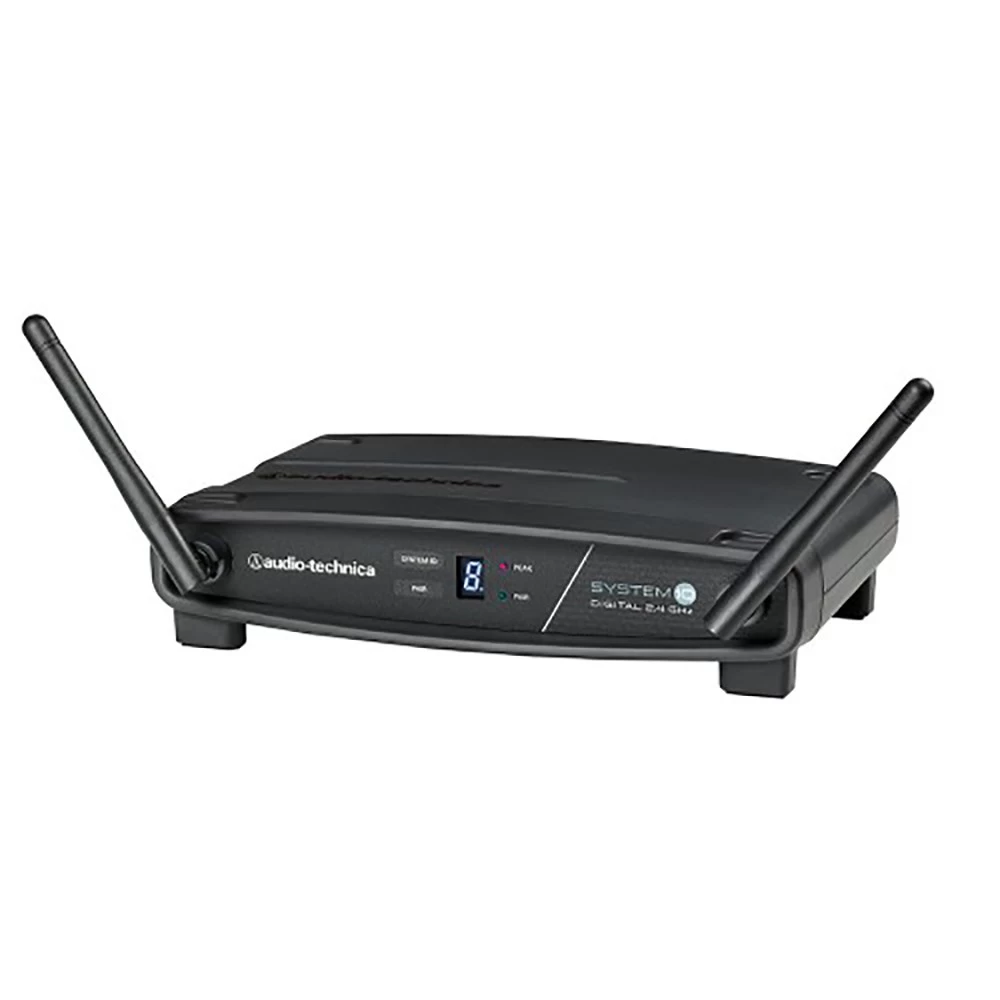

Receiver

• Receiving System: Diversity (frequency/time/space)
• Maximum Output Level: XLR, balanced: 0 dBV 1/4″ (6.3 mm), unbalanced: +6 dBV
• Power Supply: 100-240V AC (50/60 Hz) to 12V DC 0.5A power supply switched mode external
• Dimensions: 190 mm W x 46.2 mm Hx 128.5 mm D
• Weight: 290g
• Accessories Included: Power supply

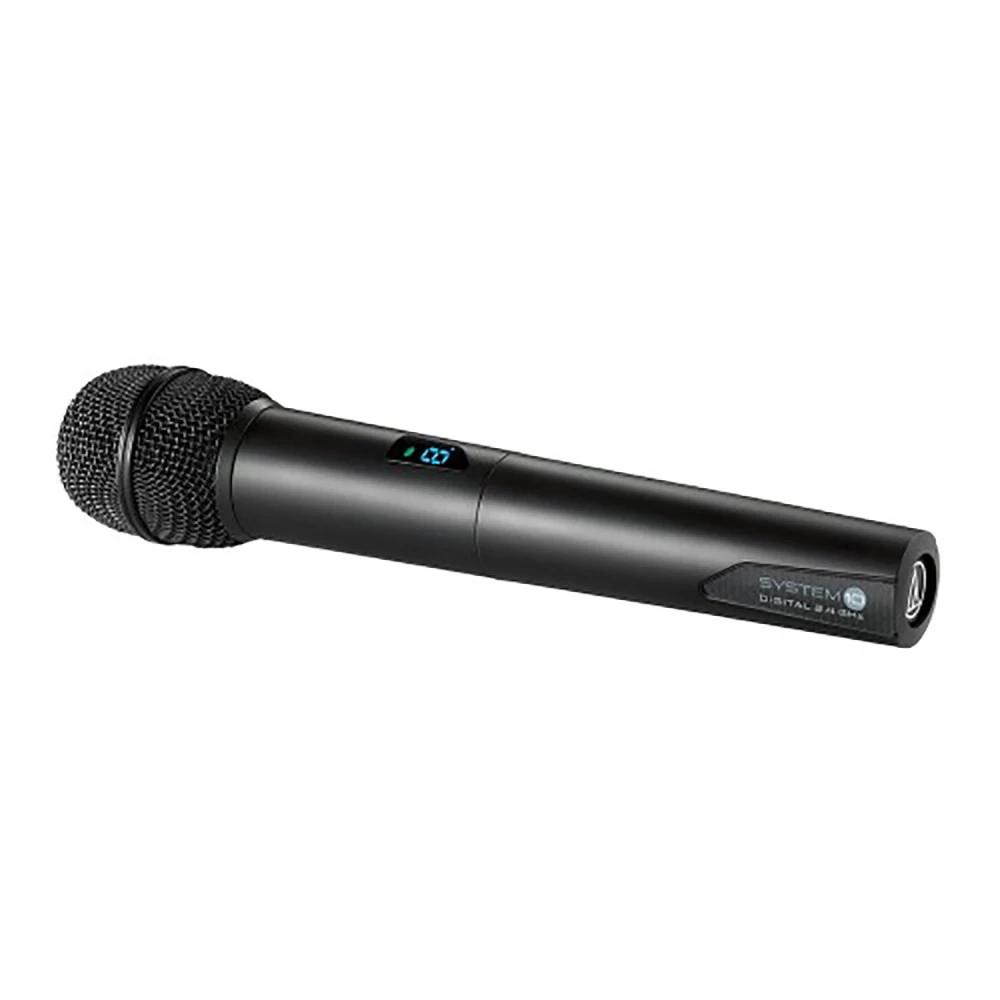

Handheld Transmitter

• RF Power Output: 10 mW
• Spurious Emissions: Following federal and national regulations
• Battery Type: Two 1.5V AA (not included)
• Battery Life: >7 hours (alkaline) (Depending on battery type and use pattern)
• Dimensions: 254.8 mm (10.03″) long, 50.0 mm (1.97″) diameter
• Net Weight: 280g
• Accessories Included: AT8456a Quiet-Flex™ stand clamp

Manufacturer’s Description

Audio-Technica’s System 10 is the most reliable digital high-fidelity wireless system of its generation. Designed to provide performing musicians and presenters with advanced 24-bit operation, easy setup and clear, natural sound quality. Featuring stackable, contemporary styling, each configuration includes a mono ATW-R1100 receiver and an ATW-T1002 handheld dynamic cardioid microphone. The ATW-R1100 is a digital receiver offering volume control along with AF Peak and Pair indicator lights.

• ATW-R1100 receiver
• ATW-T1002 handheld dynamic unidirectional microphone/transmitter
• 2.4 GHz range – completely free from TV interference
• Three levels of diversity assurance: frequency, time, & space
• Automatic frequency selection
• State-of-the-art digital receiver for reliable performance

Features

• Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
• 2.4 GHz range – completely free from TV/ 3G interference
• Three levels of diversity assurance: frequency, time, & space
• Automatic frequency selection for seamless, interference-free operation
• Automatic Frequency Selection. Plug & Play. Ease of use and reliability
• Extremely easy operation with instantaneous channel selection, sync, and set-up
• State-of-the-art digital receiver for reliable performance
• Balanced XLR and unbalanced 1/4” output jacks with level control
