Audio-Technica System 10 ATW-1101 Bodypack And Receiver Digital Wireless System

Manufacturer’s Description

ATW-1101 System 10 Digital Wireless

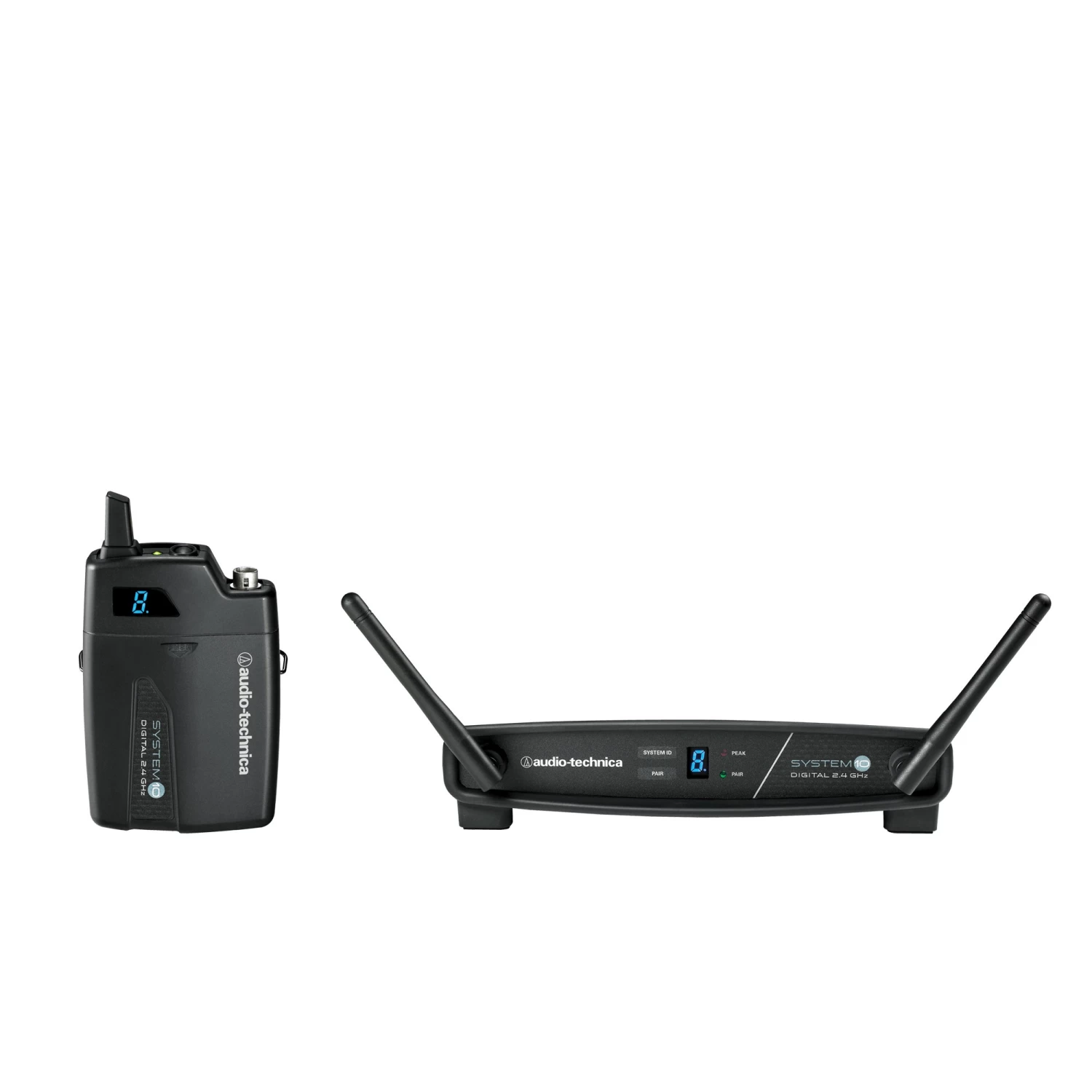

ATW-R1100 receiver and ATW-T1001 body-pack transmitter.
Select a microphone or cable with a cW-style locking 4-pin connector to complete the system.

Specifications

• Overall System
• Operating Frequencies: 2.4 GHz ISM band (2400 to 2483.5 MHz)
• Frequency Response: 20 Hz to 20 kHz Depending on microphone type
• Operating Range: 30 m (100′) typical Open range environment with no interfering signals
• Total Harmonic Distortion: <0.05% typical
• Operating Temperature Range: 0° C to +40° C (32° F to 104° F) Battery performance may be reduced at very low temperatures
• Handheld Transmitter
• RF Power Output: 10 mW
• Spurious Emissions: Following federal and national regulations
• Battery Type: Two 1.5V AA not included
• Battery Life: >7 hours (alkaline) Depending on battery type and use pattern
• Dimensions: 254.8 mm (10.03″) long, 50.0 mm (1.97″) diameter
• Net Weight: 280 grams (9.9 oz) without batteries
• Accessories Included: AT8456a Quiet-Flex™ stand clamp
• Body Pack
• RF Power Output: 10 mW
• Battery Life: >7 hours (alkaline) Depending on battery type and use pattern
• Battery Type: Two 1.5V AA not included
• Dimensions: 70.2 mm (2.76″) W x 107.0 mm (4.21″) H x 24.9 mm (0.98″) D
• Input Connections: Four-pin Locking Connector
• Pin 1: GND, Pin 2: INST INPUT,
• Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
• Net Weight: 100 grams (3.5 oz) without batteries
• Spurious Emissions: Following federal and national regulations
• Receiver
• Receiving System: Diversity (frequency/time/space)
• Maximum Output Level: XLR, balanced: 0 dBV 1/4″ (6.3 mm), unbalanced: +6 dBV
• Power Supply: 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
• Operating Temperature Range: 40° F (4° C) to 110° F (43° C)
• Dimensions: 190.0 mm (7.48″) W x 46.2 mm (1.82″) H x 128.5 mm (5.06″) D
• Weight: 290 grams (10.2 oz)
• Accessories Included: Power supply
