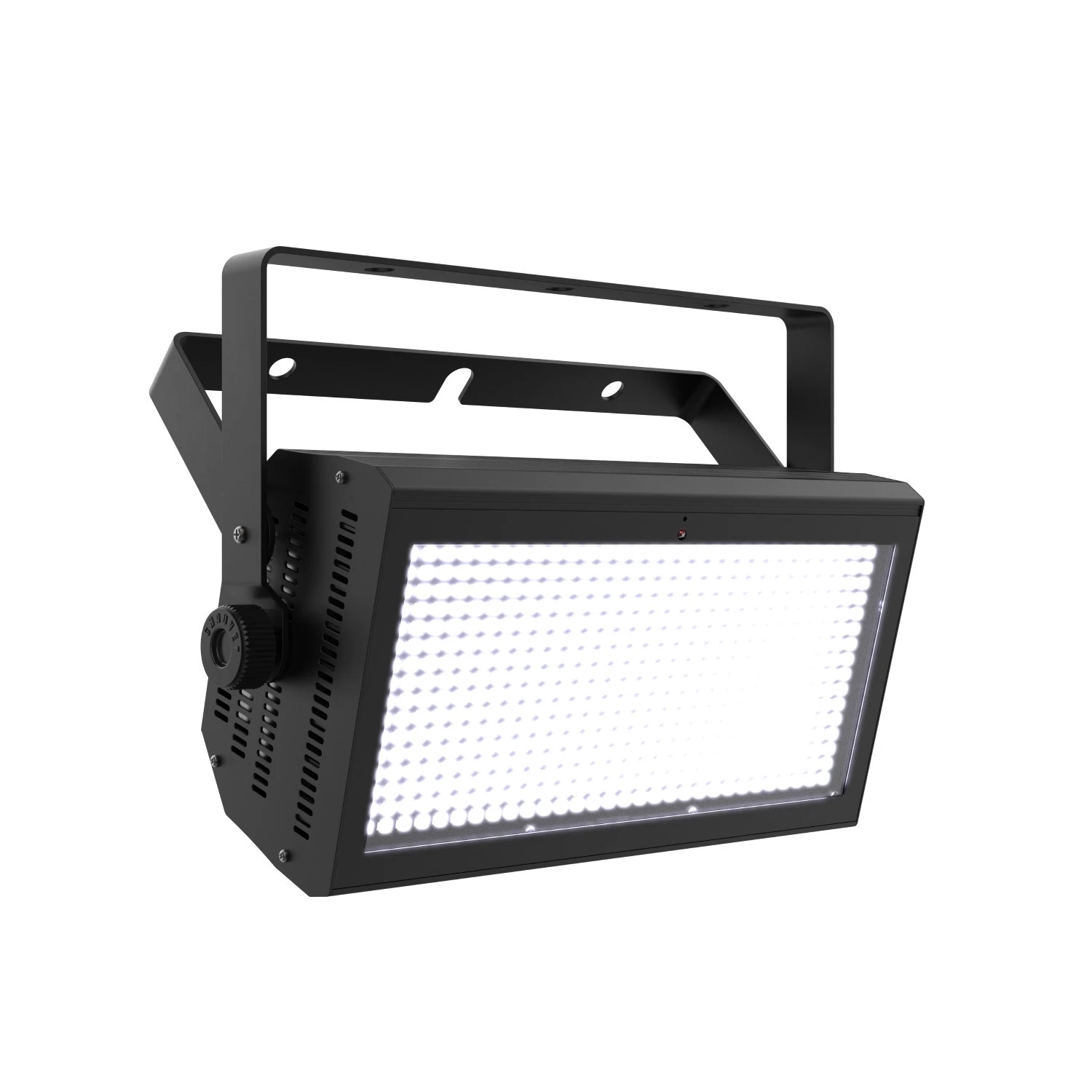

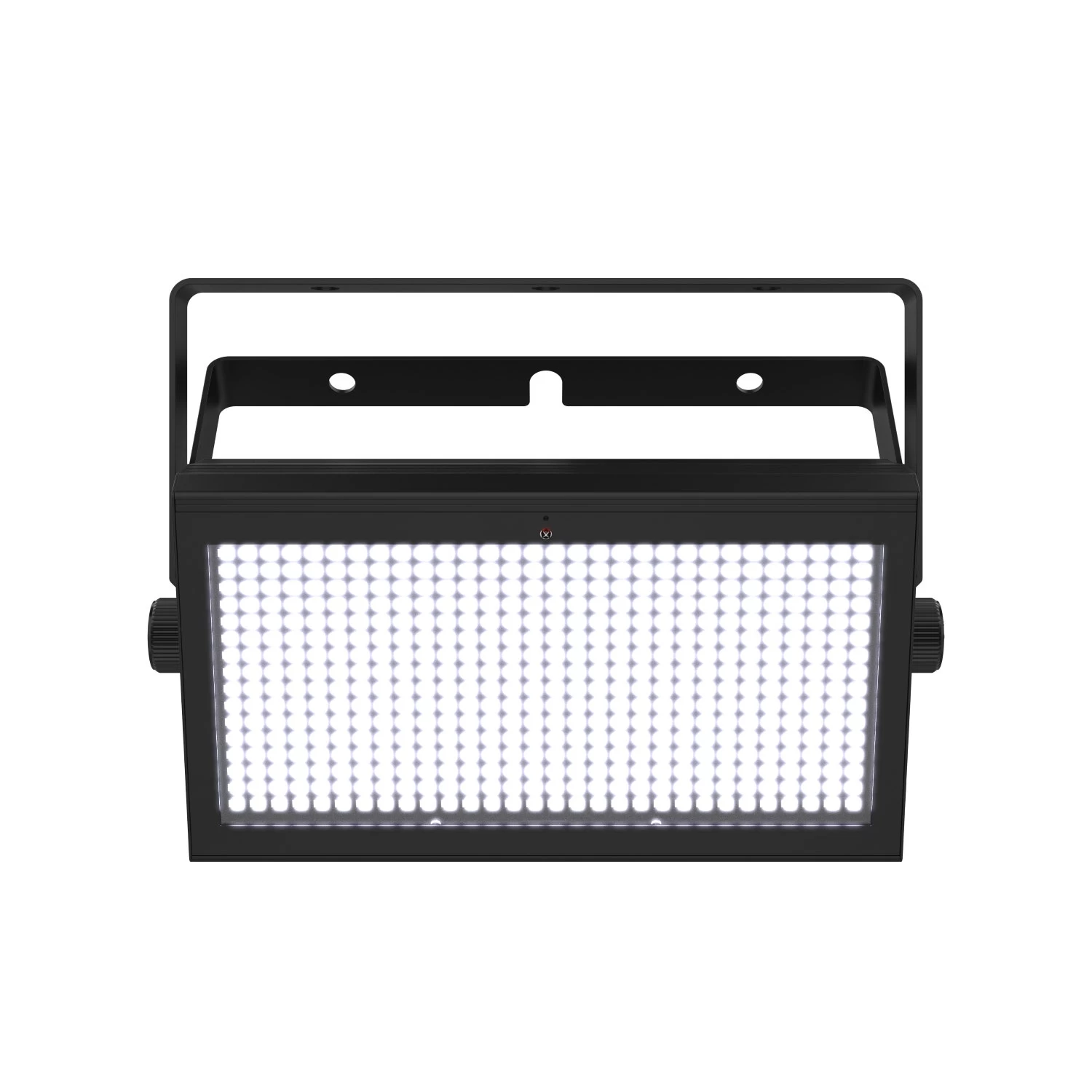

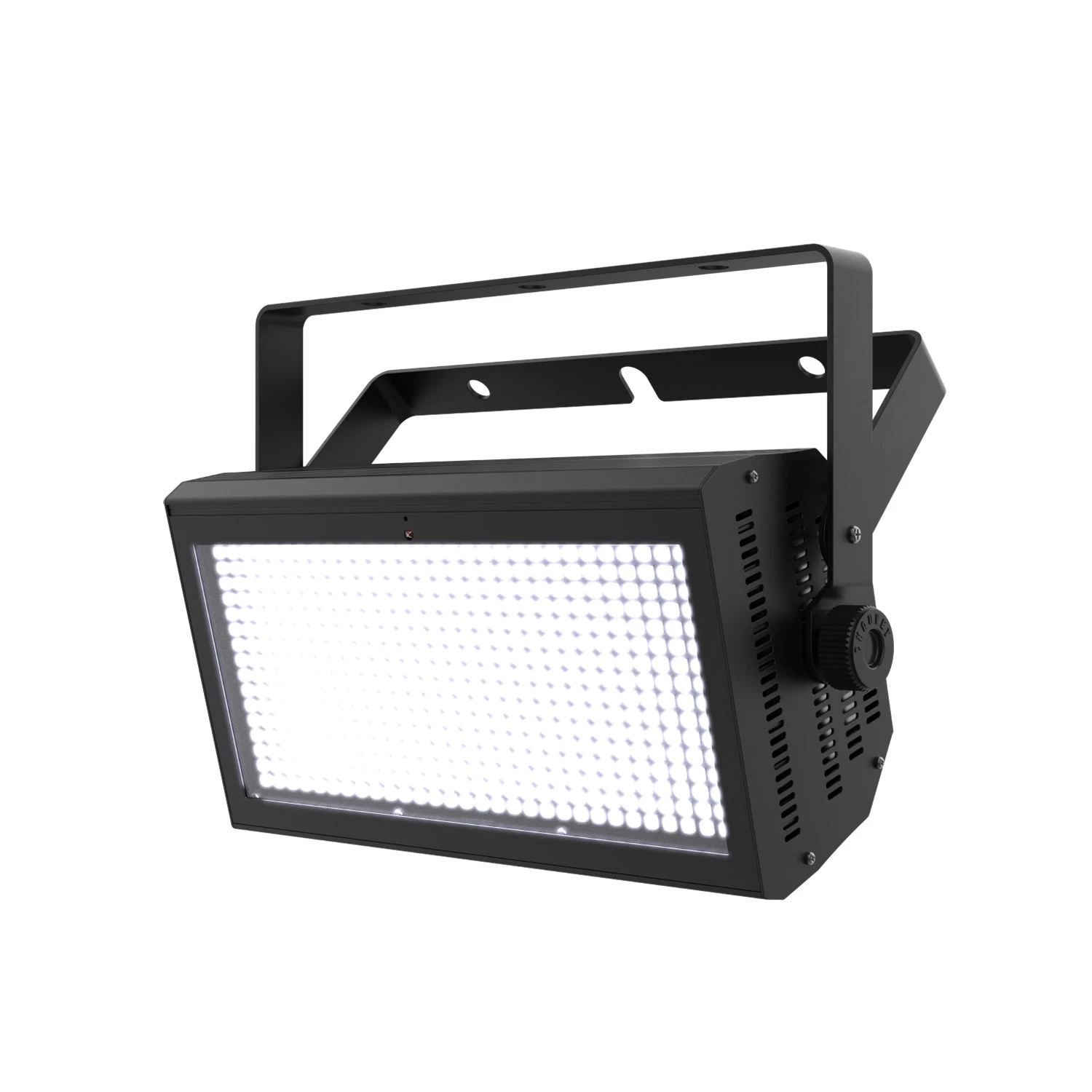

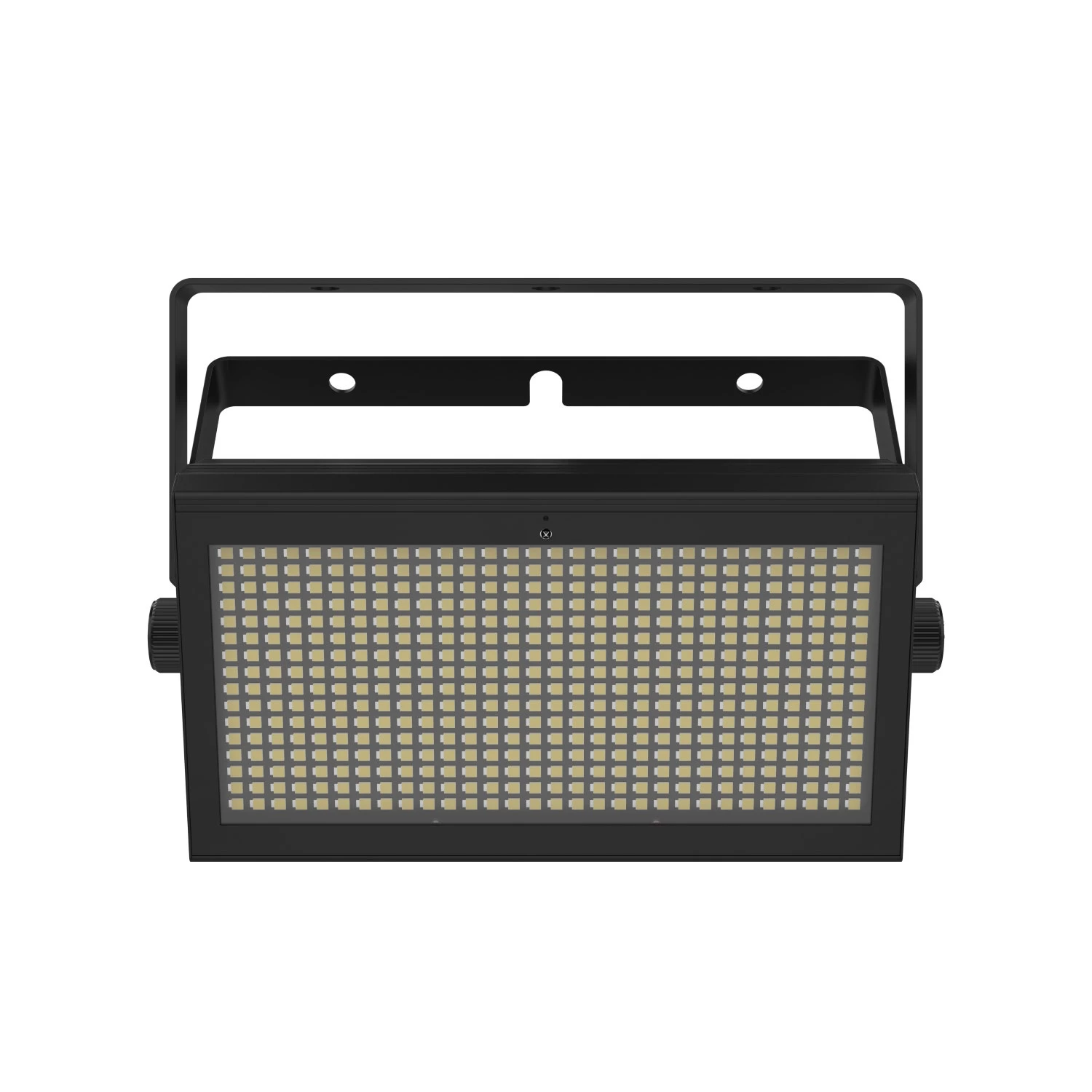

Chauvet Shocker Panel 480 Single-Zone Cool-White LED Blinder Light

Manufacturer’s Description

Shocker Panel 480

• Punchy, single-zone blinder with cool white SMD LEDs
• Rugged housing makes it ideal for mobile applications
• Trigger eye-catching strobe effects via the built-in display, DMX, or with the optional IRC6 remote

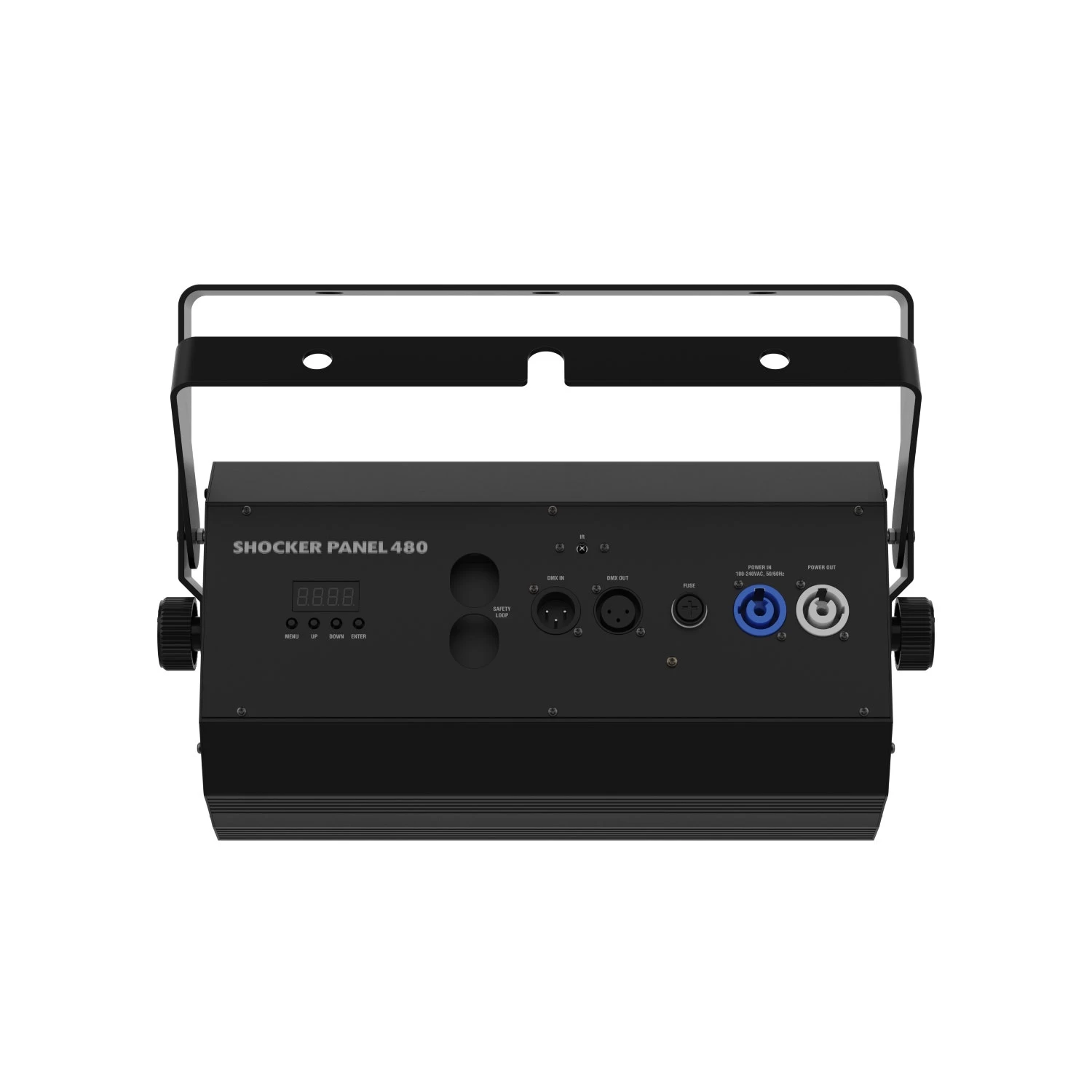

• powerCON®-compatible power input/output connections for power linking
• Save time running cables and extension cords by power linking multiple units
• Easily transports in the optional CHS-25 VIP gear bag

Specifications

• DMX Channels: 4
• DMX Connectors: 3-pin XLR
• Light Source: 480 SMD LEDs (cool white) 0.7 W (236 mA), 50,000 hours life expectancy
• Strobe Rate: 0 to 28 Hz
• PWM Frequency: 4,000 Hz
• Beam Angle: 111°
• Field Angle: 155°
• Illuminance: 1,348 lux @ 2 m
• Lumens: 14,974
• Color Temperature: 7000 K
• Power Linking: 5 units @ 120 V; 9 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 208 W, 2.7 A @ 120 V, 60 Hz
• Power and Current: 200 W, 1.5 A @ 230 V, 50 Hz
• Bracket Mounting Hole: 13 mm
• Weight: 9.4 lb (4.3 kg)
• Size: 13.1 x 4.5 x 6.7 in (332 x 115 x 170 mm)
• Optional Controllers: IRC6
• Approvals: CE, UKCA
