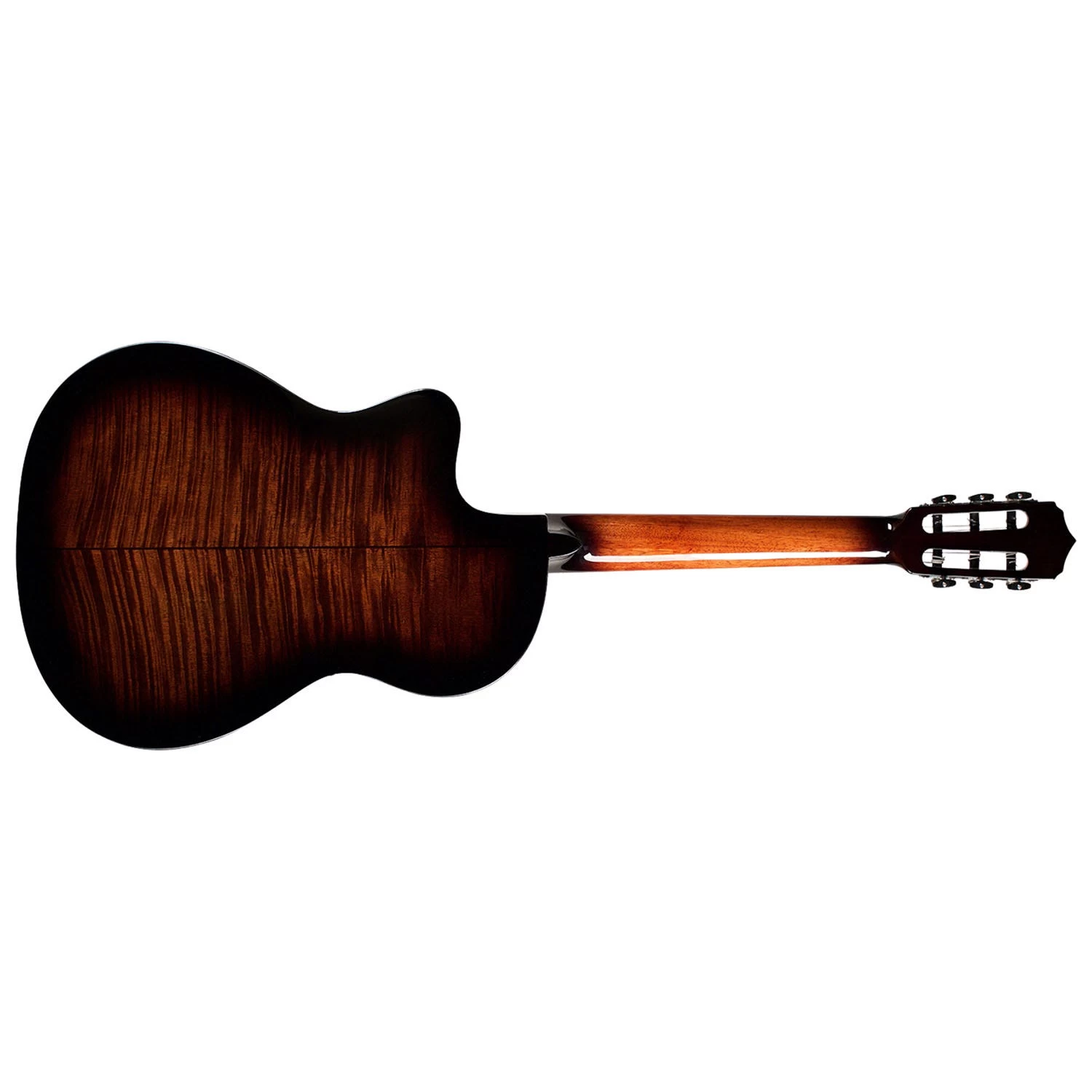

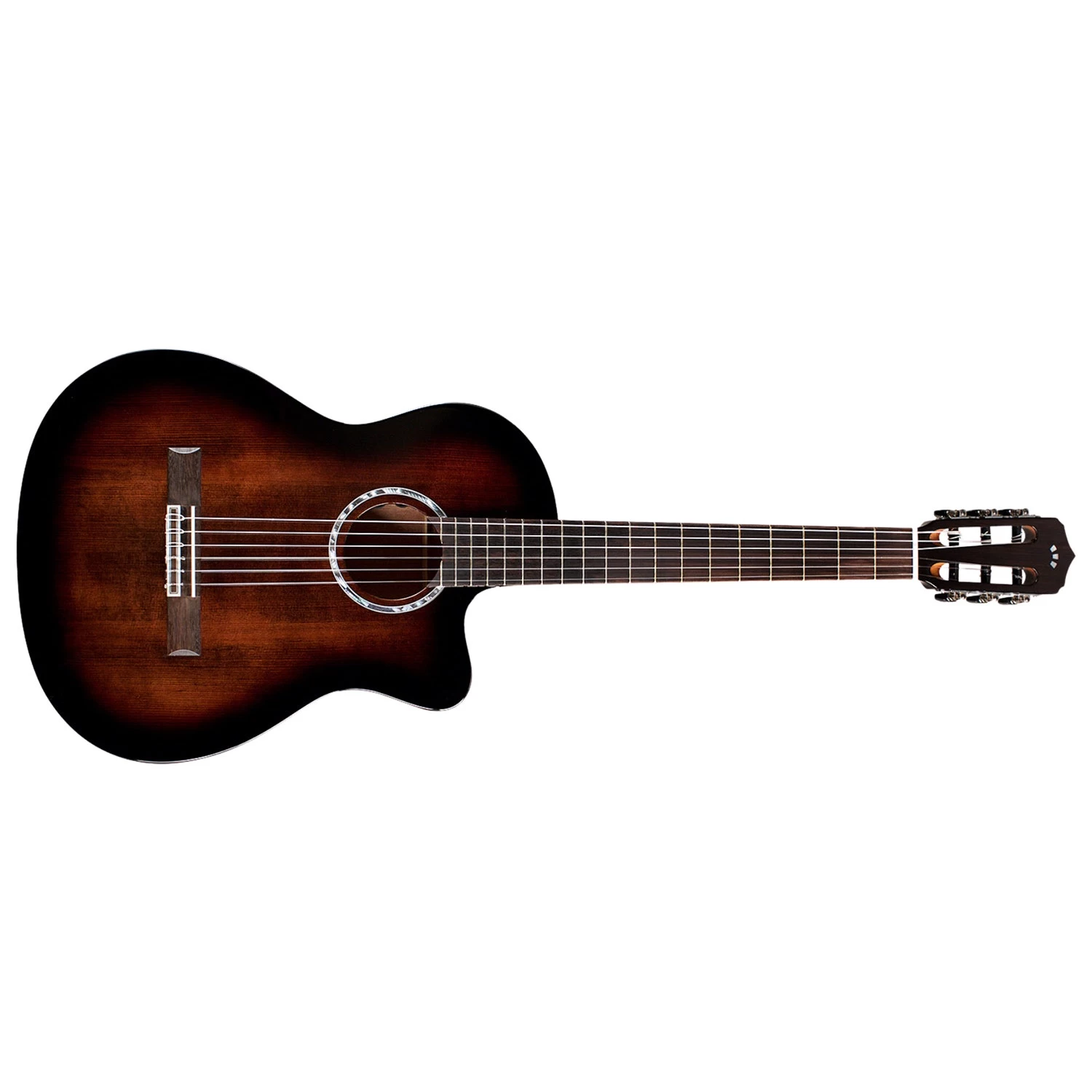

Cordoba Fusion 5 Sonata Burst Acoustic Electric Classical Guitar, Solid Spruce Top (B-STOCK)

Manufacturer’s Description

Córdoba’s entry into the fusion line! The perfect choice to transition from a steel string to a nylon guitar, the Córdoba Fusion 5 features a solid spruce top, mahogany back and sides, a full body with cutaway for extended playing range, side dot fret position markers, and a pearl decal rosette and arches. The fusion neck with a 16” radius fretboard and smaller, 1 7/8” (48mm) nut width provides a playing experience very close to that of a steel string guitar. This familiarity offers an easy transition for steel string players and players with smaller hands to the world of nylon string guitar. Added side dot markers also depart from traditional nylon string guitar construction, providing players reference for their position on the fretboard. Equipped with the Fishman Sonitone Pickup System, the Fusion 5 is ready to plug in and play. Available in Gloss Natural and Jet-Black finish with mahogany back and sides and Gloss Sonata Burst with elegant flamed mahogany back and sides.

Specifications

• psid: 4
• Replacement Tuning Machine – Bass: ACCORTM-05683 – Cordoba Tuner Honeycomb NKL w/EB OV BTN Bass
  pcid: 1
• Tuning Machines Vendor & Model: Der Jung DJ206CK-P12 (S3)
• Tuning Machine Ratio: 14:1
• Tuning Machine Buttons: Black
• Electronics Vendor & Model: Fishman OEM-SON-CL4
• Pickup Type: Undersaddle Piezo
• Middle Pickup: N / A
• Battery Pack: Battery Pouch – 9V
• Battery Pack Installation Location: Lower Bout Treble Side
• Waist Width: 248mm (9 3/4″)
• Target Instrument Weight: 3 lbs / 1.4 kg
• Number of Strings: 6
• Tuning: E-A-D-G-B-E
• Replacement Tuning Machine – Treble: ACCORTM-05682 – Cordoba Tuner Honeycomb NKL w/EB OV BTN Treble
• Replacement Tuning Machine Button: N / A
• Headstock Logo: Cordoba Arches Logo – Pearl Style Decal
• Replacement Output Jack: N / A
• Compatible Gig Bag 1: ACCASIB-03543 – Cordoba Deluxe Gig Bag Classical Full Size
• Compatible Case 3: ACCORGB-03780 – Cordoba Polyfoam Case Classical Full Size
• Compatible Case 2: 03754 – Cordoba Humidified Archtop Wood Case CL/FL Full Size Brown
• Compatible Case 1: ACHUMPR-04072 – HumiCase Protégé Classical
• Replacement Gig Bag: N / A
• Replacement Case: N / A
• Replacement Battery Box & Output Jack: 05013 – Cordoba Pickup Part Fishman Battery Box Output Jack Unit
• Replacement Truss Rod Cover: N / A
• Replacement Pickup & Preamp System: ACFISHM-05065 – Cordoba Pickup Fishman Sonitone Complete
• Replacement Saddle: 01066 – Cordoba Saddle Bone 6 String Guitar Radiused 80mm x 3mm
• Replacement Bridge Pins: N / A
• Replacement Pickguard: N / A
• Replacement Nut: 01053 – Cordoba Nut Bone 6 String Guitar 48mm x 5mm
• Replacement Truss Rod Wrench: 008-0000-001 – Truss Rod Wrench 4mm Allen Key
• Fret Dimensions: 2.0mm (W) x 1.1mm (H)
• Compatible Gig Bag 2: ACCORGB-03750 – Cordoba Standard Gig Bag Full Size
• Headplate: Pau Ferro
• Frets to Body: 12
• Shipper Carton Dimensions: 104 x 47 x 14 (cm) – Cordoba Guitar Triangle Box (No Case)
• Does it contain shell?: No
• Exclusive: No
• Soundboard Thickness: 2.8 – 3.0 mm
• Top Purfling Pattern & Dimensions: N / A
• Side Purfling Inlay Pattern & Dimensions: N / A
• Back Center Strip: Composite
• Back Bracing: Ladder Bracing
• Back Binding: Composite
• Neck Construction: Traditional 3 Piece Neck
• Neck Joint: Dovetail
• Back Purfling Inlay Pattern & Dimensions: N / A
• Family: Cutaway & Electric
• Build: Fusion
• Construction: Solid Top
• Body Top: Solid Spruce
• Top Bracing Pattern: Fan
• Soundhole Diameter: 84mm (3.3″)
• Rosette: Pearl Style Decal
• Top Binding: Composite
• Side Purfling Inlay: N / A
• Back and Sides Wood: Flamed Mahogany
• Back Purfling Inlay: N / A
• Neck Material: Mahogany
• Scale Length: 650mm (25.6″)
• Neck Shape: C Shape
• Nut Width: 48mm (1 7/8″)
• Neck Thickness 1st Fret: 21mm
• Neck Thickness 9th Fret: 24mm
• Truss Rod: Dual Action
• Truss Rod Wrench: 4mm Allen Key
• Fingerboard Material: Pau Ferro
• Fingerboard Inlays: N / A
• Frets Total: 19
• Color: Sonata Burst (SNB)
• Finish: Gloss Polyurethane
• Bridge Material: Pau Ferro
• Saddle Material: Bone
• Nut Material: Bone
• Tuning Machines: Cordoba Silver with Black Buttons
• Tap Plate: N / A
• Electronics: Fishman Sonitone Classical
• Controls: Master Volume and Tone
• Strings: Savarez Cristal Corum High Tension 500CJ
• Upper Bout Width: 292mm (11 1/2″)
• Lower Bout Width: 371mm (14 5/8″)
• Body Depth Upper Bout: 95mm (3 3/4″)
• Body Depth Lower Bout: 100mm (4″)
• Body Length: 489mm (19 1/4″)
• Overall Length: 984mm (38 3/4″)
• Country of Origin: China

Overall Condition

This is a New B-Stock Guitar with the original box and paperwork. Cordoba is very picky on its product quality, a little discolored tiny spot or blemish or little finish run on the finish of the guitar. A lot of times we can’t even tell what is the difference between these and the A-stock guitars, but despite any blemishes, they sound, feel, and look amazing!

note: The photos above may not be of the exact item you’ll receive. The serial number may differ but specs will all be the same. Please feel free to get in touch with us for an in-hand description.

Our in-house guitar tech will inspect, test, set up, and clean all of our instruments on site prior to shipping. All of our instruments are guaranteed to be fully functional upon arrival.
