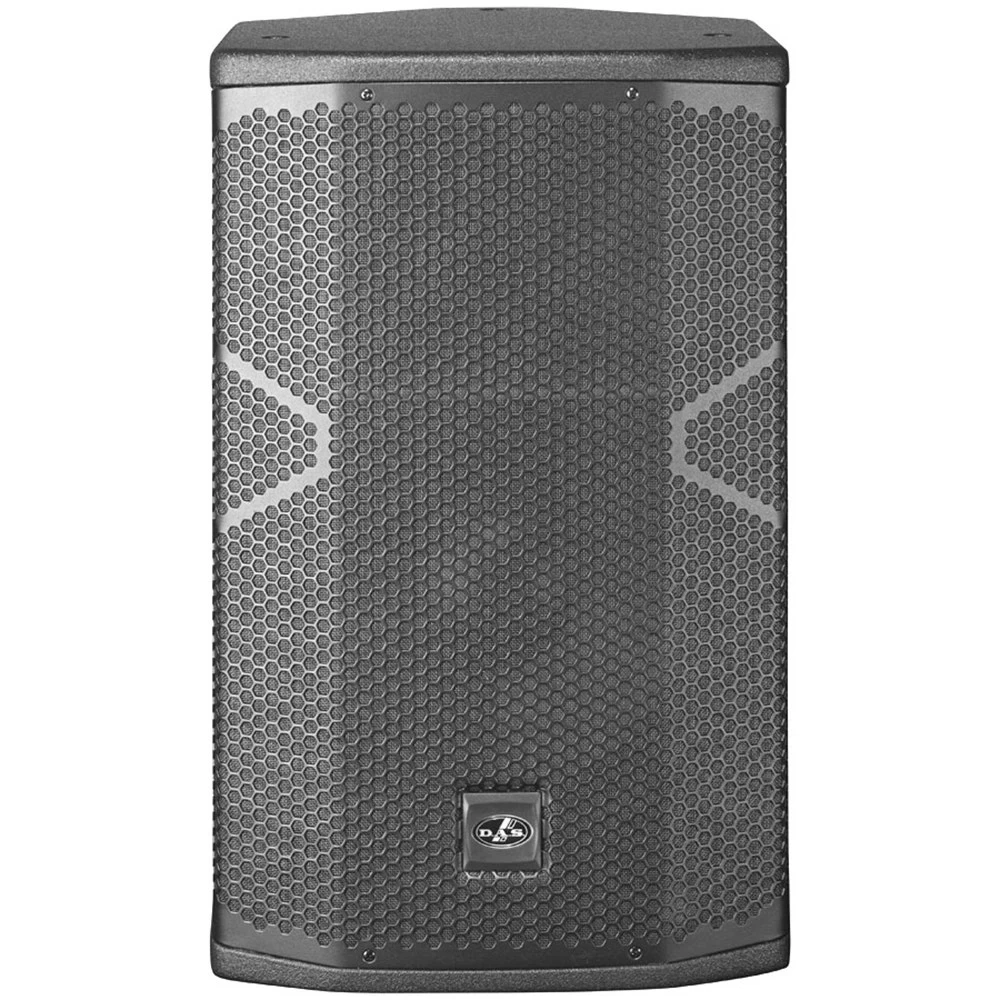

D.A.S. Audio VANTEC 12A 12″ 1500W Active Bi-Amped 2-Way Speaker

Amplifier Power	1500W peak Clase D, Bi amplified
Frequency Range (-10 dB)	60 Hz – 20 kHz
Rated Peak SPL at 1 m	135 dB
Dispersion	90º x 50º
Enclosure Material	Birch Plywood
Color/Finish	Black ISO-flex Paint
Connectors	INPUT: 2 x Female XLR LOOP THRU: 1 x Male XLR AUX: 1 x 3.5 mm (1/8
AC Requirements	115 V, 50 Hz/60 Hz 230 V, 50 Hz/60 Hz
Dimensions (H x W x D)	61 x 38 x 37.5 cm 24 x 15 x 14.8 in
Weight	21 kg (46.2 lb)





Manufacturer’s Description

D.A.S. Audio VANTEC-12A 12″ 1500W Active Bi-Amped 2-Way Speaker

The Vantec 12A is a powered portable system with a multi-angle enclosure that permits stage monitor applications as well as a compact P.A. system.

The 1500Wpeak power the Class D amplifier provides extended bandwidth, wide dynamic range and exceptionally low distortion-features hard to find on other systems in this market segment.

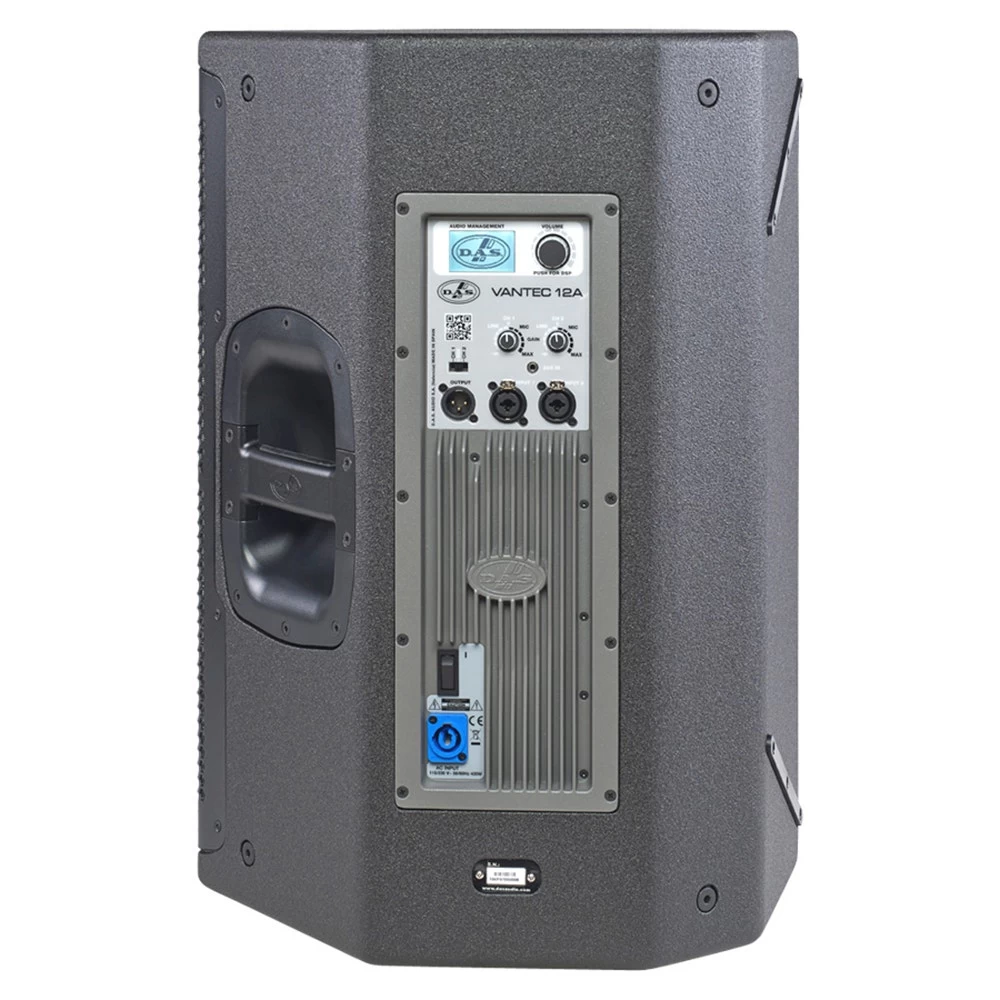

Digital Finite Impulse Response (FIR) filters are used in the signal processing of the powered Vantec systems. User configurable voicing, filter and EQ modes, and gain control are achieved by way of a rotary-knob interface and LCD screen on the rear of the cabinet. The Vantec series also  allows users to wirelessly stream music from any mobile device.

The 12F4 loudspeaker provides accurate low frequency reproduction. High frequencies are handled by the M-28 FEM optimized compression driver with 1″ exit offering excellent performance.



Features

• Compact multi-purpose system with monitor position
• Ultra light weight Class D amplifier with SMPS
• User definable 24-bit DSP with LCD screen
• Presets: Live, Dance, Vocals, Bass Boost, Vocals & Mode
• Stackable 3-band EQ
• High-Definition wireless streaming of music in stereo
• Pole mount socket with dual angles 0º/10º
• Rigging points
