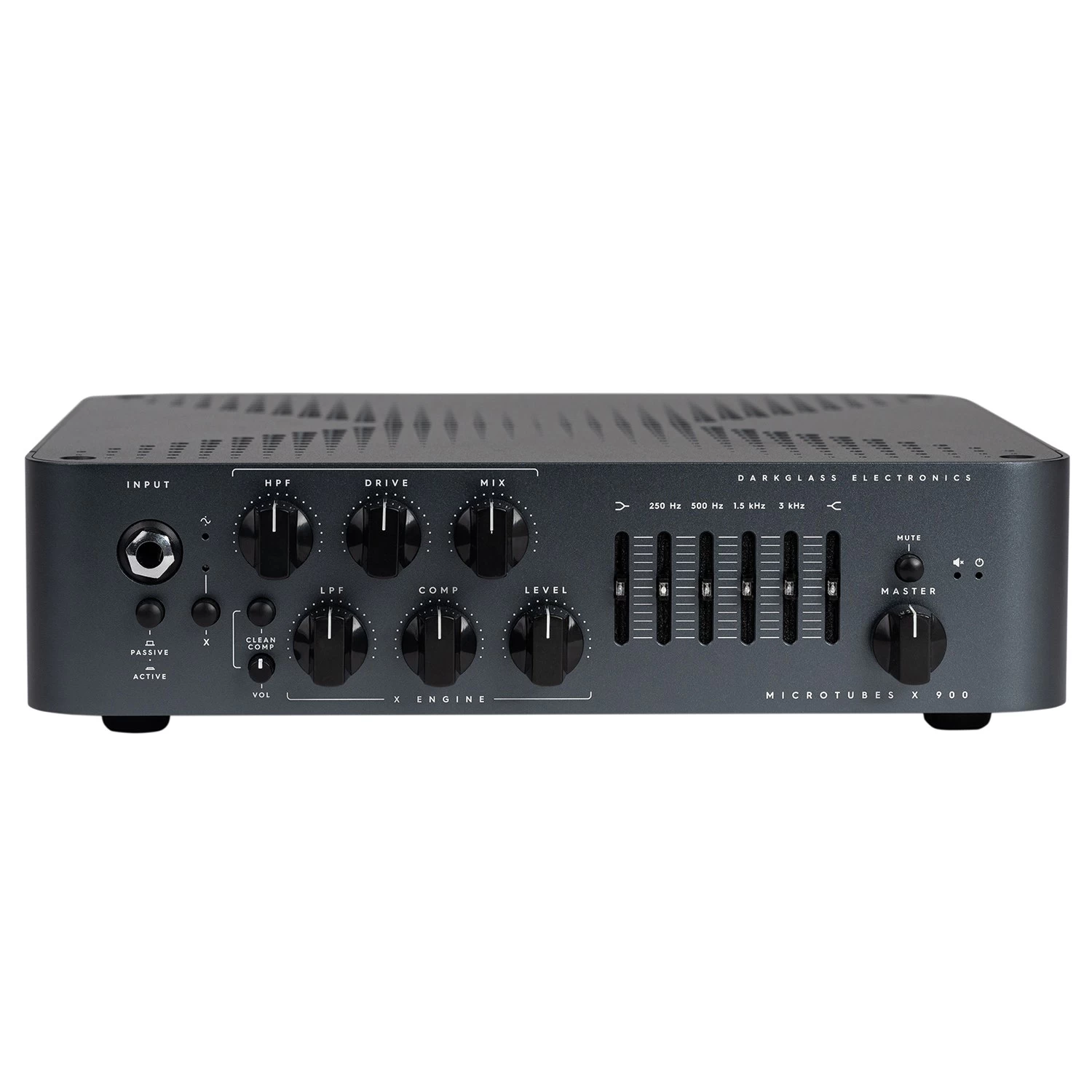

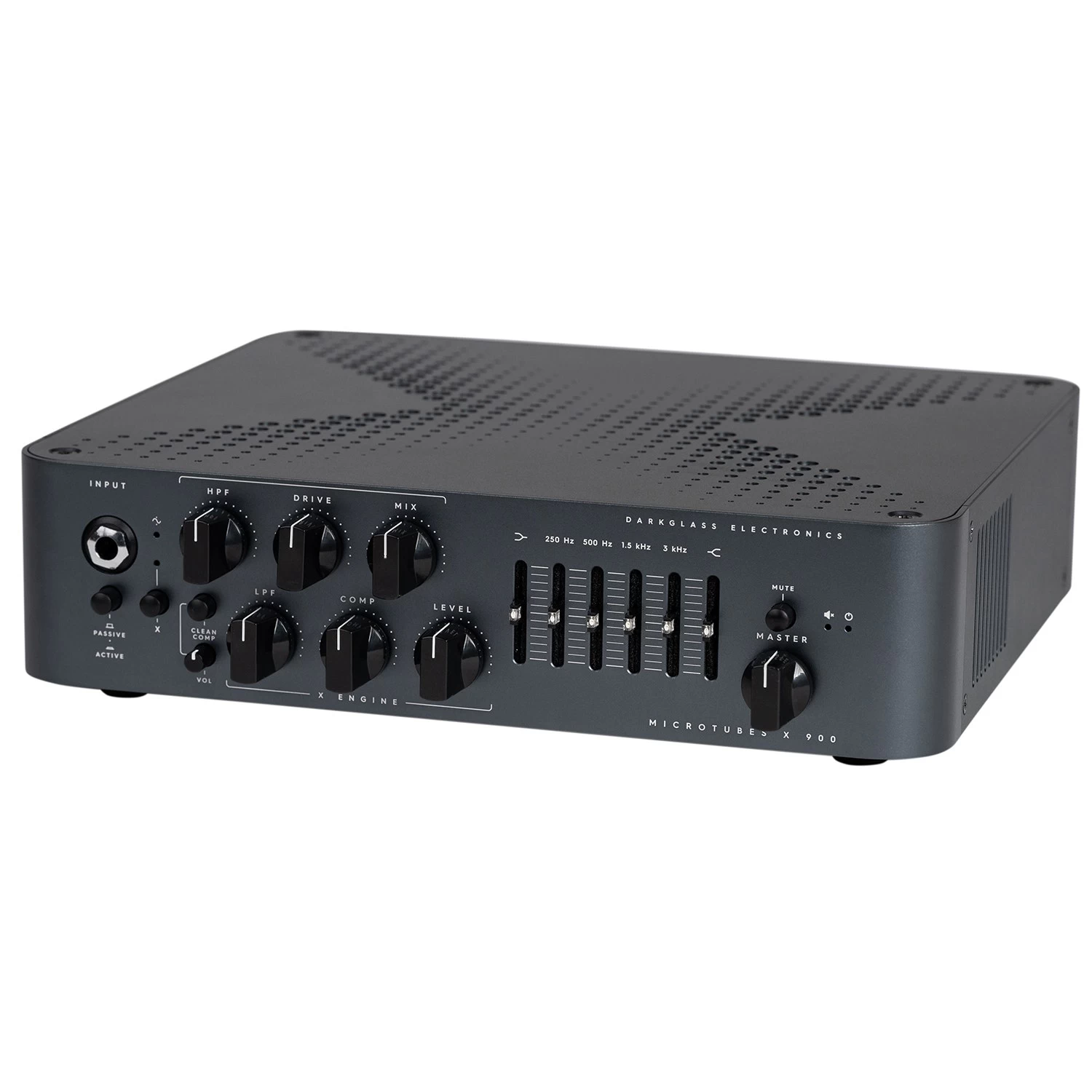

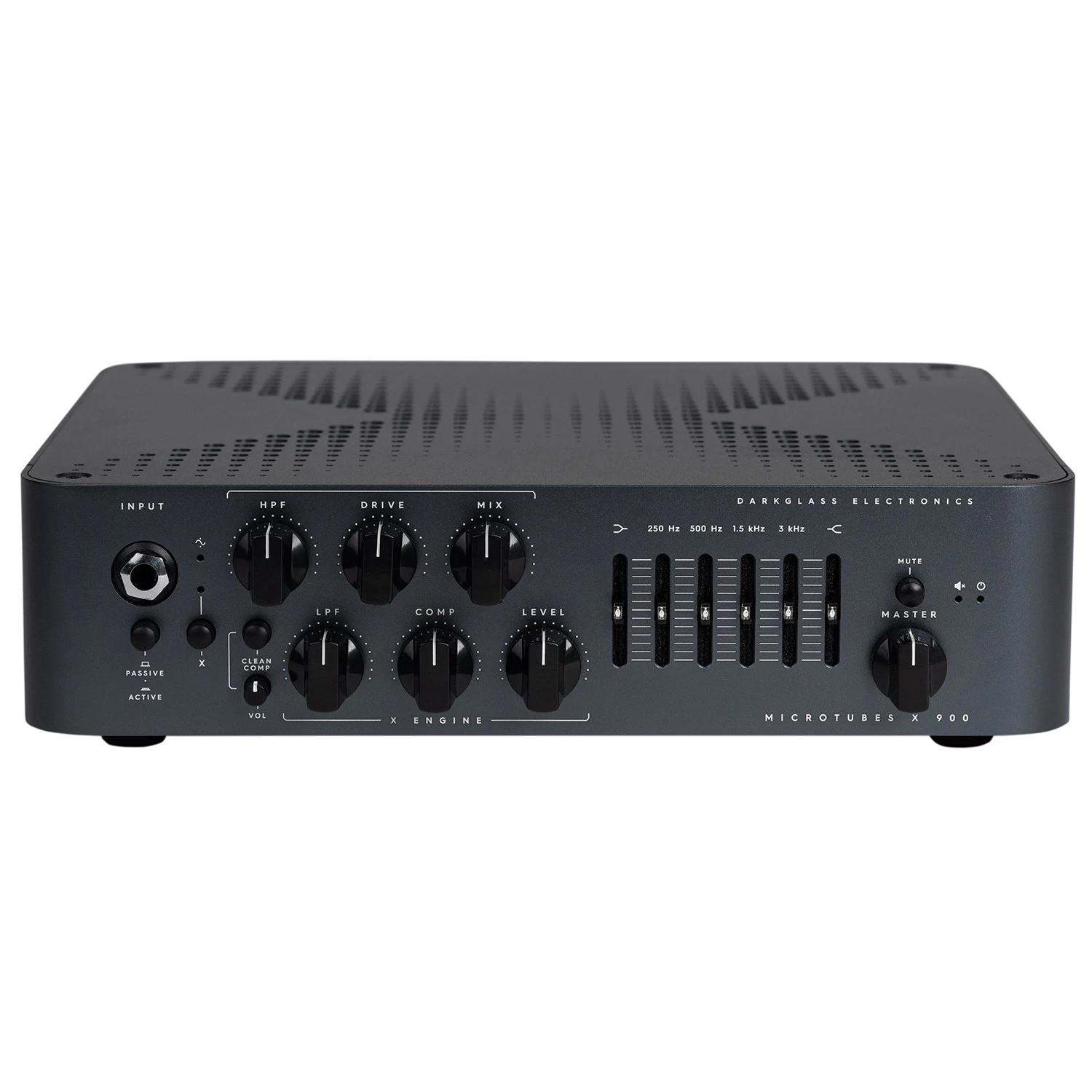

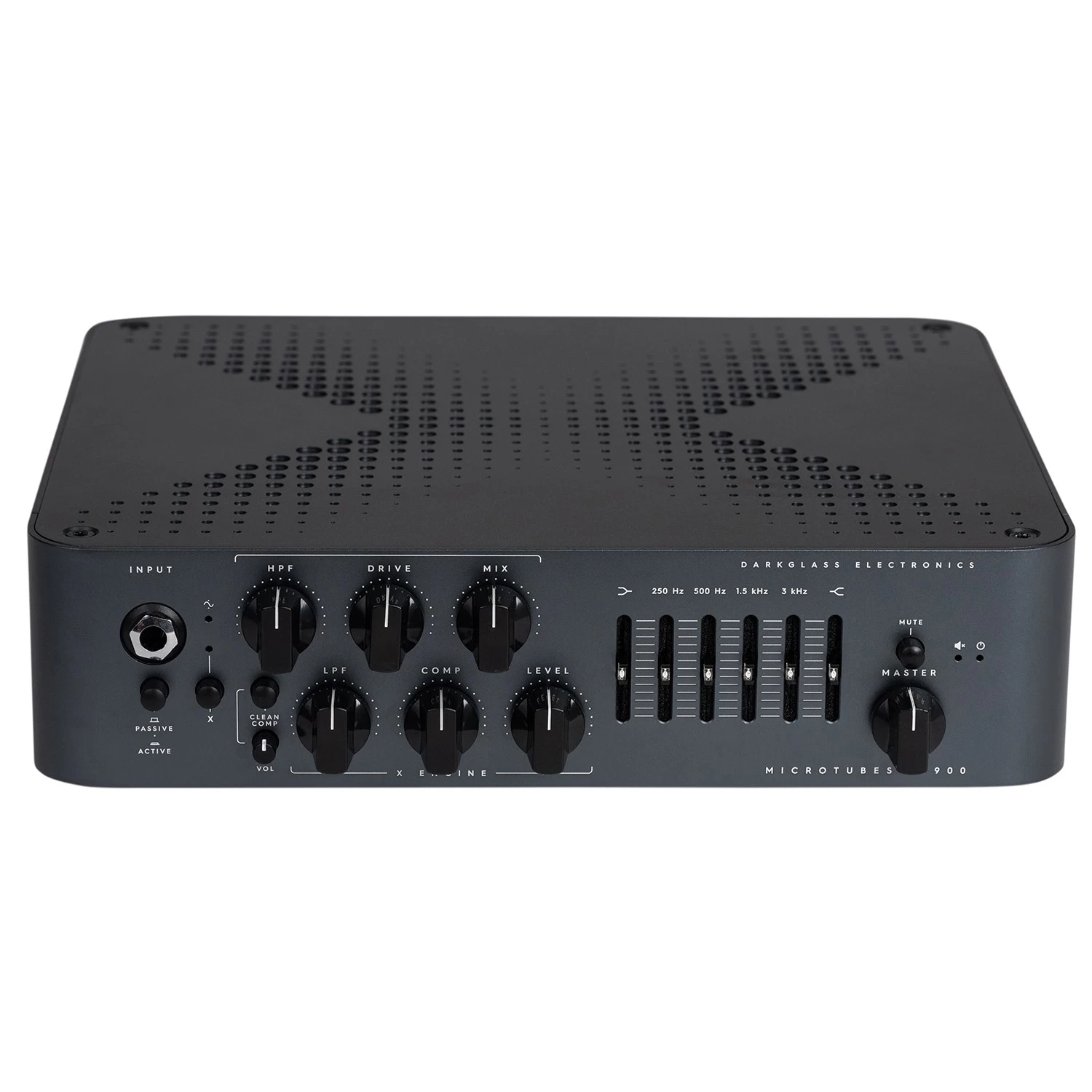

Darkglass Electronics X900 Limited Microtubes 900-Watt Bass Amp Head

Manufacturer’s Description

Uncompromised precision, utmost control.

A quest to be tackled relentlessly. Meticulously crafted with the target of achieving exceptional power with unprecedented precision, with no concessions or shortcuts.

We are proud to introduce the groundbreaking X900 amp. Designed after the revered X Series pedals, this amplifier sets a new standard for accuracy and control.

Packed with a Class D 900-watt amplifier and an ultra-quiet 6-band graphic equalizer that can sculpt the tone from aggressive and overdriven to crystal clear clean to suit everyone’s needs.

The X distortion circuit allows users to select exactly what frequencies they want to compress and saturate for the low and treble, respectively.

Featuring MIDI for channel switching, and muting programmability, impulse response cabinet simulation, with up to three different storable virtual cabinets, auxiliary input, and headphone output, offering unmatched versatility and control. A true companion on musical touring.

Controls

• Passive/Active: Use this push-button switch to change from passive to active mode.
• X: Use this push-button to turn on or off the Microtubes X Engine.
• Clean Comp: Use this push-button switch to activate the compressor circuit for the clean channel.
• Vol (Clean Comp): Sets the level of the clean channel when the compressor is engaged.
• HPF (High Pass Filter): Controls the cutoff frequency of the high pass filter which is applied before the clean signal is fed to the distortion circuit to be distorted.
• Drive: Sets the amount of distortion for the high pass side.
• Mix: Controls the blend between the compressed lows and the distorted highs.
• LPF (Low Pass Filter): Controls the cut-off frequency of the low pass filter which is applied before the clean signal is fed to the compression circuit to be mixed back to the high-pass side.
• Comp: Controls the amount of compression for the low band when Xis activated.
• Level: Sets the output volume of the X channel.
• Low shelf: +-12 dB @80 Hz.
• 250 Hz / 500 Hz / 1,5 kHz / 3 kHz: +-12dB.
• High shelf: +-12 dB @35 kHz.
• Master: Sets the overall volume of the unit.
• Mute: Use this push-button to mute the amplifier.

Specifications

• Input Impedance: 1.1 MO
• Minimum Load Impedance: 2.5 O
• Maximum Power Output: 900 WRMS @4 O (1 kHz full blast, 2 min. max) 20%THD, 450 WRMS v@ 😯
• Power Amp Input (Return) Impedance: 100 kO
• Power Amp Input (Return) Level: 2Vrms (max before 1% THD)
• Pre-Amp Output (Send)Impedance: 1 kO
• Pre-Amp Output (Send) Level (max): 2.2 Vrms (max before 1% THD)
• Maximum Power Consumption: approx. 700 VA
• Cooling: Forced-air cooled
• AC Input Power: 100-250 VAC
• AC Frequency: 50/60 Hz
