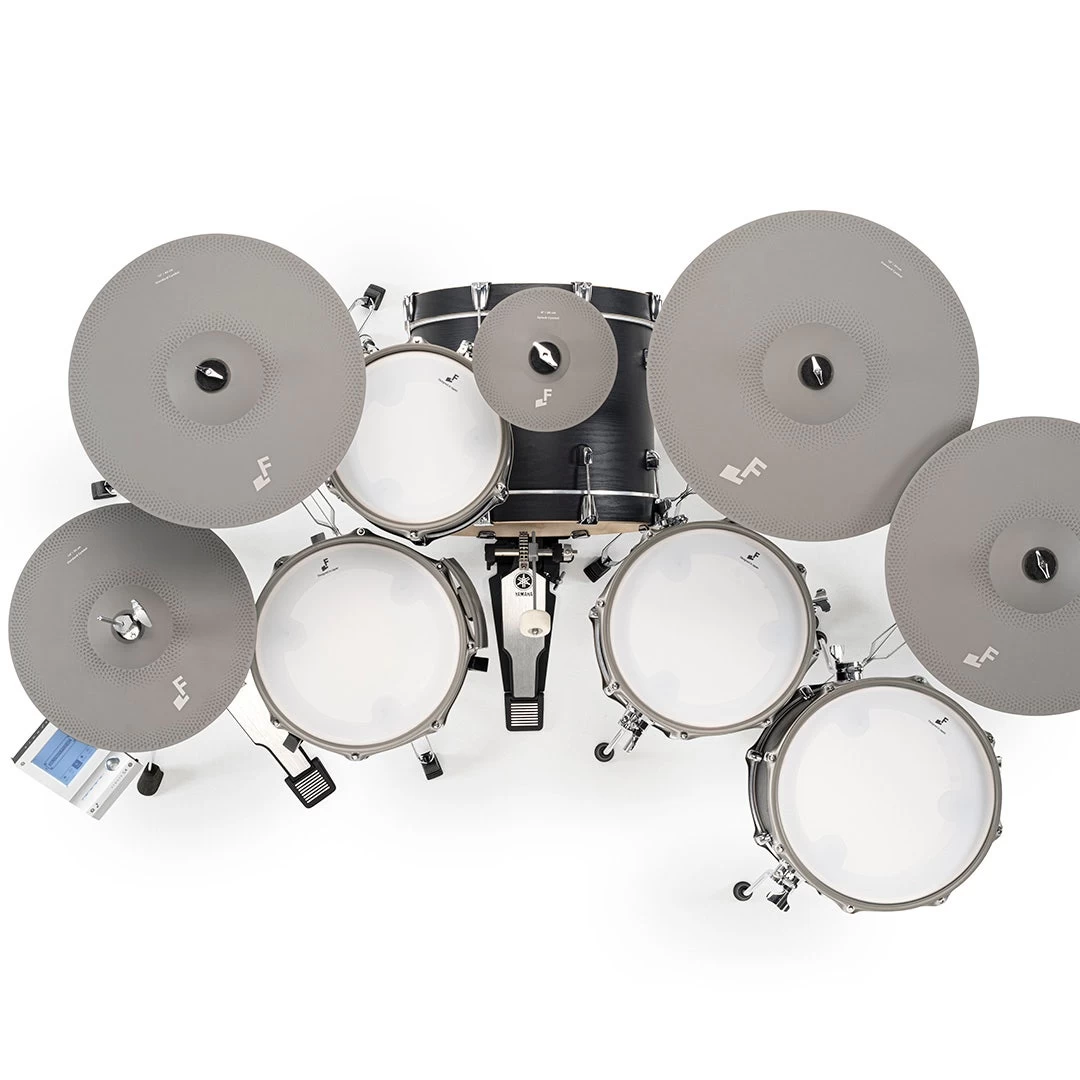

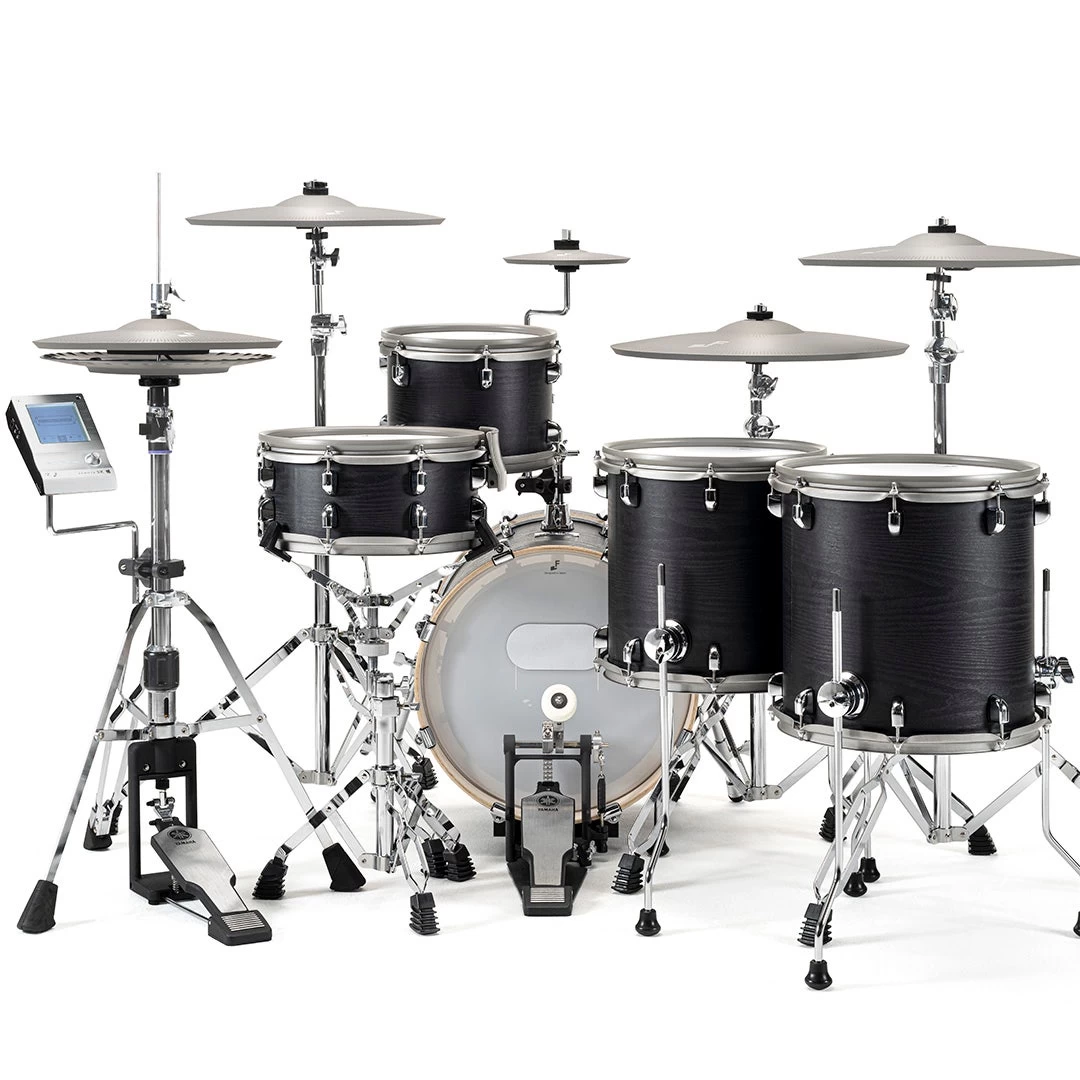

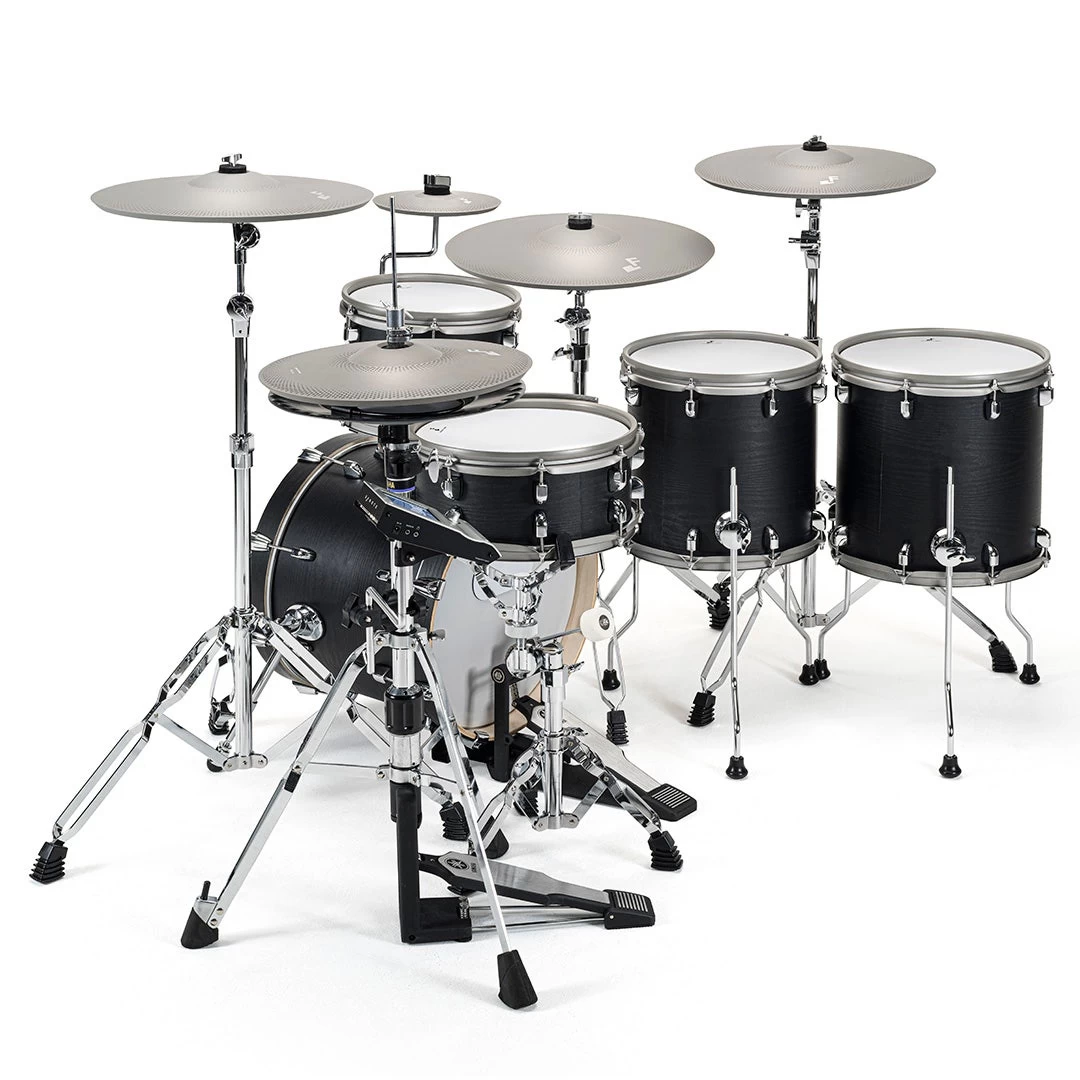

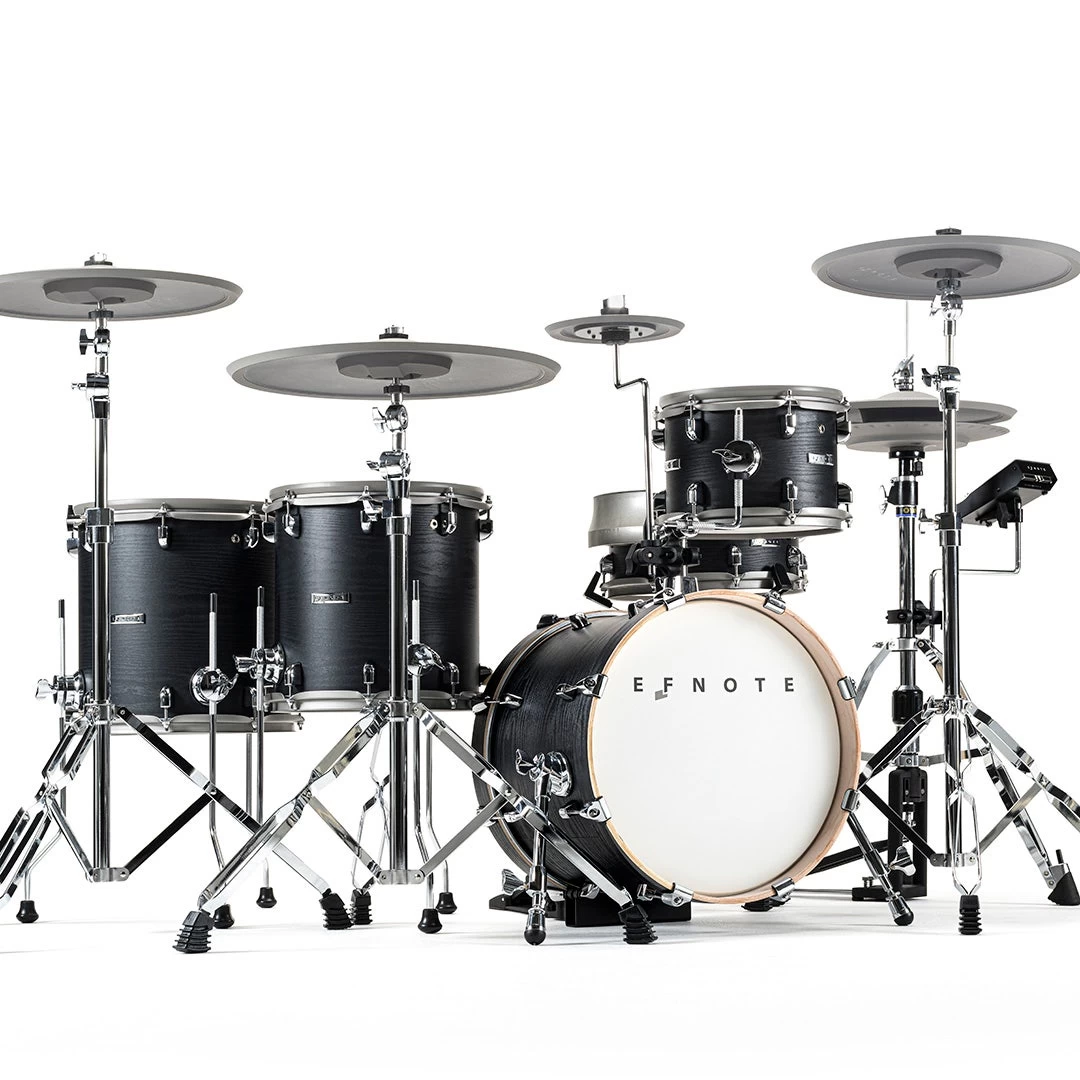

EFNOTE 5X 10-Piece Electronic Drum Set W/ Full Sized Shells, Black Matte Finish

Manufacturer’s Description

*Stands sold separately

*This drum set ships directly from EFNOTE to your door, please allow 24-72 hours extra processing time.

Unparalleled Compact

The EFNOTE 5X offers a complete playing experience with:

• Beautiful sound
• Perfect playability
• Musical width and depth
• Presence and elegance

Authentic Modern Vintage

While following the stylistic beauty of acoustic drums, the volume and presence of shells with black matte finish captivates your audience.

The 2nd floor tom and 2nd crash cymbal have been expanded to support the wide variety of contemporary music genres.

Full-Scale Beautiful Sound

Despite its downsized looks, the EFNOTE 5X provides full-scale acoustic drum sound thanks to the Tru-Aco™ sound technology.

Perfect Playability

The ELISE™ sensing processor is newly developed for low latency, wide dynamic-range, consistent and stable sensing.

Combining a pleasing physical touch with the best sensing performance, the EFNOTE 5X offers great playability.

Capture Your Delicate Touches

All drum/cymbal/hi-hat pads come with multi-sensor which provides consistent and stable sensing. Capturing drummer’s intentions from every and each stroke.

3-Zone Snare Drum and 2-Zone Toms

• 3-zone snare drum (head/rim/side-rim) and 2-zone toms (head/rim)
• Hot-spot-less sensing with multi-sensor
• Double-layered mesh drum head
• Durable “”warm-gray”” colored hoop rubber
• Birch 6-ply wood shell
• 12×5″” Snare, 10×7″” Rack tom, 13×13″” and 12×12″” Floor toms

Snare Side-Rim

• Easy to play side-sticks
• Accurate sensing
• Low acoustic noise
• No need to switch a function between rim-shot and side-sticks

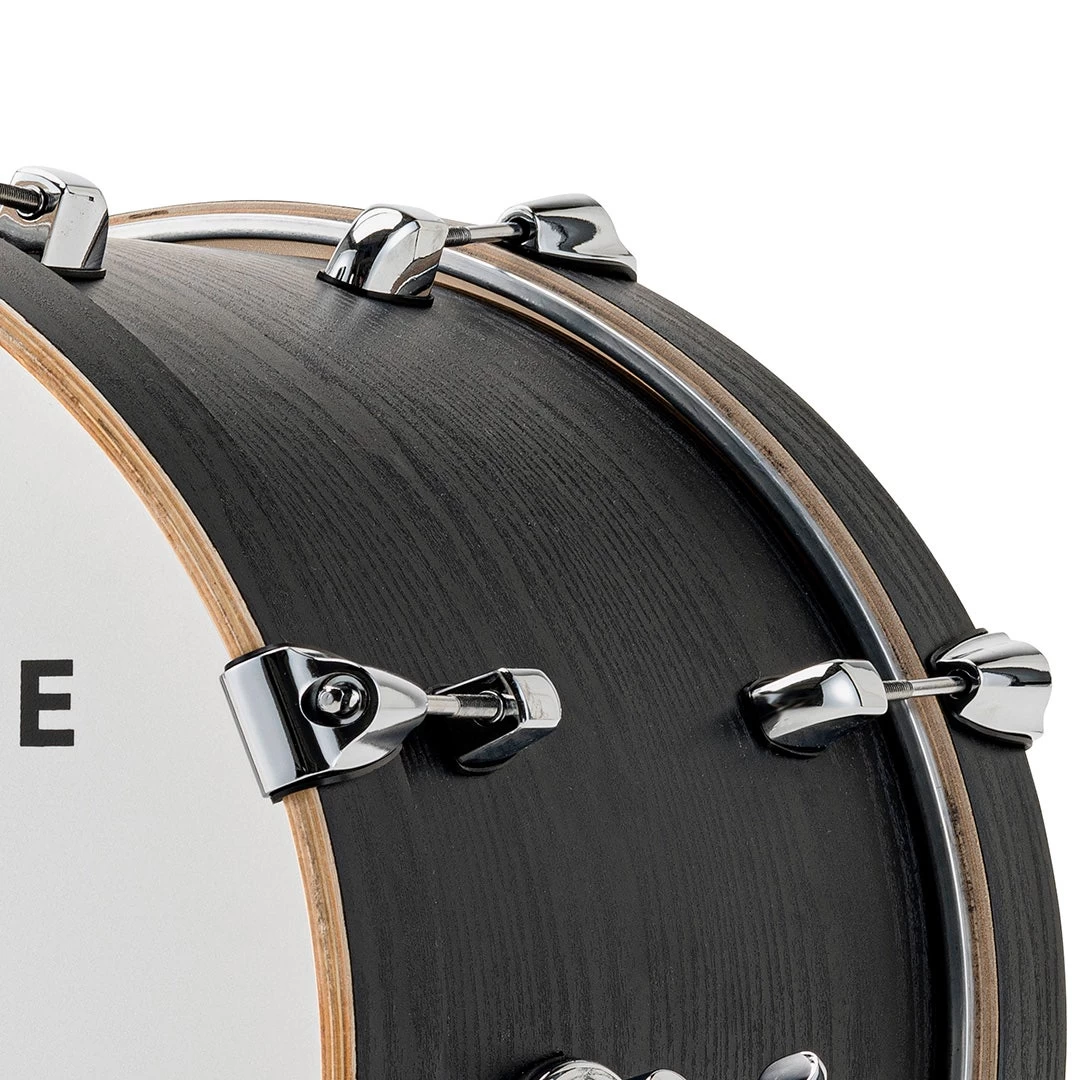

Solid and Stable Kick

• Voluminous shell with mesh drum head to catch powerful kicks
• Dual-sensor stable sensing for single/double beater(s)
• Storable and sturdy spars with rubber/spike tips
• 16×12″” birch 6-ply wood shell
• Real wood hoops
• Metal tom mount

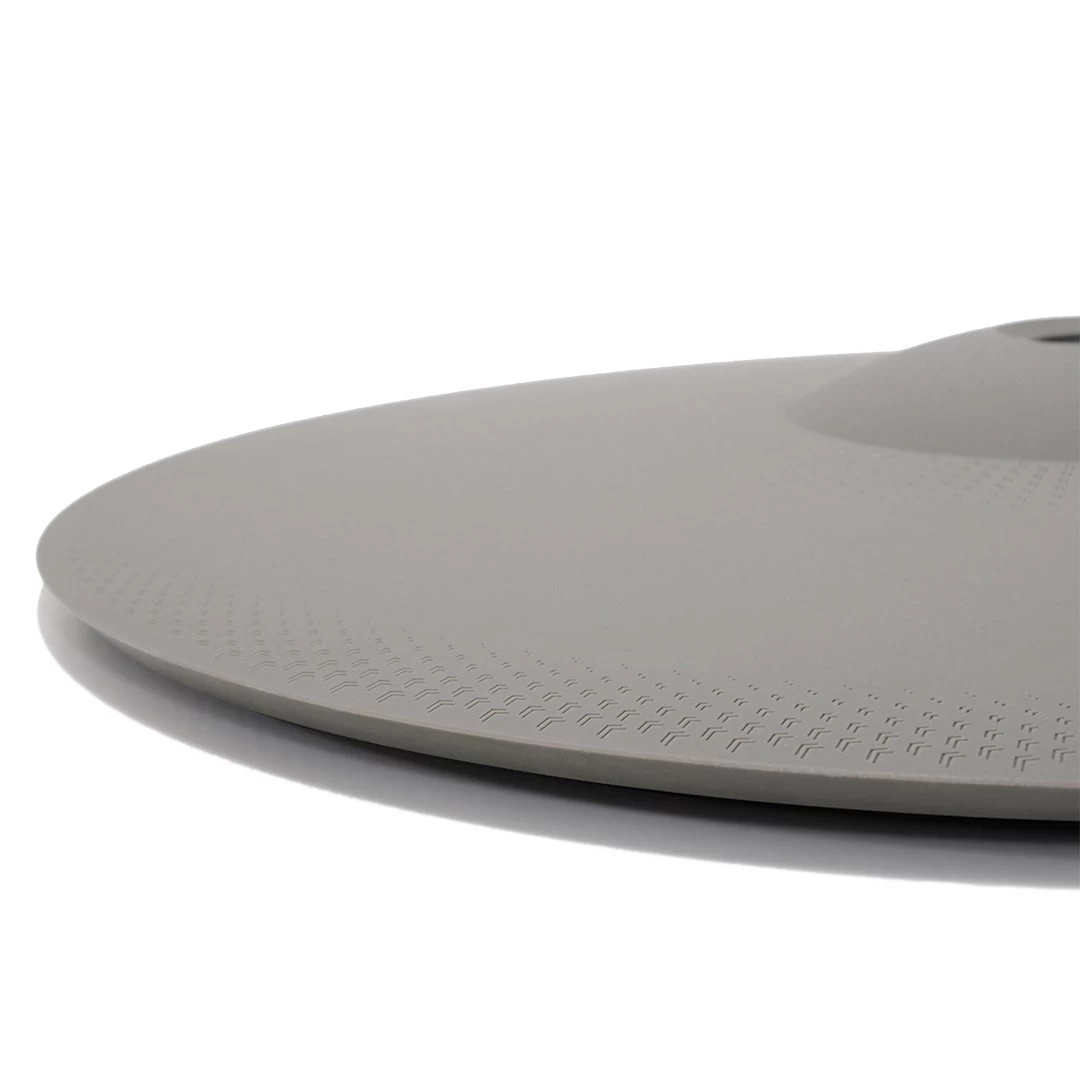

3-Zone Crash / Ride Cymbals

• Elegant “”warm-gray”” colored cymbals

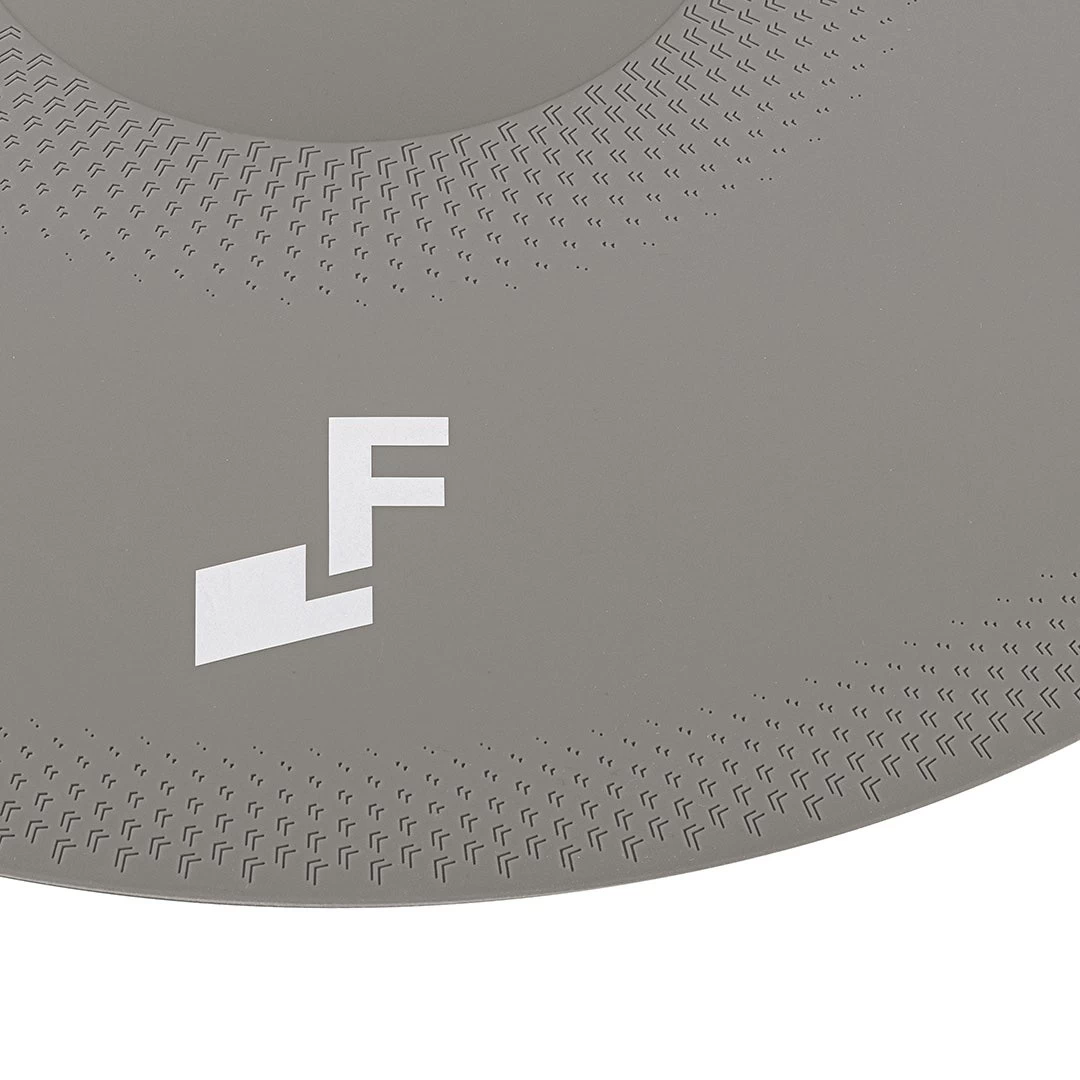

• Fine engraved surface
• Weight simulation with thin edge for appropriate striking feel
• 360° flat sensing with multi-sensor
• 360° choke supported
• Full 3-zone Crash/Ride cymbals (bow/edge/cup)
• 2x 16″” Crash and 1x 18″” Ride

* EFNOTE 5X does not support the Crash 2 cup when the Crash 3 is used.

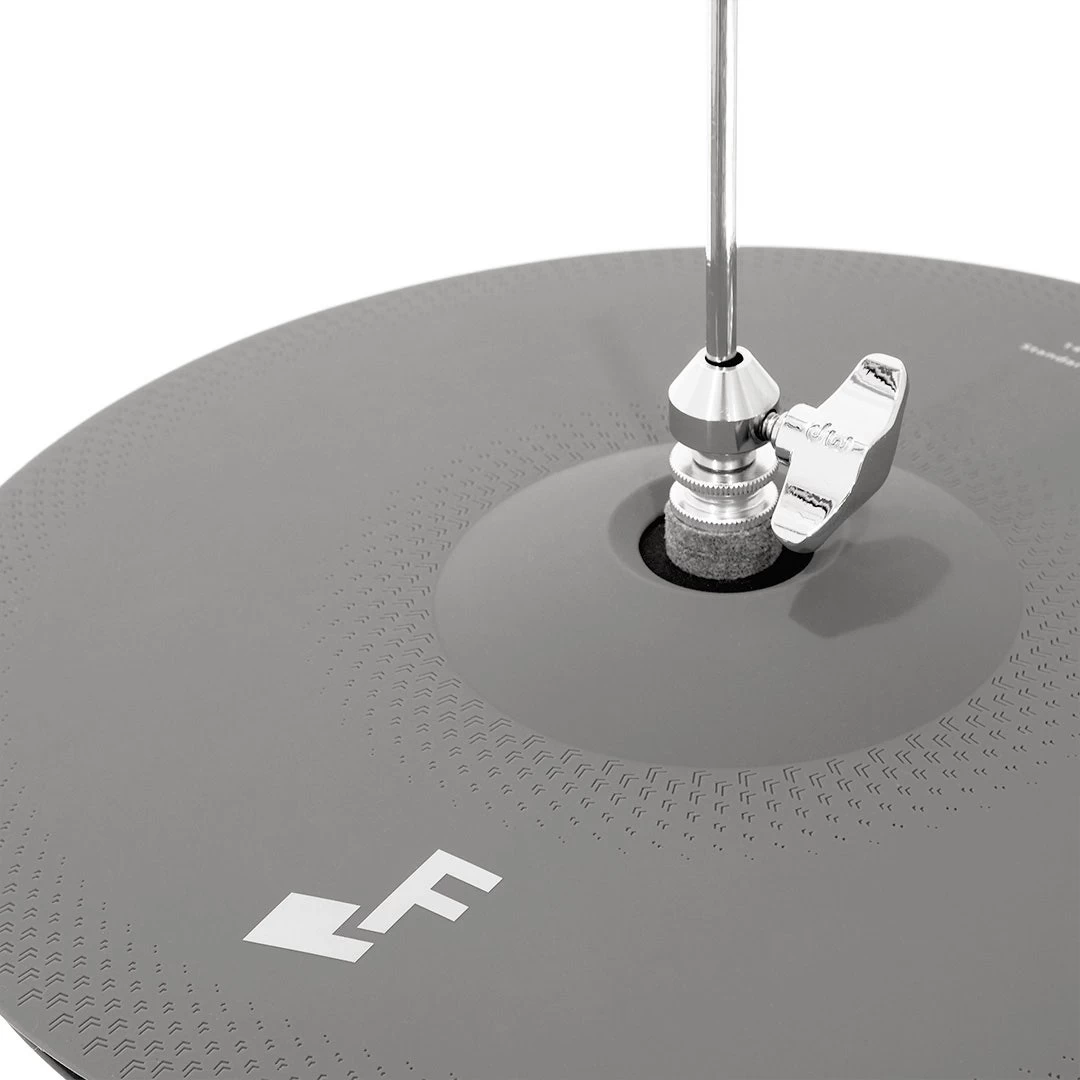

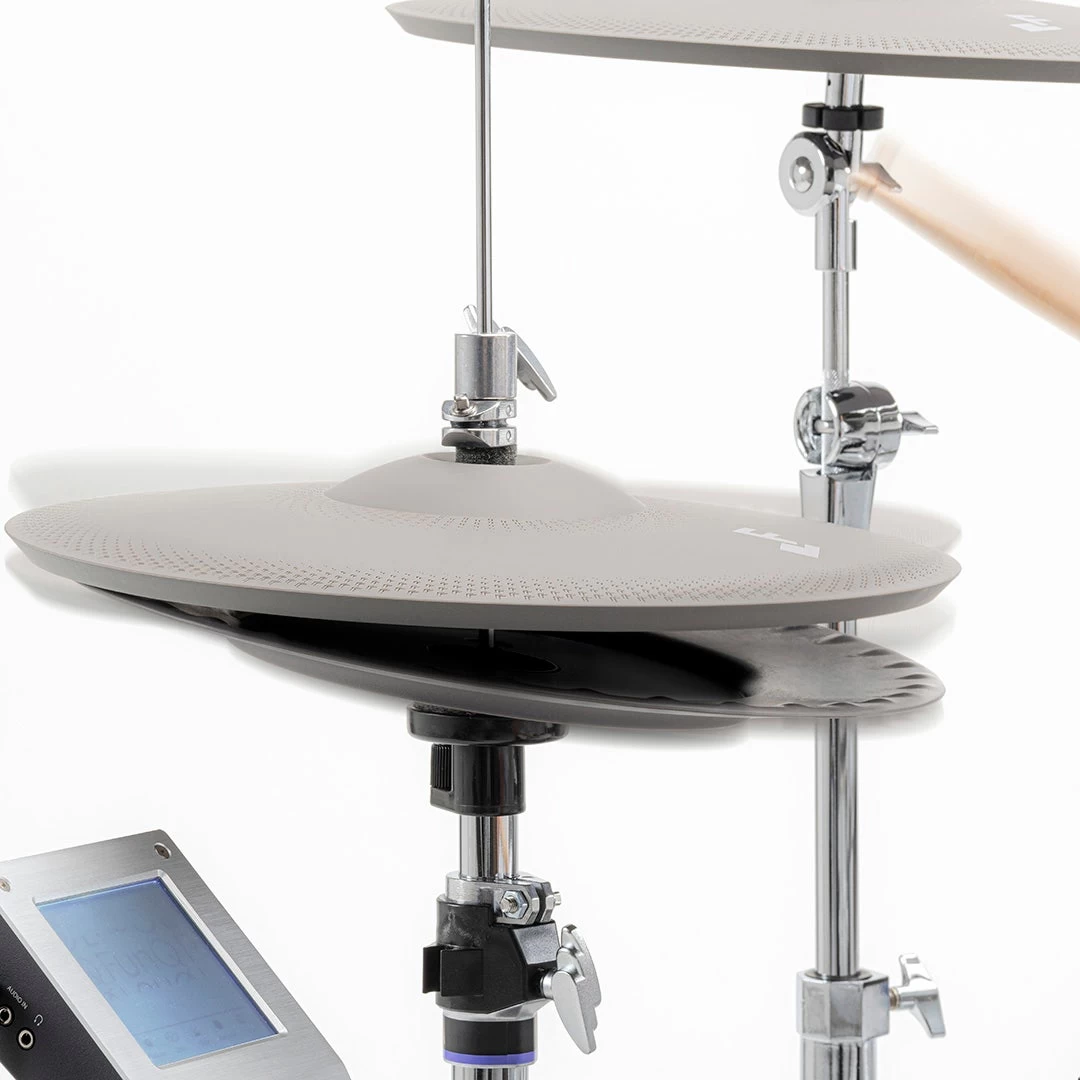

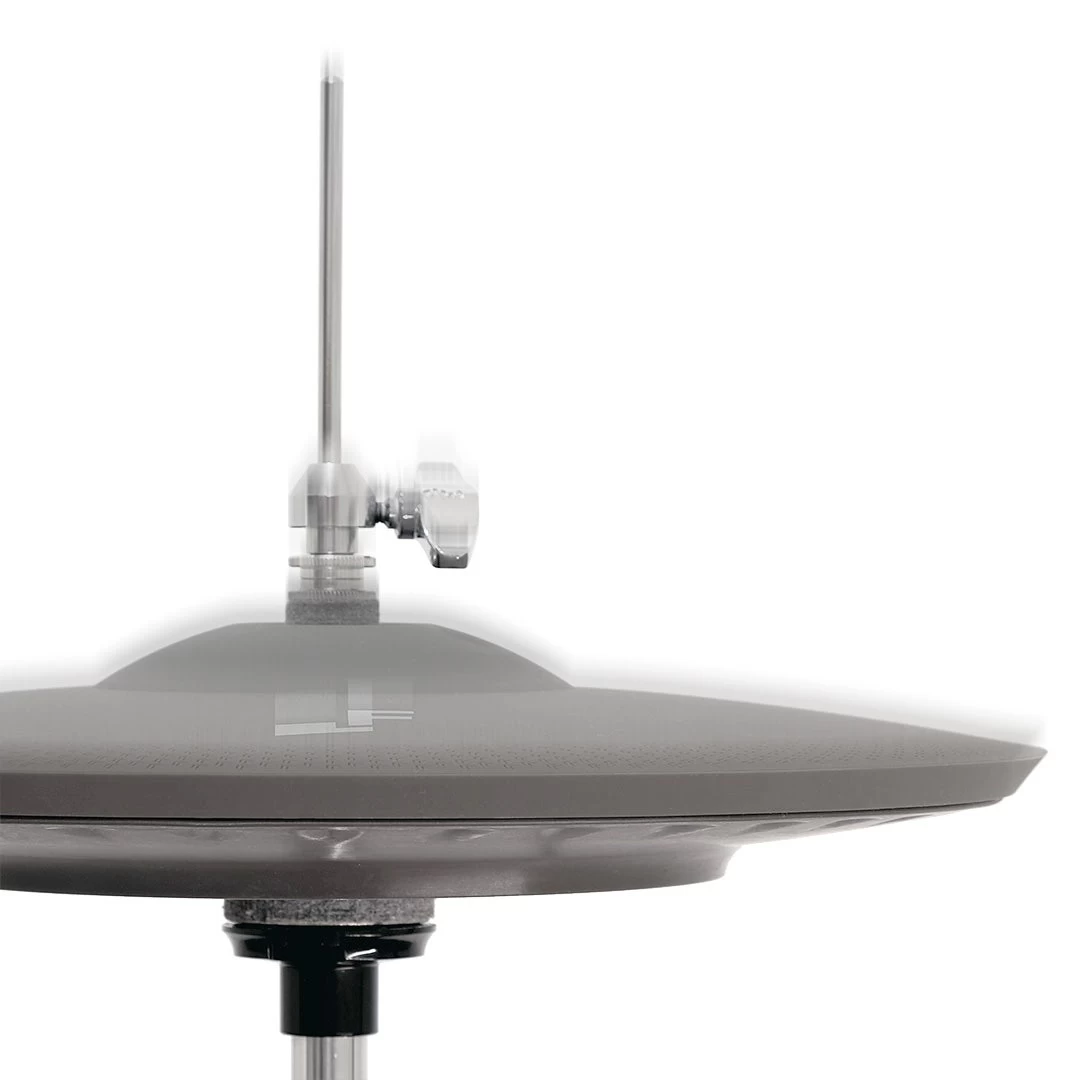

The Finest Hi-Hat Cymbals

• The freely swinging top and bottom cymbals have changed the concept of electronic hi-hat cymbals
• The multiple optical sensing precisely responds to drummer’s high-speed footwork
• Smooth continuity from tight-closed to full-open sound
• 14″” top/bottom cymbals
• General hi-hat stands compatible with φ12.7 mm (1/2″”) hole cymbal can be used

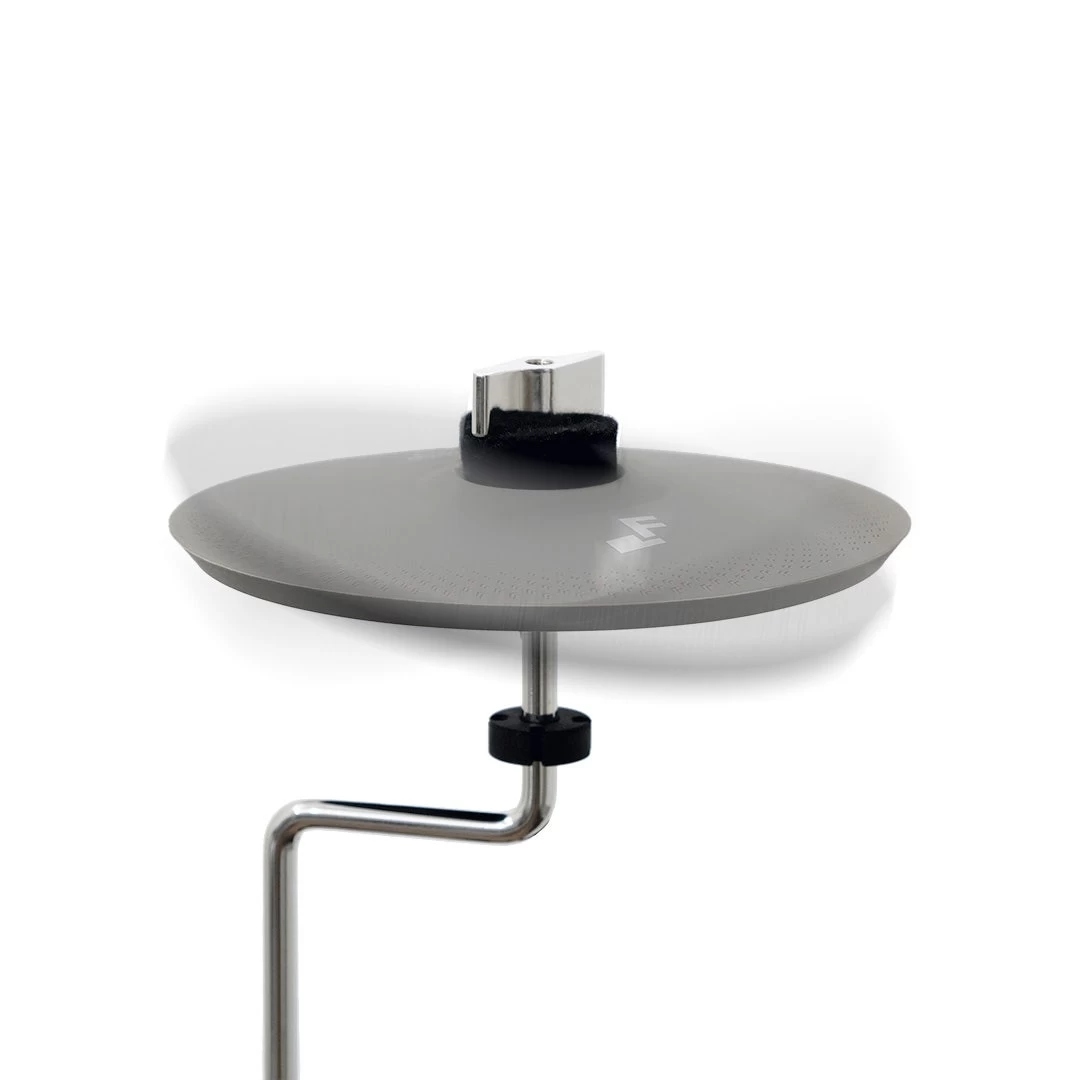

Splash!

The new ultra thin and light weight 8″” splash cymbal; the appropriate striking feel allows you to perform more like it.

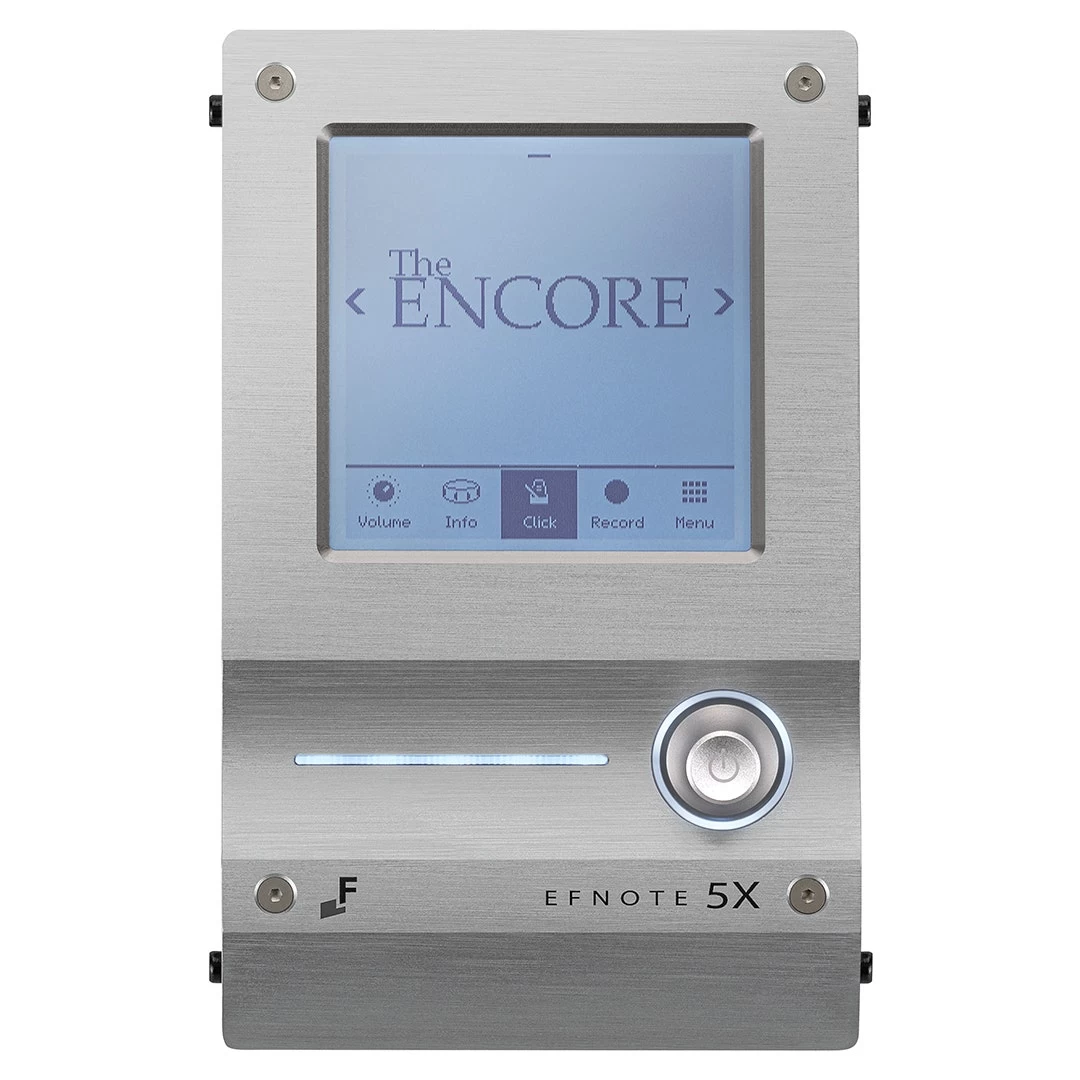

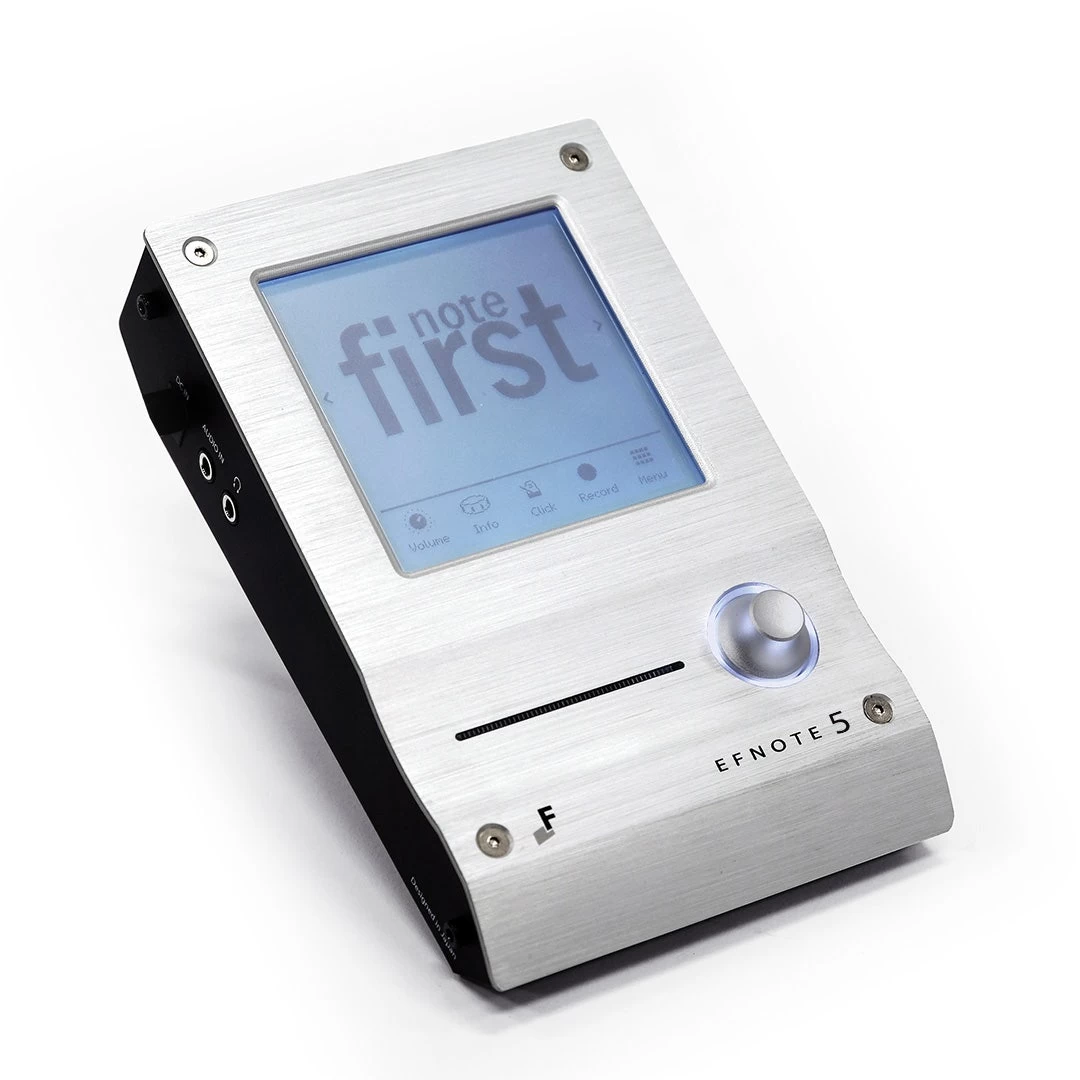

Ultra-Compact Sound Module

• Ultra-small form factor with uncompromised features
• Metal chassis and aluminum finish
• High quality DAC and audio circuit
• Touch screen intuitive user interface

Full-Scale Acoustic Sound

• Tru-Aco™ sound technology provides so real drum/cymbal sound
• Stereo samples with wide dynamic range for all acoustic instruments
• Minimum pre-processed, uncompressed waveforms for maximum fidelity
• Natural and smooth continuity roll sounds

For Training

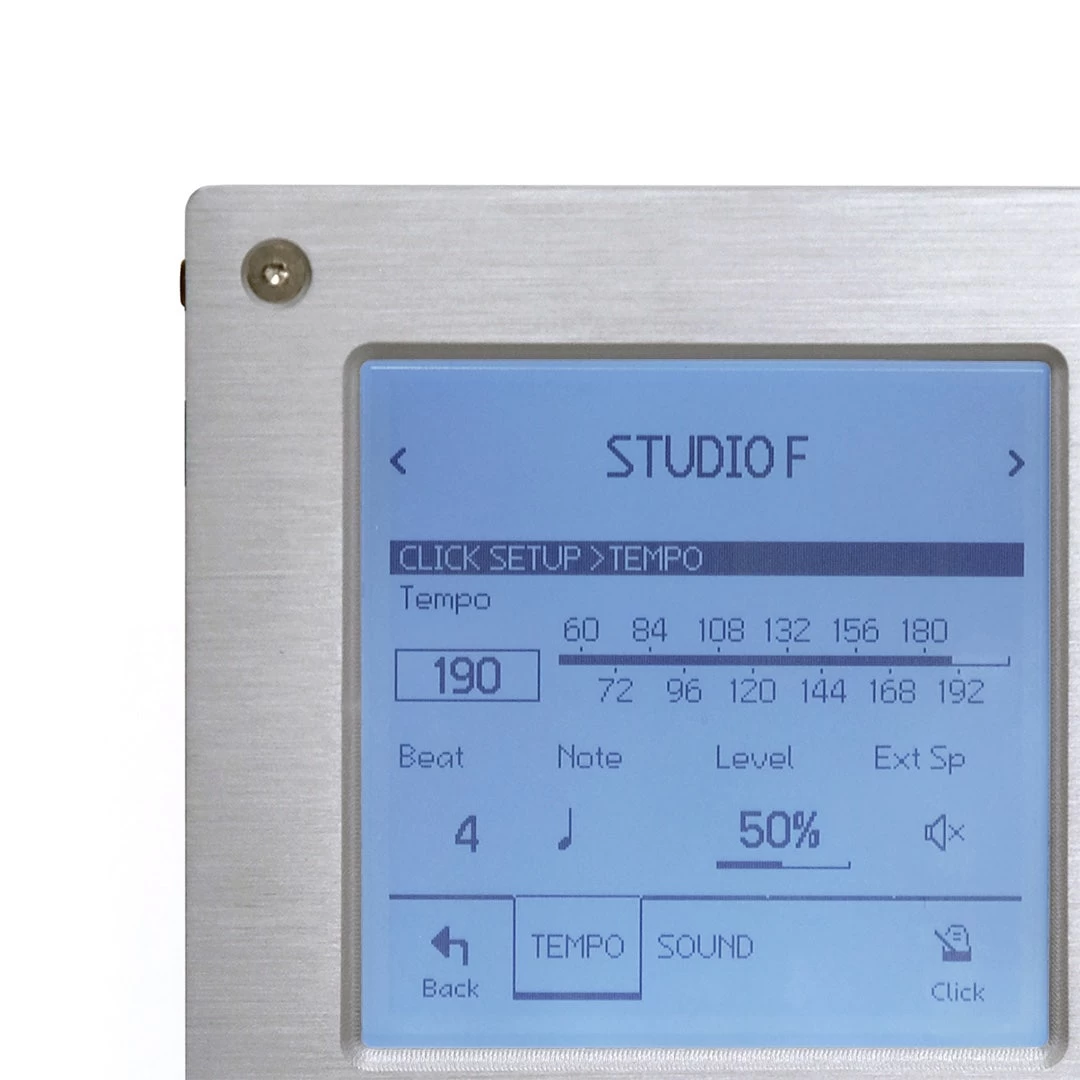

• Multi-function metronome with beat LED indicator
• Built-in metronome speaker for daily training without headphones
• On-board recording function (15 songs)
• Stroke Analyzer
• Rhythm Box feature provides over 90 basic drum beats

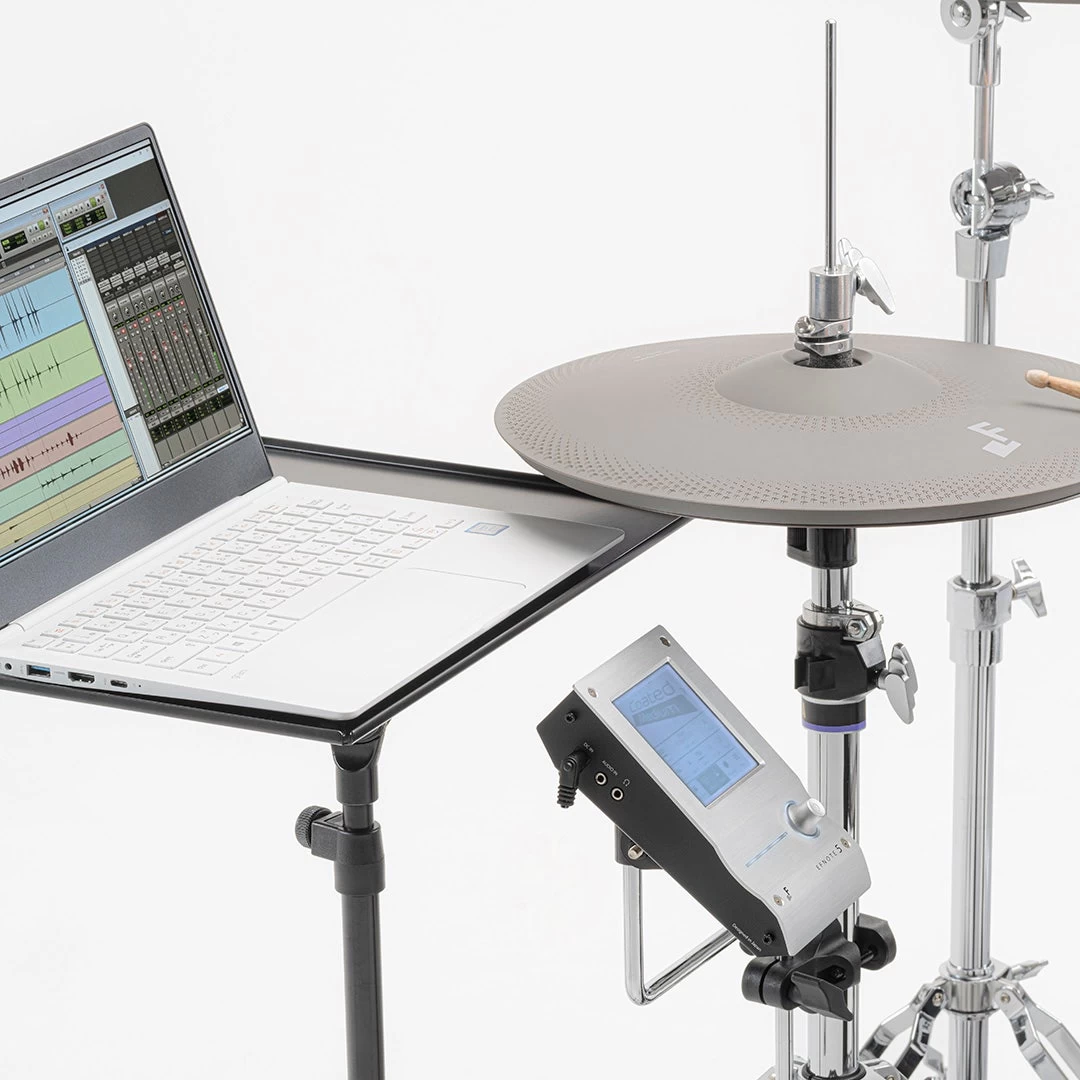

For Recording

• USB 8-ch individual audio outputs with Mac / Windows (ASIO)
• USB 2-ch audio inputs for playback
• Analog 4-ch audio outputs
• USB MIDI in/out with individual MIDI channels
• MIDI output (5-pin DIN)
• On-board drum recording (15 songs)

For Small Gigs

• Setlist feature enables you to configure kit order with tempo for each song
• Kick and Snare can be output individually with analog 4-ch outputs
• Click and Audio-In can be assigned only for headphones
• High-power headphones output
• MIDI output (5-pin DIN)

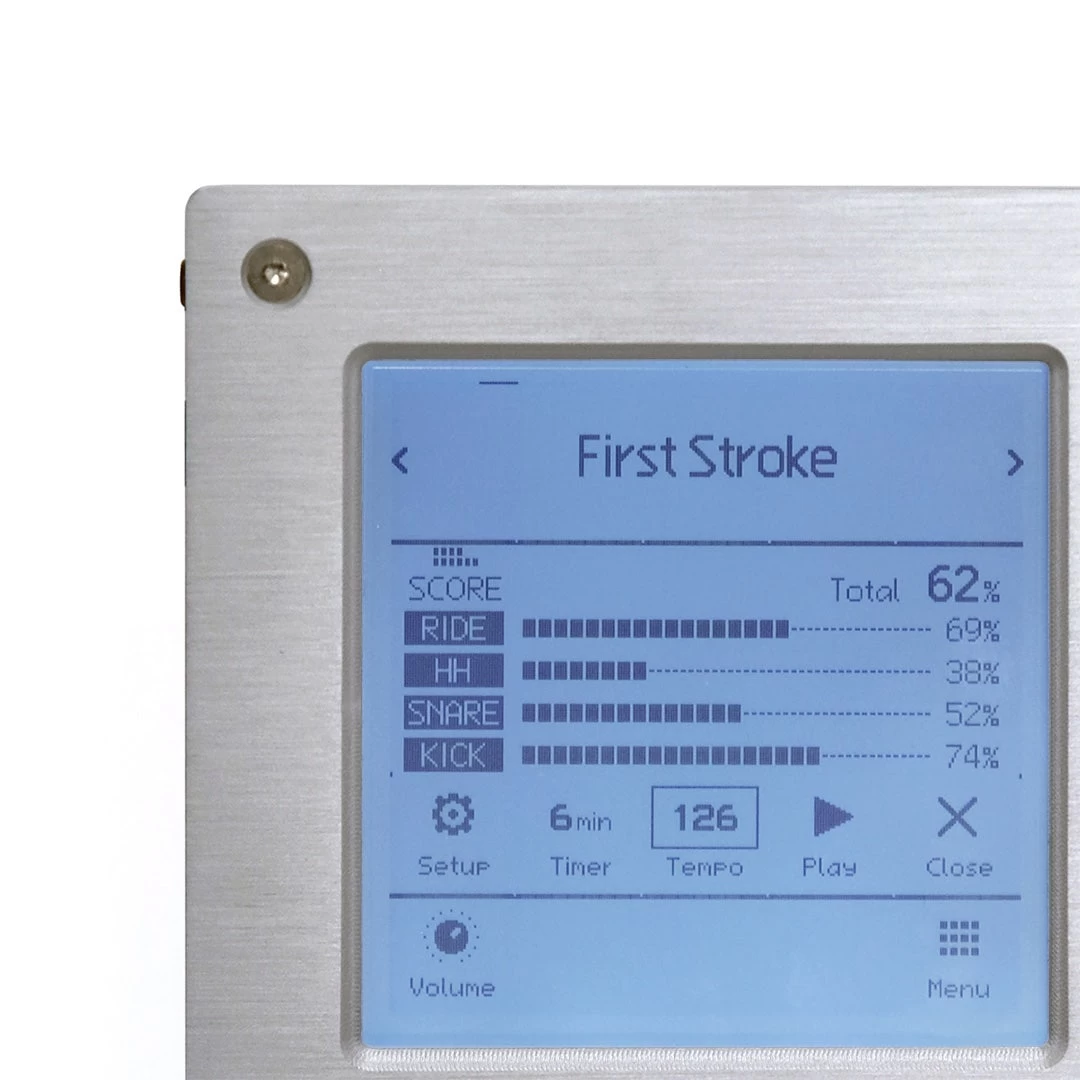

Stroke Analyzer

• “”Stroke Scope”” displays your strike points on time-line
• “”Accuracy Score”” estimates your strike accuracy

Sound Edit

• Tuning, Muffling, 2-band EQs for each pad
• Pad layer function can overlay two sounds
• User Inst Library enables you to store 128 customized instruments
• On-board reverb
• Dedicated level control screen

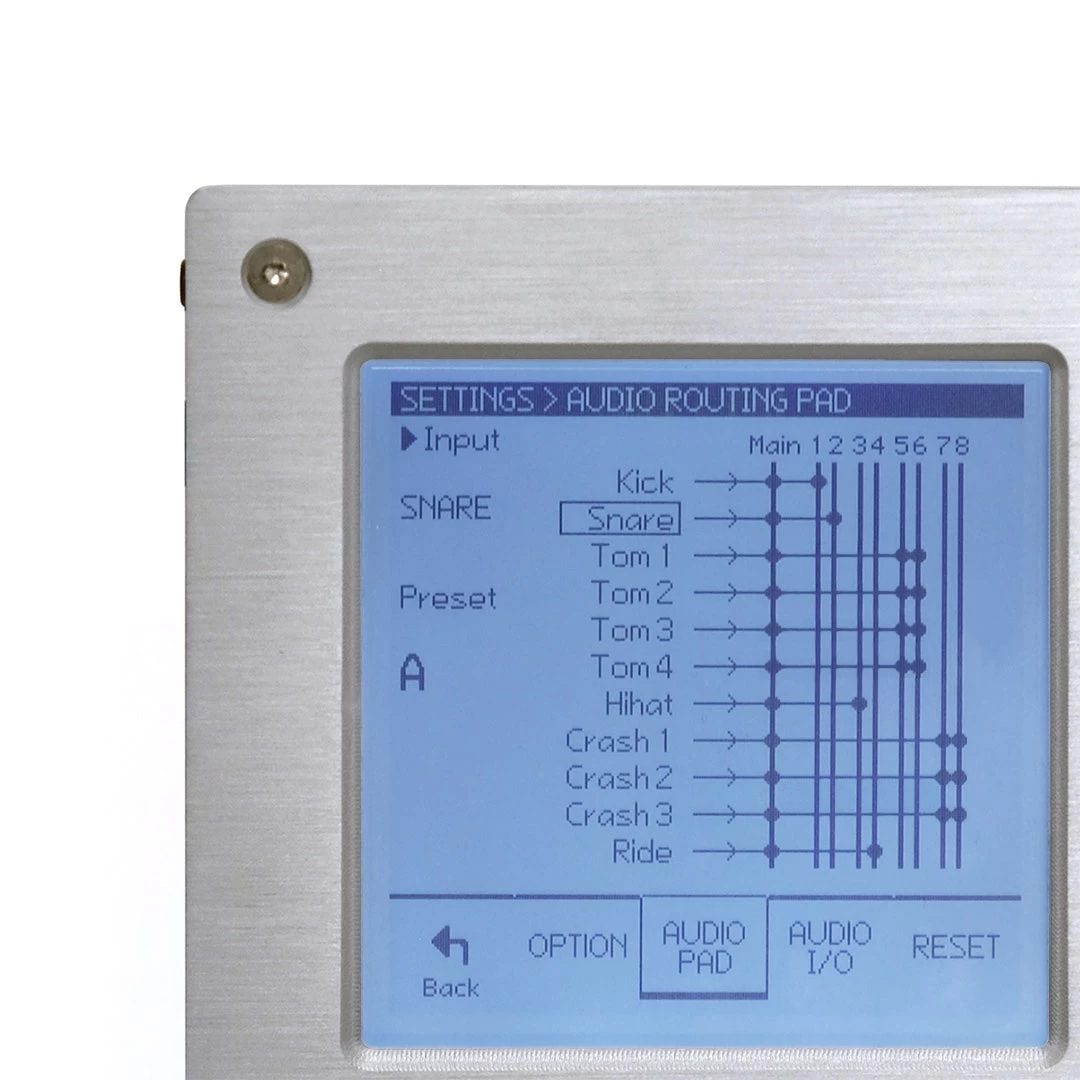

Flexible Audio Routing

• 10-ch output buses
• Flexible output routing for each pad
• Output assignable click
• Output: 4-ch analog / 8-ch USB
• Input: Analog / Bluetooth / 2-ch USB

Bluetooth®

• Bluetooth audio-in provides you to play along with Spotify™ / YouTube™ with your smartphone
• Bluetooth MIDI

Specifications

Drum / Cymbal Pads

• Kick EFD-K1612
• Size: 16 x 12″”
• Zone: Head
• Sensor: Multi
• Head: Double-layered mesh with beater patch
• Connector: Head (TRS Phones)
• Features:Bass drum riser, Wood hoop

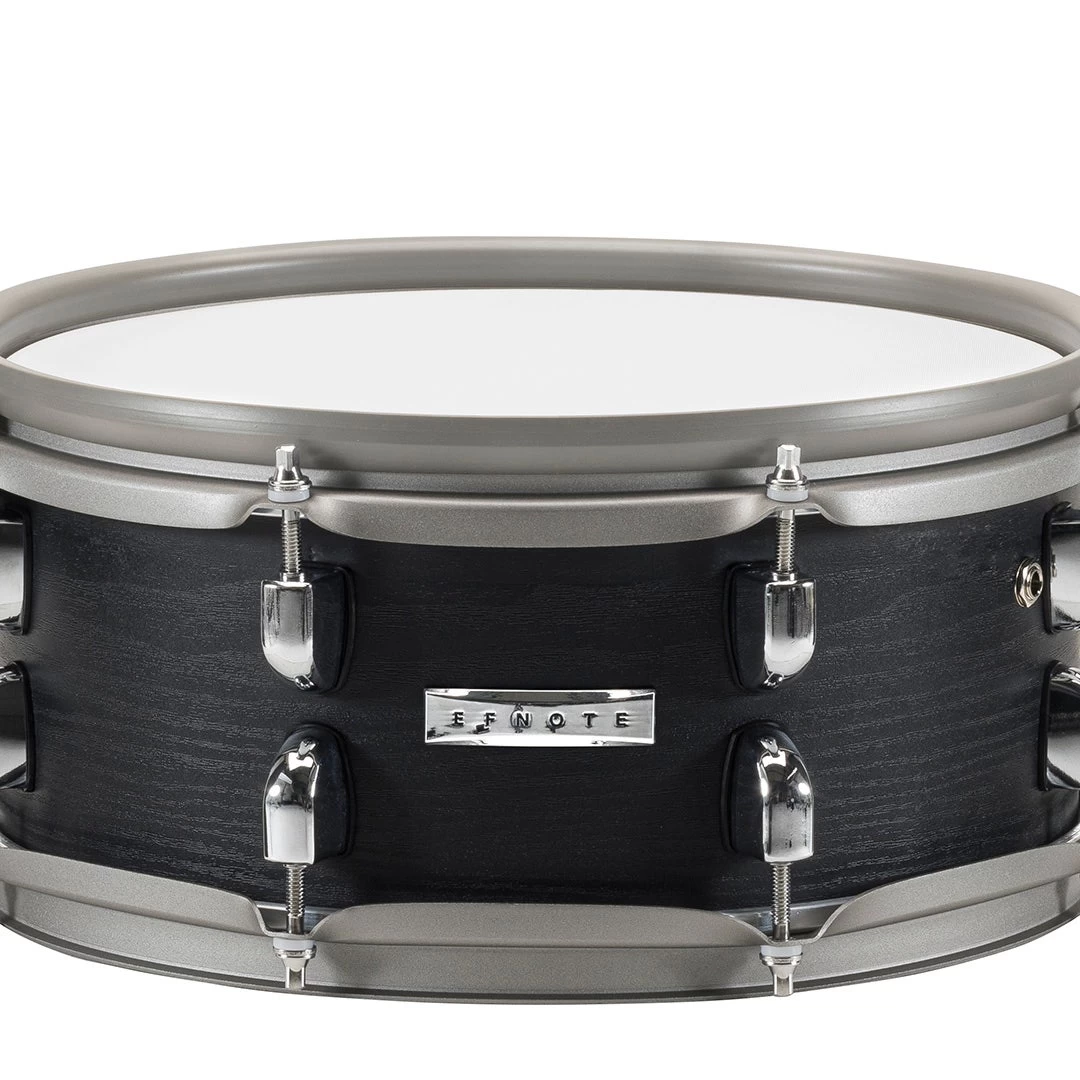

• Snare FD-S1250
• Size: 12 x 5″”
• Zone: Head / Rim / Side-Rim
• Sensor: Multi
• Head: Double-layered mesh
• Connector: Head/Rim, Side-Rim (2x TRS Phones)
• Features: Birch shell, Colored hoop rubber, Side-Rim
• Tom EFD-T1070
• Size: 10 x 7″”
• Zone: Head / Rim
• Sensor: Multi
• Head: Double-layered mesh
• Connector: Head/Rim (TRS Phones)
• Features: Birch shell, Colored hoop rubber

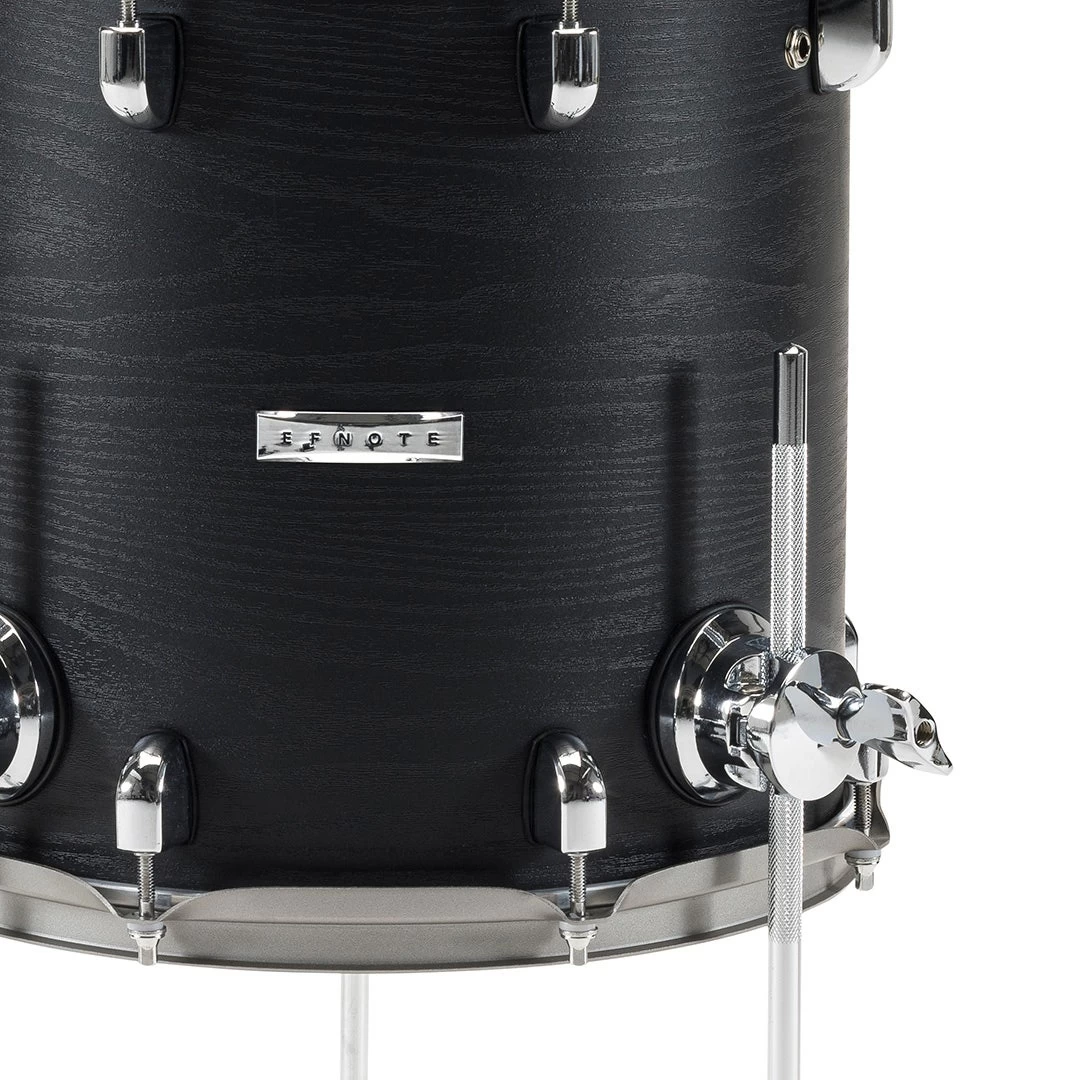

• Floor Tom 1 EFD-T1212
• Size: 12 x 12″”
• Zone: Head / Rim
• Sensor: Multi
• Head: Double-layered mesh
• Connector: Head/Rim (TRS Phones)
• Features: Birch shell, Colored hoop rubber
• Floor Tom 2 EFD-T1313
• Size: 13 x 13″”
• Zone: Head / Rim
• Sensor: Multi
• Head: Double-layered mesh
• Connector: Head/Rim (TRS Phones)
• Features: Birch shell, Colored hoop rubber
• Hi-Hat EFD-H14
• Size: 14″” (Top/Bottom)
• Zone: Bow / Edge / Cup
• Sensor: Multi (360° flat sensing + choke) / Optical
• Connector: 6-pin
• Features: Multi-optical sensor, Tru-motion™ hi-hat, Weight simulation, Fine engraved surface
• General hi-hat stands compatible with φ12.7 mm (1/2″”) hole cymbal can be used.
• EFNOTE 5X sound module does not support hi-hat cup zone.
• Crash 1 / 2 EFD-C16
• Size: 16″”
• Zone: Bow / Edge / Cup
• Sensor: Multi (360° flat sensing + choke)
• Connector: Bow/Edge, Cup (2x TRS Phones)
• Features: Weight simulation, Fine engraved surface
• In the EFNOTE 5X configuration, the Crash 2 cup is not supported when the Crash 3 is used.
• Ride EFD-C18
• Size: 18″”
• Zone: Bow / Edge / Cup
• Sensor: Multi (360° flat sensing + choke)
• Connector: Bow/Edge, Cup (2x TRS Phones)
• Features: Weight simulation, Fine engraved surface
• Splash EFD-C08
• Size: 8″”
• Zone: Bow / Edge
• Sensor: Multi (360° flat sensing + choke)
• Connector: Bow/Edge (TRS Phones)
• Features: Weight simulation, Fine engraved surface

Sound Module: EFD-5X

• Trigger Interface
• 3-Zone: Snare, Crash 1/2*, Ride
• 2-Zone: Tom 1/2/3/4, HH, Crash 3
• 1-Zone: Kick
• Crash 1/2 support 3-zone with using Tom 4/Crash 3 cables.
• In the EFNOTE 5X configuration, the Crash 2 cup is not supported when the Crash 3 is used.
• Audio / MIDI Interface
• Line (1/2) Output: 2x TS Phone (+4dBu, Unbalanced)
• Phones (3/4) Output: Stereo Mini-Phone (320 mW + 320 mW @32Ω)
• Audio Input: Stereo Mini-Phone (+2dBu Max)
• USB Audio: 8-ch Output / 2-ch Input (Mac/Windows ASIO)
• USB MIDI In/Out
• Bluetooth Audio Input
• Bluetooth MIDI In/Out
• MIDI Out: 5-pin DIN
• Drum Kits / Instruments
• Preset Drum Kits: 17 (Editable)
• User Drum Kits: 83
• Instruments: Acoustic Drums/Cymbals (Stereo), Percussion (Stereo), Attack Elements
• User Inst Library: 128 (Can be stored customized instruments)
• Edit Parameters
• Level, Pan, Tuning, Muffling (for each pad)
• 2-Band EQ (for each pad)
• Ambience Effect (8 Types)
• Pad Layer
• Dimensions
• 172 (W) x 106 (D) x 47 (H) mm
• 700 g
• Excluding protrusions
• Power: DC 12 V, 500 mA (Nominal) / 800 mA (Max)

Hardware

• Tom Holder
• 1x Tom holder arm
• Geared L-rod tilter
• Knurled carbon steel rod
• L-rod diameter: φ11.5 mm (7/16″”)
• Tube diameter: φ22.2 mm (7/8″”)
• Height adjustment range: 700 — 900 mm
• Splash Cymbal Arm
• 1x Z-rod short
• 1x Z-rod long
• Sound Module Arm
• 1x Sound module arm
• 1x Smartphone tray
• Snare Drum Stand EFD-SS5
• For 12″” to 14″” diameter snare drums
• Geared basket tilter
• Double braced legs
• Tube diameter: φ19.1 mm (3/4″”)
• Height adjustment range: 500 — 650 mm
• Cymbal Stand EFD-CS5
• Boom cymbal arm
• Geared tilter
• Cable holder
• Middle tube diameter: φ19.1 mm (3/4″”)
• Boom length: 400 mm
• Height adjustment range: 800 — 1,500 mm

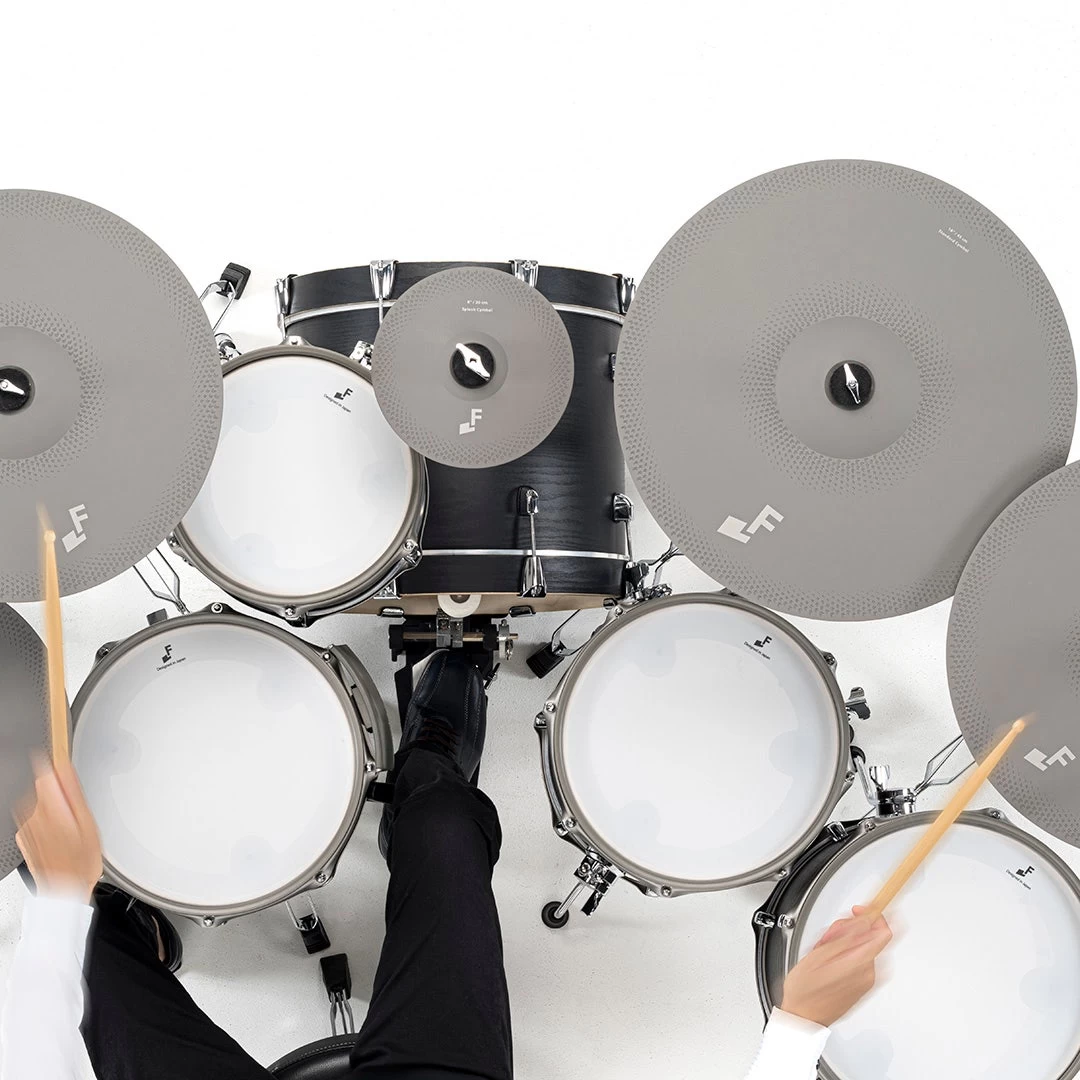

Drum Kit Placement

• Placement Size
• Approx. 170 (W) x 110 (D) cm
• Approx. 5.6 (W) x 3.6 (D) feet
• Without drum throne

Package

• Accessories
• Brake-out cable: EFD-MULTI-AX
• Brake-out cable: EFD-MULTI-B
• 4x Trigger cable 3.0 m: EFD-TRS-LL3
• Cable ties
• Quickstart guide
• Snare drum stand and cymbal stand are optional.
• Kick pedal, hi-hat stand and drum throne are sold separately.
