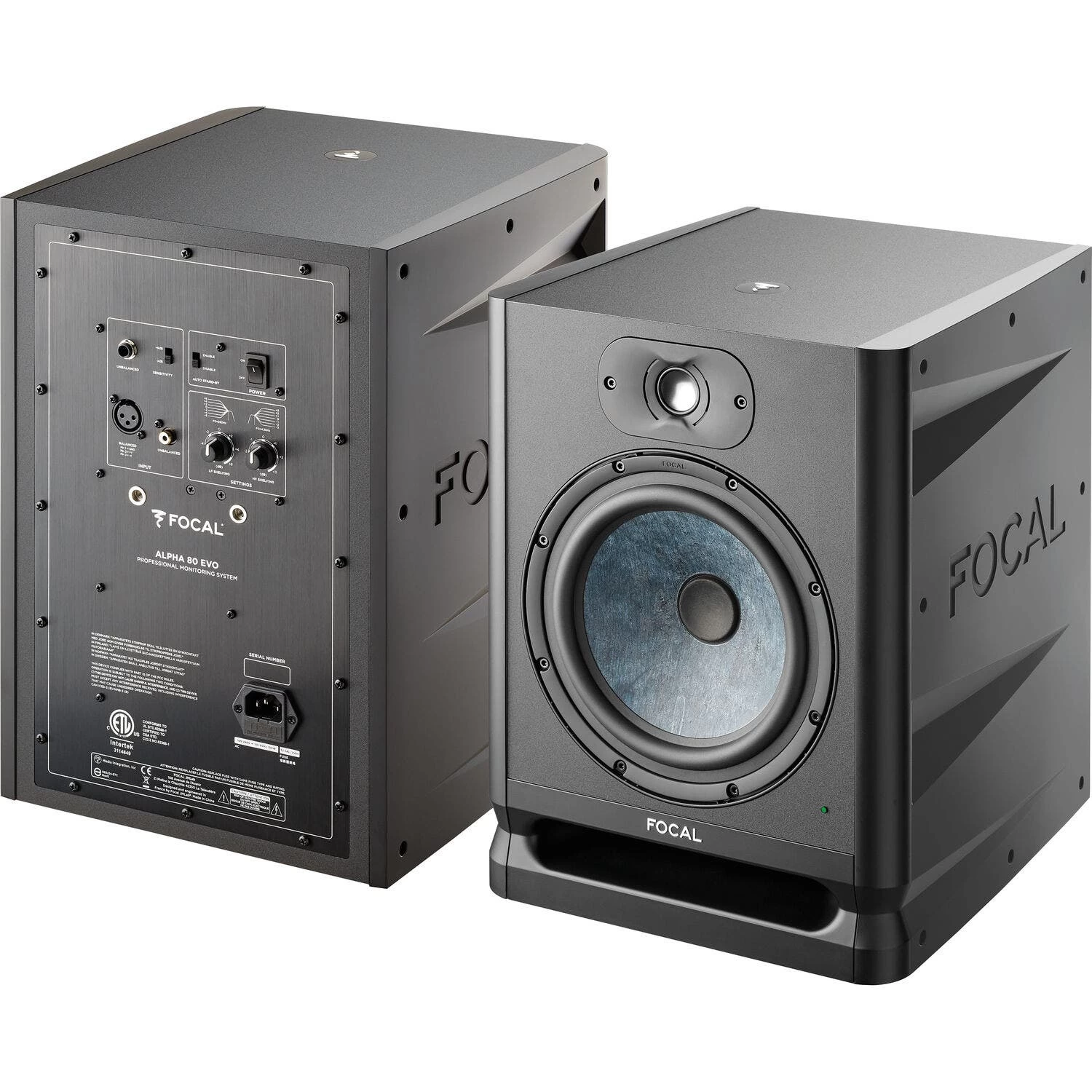

Focal Alpha 80 Evo 8-Inch 2-Way Powered Studio Reference Monitor

Manufacturer’s Description

ACTIVE-2-WAY

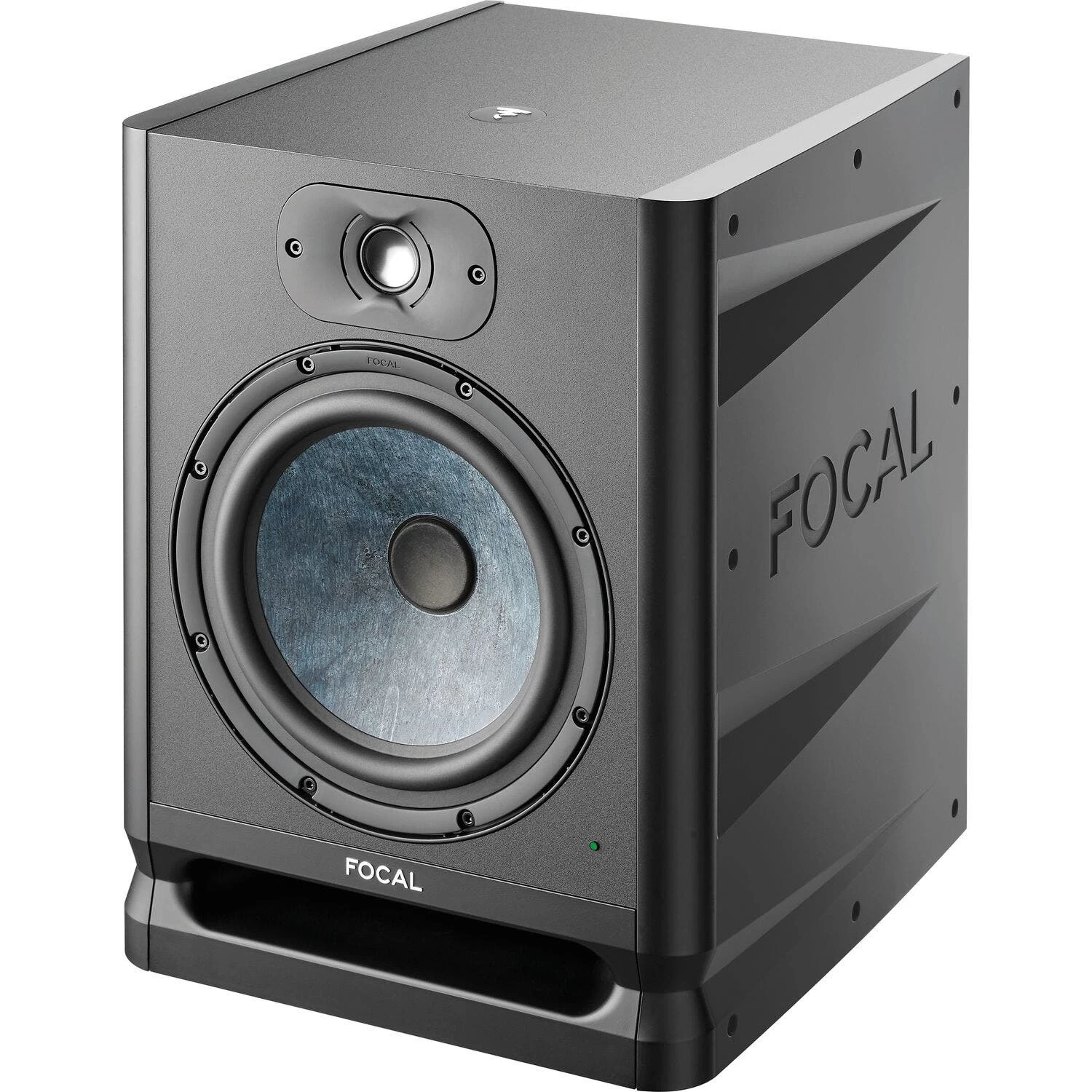

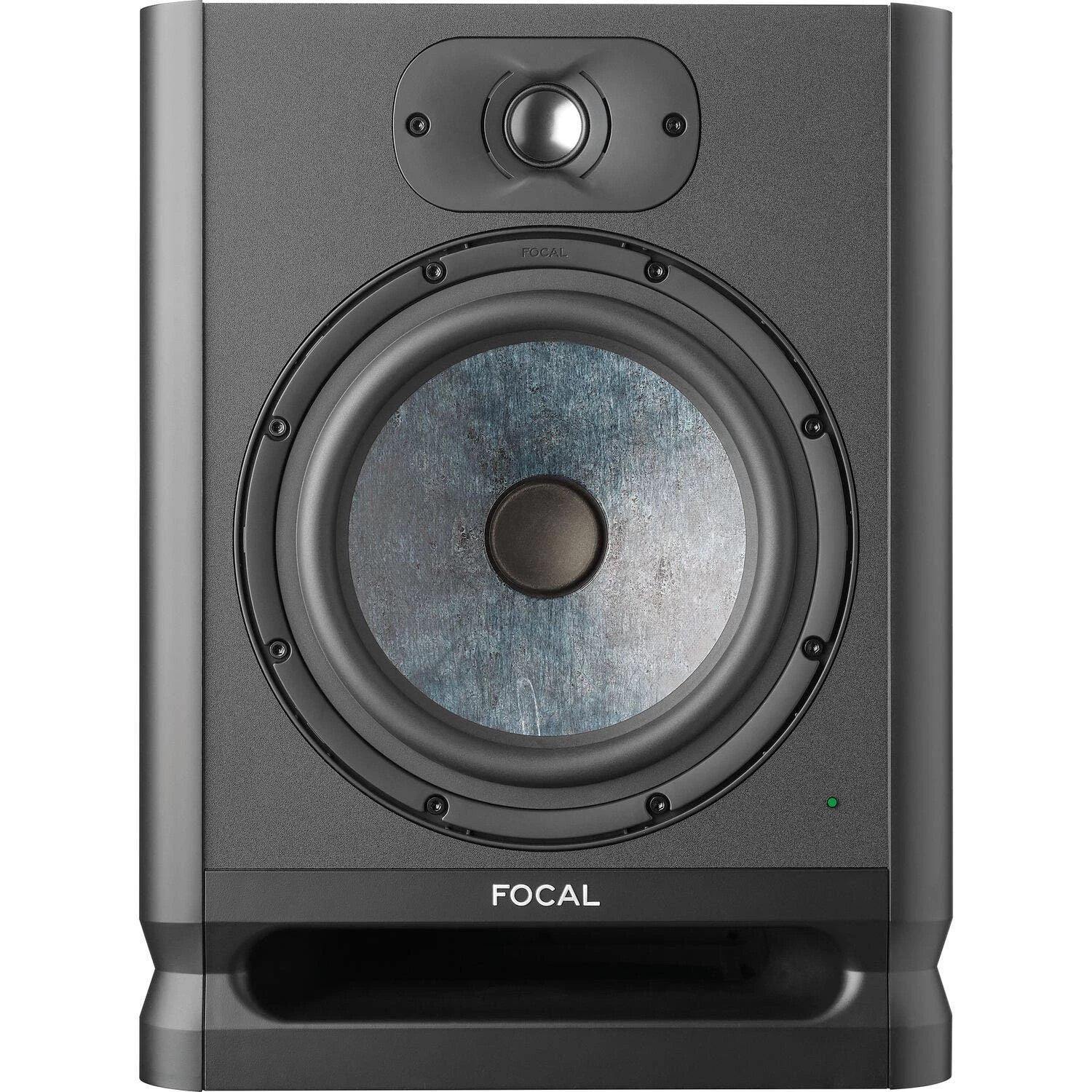

Flagship line Alpha 80 Evo is particularly recommended for professionals seeking high volumes and a rich sub-bass extension. This monitor has a 1” (25mm) aluminium inverted dome tweeter and a woofer with a Slatefiber cone, made in France by Focal. Its large laminar vent allows you to significantly limit noises and its dual amplification offers a frequency response from 38Hz to 22kHz (+/- 3dB)..

Alpha 80 Evo is characterised by excellent dynamics, an impressively neutral tonal balance and multiple features (inserts for wall mounting, automatic disengageable stand-by, etc.).

The Alpha Evo monitors are made from a 5/8” (15mm)-thick MDF enclosure and incorporates internal braces to ensure the enclosure’s high rigidity, even at the highest levels of sound pressure.

KEY POINTS

• Neutrality across the full sound spectrum
• Excellent dynamics for a very low distortion
• 8” (21cm) Slatefiber cone woofer
• Large laminar vent
• Identical tonal balance at both low and high volume
• Connect up to 3 audio sources
• Inserts for wall and ceiling fastening
• Automatic disengageable stand-by

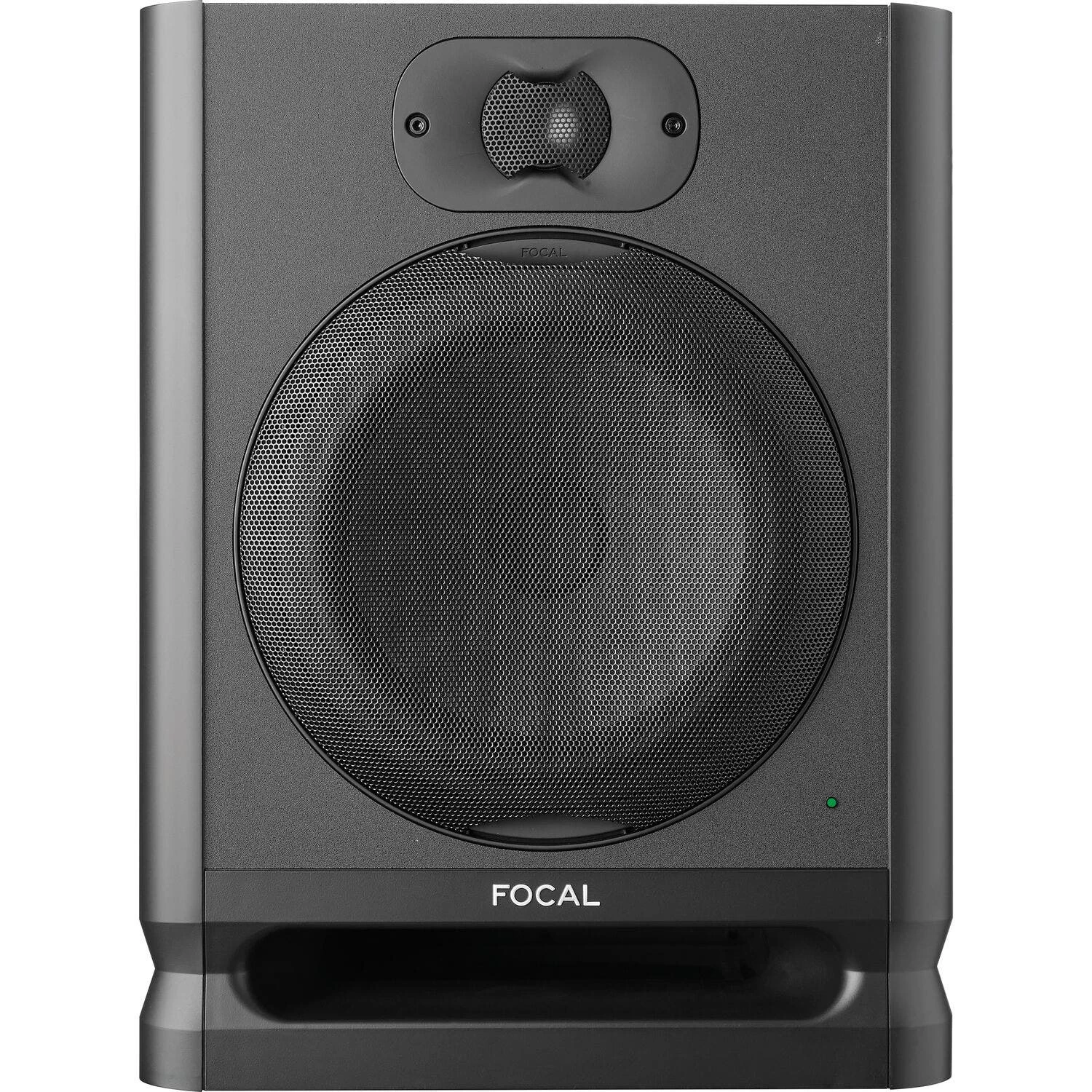

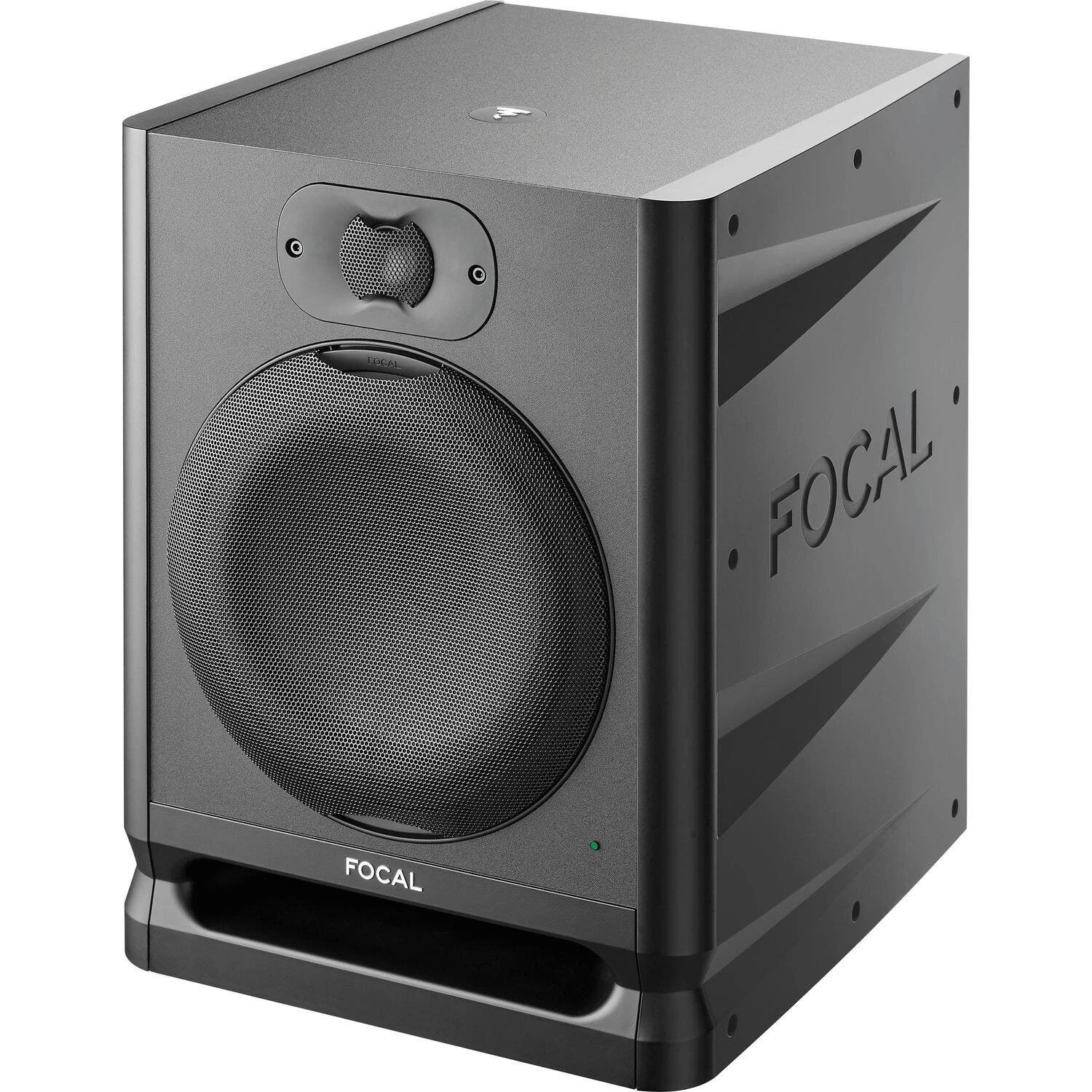

• Protection grilles included

Specifications

• Type: Alpha 80 Evo Monitoring
• Frequency response (+/- 3dB): 38Hz – 22kHz
• Maximum SPL: 106dB SPL (peak @ 1m)

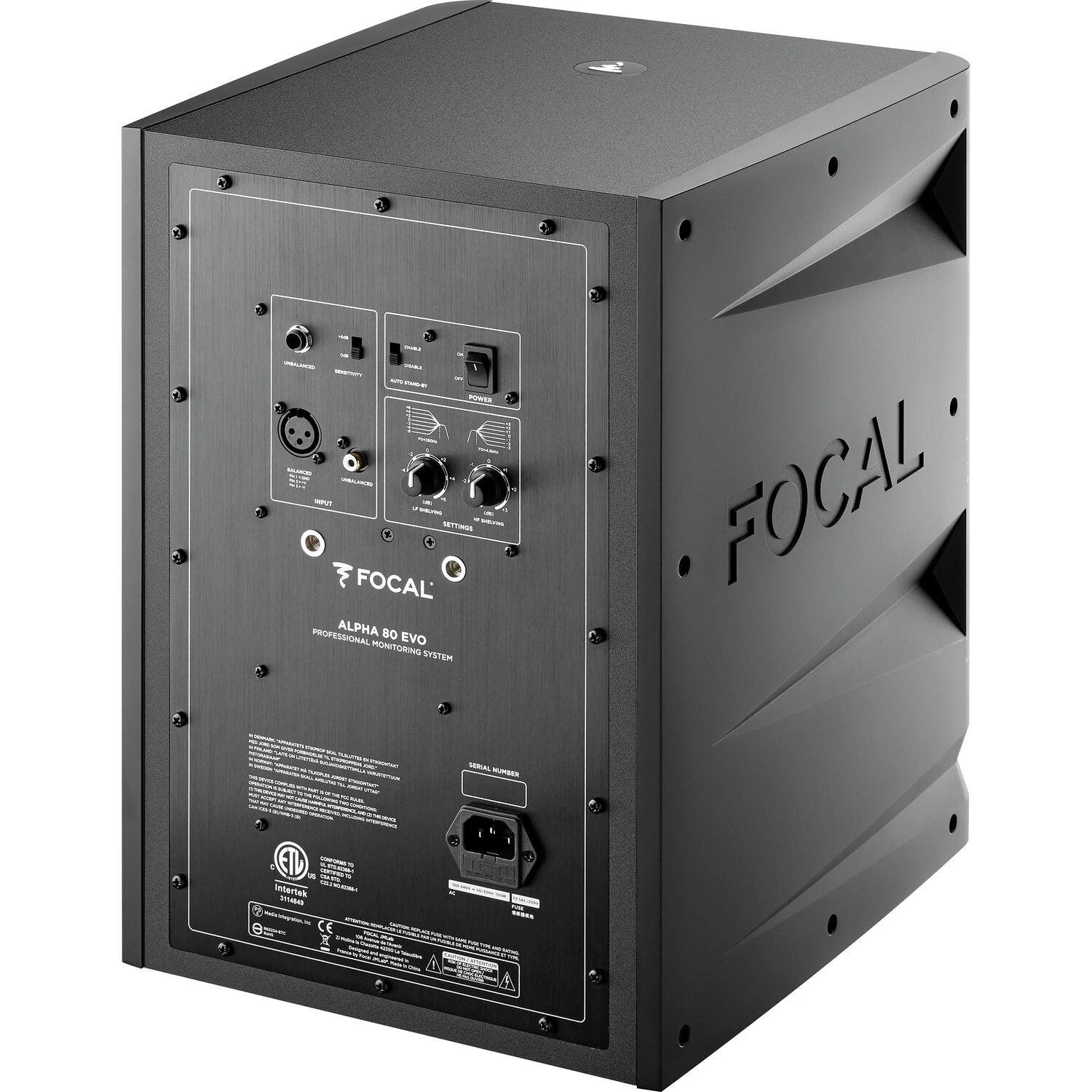

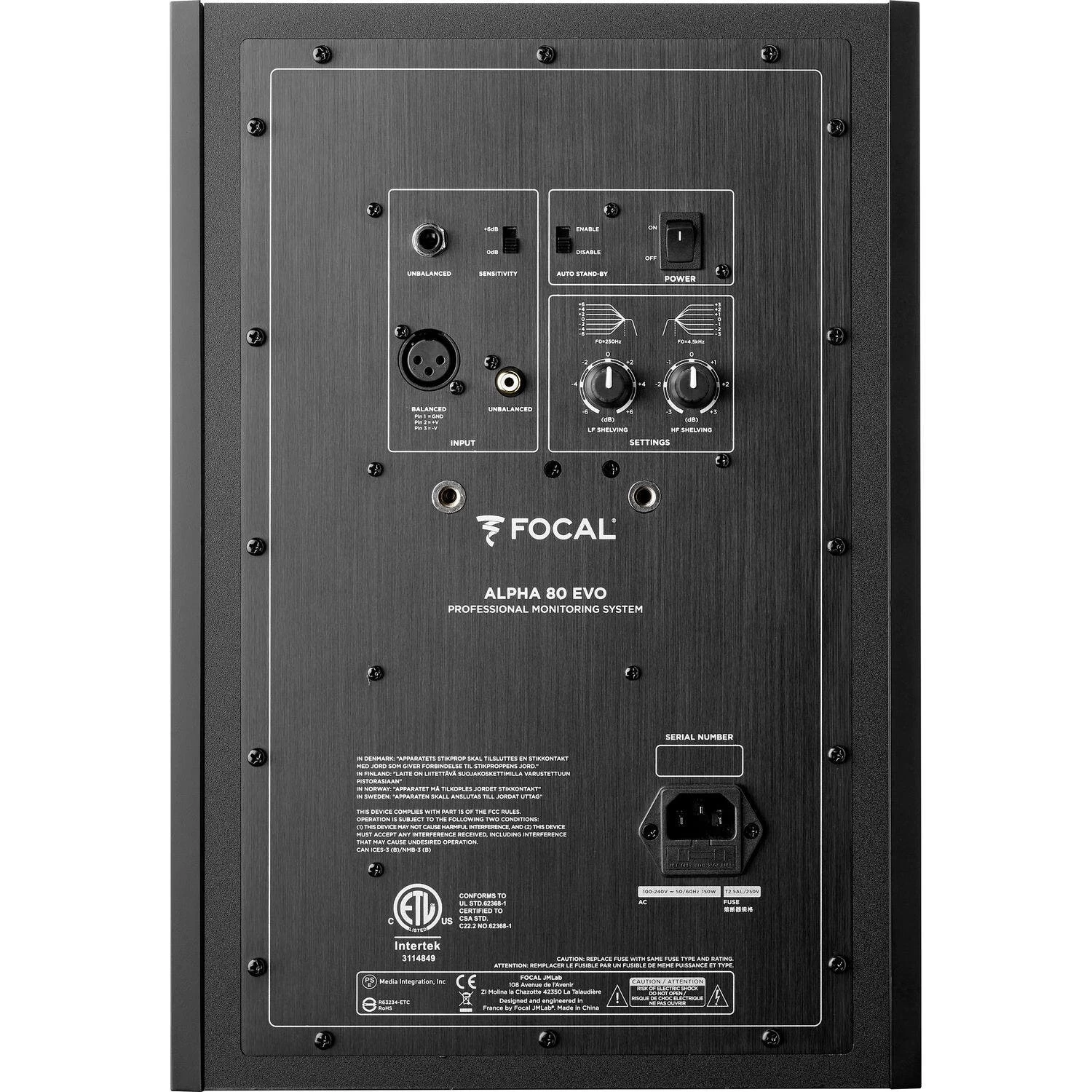

• Inputs Connectors:
  • TRS: symmetrical 10kOhms
  • XLR: symmetrical 10kOhms
  • RCA: asymmetrical 10kOhms
  • with compensated sensitivity
• Medium and low frequency amplifier: 80W
• High frequency amplifier: 35W
• Automatic stand-by mode: After around 15 minutes of no use By signal detection >6mV
• Power supply: 100 – 240V~ (T2AL fuse/250V)
• Connection: IEC socket and detachable power cable
• Sensitivity: Adjustable, 0 or +6dB
• Level midrange/bass (0 – 250Hz): Adjustable, +/-6dB
• Treble level (4.5 – 35kHz): Adjustable, +/-3dB
• Power on/off: On/off switch on the rear panel
• Stand-by consumption: <0.5W
• Views and controls: On and off LED – Stand-by LED
• Woofer: 8″ (20cm) Slatefiber cone
• Tweeter: 25mm (1″) with aluminium inverted dome
• Construction: 0.6″ (15mm) MDF
• Finish: Black vinyl and paint
• Dimensions with 4 rubber feet (HxWxD): 15.35×11.65×13″ (390x296x330mm)
• Weight: 21.6lbs (9.8kg)
