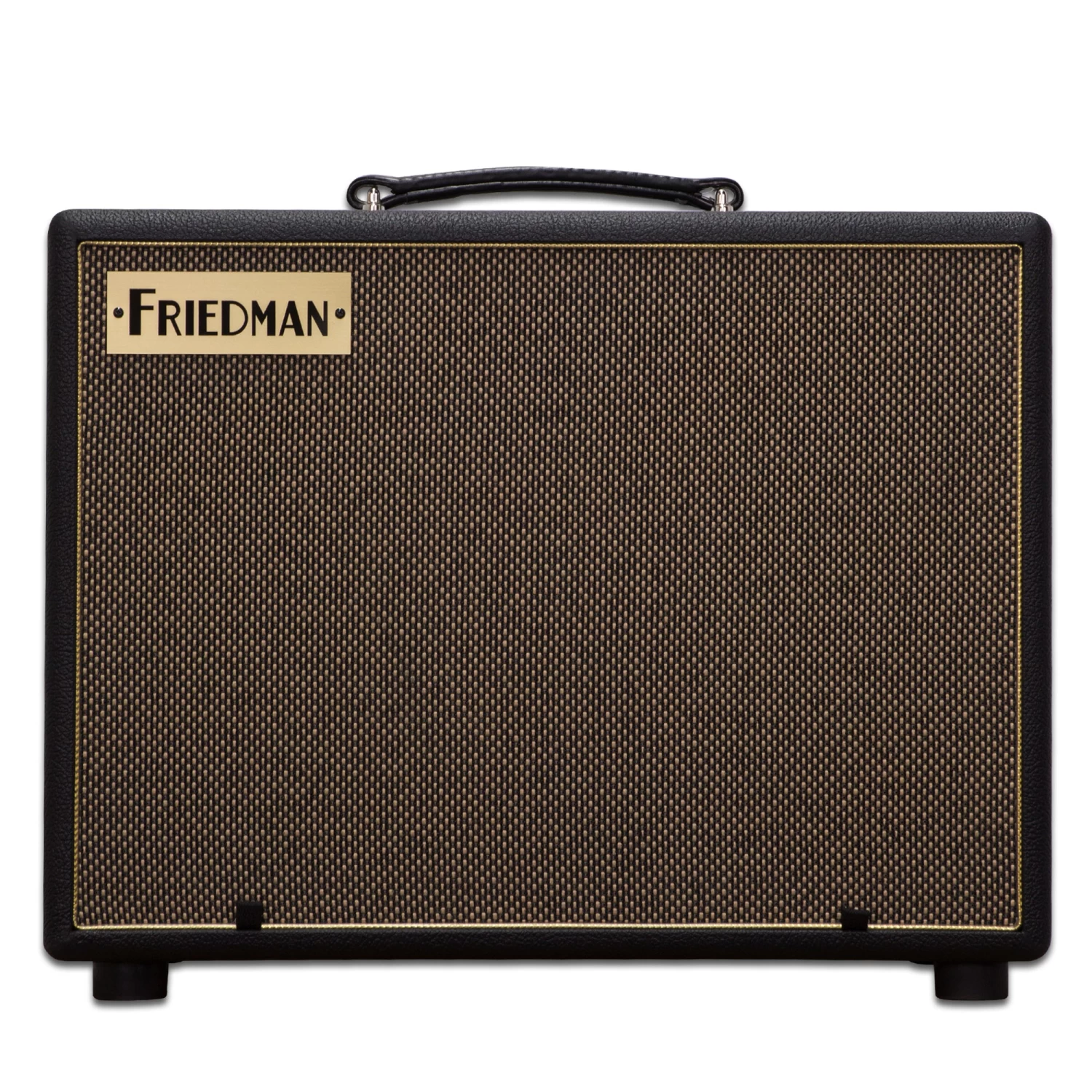

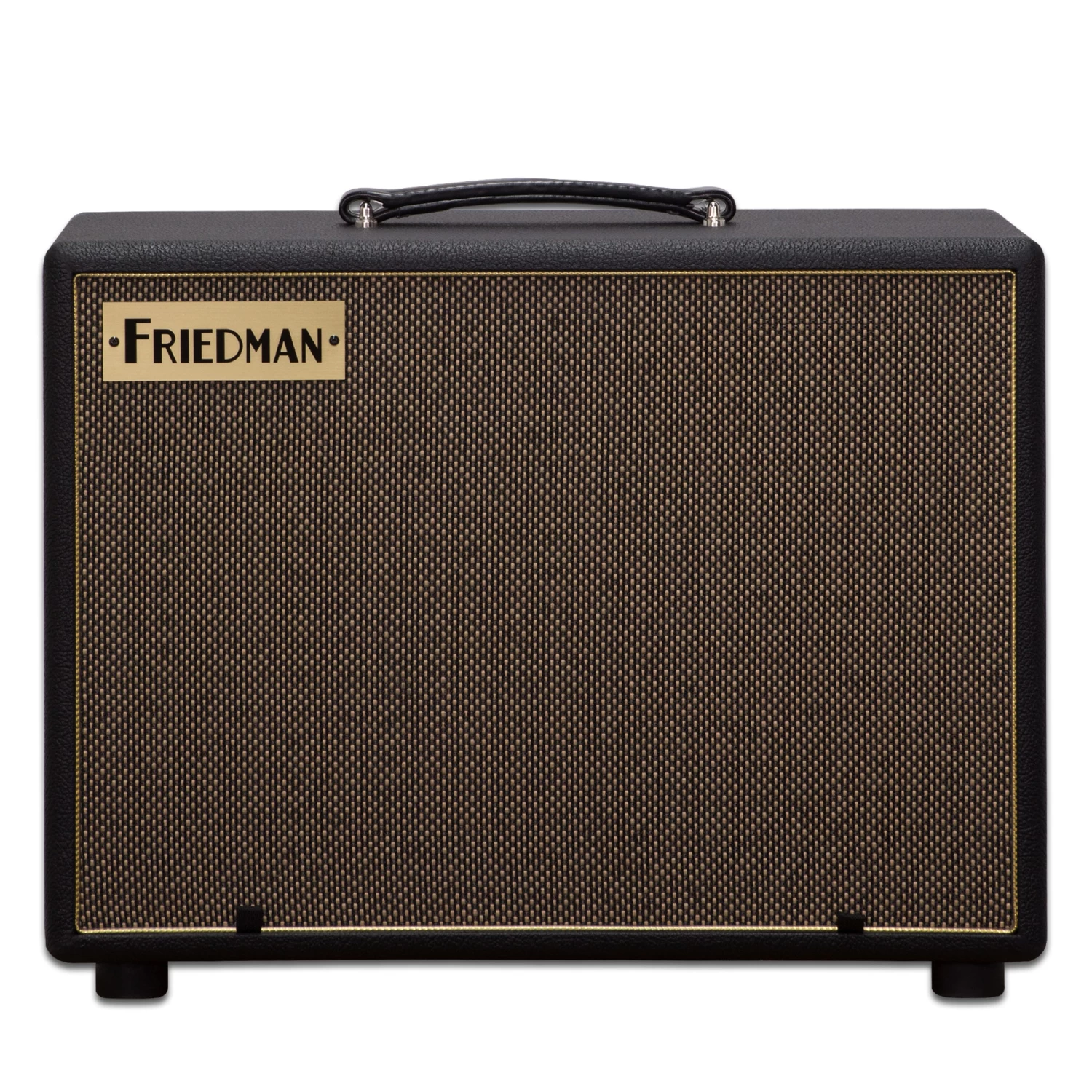

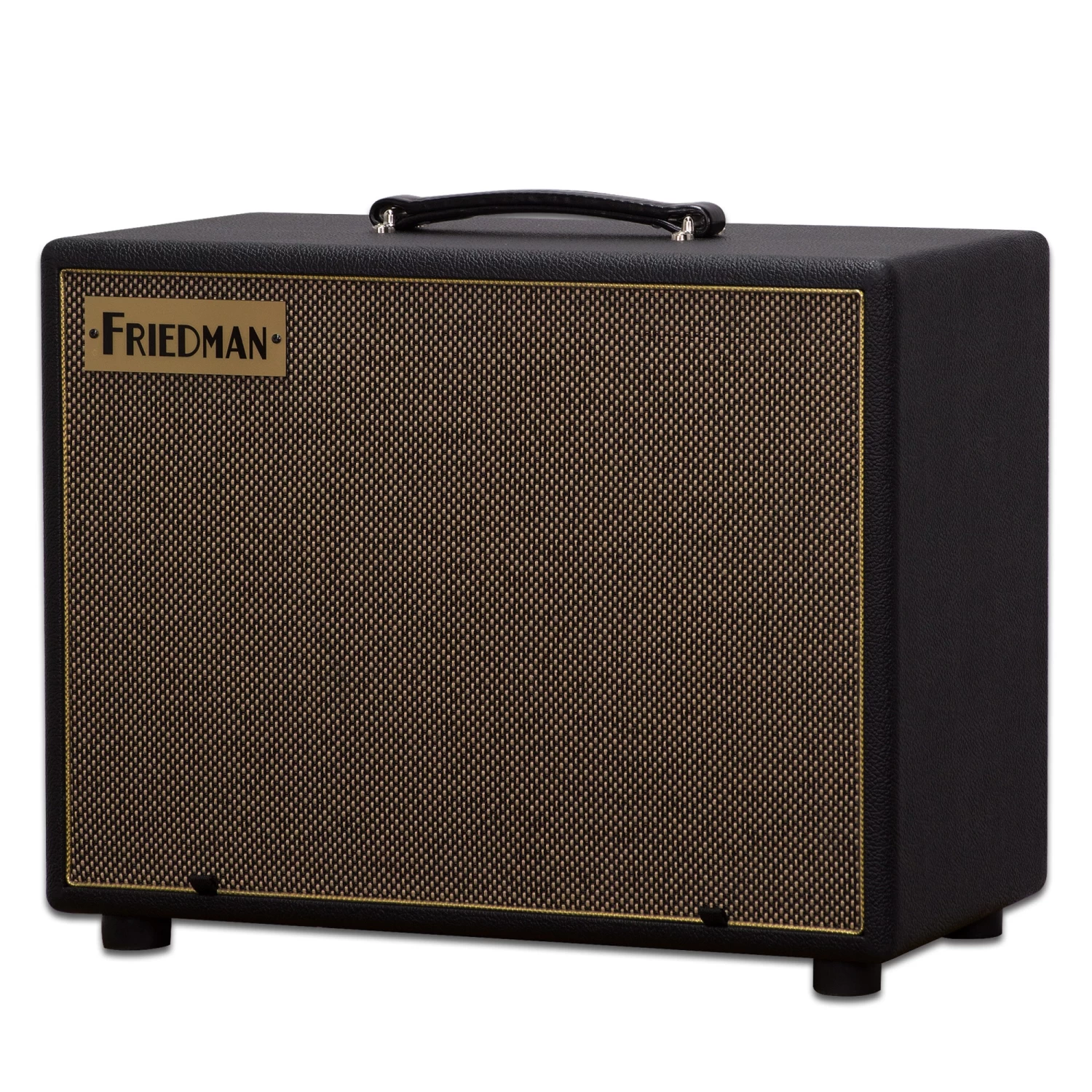

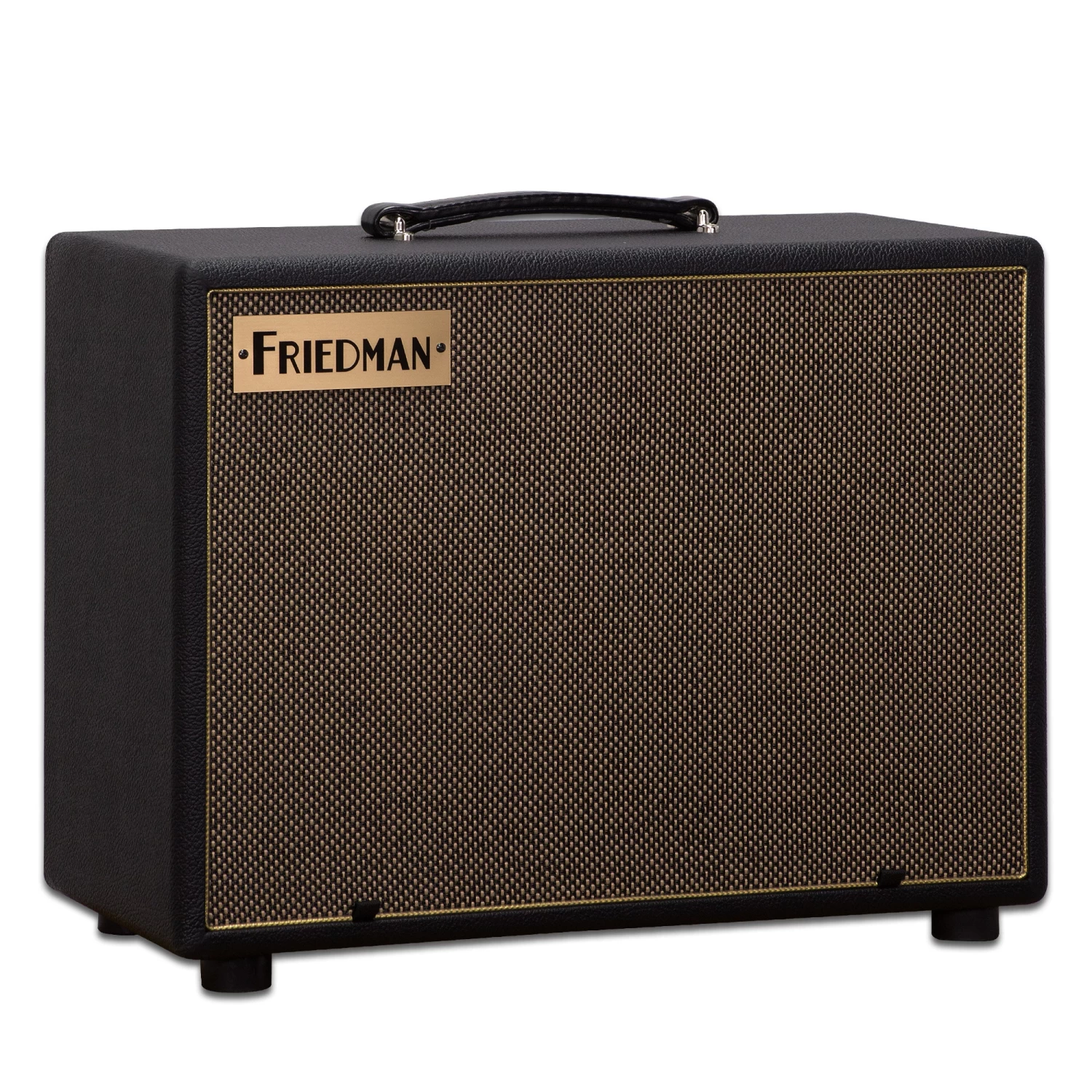

Friedman Amplification ASC-10 500-Watt 10-Inch Active Powered Guitar Amp Speaker Cabinet

Manufacturer’s Description

500W Active Modeler/Profiler Monitor;

The Friedman ASC-10 active guitar monitor is a compact, onstage modeling solution for players who demand the tried-and-true aesthetic of a traditional guitar amplifier backline. By combining a high-end, 1 x 10” speaker cabinet with 500 watts of clean, analog power, and putting it into a familiar and elegant design, the ASC-10 pushes the tone of your favorite modeler through the air while blending seamlessly with the rest of your rig. And thanks to the cabinet’s guitar-amplifier appearance, you’re able to maintain the look of a boutique amplifier backline. If you utilize amplifier modeling in your performances but need the immediacy and feel of a real speaker pushing air, the Friedman ASC-10 2-way, 500-watt powered monitor is what you’ve been missing.

Classic design with onstage convenience:

With the ASC-10, no one has to know that you’re running a modeling-based rig. Though the amplifier is delivering a full-range performance to you and your audience, it boasts the classic appearance of other top-tier Friedman guitar cabinets. Place it behind you where you would normally place your amplifier. Its guitar-cabinet look blends right in with the rest of your backline.

• Crafted with the same look and care of traditional Friedman guitar cabinets
• Maintains the familiar guitar amplifier backline look, onstage
• Time-honored birch construction

Plenty of power:

The heart of the ASC-10 active guitar monitor is its all-analog, bi-amped Class-G power section. Plenty of care was taken to choose the highest-quality materials for reliability and sonic clarity in designing this amplifier. As soon as you plug it in, your ears are greeted with warmth and detail that leave PA-style monitoring far behind. And at 500-watts, you’ll wield plenty of power for any performance.

• All-analog, Class G circuitry engineered for rich and pristine tone

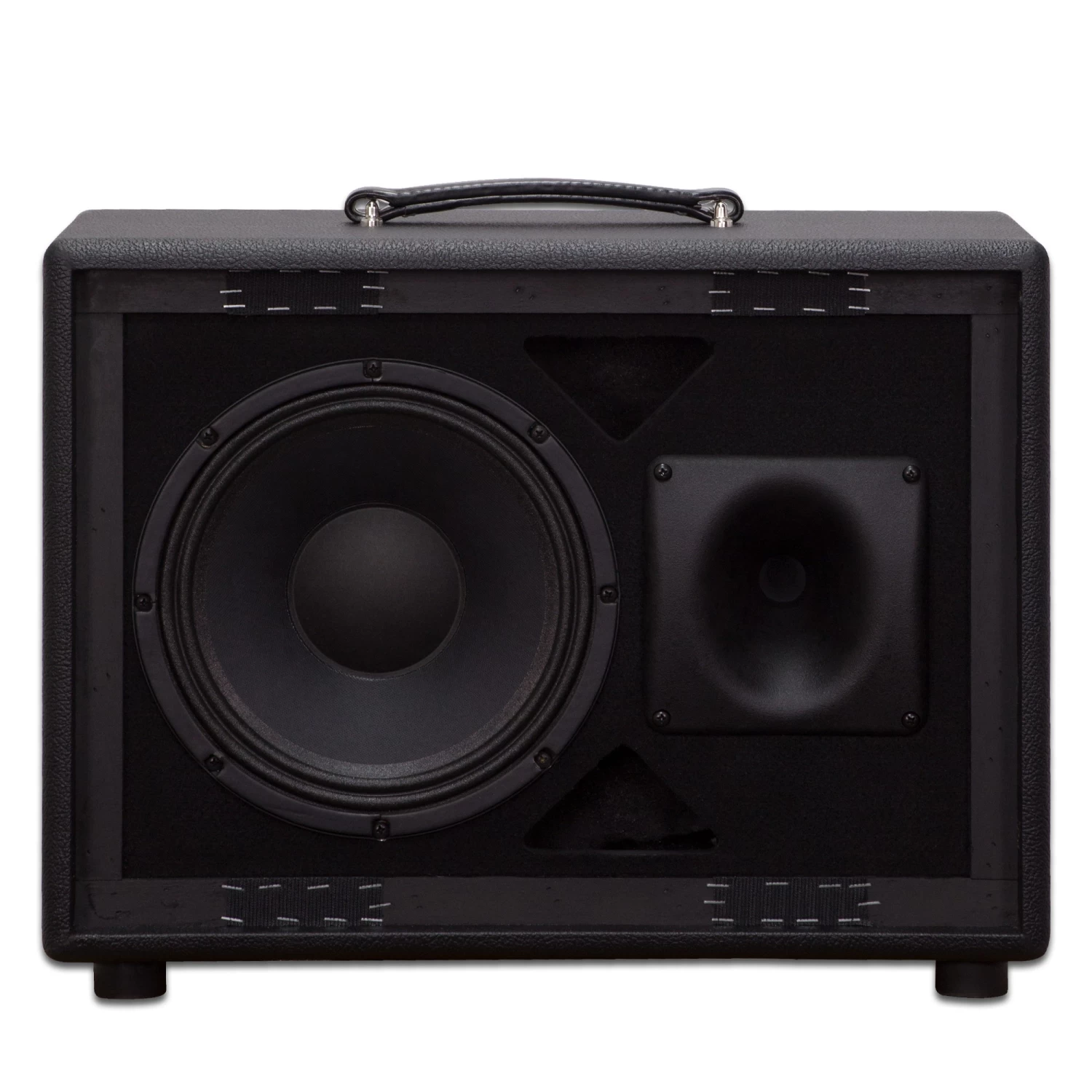

• Bi-amped into a 10” Celestion TF1025E woofer and 1” compression driver
• Powerful enough to also be used as backline or a mobile PA

Tonal control:

Around back, you’ll find all the straightforward control you need to tailor your ASC-10 to any situation. A simple level control and Low Cut switch keep your frequencies and volume balanced. Parallel XLR and ¼” TRS connections allow either jack, when not being used as an input, to serve as a balanced line level output to another monitor.

• XLR and ¼” inputs allow for different connectivity needs
• Low Cut switch controls frequencies below 100Hz
• Level control for proper onstage gain staging

Dave Friedman knows tone:

Dave Friedman has been building one of the most stellar reputations in the guitar, amplifier, and effects industry for decades. His clientele – which includes some of the biggest names in electric guitar – continue to rely on him to keep them sounding their best night after night. When he puts his name on a piece of gear, you know it will get the job done.

• The Friedman name is synonymous with high-quality electric guitar products
• Crafted with the finest materials for flawless performance
• Every unit is inspected and tested before shipping



Specifications

• Configuration: 10” 2-Way Active Stage Monitor for use with modelers/profilers
• Assembly: Made in USA using premium worldwide components
• Low Frequency Transducer: Celestion – 10” TF1025E woofer
• High Frequency Transducer: Celestion PETP film compression driver with 1” voice coil
• Frequency Range: 50Hz – 20kHz
• Frequency Response: 58Hz -18kHz
• High Frequency Dispersion: Optical Wave Guide
• Maximum peak SPL: 129dB
• Power Output: LF: 270Wrms Class G / HF: 80Wrms Class AB+B
• Maximum total burst power*: 500W
• Input Impedance: 20k Ohm Balanced / 10k Ohm Unbalanced
• Electronic Crossover: 4th order
• Low Cut Filer (switchable): 3rd order Butterworth @ 100Hz
• Controls: Level knob , Low-cut filter switch, Ground lift switch
• Power switch, AC fuse, 115/230V switch
• Indicators: Power, Protect
• Cooling: Convection
• Amplifier Protection: Short circuit, Clip-limiter, Overheat mute, SOA output stage, Driver DC protection,
• Subsonic filter, Turn-on mute and soft ramp, Turn-on inrush current limiting
• Power Consumption @: 1.7A/0.85A 115Vac/230Vac
• (1/8 power pink noise): 150VA
• Connectors: Balanced 1/4” input / Balanced male XLR link output
• Input Sensitivity **: 775mV (0dBu)
• Enclosure: Black Texture painted, Baltic birch plywood construction
• Hardware: Strap handle, Rubber feet / Rubber Strips
• Dimensions:
  • Weight: 34 lbs.
