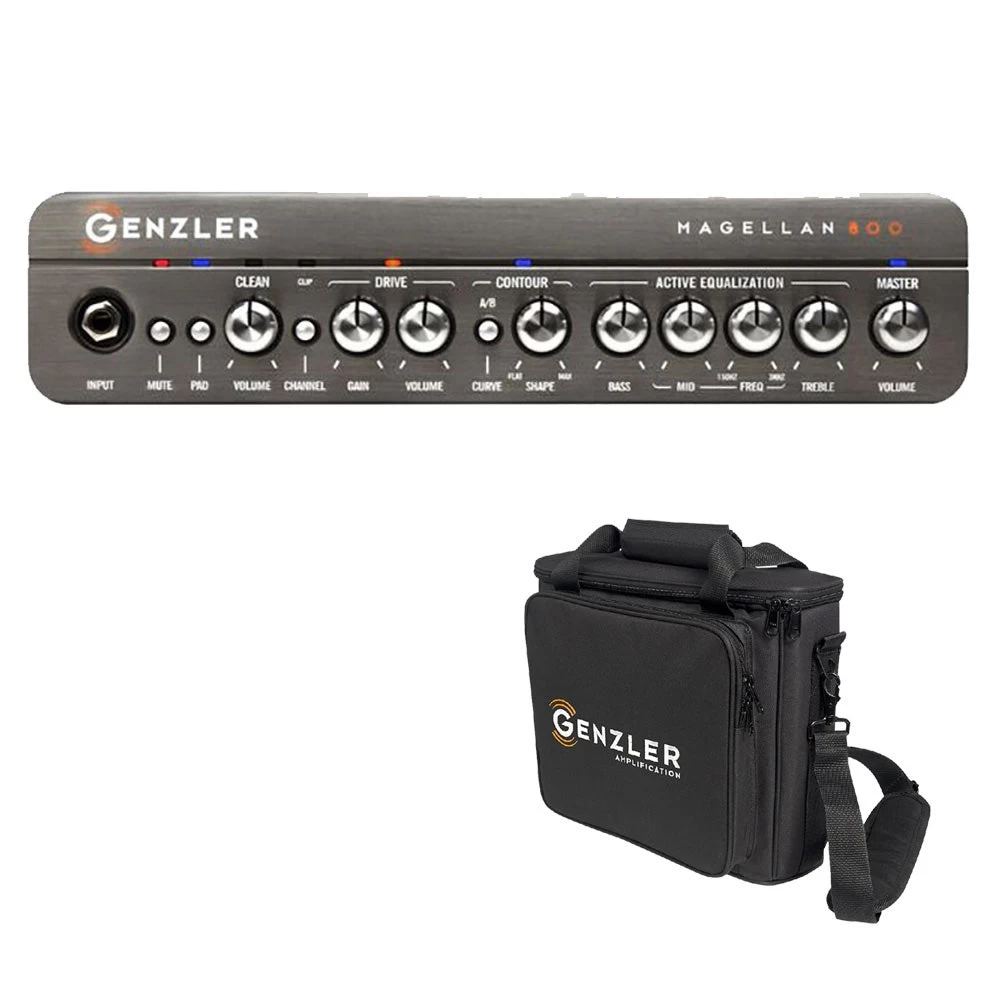

Genzler Amplification MG-800 Magellan 800 Bass Amplifier Head With Padded Cover

Genzler Amplification MG-800 – Magellan 800 Bass Amplifier Head

• Power Output: 400W/8 Ohms, 800W/4 Ohms and 800W/2.67 Ohms
• Minimum Speaker Load: 2.67 Ohms
• Operating Power condition: 100 – 240V, 50/60 Hz
• Dimensions: 3”H X 11.25”W X 10.5”D (76.2mm H x 285.75mm W x 266.7mm D)
• Weight: 6.25 LBS (2.83Kg)

 Manufacturer’s Description

Genzler Amplification MG-800 – Magellan 800 Bass Amplifier Head

GENZLER™ AMPLIFICATION is proud to announce the introduction of our first bass instrument amplifier, theMAGELLAN™ 800.

Inspired by the courage and spirit of exploration, the MAGELLAN™ 800 represents the pinnacle in the next generation in lightweight, high-output, versatile, bass amplification. With our years of research, design and manufacturing expertise, we’ve developed this model utilizing stringent design parameters for form, function, fit and finish. The result is an 800 watt professional high-powered tour-class bass guitar amplifier weighing only 6.25 lbs!

This is exactly what players have come to expect from the GENZLER™ design team — performance, versatility and reliability. From natural, pristine, transparent reproduction of the bass instrument to classic, vintage harmonic textures with “weighted feel to the notes”, the MG-800 provides the tonal pallet needed to cover all of the bassist’s amplifier requirements.

The expanded feature set and output power level make this amplifier an essential tool on the global stage, and with its universal power supply, the MAGELLAN™ 800 can be used with any voltage around the world without modification.

PREAMP – dual channel, all solid state analog design with integrated soft clip circuitry.

• INPUT– 1Meg ohm input impedance
• INPUT PAD SWITCH – attenuation of -8.5dB
• CLEAN CHANNEL OVERVIEW – Voiced to provide natural, pristine, transparent reproduction of the bass instrument.
• DRIVE CHANNEL OVERVIEW – Voiced to provide a more “driven” tonal signature and harmonic content along with a softer top end and more relaxed low frequency response.
• CONTOUR — continuously variable control of 2 vastly different response curves. In either CURVE position, when the SHAPE control is all the way off (CCW) the response curve is completely FLAT.
• Curve A (Blue) — a variable pre-shaped curve that boosts lows and highs while simultaneously cutting mids. The slopes are fairly gentle which keep the tone shaping very musical. This curve covers a wide range of sounds from flat to classic to modern depending on the position of the SHAPE control.
• Curve B (Amber) — a variable pre-shaped curve with attenuated high mids and highs, a low mid bump, and a slight roll-off of the lowest bass frequencies. Again, the slopes are fairly gentle which keep the tone shaping very musical. This curve is intended to provide sounds in the range of vintage amps and vintage cabinets that do not have tweeters.
• ACTIVE EQUALIZATION – The MAGELLAN™ 800 contains an active 3 band equalizer with a sweepable parametric mid-range frequency control.
• Bass +/- 15dB boost/cut shelving curve with a corner frequency of 75Hz
• Mid +/- 15dB boost/cut of the variable mid frequency selected
• Freq Variable mid frequency from 150Hz-3kHz
• Treble +/- 15dB boost/cut shelving curve with a corner frequency of 6kHz

 POWER AMP – The MAGELLAN™ 800 uses a state of the art, class D power amplifier design and a high frequency auto-sensing universal switch-mode power supply (SMPS) to achieve unprecedented high performance and lightweight packaging. There are no Voltage Switches to change or jumpers to move. This SMPS senses the line voltage from 100-240 Volts and automatically configures itself.

 REAR PANEL

• XLR Direct Output –Effects Loop
• Mic / Line Switch
• Pre / Post EQ Switch
• Ground Lift Switch
• Aux Input
• Tuner Output
• Head Phones
• Foot Switch — Channel switching (Foot switch not included)
• Dual Speakon® Speaker Outputs

The Dual Channel Design Features:

• Clean Channel –
  • Pristine and Articulate
• Drive Channel –
  • Voiced for a More Driven Tonal Signature and Harmonic Texture
• Dual-Curve Variable Contour CircuitryActive 3 Band EQ w/Parametric Mid Control Signal Mute SwitchInput Pad Switch
  • Curve A — Classic to Modern — Mid Scoop Curve
  • Curve B — Thicker to Vintage — Low-Mid Bump w/Tapered Top End
  • Flat Position — Full Bypass
  • Active 3 Band EQ w/Parametric Mid Control
• Thermal Sensing Variable Speed Fan Cooling
• All Brushed, Aircraft Grade Aluminum Chassis with Extruded Aluminum Front Panel
• Output: 400W/8 Ohms, 800W/4 Ohms and 800W/2.67 Ohms
• 2.67 Ohms Min. Total Load
• Dimensions: 11.25”W X 10.5”D X 3”H
• Weight: 6.25 Lbs.



Genzler Amplification MG-800-BAG – Magellan 800 Carry Bag

This carry bag is designed to offer exceptional ease of transport for the lightweight MAGELLAN 800 bass amplifier, along with excellent protection. It offers padded protection for night-after-night heavy use.

Made from heavy-duty, water resistant vinyl material, the bag features upgraded zippers, a large front pocket, sturdy handles and a comfortable, detachable carry strap. Along with a soft-plush lining the carry bag uses 15mm padding around every surface of the protective compartment. The front pocket is large enough for a variety of accessories like cables, tuners, etc.

An excellent choice for the musician that needs his MAGELLAN 800 head in a “grab and go” protective carrying case.
