Genzler Amplification Series 2 Magellan MG350-BA10-COMBO-S2 350-Watt Bass Combo Amp

Manufacturer’s Description

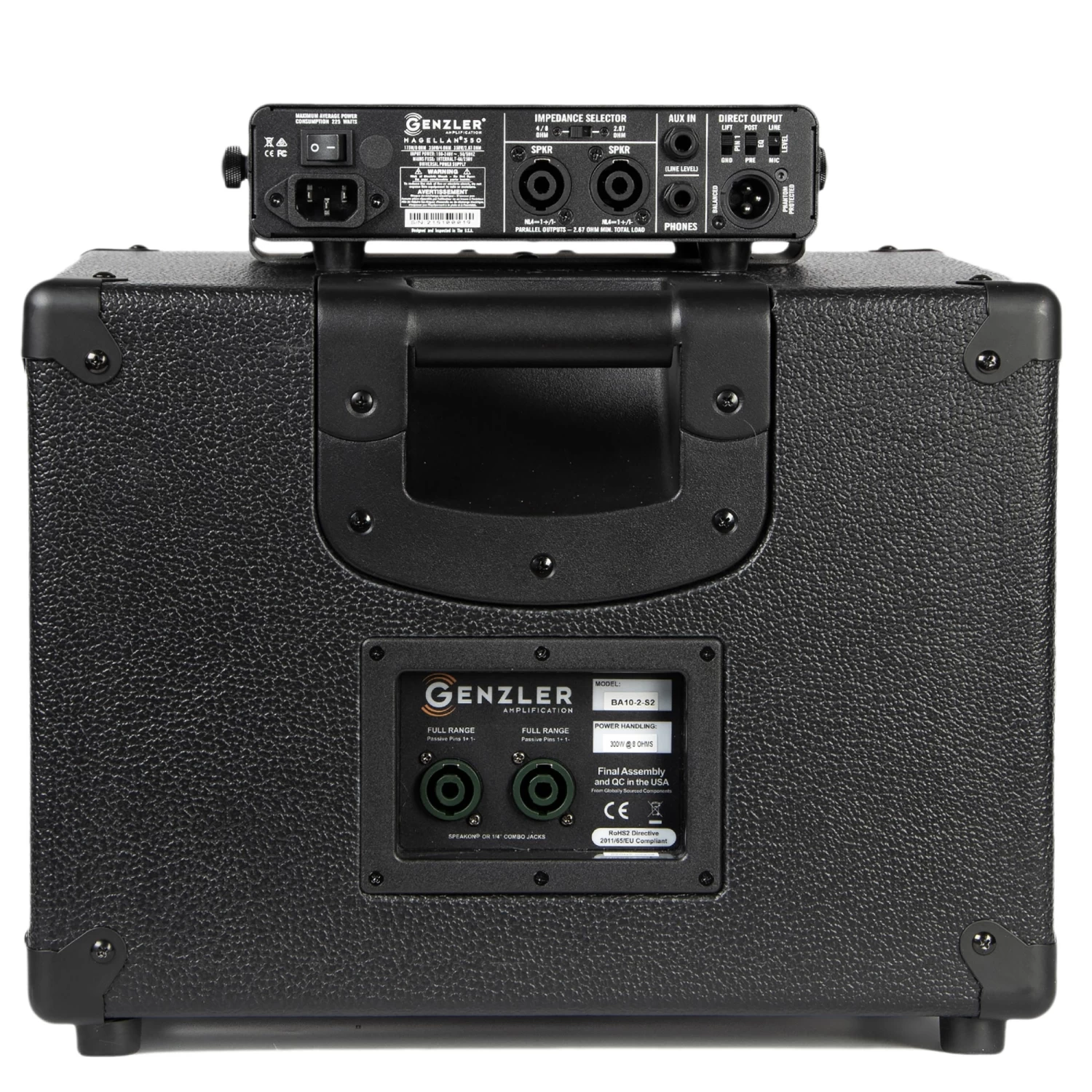

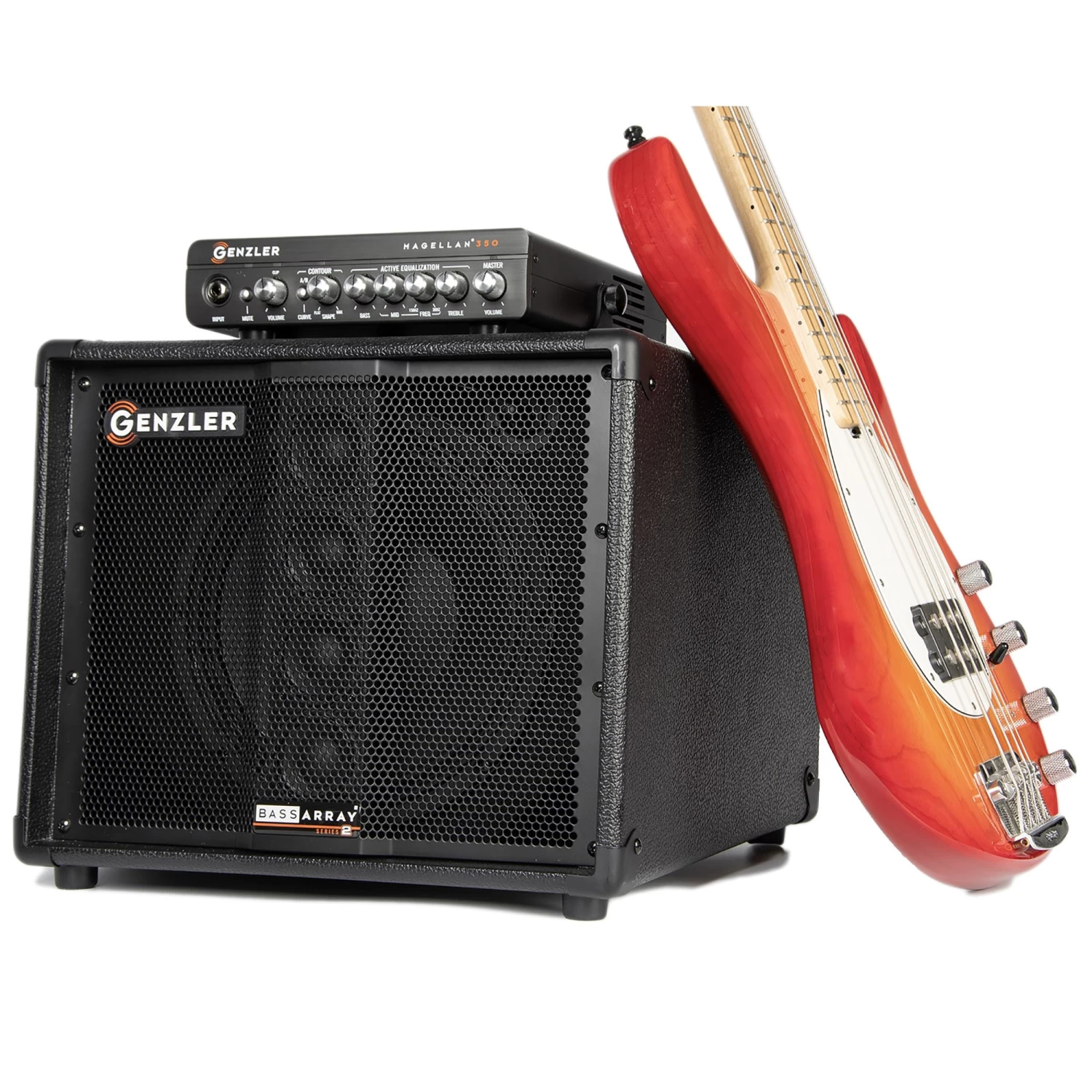

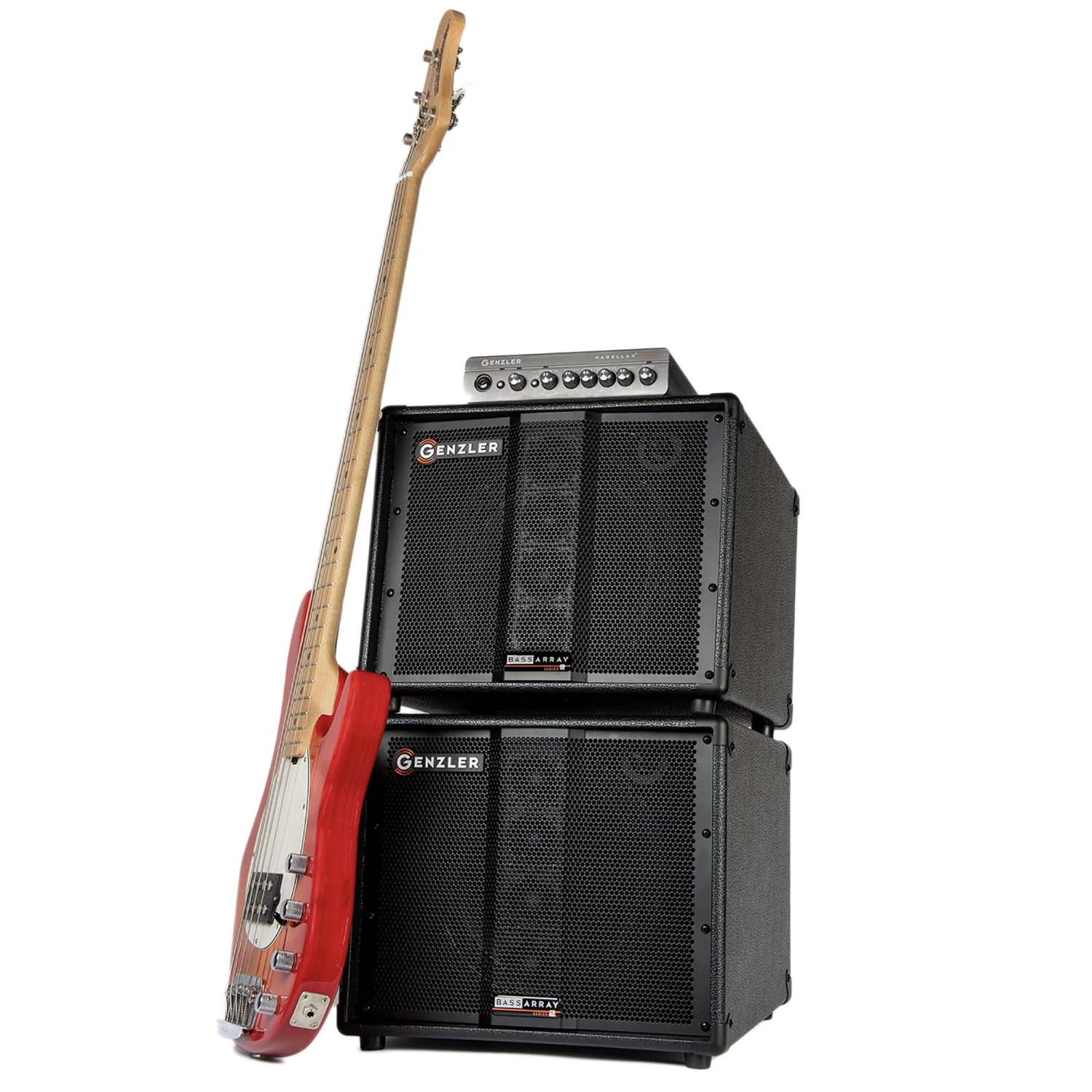

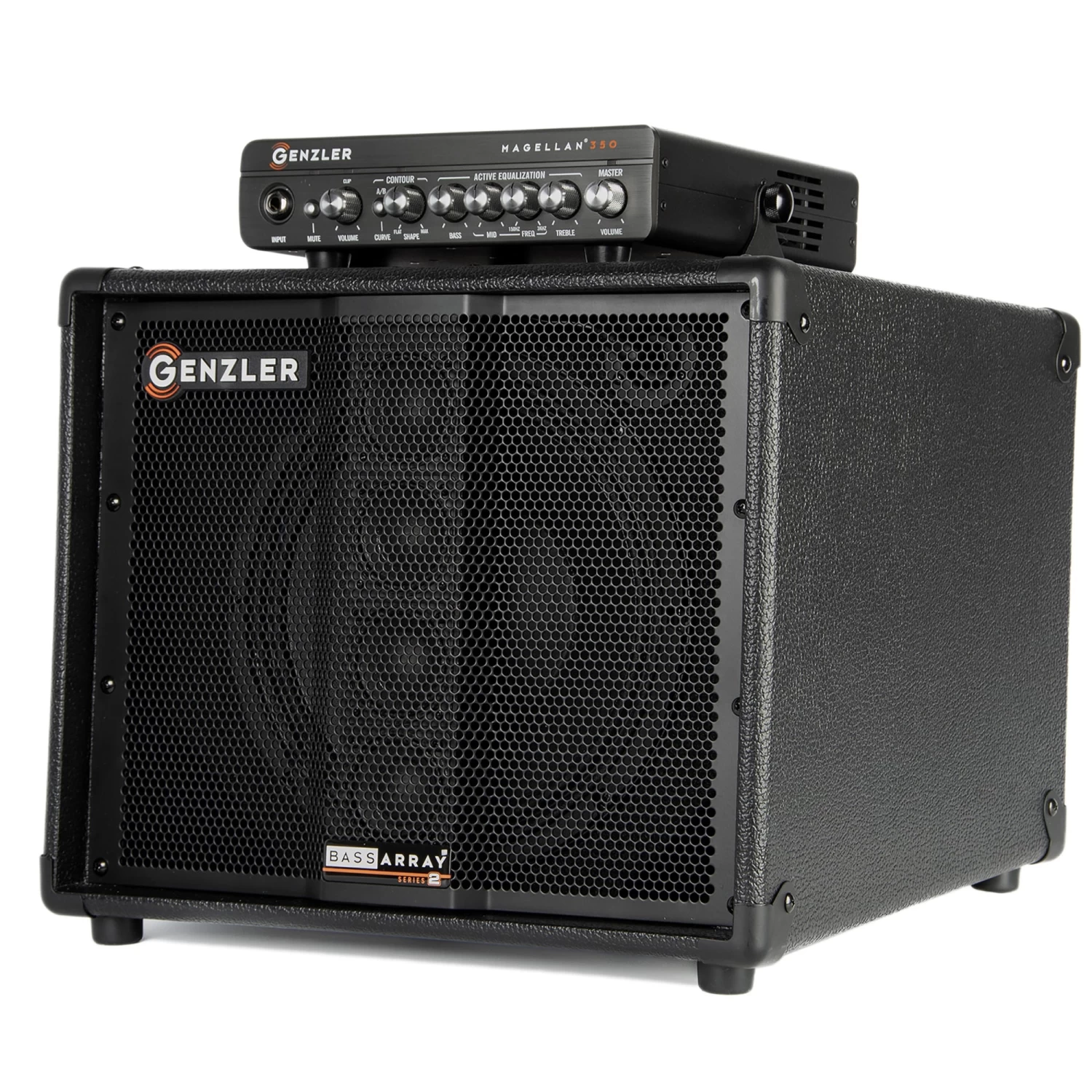

The MG350-BA10-COMBO-S2 is a combo “kit” offering the mounting of the MG-350 amplifier to the BA10-2-S2 cabinet, using our “hidden” MG-350-CRADLE, which can be mounted to the top surface of the bass cabinet.  Each cabinet includes the top mounting screws for this option.  This allows easy installation or removal of the amp to the cabinet for even more flexibility with this powerful little combo.  The MG-350 delivers 175 watts as the combo and with an additional BA10-2-S2 extension cabinet puts out 350 watts into this remarkable “mini-stack”.

The cabinet design blends the punch and quickness of a single premium Neodymium 10” driver in a vented bass reflex enclosure, along with the performance and pattern control of a proprietary line array element, utilizing 4 x 2” neodymium drivers. The benefits of combining both design platforms in an extremely compact cabinet are exponential for the player requiring such a small, yet powerful enclosure.  This model also offers a unique cabinet shape with an angled baffle — tilting up towards the player — and a single top/rear mounted edge-lift handle for an easy grab and go solution.

The MG350-BA10-COMBO-S2 delivers a full-bodied, defined, musically smooth and seamless response in this compact design and is ideal for electric or upright bass requirements.  The performance and response are much larger than its minimal size and stage footprint.

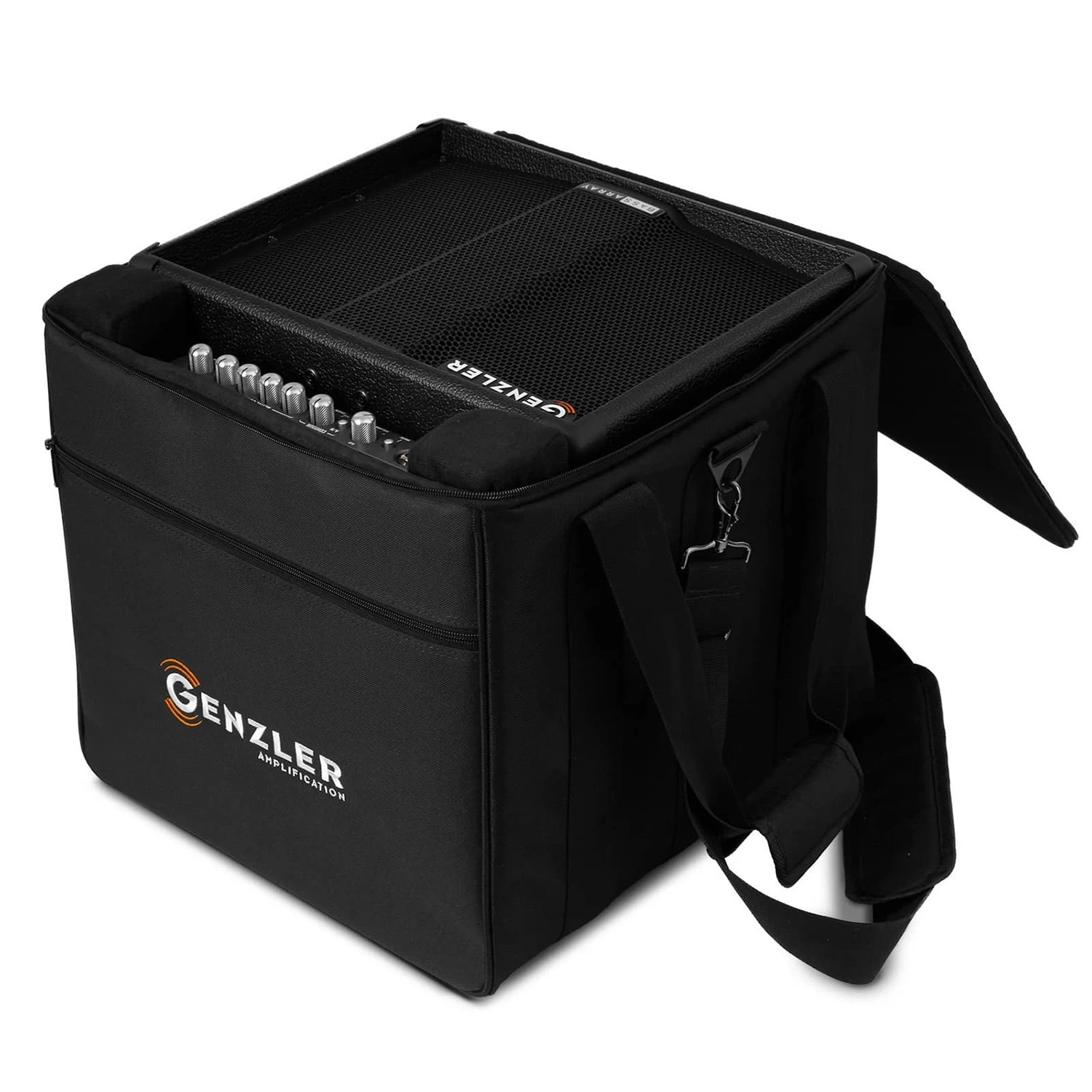

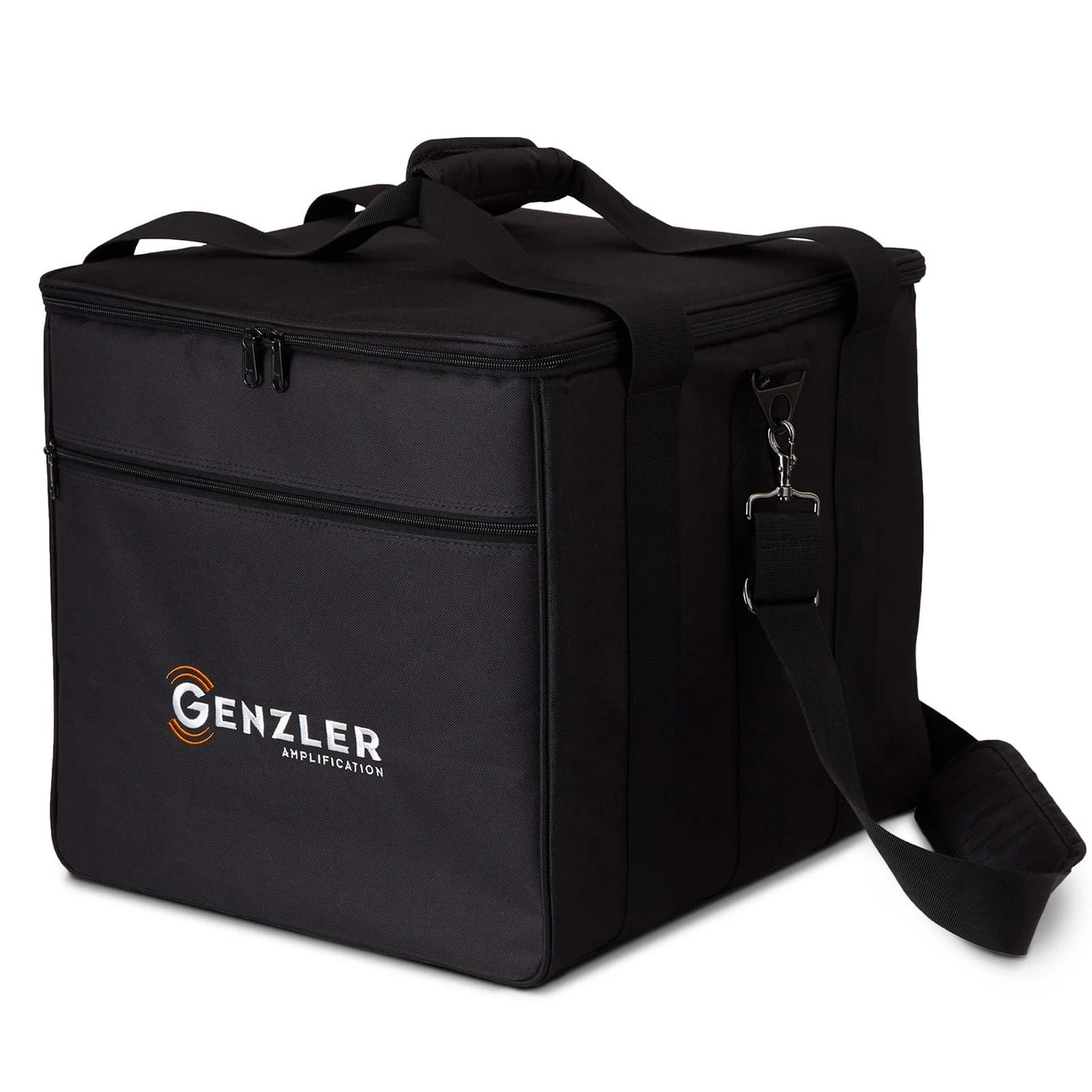

An optional heavy-duty carry bag is also available for easy transport and protection.

Features

• Clean Channel –
  • Pristine and Articulate
• Dual-Curve Variable Contour Circuitry
  • Curve A — Classic to Modern — Mid Scoop Curve
  • Curve B — Thicker to Vintage — Low-Mid Bump w/Tapered Top End
• Active 3 Band EQ w/Parametric Mid Control
• Signal Mute Switch
• Thermal Sensing Variable Speed Fan Cooling
• Full Featured XLR Direct Output Interface
• 2.67 Ohm Min. Total Load
• Premium Neodymium 10” Woofer w/ 4 x 2” Neodymium Line Array Drivers
• Output Power:  175W @ 8 ohms; 350W @ 4 ohms, or 2.67 Ohms

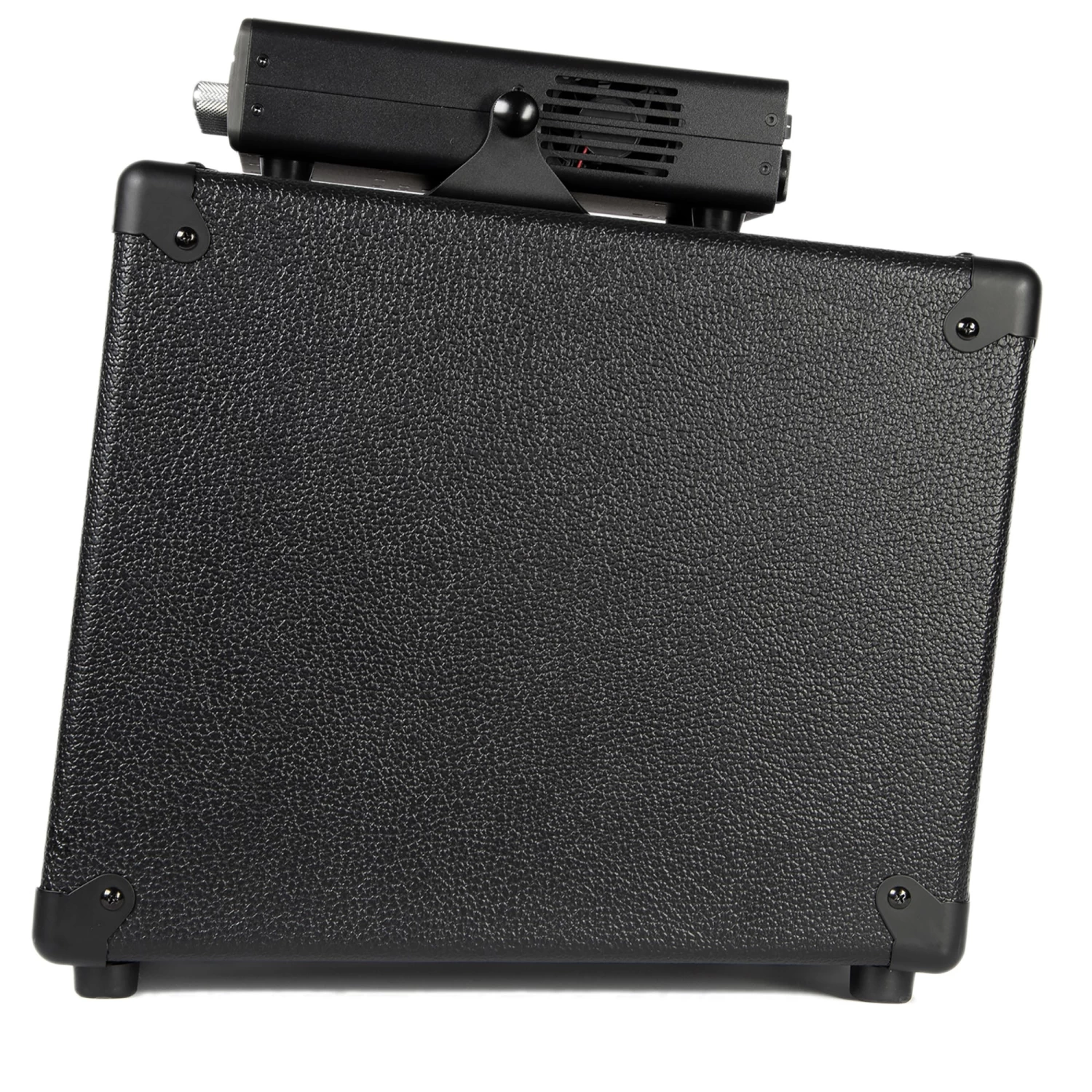

• Unique Angled Baffle Cabinet Design
• Top/Rear Mounted Edge-lift Handle
• Dual Speakon® and ¼” Combination Input Jacks
• Short Speakon® cable included with the MG-350-CRADLE
• Weight:  23 LBS
• Dimensions: 15.5”W x 15”D x 16”H

Specifications

General

• Power Handling
  • 175W @ 8_ohms
  • 350W @ 4_ohms
  • 350W @ 2.67_ohms
• Frequency Response: 48-20KHz
• Sensitivity 1W/1M: 97 dB
• Nominal Impedance: 8 ohm
• Crossover Frequency: 1.6K Hz
• Weight LBs.:  23
• Dimensions – HxWxD: 16″ x 15.5″ x 15″

Shipping Data:

• Carton Dimensions:  21”H x 19.5”W x 18.5”D   (533.4mm H x 495.3mm W x 470mm D)
• Shipping Weight:   32 Lbs  (14.5 Kg)

Speaker Components:

• One — Premium Italian Designed Neodymium 10” loudspeaker.
• Four – Premium Italian Designed Neodymium 2” mid/high line array cone drivers.

Input Panel/Crossover Network:

• Custom designed 6 dB/octave slopes in balance with a preset top end notch-filter.
• Two – Combination Speakon® NL-2 and ¼” input jacks.

Cabinet Finish:

• Black textured vinyl.
• Black metal corners and heavy-duty edge-lift handle.
• Custom, curved perforated metal rille with a unique center “pleat” to protect the array column.
• Large rubber feet.
