HK Audio PREMIUM PR:O 112 XD2 1200-Watt 12-Inch Powered Stage Monitor Loudspeaker

Manufacturer’s Description

the next Generation

With more than 200,000 units sold, PREMIUM PR:O is a truly unstoppable success story for our modular sound systems, which we are continuously developing and optimizing. Customers particularly love the low-resonance, sturdy wooden construction paired with reliable, high-quality speakers and powerful electronic components. All this makes the PREMIUM PR:O D2 models brilliant all-rounders, especially for live applications where high sound pressure and transparent reproduction of voice and instruments are important.

Flexible all-rounders

The new PREMIUM PR:O D2 series consists of five DSP-controlled full-range and multifunctional speakers, as well as the PR:O 210 Sub D2 and PR:O 118 Sub D2 basses. In line with the modular principle, the speakers can be combined flexibly for the most varied of requirements, from standalone, 2.1 and monitor setups, to full-stack applications. These combination options make PREMIUM PR:O suitable for a wide range of installations where excellent speech intelligibility and transparent reproduction is required.

Professional, safe and simple handling

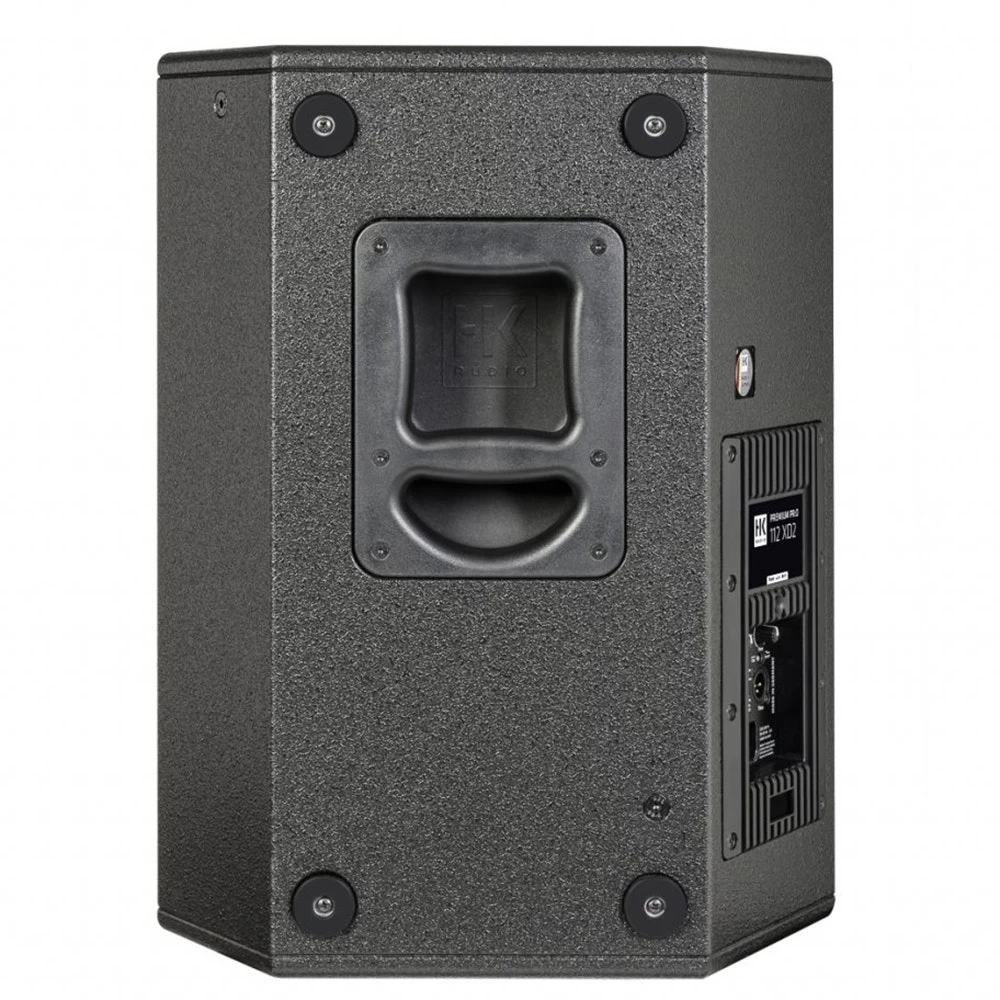

The newly developed HK Audio MultiGrips always ensure a comfortable and secure grip during loading and unloading as well as during assembly and dismantling. This not only results in practical handling in transportation: the HK Audio TB-45N and TB-45NQ tilt brackets can also be mounted on the MultiGrips, making professional rigging simple and easy.

Efficient, modern technology, simple operation

The DSP-controlled preamp delivers precise sound. Thanks to the EQ presets, tone controller and FIR X-Over, it overcomes acoustic challenges in live applications with ease. The D2 models have a clear and understandable user interface – complicated menu controls are deliberately avoided. Despite its high-tech interior, it is very easy and intuitive to use based on the Plug ’n’ Play principle. PREMIUM PR:O remains the easiest way to achieve the best sound.

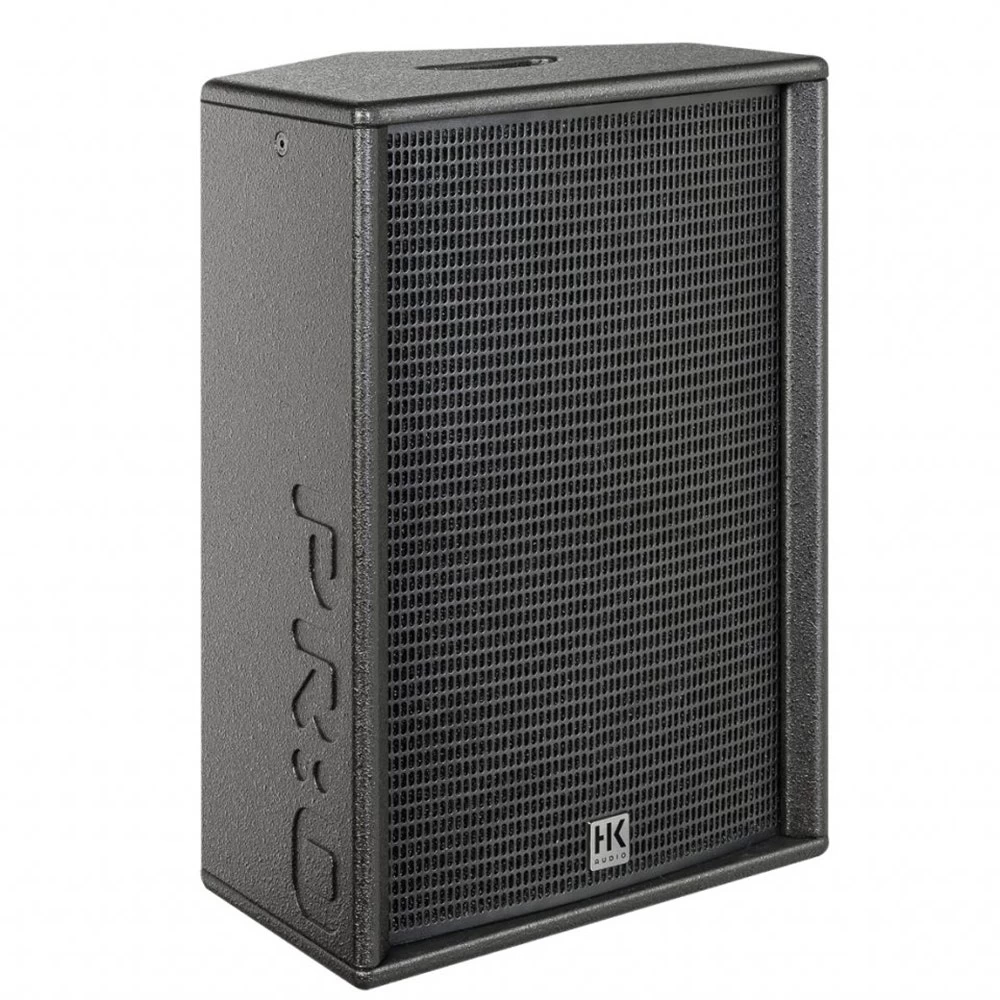

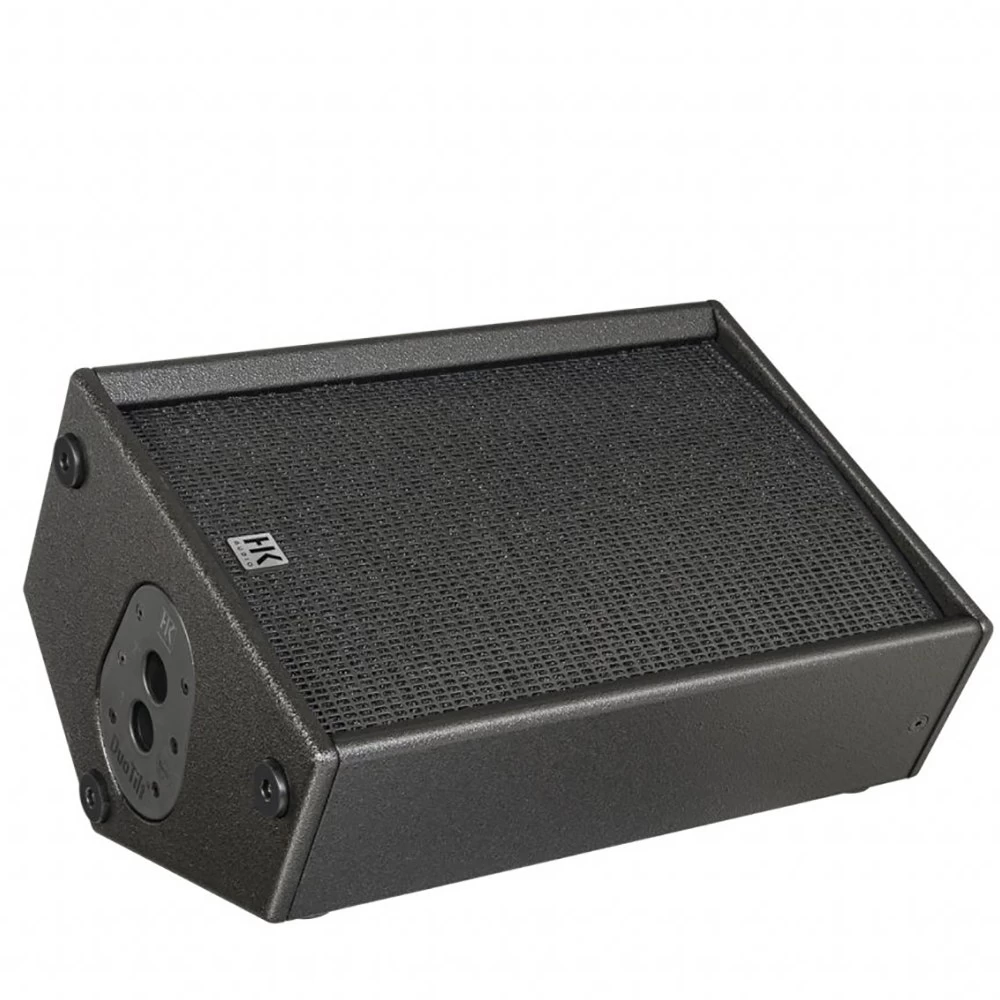

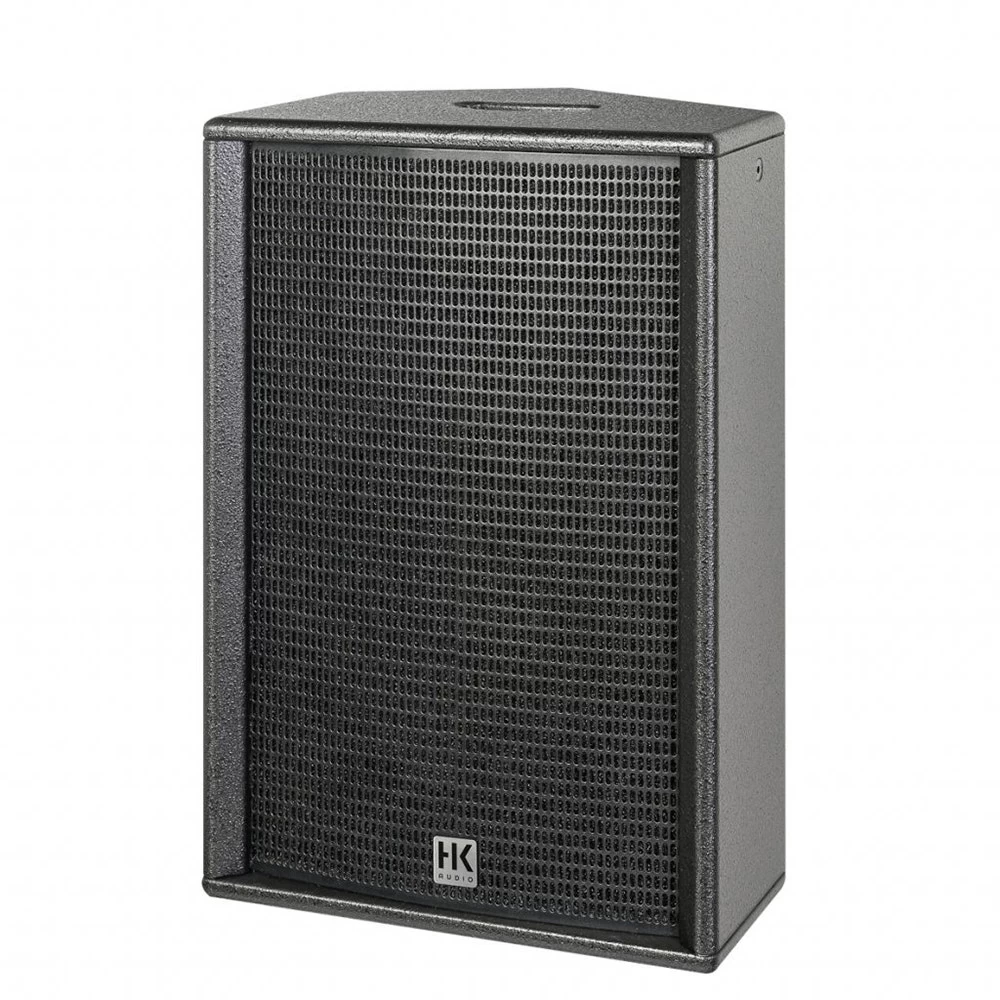

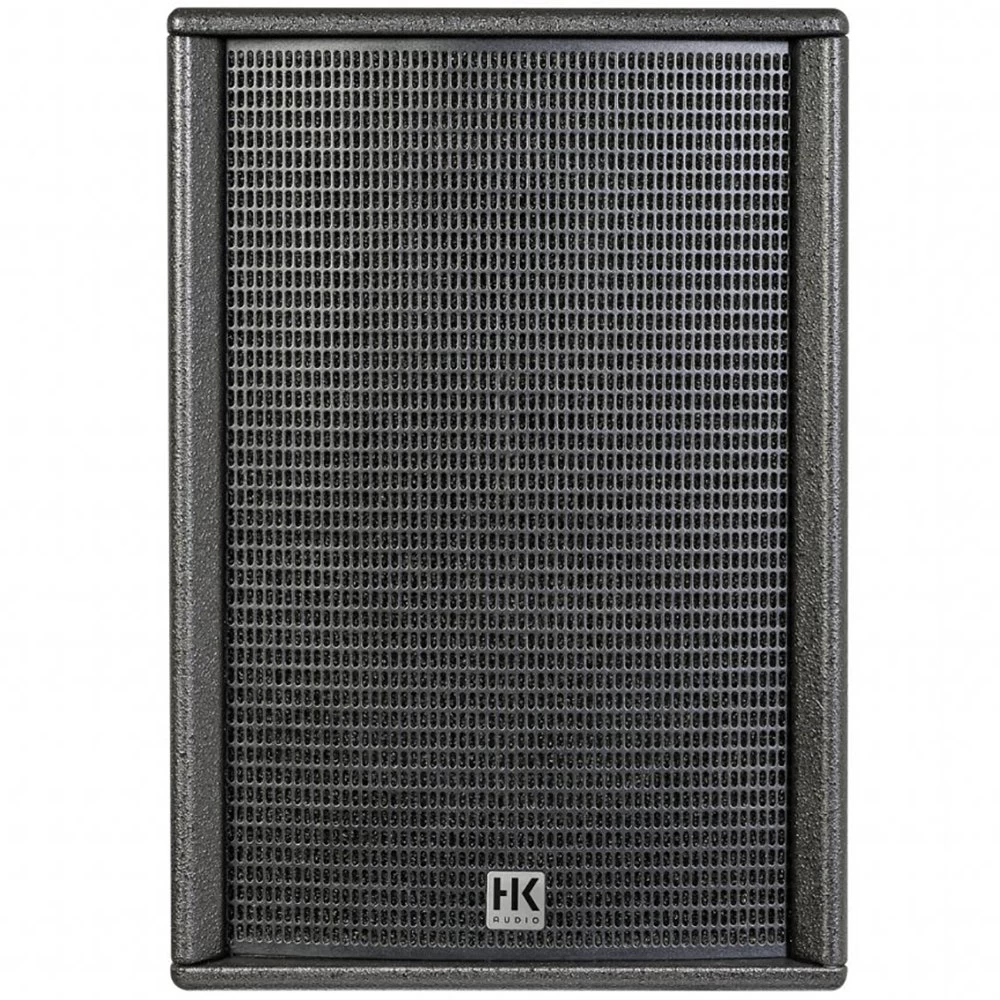

A compact 12″/1″ multifunctional speaker that can be used as a full-range cabinet or as a stage monitor. The well-balanced frequency response ensures low feedback and can be adapted to various applications using the Music/Speech controller. The integrated DSP-based power electronics supply the PR:O 112 XD2 with 1,200 watts of power. This ensures flexibility in all areas of application. The built-in MultiGrip ensures the necessary safety and ease of handling.

Specifications

• Max. SPL @ 10 % THD: 124 dB halfspace
• Max. SPL Peak @ 10 % THD: 132 dB halfspace
• Max SPL calculated: 133 dB halfspace
• Frequency response +/- 3 dB: 80 Hz – 16 kHz
• Frequency response -10 dB: 69 Hz – 18 kHz
• Amplifier output (Peak Power): 1200 W
• Amplifier type: Class D – biamped
• Active protection circuits: Peak and RMS sound limiter (separated for HF and LMF)
• Bass speaker: –
  • Low/mid-range speaker: 1x 12″, 2″ voice coil
• HF Driver: 1″, 1″ voice coil
• Horn characteristics: 90° x 55° CD horn
• Crossover frequency active: 2.5 kHz FIR X-over with 48 dB/oct.

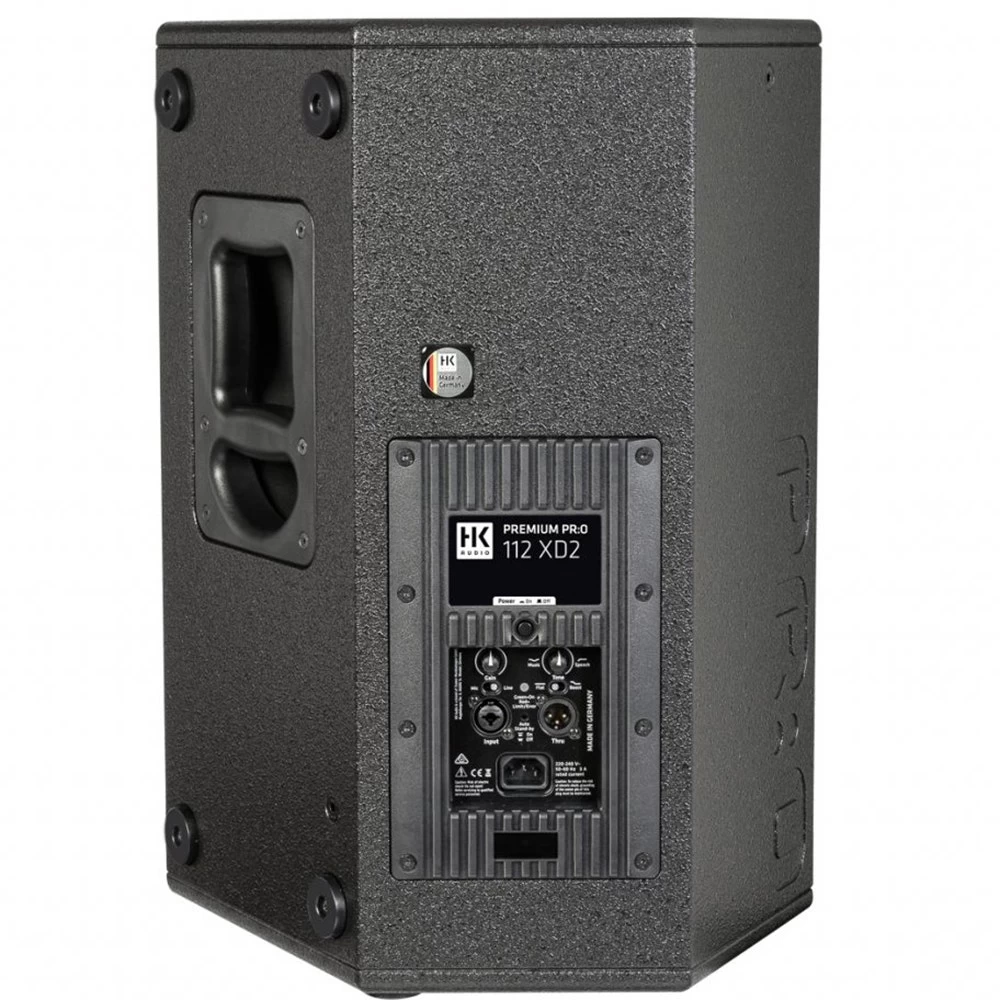

• Audio connectors in: 1x XLR/jack combo balanced
• Audio connectors out: 1x XLR thru bal.
• Sensitivity switch: Mic/Line
• Tone control: Tone controller (Music/Speech)
• Filter presets: Flat/Boost
• Setup angle: 33°

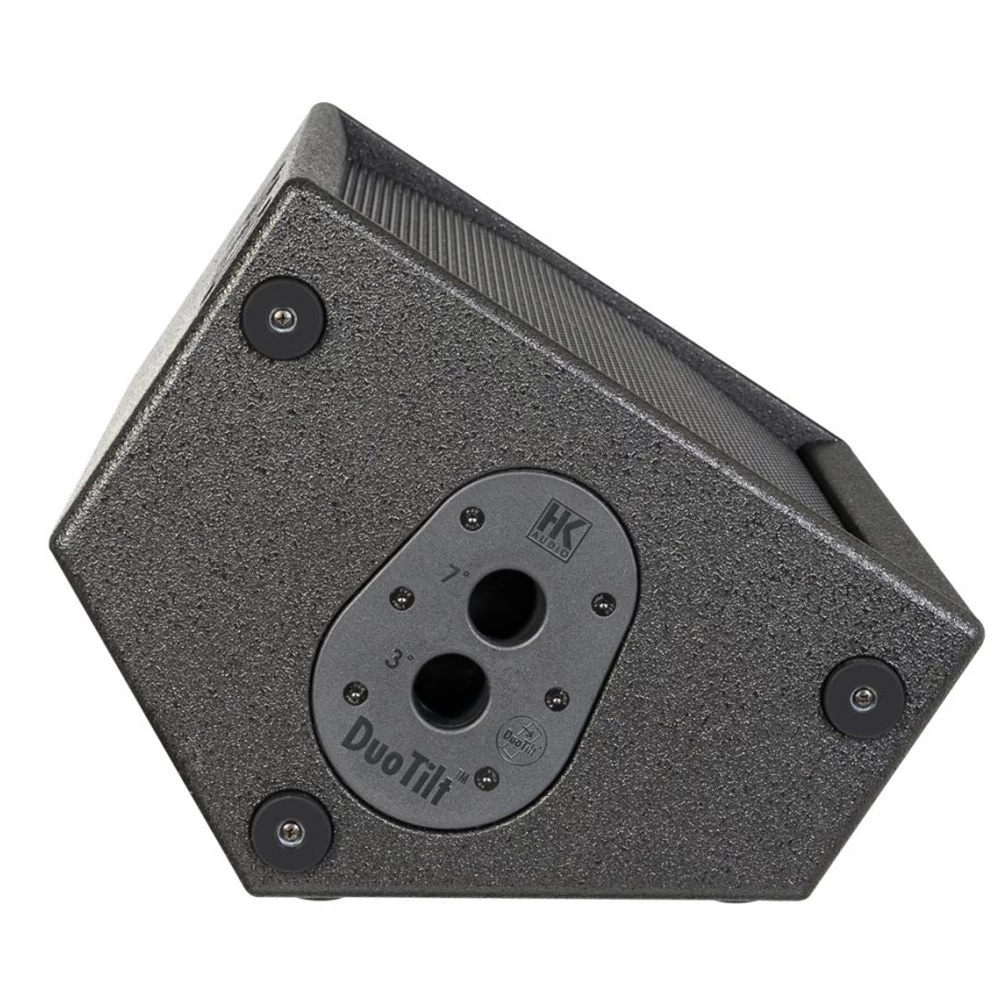

• Pole mount: DuoTilt 3/7
• Rigging points: 3x M8
• Carrying handles:
  • 1, SingleGrip,
  • : 1, MultiGrip
• Housing: MDF
• Finish: Black acrylic enamel
• Front grille: 1.5 mm metal grille backed with black acoustic foam
• Dimensions (WxHxD): 41 x 59.5 x 31 cm
• Weight: 17.9 kg / 39,5 lbs
