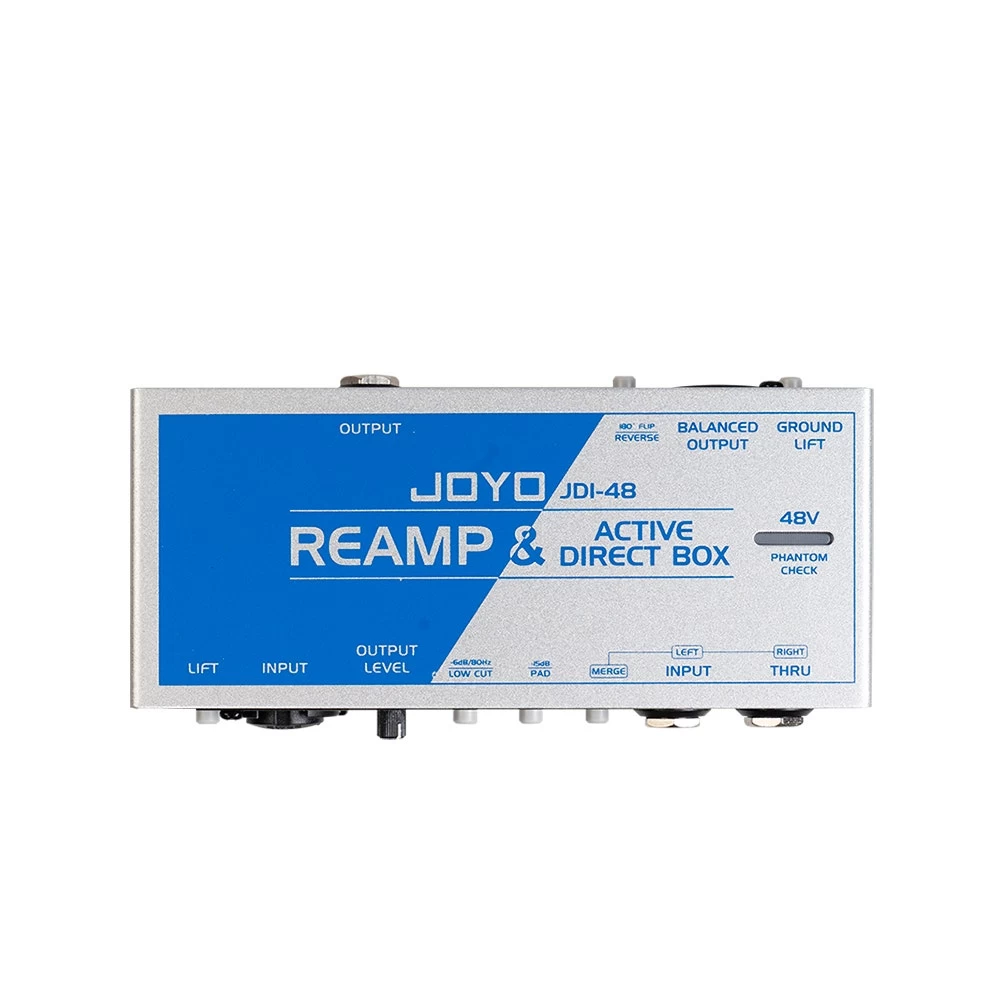

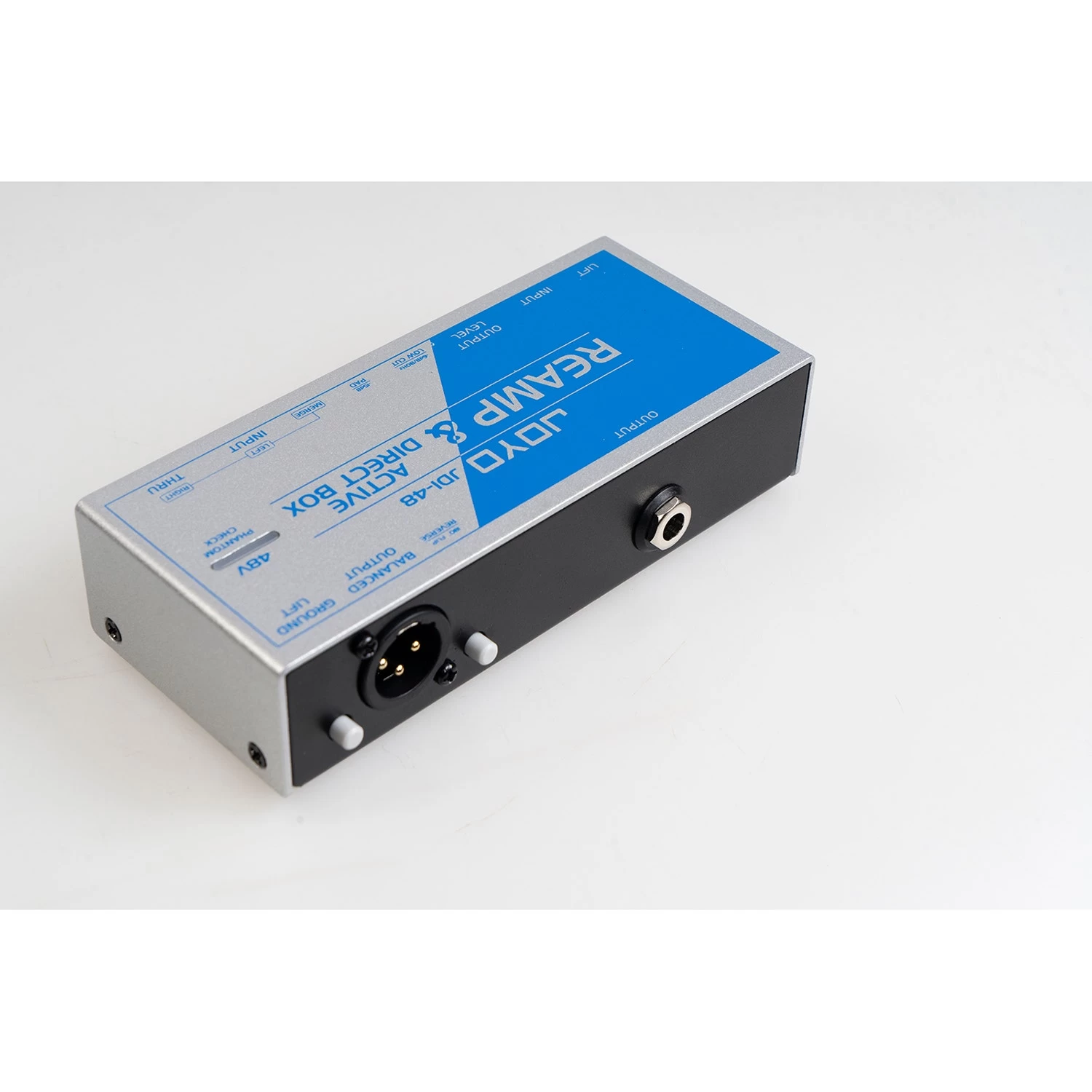

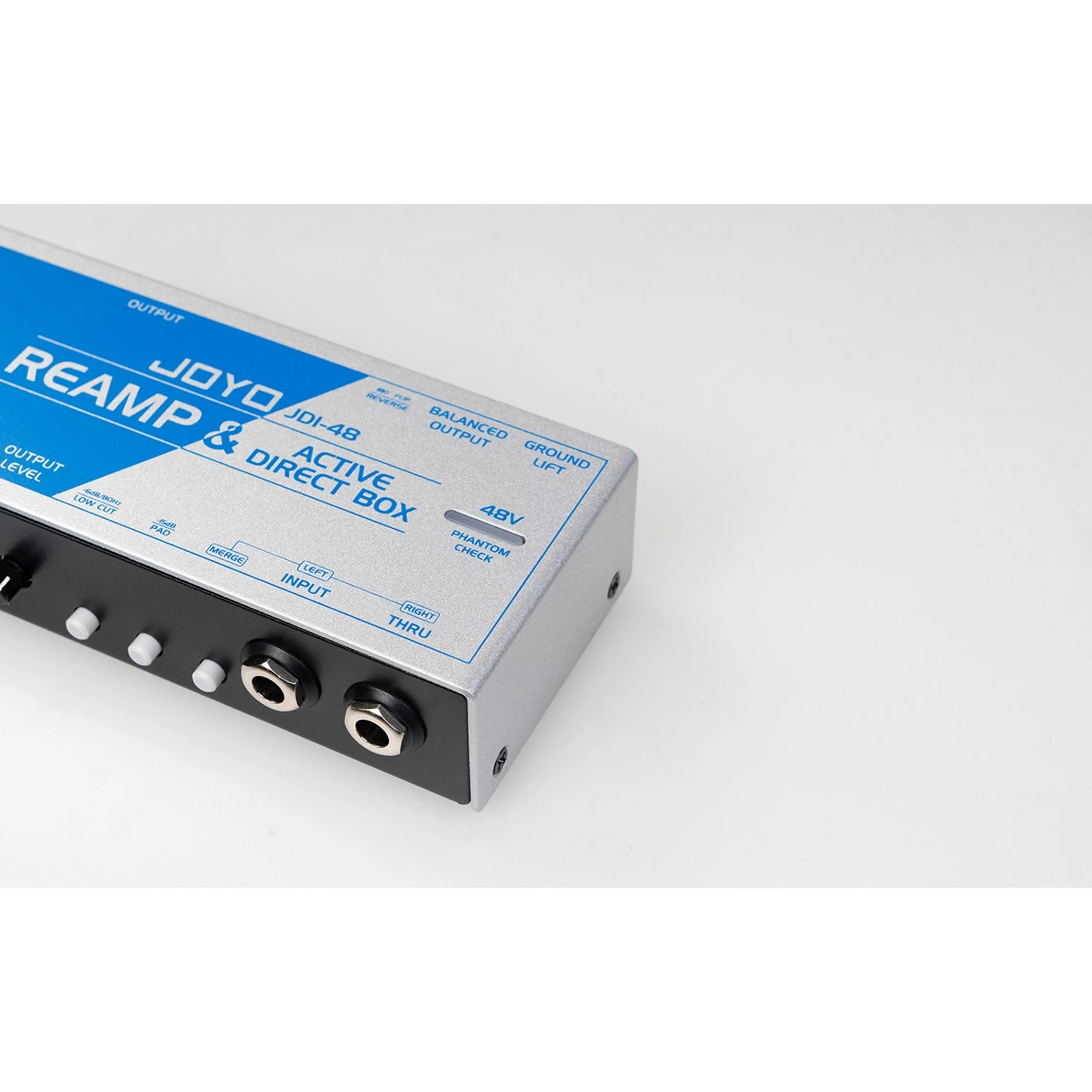

JOYO JDI-48 48-Volt Phantom Powered ReAmp Box & Active Direct Box DI

Manufacturer’s Description

• 48V phantom powered Dl box, high dynamic range,retaining thenuances of instruments’ sound
• No need of battery, phantom powered
• Grounding switch turns off the internal grounding channel betweenthe Input&Output
• Low-cut filter,-15dB attenuation, it features polarity reversew
• High Input lmpedance reduces pick-up loading
• REAMP and Dl 2 in 1, with independent functions
• Dl features low-cut.phase reverse,stereo mix and more

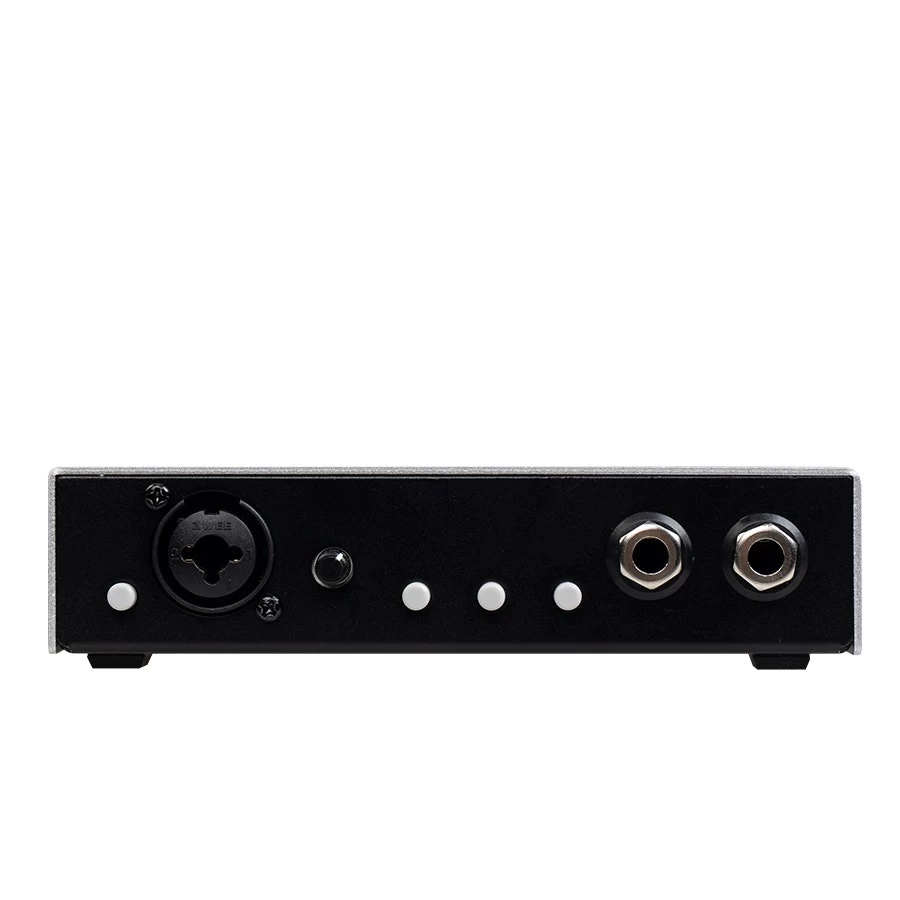

• REAMP lnput Jack:6.35mm and XLR 2 in 1 Input Jack, acceptingboth 6.35mm TRRS and XLR
• Suitable for signal switching during professional recording and liveperformance

Specifications

DI box’s

• Type：48V DC phantom power
• lnput impedance: 220KΩ, unbalanced
• Output impedance: 600Ω, balanced
• Frequency Response: 10-20000Hz<-0.5dBv
• Total harmonic distortion: <0.01%
• Phase distortion:-21deg
• Maximum input voltage<9VPP

REAMP’s

• Type: no need for power supply
• lnput impedance: 600Ω
• lnput signal level: +4dB Line level
• weight: 467g
• Dimensions: 146mmx76mm×34mm
