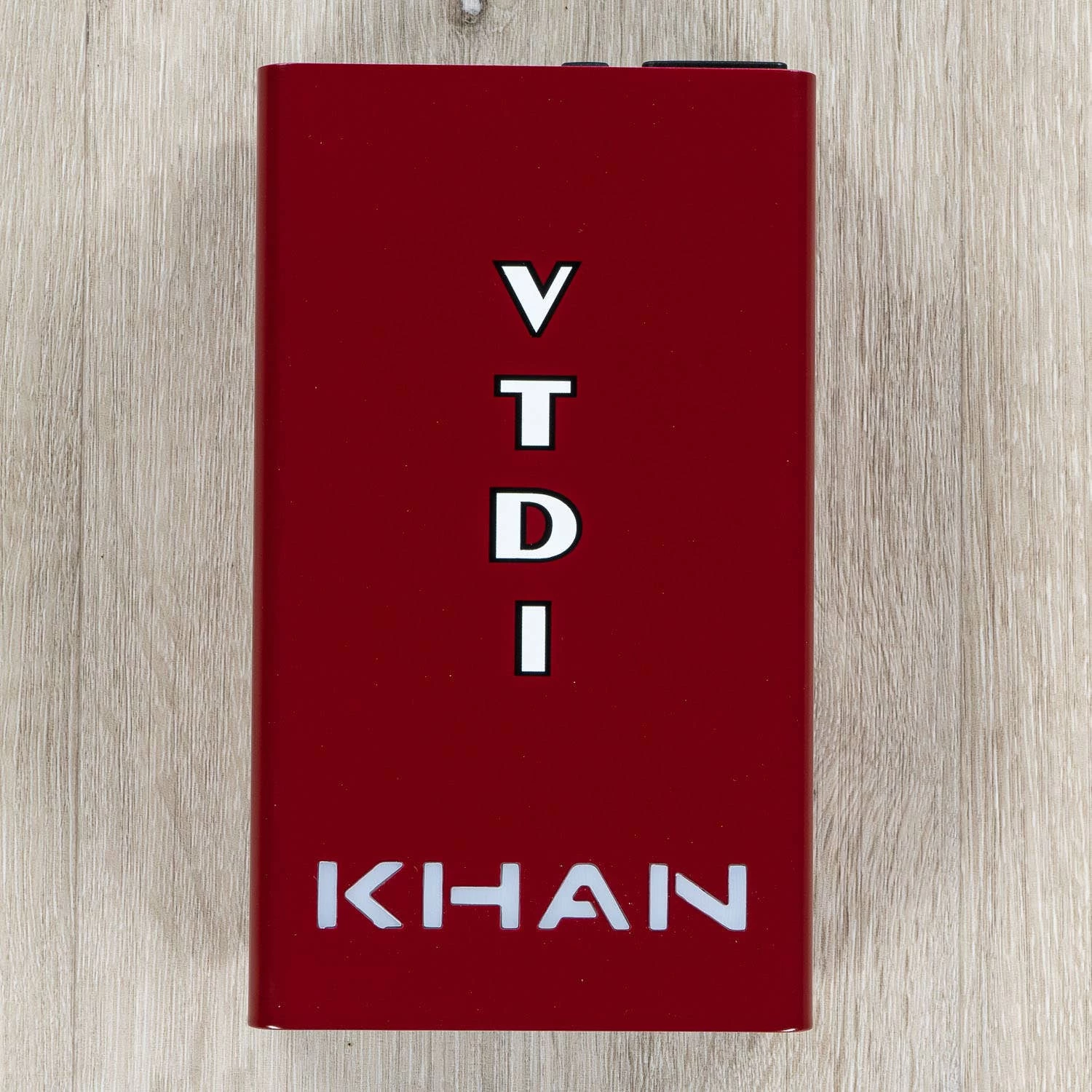

Khan Audio VTDI All-Tube Active Direct Box

Manufacturer’s Description

STUDIO QUALITY TUBE WARMTH

The Khan Audio VTDI is a faithful re-creation of the classic SVTDI all tube direct box. It utilizes a single 12AU7 in a unique 2-stage design that maximizes both the harmonic richness of the tube as well as powerful low-impedance output drive capability. The VTDI is ideal for use with a number of instruments and source

FEATURES

• All Tube Signal Path
• 1 x 12AU7 Tube

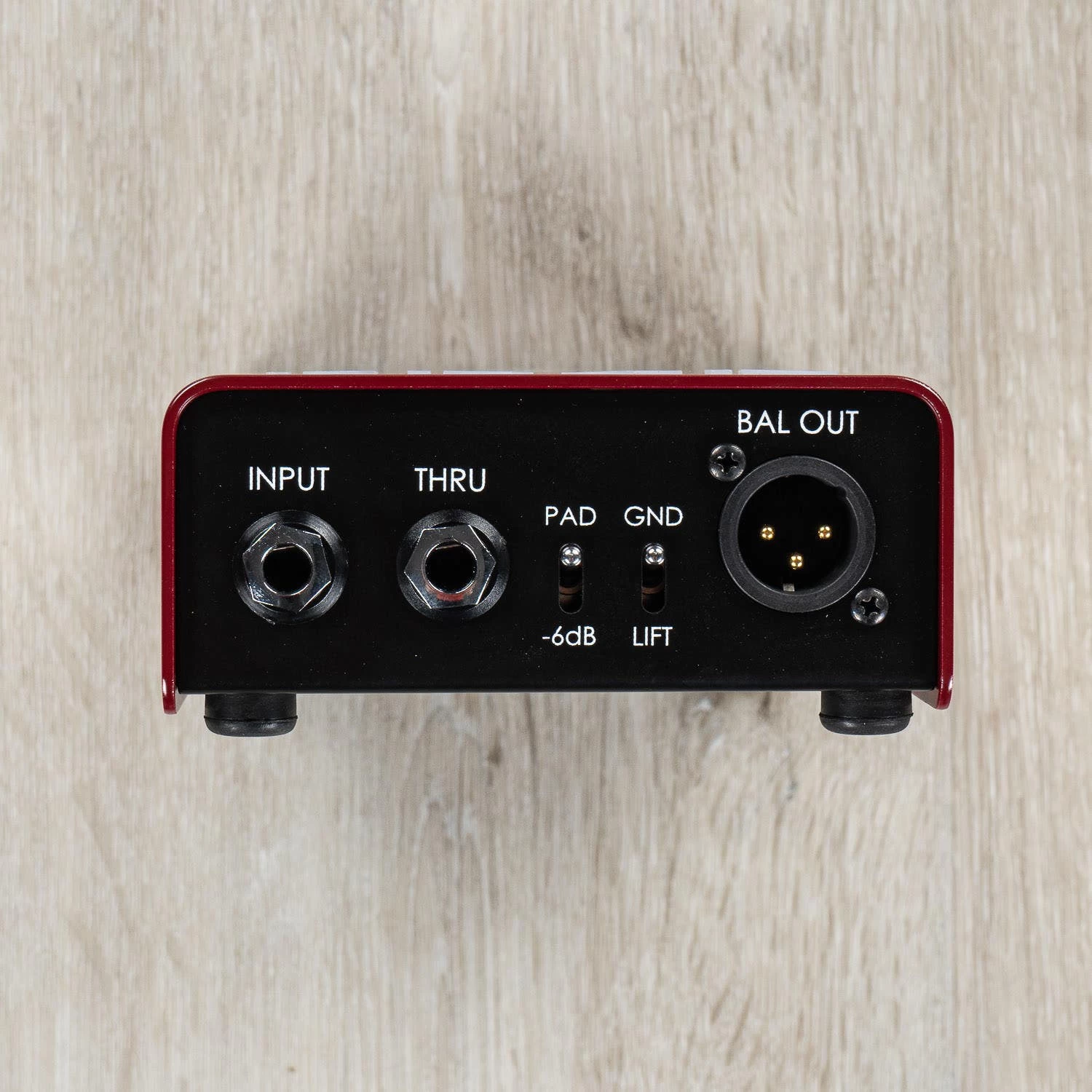

• 1/4″ Instrument Input with 6dB Pad Switch
• 1/4″ Instrument Thru “Tube Processed”
• Tube Driven Transformer Balanced XLR Line Output with Ground Lift
• High Headroom Gain Stage Design
• High Filtered Internal Power Supply

Specifications

• Input Impedance: 2.2M ohm
• Max Signal Input: 3v RMS (+10dB)
• Gain: -10dB to XLR Output
• Frequency Response: 8Hz – 120KHz +/- 1dB
• THD (1KHz 0dB Input): .75%
• Signal to Noise: > -92dB
• Size 7 ¼ x 4 3/8 x 2
• Voltage 115/230 VAC switchable
• Weight: 4lbs
