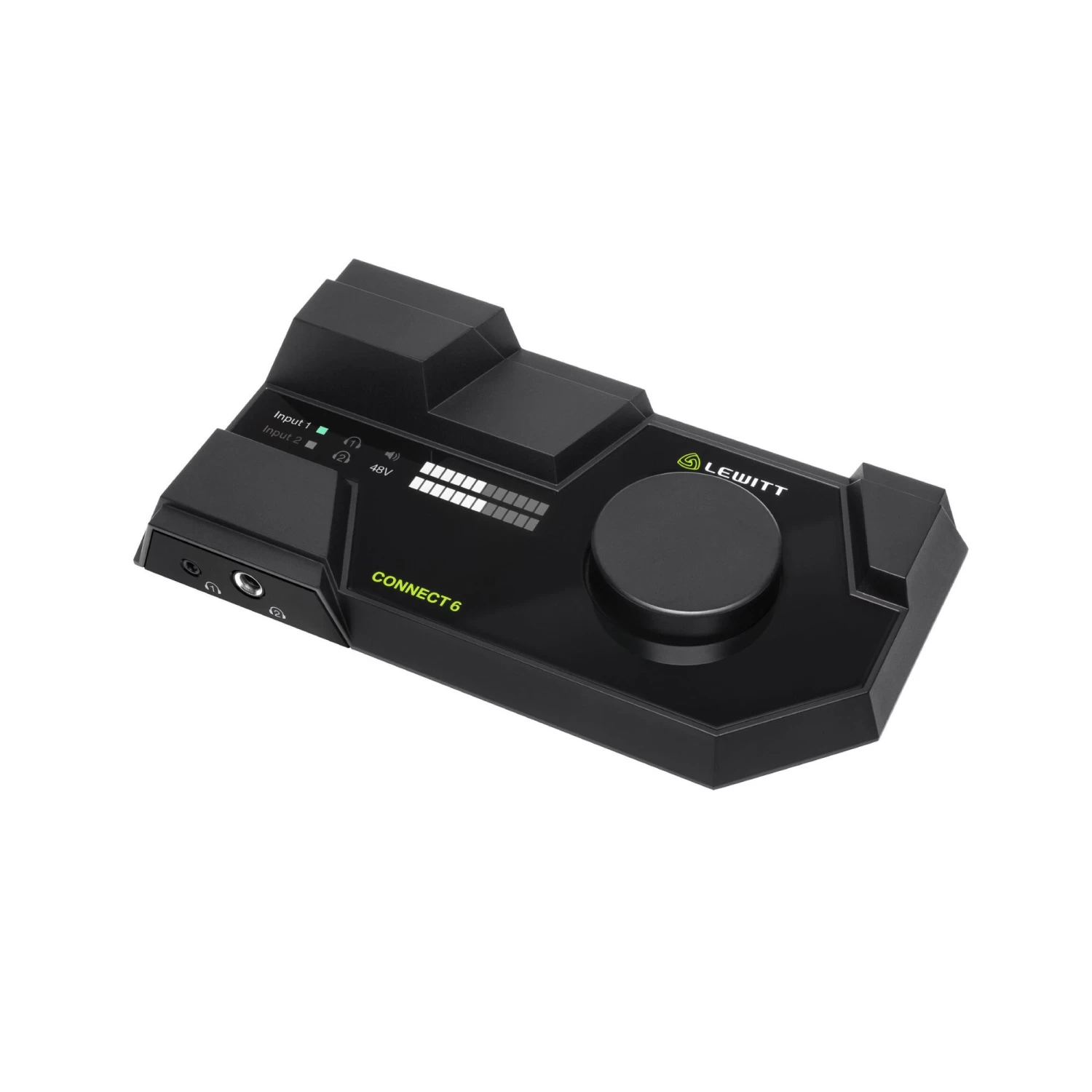

Lewitt Connect 6 Dual USB-C Audio Interface For Streaming, Podcasting, Recording

Manufacturer’s Description

Your audio interface for game-changing flexibility.

Today, we use audio interfaces for more than recording. We host podcasts, take zoom calls, participate in live streams, and produce content for social media.

CONNECT 6 extends the usability of an audio interface beyond basic recording functionalities, so you have them when you need them.

Game-changing flexibilityCONNECT 6

• Dual USB-C audio interface for creators and musicians
• Extensive analog and digital connectivity
• Studio-grade preamps with 72 dB gain and -133 dBV EIN
• Auto Setup for voice, vocals, and instruments
• Zero-latency DSP effects included
• Easy routing, mixing, and loopback
• Made for Windows, Mac, iPhone, iPad, and Android

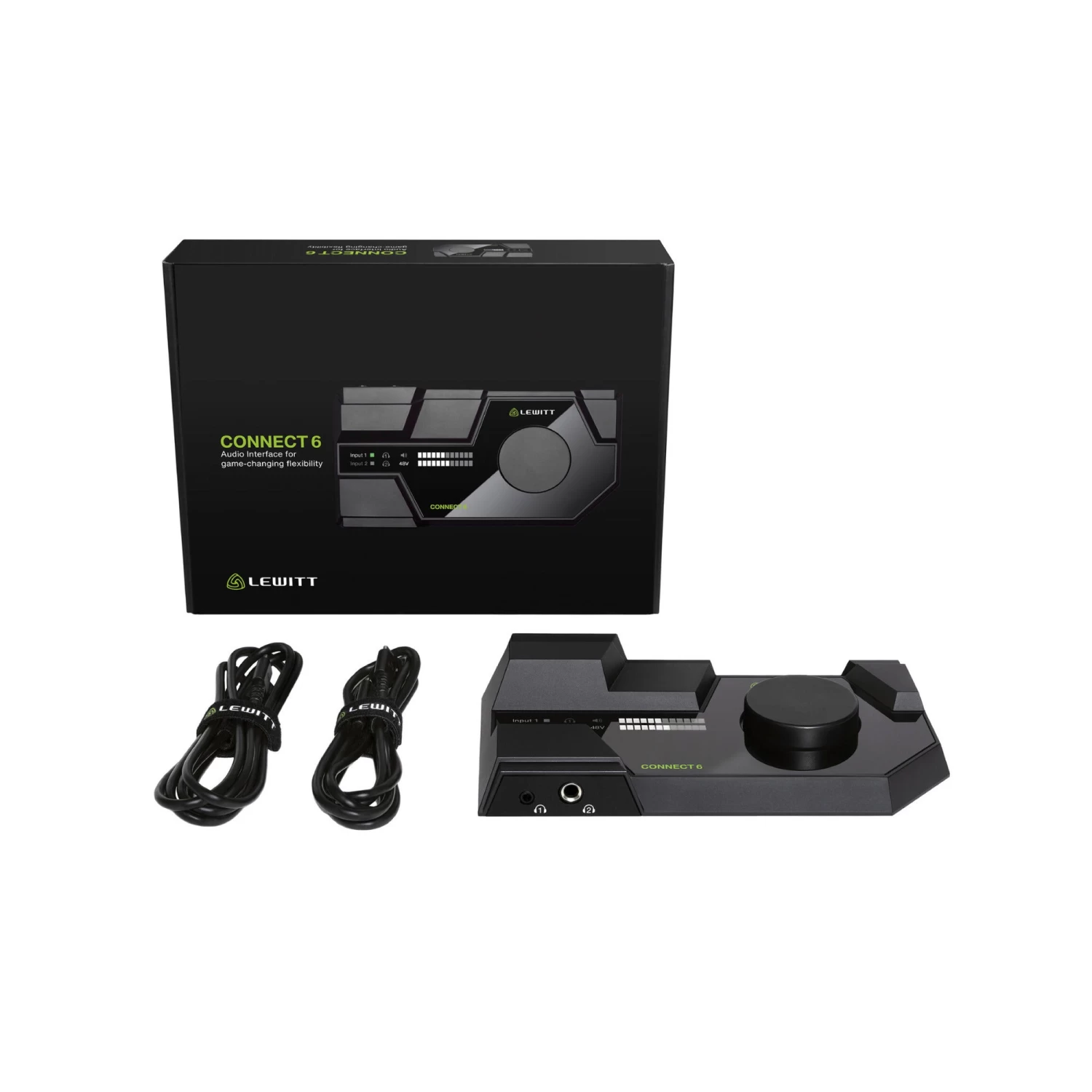

Included: USB-C to USB-C cable, USB-C to USB-A cable

Specifications

Digital

• USB-C Computer Port: USB Audio Class 2 / 44.1, 48, 96kHz / 24 Bit
• USB-C Mobile Port: USB Audio Class 1 / 44.1, 48kHz / 24 Bit
• Compatible with: Mac, Windows, iOS, Android
• ASIO driver: Yes
• DSP-powered: Yes
• Made for iPhone, iPad; Yes

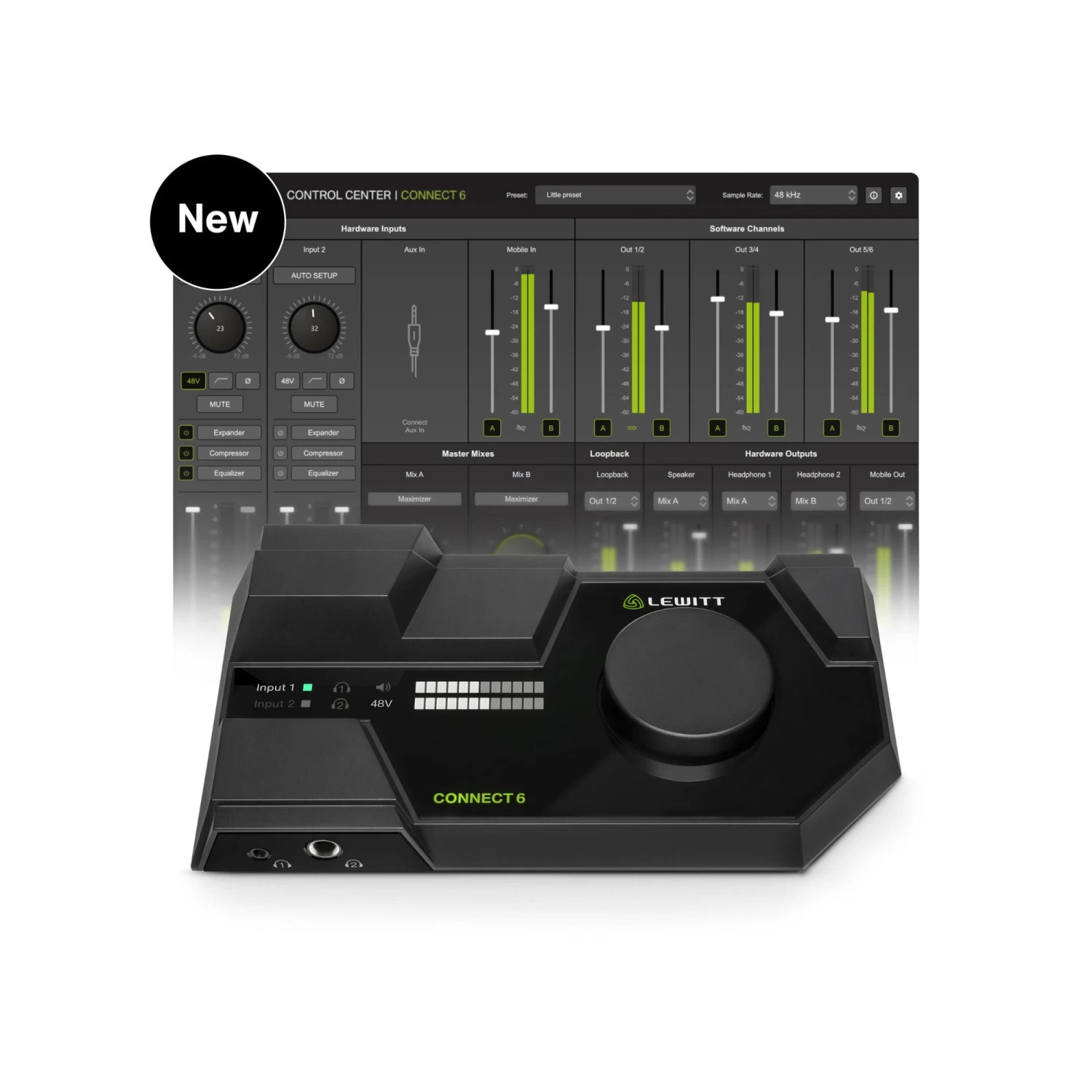

• Included software: LEWITT Control Center, Steinberg Cubase LE, Steinberg Cubasis LE

Line out L/R

• Connector: 6.35 mm balanced jack, 3.5 mm stereo jack
• Frequency response: 20 Hz – 20 kHz
• Max output level: 13 dBV
• Total harmonic distortion: 0.002%

Headphone 1 & 2

• Connector: Headphone out 1: 3.5 mm stereo jack, Headphone out 2: 6.3 mm stereo jack
• Frequency response: 20 Hz – 20 kHz
• Max output level: 6 dBV
• Total harmonic distortion: 0.002%

Input 1 & 2

• Connector: XLR / 6.3 mm jack combo
• Phantom power: 48V
• Gain range: -6 dB – 72 dB
• Frequency response: 20Hz – 20kHz
• Equivalent input noise: -133 dBV (A-weighted)
• Max input level: 6 dBV
• Total harmonic distortion: 0.002%

Aux in

• Connector: 3.5 mm jack
• Frequency response: 20 Hz – 20 kHz
• Equivalent input noise: -100 dBV (A-weighted)
• Max input level: 6 dBV

Power requirements

• Bus powered USB C: Power + mobile device charging
• Bus powered USB A: Power + mobile device charging (depending on USB port power) / Connect external power supply to power input for optimal performance
• Recommended external power supply: USB-C PD 27W or more (not included)

Dimensions and weight

• Dimensions: 220 x 114 x 43 mm
• Weight: 395 g

System

• Min. system requirements: Windows 10 (64 bits): 4GB RAM minimum, USB 2.0 connector, macOS 10.15 and higher: 4GB RAM minimum, USB 2.0 connector
