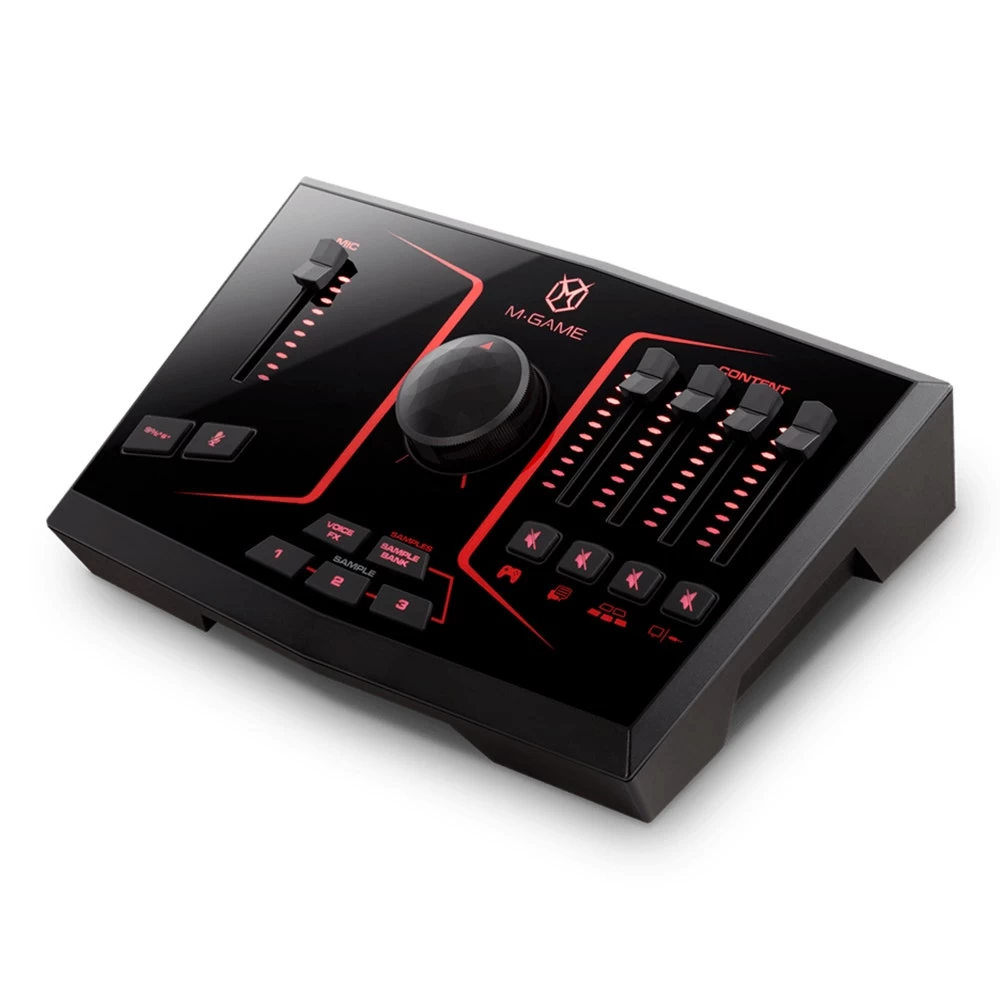

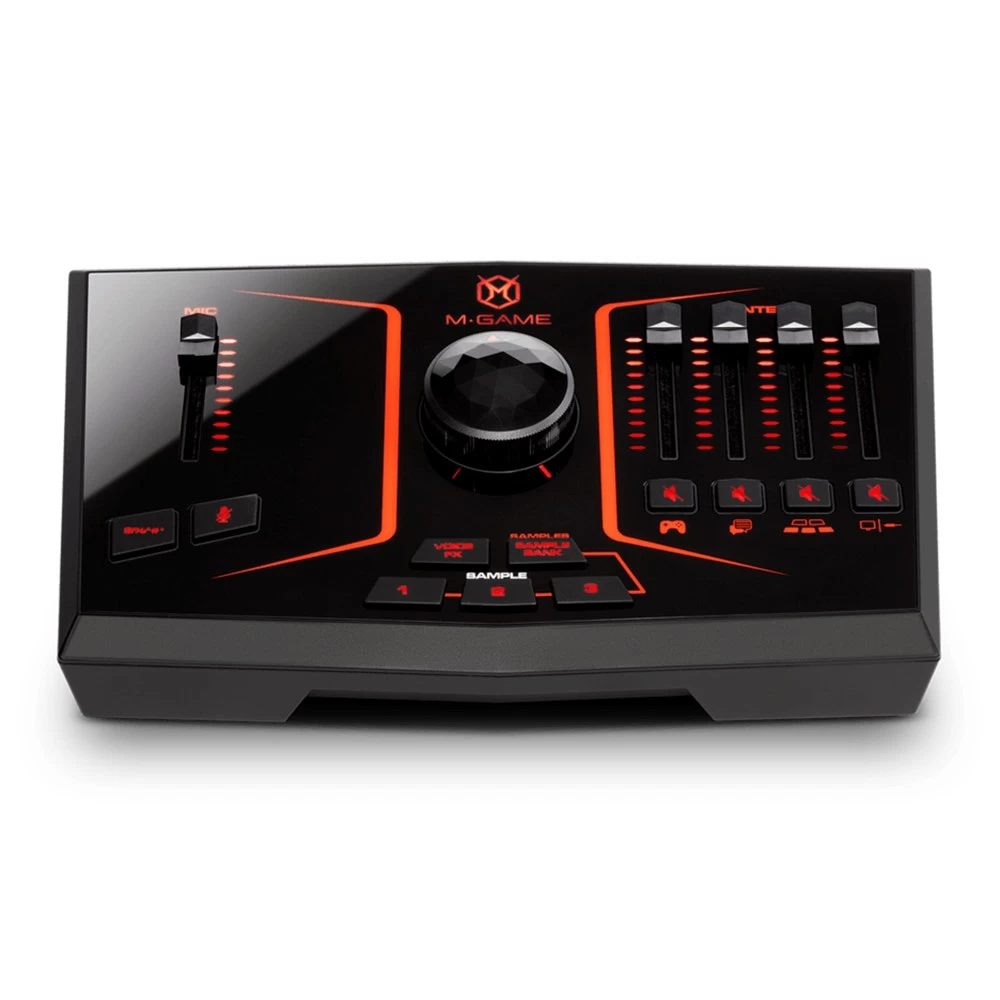

M-Audio M-Game Solo USB Streaming Interface W/ Voice Effects, LED Lighting

Manufacturer’s Description

M-GAME SOLO is a USB streaming audio interface/mixer with LED lighting, sampler, and voice shaping and effects combined with a professional audio interface and physical mixing control surface.

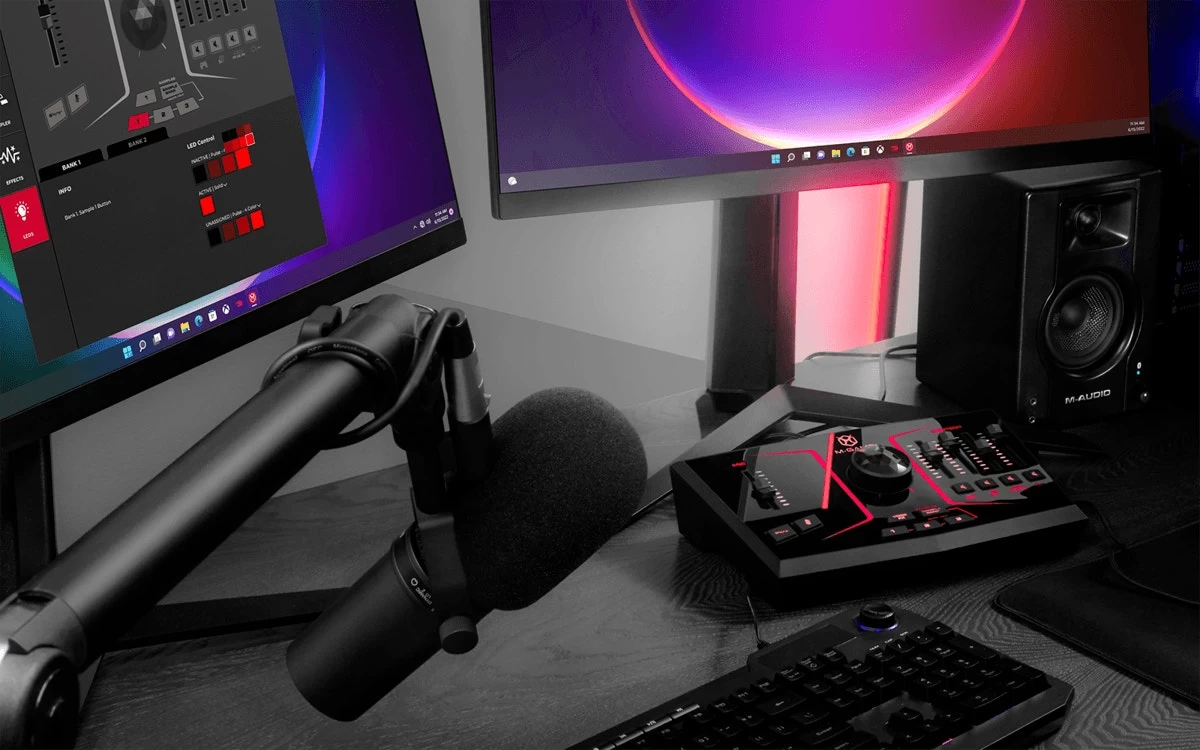

With M-GAME SOLO, you can easily create an entertaining and customizable livestreaming set-up with tools at your fingertips that will enhance your gaming experience and wow your audience.

FOCUS ON THE GAME, NOT YOUR AUDIO

Control and mix your audio on the fly. Intuitive and easy to use controls allows you to keep your attention on your stream and game and not worry about audio complications.

SIMPLIFY YOUR SETUP, NOT YOUR CONTENT

Spend less time worrying about how to control all of your audio and more time entertaining your audience.

CUSTOMIZABLE TO ELEVATE YOUR STREAMING EXPERIENCE

Customize the brightness and pattern of your LEDs. Import, create, edit and assign images to your samples and voice effects. Personalize your sound with virtual mix controls for your stream, headphones, chat and more.

Specifications

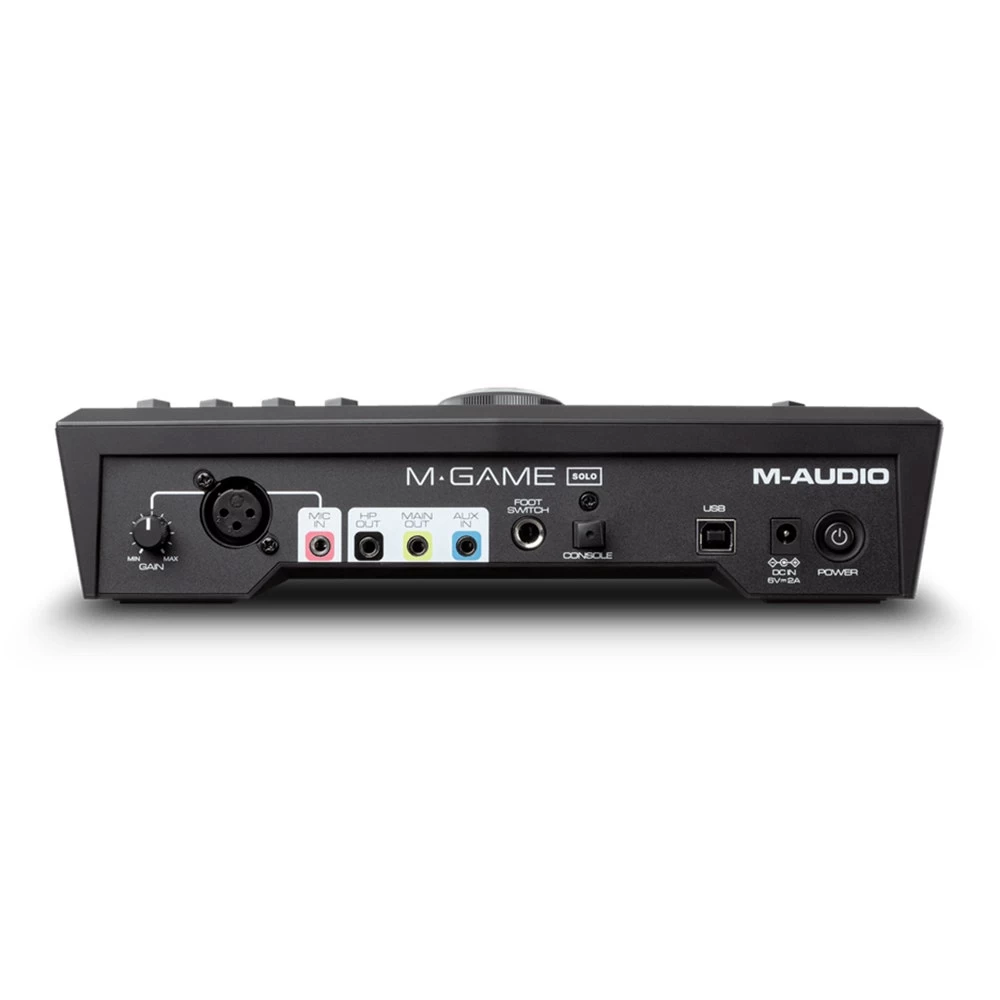

• Connections:
  • Game USB
    • Bit Depth: 24-bit:
    • Sample Rate: 48kHz:
    • Connector Type: USB Type B
  • Stream USB
    • Bit Depth: 24-bit
    • Sample Rate: 48kHz
    • Connector Type: USB Type B
• Console: Optical(PCM)
• Headphone Out: 1/8″ TRS
• Headphone Mic in: 1/8″ TRS
• XLR in: XLR
• AUX in: 1/8″ TRS
• Footswitch: 1/4″ TRS (for single and dual footswitches)
• Power: 6V DC In 2A (5.5mm barrel radius, 10mm barrel length)
• Main and Headphone Outputs
  • Power Output: 42 mW RMS (per channel into 32 Ω)
  • Dynamic Range: 113 dB (A-weighted)
  • Frequency Response: 20 Hz – 20 kHz (+0.1/-0.2 dB)
  • THD+N: 0.005%, 1 kHz, 10mW (per channel into 32 Ω)
  • Max Output Level: +6.0 dBu (unloaded)
  • Output Impedance: 10 Ω
• Mic Input (balanced XLR)
  • Frequency Response: 20 Hz – 20 kHz (+0.4/-1.8 dB)
  • Signal-to-Noise Ratio: 109 dB (1 kHz, +4 dBu, A-weighted)
  • Dynamic Range: 110 dB (A-weighted)
  • THD+N: 0.0015% (1 kHz, +4 dBu, -1 dBFS)
  • Max Input Level: +5 dBu
  • Sensitivity: -54 dBu:
  • Preamp EIN: -130 dBu
  • Gain Range: 59 dB (+24dB of digital mic boost)
• Mic Input (Unbalanced TRS)
  • Frequency Response: 20 Hz – 20 kHz (+0.4/-1.9 dB):
  • Signal-to-Noise Ratio: 105 dB (1 kHz, +4 dBu, A-weighted)
  • Dynamic Range: 109 dB (A-weighted)
  • THD+N: 0.0033% (1 kHz, +4 dBu, -1 dBFS)
  • Max Input Level: +5 dBu
  • Sensitivity: -54 dBu
  • Preamp EIN: -127 dBu
  • Gain Range: 59 dB (+24dB of digital mic boost)
• General
  • Power: 6V DC In 2A (5.5mm barrel radius, 10mm barrel length)
  • Dimensions(width x depth x height): 10.74” x 6.6” x 2.64”, 27.27 x 16.76 x 6.7 cm
  • Weight: 2.88lbs. (1.31kg)
