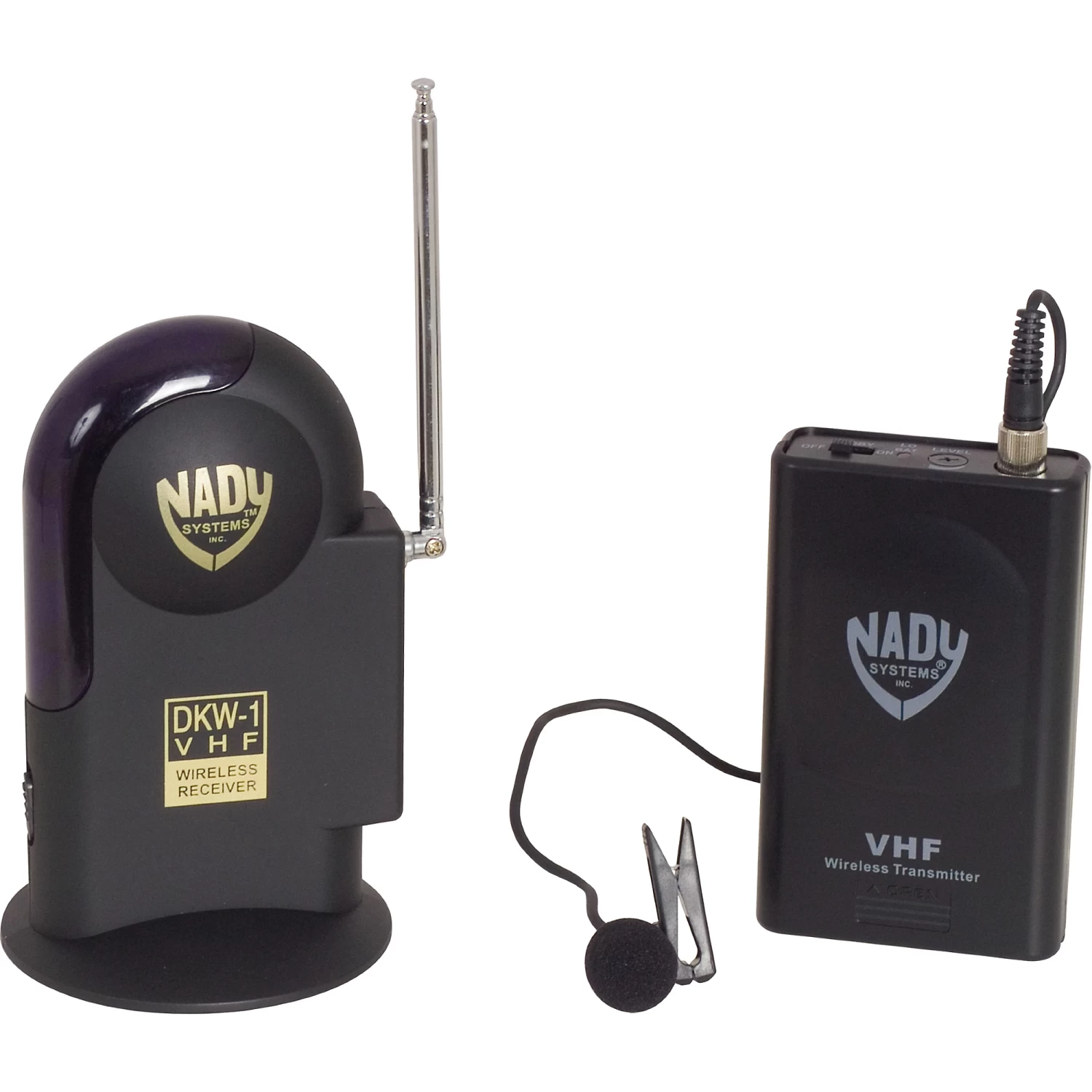

Nady DKW-1 Single Channel Lavalier Bodypack VHF Wireless Microphone System

Manufacturer’s Description

The Nady DKW is an easy to use and cost effective VHF wireless system delivering clear, transparent audio. The DKW system can be used for a broad range of singing and speaking applications, karaoke and recreational singers, DJ’s, auctioneers, teachers, aerobics instructors, houses of worship and a host of others.

Specifications

• Frequency Response: 80Hz-14kHz (±3dB)
• Dynamic Range: 95dB
• Total Harmonic Distortion: <0.7%
• RF Carrier Frequency Range: 170-216MHz
• Frequency Stability: ±0.005%, crystal controlled
• Modulation: FM (F3E), ±15kHz max.
• Operating Range: 150 ft. typical-up to 300+ ft. line-of-sight
• Transmitter:
• Audio Input: Nady DM-20D unidirectional dynamic cartridge
• Controls: OFF/ON switch
• LED Indicator Unit: “ON” (single flash), Low Battery Alert (steady)
• RF Power Out: 50mW
• Harmonic & Spurious Emissions: >-40dB
• Battery: 9V Alkaline
• Battery Life: Up to 15 hours
• Dimensions: 8.9″ x 1.4″ Dia. (22.6 x 3.5 cm)
• Weight (w/o battery): 5.4 oz. (151 g.)
• Receiver:
• Controls: Power ON/OFF
• Connectors: 1/4″ unbalanced audio out jack, 2.1 mm barrel-type DC input jack
• LED Indicator: Power ON, Transmitter RF
• Power Requirements: 9V @ 120mA, nominal, AC/DC adapter supplied
• Antennas: 15″ (38 cm), collapsible
• Dimensions: 8.2″ X 5.3″ X 1.75″, (20.8 X 13.5 X 4.4 cm.)
• Weight: 16.1 oz. (451 g.)
