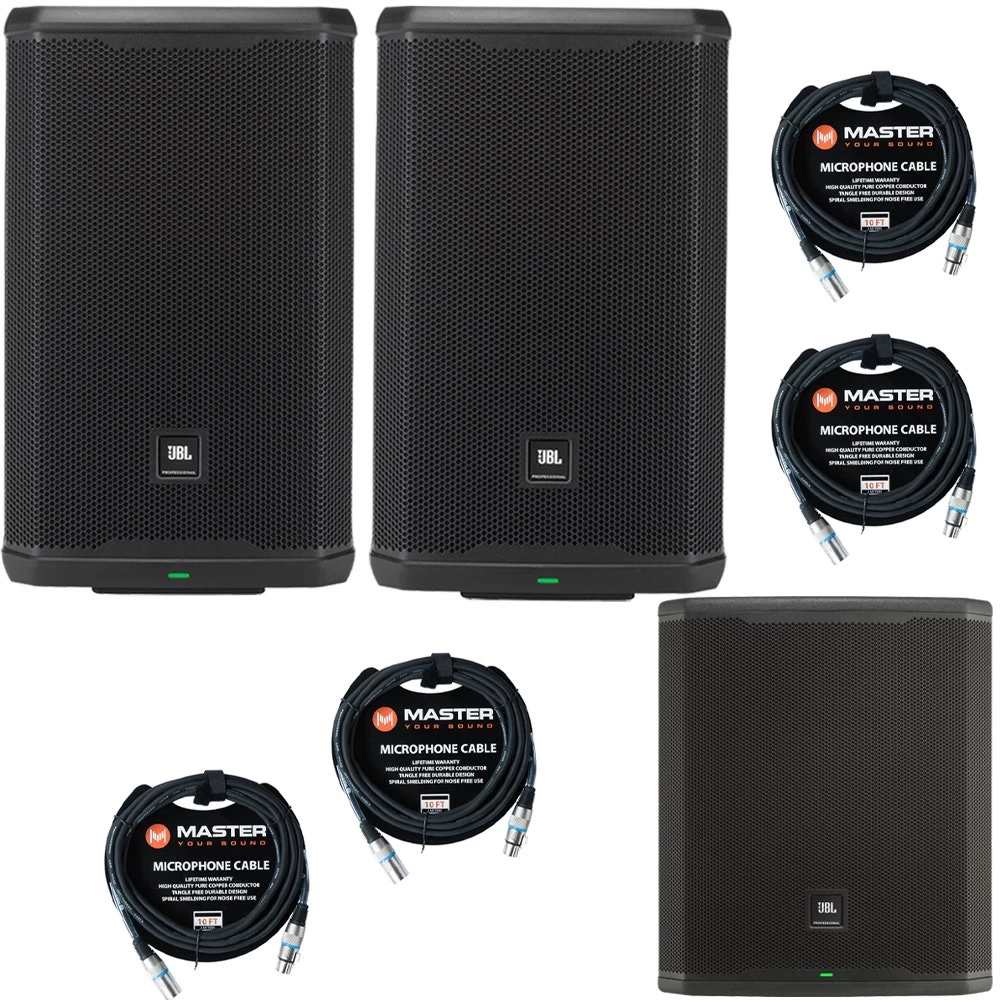

Pair Of JBL PRX912 2000-Watt 12-Inch 2-Way Powered PA Speakers W/ PRX918XLF Subwoofer & Cables

Manufacturer’s Description

JBL PRX912 2000-Watt 12-Inch 2-Way aPortable Powered PA System Speaker

The JBL PRX912, part of the PRX900 Series of powered loudspeakers and subwoofers, takes professional portable PA performance to a new level with advanced acoustics, comprehensive DSP, unrivaled power performance and durability, and complete BLE control via the JBL Pro Connect app.

FEATURES All-New Acoustic Designs

From cone to cabinet, the PRX912 has been built from the ground up to leverage the latest JBL acoustic innovations. A patented JBL 2408H-2 1.5” compression driver with poly-annular diaphragm and neodymium magnet provides clear, detailed high-frequency response even at maximum volume. High-quality NTC thermistors protect transducers by reducing power sent to transducers when approaching thermal limit. Innovative new horns with updated
JBL Image Control Waveguides provide optimum beamwidth and directivity. A next-generation woofer with ferrite magnet delivers smooth, natural bass and mids.

Power That Performs for You

PRX900 systems effortlessly support large performance spaces with high power and performance needs. Driven by a highly efficient
2,000W (peak) Class D power amp, PRX912 provides acoustic clarity and definition with minimal power compression, even at maximum volume. A bridged woofer amp keeps current spikes out of the ground and lowers crosstalk harmonics to the compression driver, and a power factor correction (PFC) power supply stabilizes voltage load sent to the amplifier. High-quality, high-linearity inductors deliver high power efficiency and low total harmonic distortion,
and low-noise, low-distortion input gain staging optimizes range and headroom for a diverse gain requirements. A high-quality DAC and ADC provide near-lossless audio conversion. And with a full- bandwidth CMRR (Common Mode Rejection Ratio) greater than 55 dB and THD (total harmonic distortion) rating of <32 dB, system noise is virtually nonexistent.

Dial In Your Sound With Class-Leading DSP

PRX912 is fully loaded with comprehensive DSP, all accessible via the JBL Pro Connect app and onboard full-color LCD. Processingincludes 12-band parametric EQ and optimized system presets. Onboard dbx DriveRack technology features live and fixed Automatic Feedback Suppression, soft system limiters and 180ms of speaker delay in 100-microsecond intervals for precise time-aligned systems.

Versatile and Scalable

Combine PRX900 Series loudspeakers and subwoofers in a range of configurations to meet the needs of both mobile scenarios and fixed installs. PRX912 features dual 36mm pole sockets and six M10 suspension points. A built-in gyrosensor automatically optimizes tuning depending on monitor or mains placement.

Part of the Pro Connect Ecosystem

The JBL Pro Connect app offers BLE functionality for system control of up to 10 speakers and line integration with JBL EON ONE MK2, PRX ONE and EON700 loudspeakers. The app provides full access to to the PRX900 Series’ DSP package, and users can easily mute channels and speakers with the touch of a button and can change speaker names and flash all unit LEDs for ease of speaker

Rugged and Road-Worthy

PRX912 components are housed in a strong, lightweight enclosure that maximizes both acoustic performance and durability. Its cabinet is constructed from a polypropylene/talcum blend that’s optimized for rigidity, with a computer-modeled internal ribbing design for maximum structural integrity and minimal cabinet noise.

In It for the Long Haul

Like every JBL product, the PRX912 undergoes an industry-leading 100-hour stress test of all components to ensure systems perform beyond expectations in real-world scenarios. It’s so reliable that it’s backed with an unprecedented seven-year warranty.

HIGHLIGHTS

• Transducers:
  • 912G 12” ferrite magnet woofer
  • JBL 2408H-2 1.5” poly-annular diaphragm compression driver
• Updated JBL image control waveguides improve dispersion
• Low-noise, low-distortion gain staging design
• Lightweight, efficient Class D amplification
• Power: 2,000 watts peak/1,000 watts RMS
• Frequency response: 50 Hz–20 kHz @4π (-10 dB); 65 Hz–17 kHz @4π (-3 dB)
• Dispersion: 90° x 50°
• Max SPL: 132 dB
• Crossover frequency: 2,050 Hz
• Color LCD screen provides access to comprehensive DSP suite
• DriveRack Technology includes Automatic Feedback Suppression, system limiter and 180ms of speaker delay in 100-microsecond intervals for time-aligned systems
• Optimized presets for pairing full-range speakers with subwoofers
• Quiet fanless operation
• JBL Pro Connect app allows full system control of up to 10 speakers and line integration with JBL EON ONE MK2, PRX ONE, and EON700 systems
• G-Sensor Automatic Position Detect optimizes tuning based on main or monitor orientation
• Polypropylene/talc composite cabinet is optimized for rigidity and durability
• I/Os:
  • 2 XLR balanced Combo jacks
  • 1 3.5mm aux
  • 2 XLR-M loop-through
  • 1 XLR-M mix out
• Two integrated handles (top and side)
• Suspension/mounting: dual 36mm pole socket, six M10 suspension points
• Ultra-low system latency: <1ms
• Net weight: 19.5 kg (43 lbs); Gross weight: 23.5 kg (51.8 lbs)
• Dimensions: 636 x 394 x 332 mm (25.04 x 15.5 x 13 in)
• Shipping dimensions: 668 x 506 x 444 mm (26.3 x 19.9 x 17.5 in)
• Backed by industry-leading seven-year warranty

JBL PRX918XLF 2000-Watt 18-Inch Portable Powered PA System Subwoofer

The JBL PRX918XLF, part of the JBL PRX900 Series powered loudspeakers and subwoofers, takes professional portable
PA performance to a new level with advanced acoustics, comprehensive DSP, unrivaled power performance and durability, and complete BLE control via the JBL Pro Connect app.

FEATURES

All-New Acoustic Designs

From cone to cabinet, the PRX915XLF is designed for advanced acoustic performance. A next-generation 915SG woofer with ferrite magnet delivers smooth, natural bass response, and an FEA flared port design reduces air noise and distortion. It all adds up to clean, accurate, powerful sound at any volume.

Power That Performs for You

PRX900 systems effortlessly support large performance spaces with high power and performance needs. Driven by highly efficient 2,000W (peak) Class D power amps, the PRX915XLF delivers bass with
clarity and definition at maximum volume. High-quality, high-linearity inductors deliver high power efficiency and low total harmonic distortion. High-quality DACs and ADCs provide near-lossless
audio conversion. And with a full-bandwidth CMRR (Common Mode Rejection Ratio) greater than 55 dB and THD (total harmonic distortion) rating of <32 dB, noise is virtually nonexistent.

Dial In Your Sound With Class-Leading DSP

The PRX915XLF’s class-leading DSP package, accessible via onboard LCD or the JBL Pro Connect app, includes 6-band parametric EQ for system tuning and nuanced tonal control, plus lowpass filter and 20ms delay.

Versatile and Scalable

Combine PRX900 Series loudspeakers and subwoofers in a range of configurations to meet the needs of both mobile scenarios and fixed installs. Subwoofers feature M20 pole cups.

Part of the Pro Connect Ecosystem

JBL’s Pro Connect app offers BLE functionality for system control of up to 10 speakers and line integration with JBL EON ONE MK2,
PRX ONE, and EON700 loudspeakers. Access full DSP functions anywhere right from the app, including app-only features like speaker snapshots and groupings.

Rugged and Road-Worthy

PRX900 components are housed in strong, lightweight cabinets that maximize both acoustic performance and durability. The PRX915XLF enclosure is built from 18mm birch, with optimized bracing that smooths out low-frequency response. A Duraflex coating provides superior durability.

In It for the Long Haul

Like every JBL product, the PRX915XLF undergoes an industry- leading 100-hour stress test of all components to ensure systems perform beyond expectations in real-world scenarios. It’s so reliable that it’s backed with an unprecedented seven-year warranty.

HIGHLIGHTS

• Transducers:
• 918SG 18” ferrite magnet woofer with 3” voice-coil
• FEA flared port design reduces air noise and distortion
• Lightweight, efficient Class D amplification
• Power: 2,000 watts peak/1,000 watts RMS
• Frequency response: 30 Hz–110 Hz @2pi (-10 dB); 35 Hz–92 kHz @2pi (-3 dB)
• Max SPL: 134 dB
• Color LCD screen provides access to comprehensive DSP suite
• DriveRack Technology includes 20ms of speaker delay in 100-microsecond intervals for time-aligned systems
• Optimized presets for pairing with full-range speakers
• Quiet fanless operation
• JBL Pro Connect app allows full system control of up to 10 speakers and line integration with JBL EON ONE MK2, PRX ONE, and EON700 systems
• 18mm birch cabinet features optimized bracing for smooth low-frequency response
• I/Os:
  • 2 XLR balanced Combo jacks
  • 2 XLR pass-through outs
• Two integrated handles (sides)
• Mount: M20 pole cup
• Ultra-low system latency: <1ms
• Net weight: 40.7 kg (89.7 lbs); Gross weight: 47.5 kg (104.7 kg)
• Dimensions: 693 x 591 x 654 mm (27.3 x 23.3 x 25.7 in)
• Shipping dimensions: 732 x 703 x 766 mm (28.8 x 27.7 x 30.2 in)
• Backed by industry-leading seven-year warranty

Master MC-10 Microphone Cable, 10 ft

MC-10 Microphone Cable

Specifications

JBL PRX912 2000-Watt 12-Inch 2-Way aPortable Powered PA System Speaker

• System Type: 12-Inch Powered Loudspeaker
• Woofer Model: 912G
• Woofer Size: 12”
• Woofer Magnet: Ferrite
• Woofer Voice Coil: 2.5”
• Tweeter Model: 2408H-2
• Tweeter Size: 1.5”
• Tweeter Magnet: Neodymium
• Transducer Impedence Rated:
  • Woofer: 4 Ω
  • Tweeter: 8 Ω
• Max SPL: 132 dB
• Freq Range -10: 50 Hz – 20 kHz (4π)
• Freq Range -3: 65 Hz – 17 kHz (4π)
• Hor Dispersion: 90°
• Vert Dispersion: 50°
• Power Rating: 2000W Peak / 1000W RMS
• AC Power Input: 100 – 230 Vrms 50 – 60Hz
• Cooling: Natural Convection No Fan
• LED Indicators: x3 SSM Input Levels and Limit
• Input Impedence: 100K Ω Balanced
• Input Gain:0 – 36 dB Gain
• Crossover Freq: 2050 Hz
• I/O: x2 Combo Inputs and x1 3.5mm Stereo Jack
• x2 XLR Through Out and x1 Mix Out
• Cabinet: PP + 10% Talc
• Grille: Powder Coated Steel, T=1.5mm
• Suspension/ Mount: 6x M10 Suspension Point and Pole Mount
• Handles: Top Handle and Side Handle
• Net Weight: 19.5 kg (43 lbs)
• Gross Weight: 23.5 kg (51.8 lbs)
• Product Dims: H x W x D 636 x 394 x 332 mm (25 x 15.5 x 13.1 in)
• Shipping Dims: H x W x D 668 x 506 x 444 mm (26.3 x 19.9 x 17.5 in)

JBL PRX918XLF 2000-Watt 18-Inch Portable Powered PA System Subwoofer

• System Type: 18-Inch Powered Subwoofer
• Woofer Model: 918SG
• Woofer Size: 18”
• Woofer Magnet: Ferrite
• Woofer Voice Coil: 4”
• Transducer Impedence Rated: 4 Ω
• Max SPL: 134 dB @ 1m/2π
• Freq Range -10: 30Hz – 110Hz (2π)
• Freq Range -3: 35Hz – 92Hz (2π)
• Hor Dispersion: Omni
• Vert Dispersion: Omni
• Crossover Frequency: 80Hz, 100Hz, 120Hz Selectable
• Power Rating: 2000W Peak / 1000W RMS
• AC Power Input: 100-230Vrms 50-60Hz
• Cooling: Natural Convection No Fan
• LED Indicators: Limit, 2x SSM Input
• Input Impedence: 100KΩ Balanced
• Input Gain: 0-12dB Gain
• I/O:
  • x2 Combo Inputs
  • x2 XLR Pass Through Outputs
• Cabinet: 18mm Plywood + Duraflex
• Grille: Powder coated steel, T=1.5mm
• Suspension/ Mount: Pole Mount on Top Surface
• Handles: Side Handle x2
• Net Weight: 48.7kg (89.7 lbs)
• Gross Weight: 47.5 kg (104.7 lbs)
• Product Dims: 693 x 591 x 654 mm (27.3 x 23.3 x 25.7 in)
• Shipping Dims: 732 x 703 x 766 mm (28.8 x 27.7 x 30.2 in)
