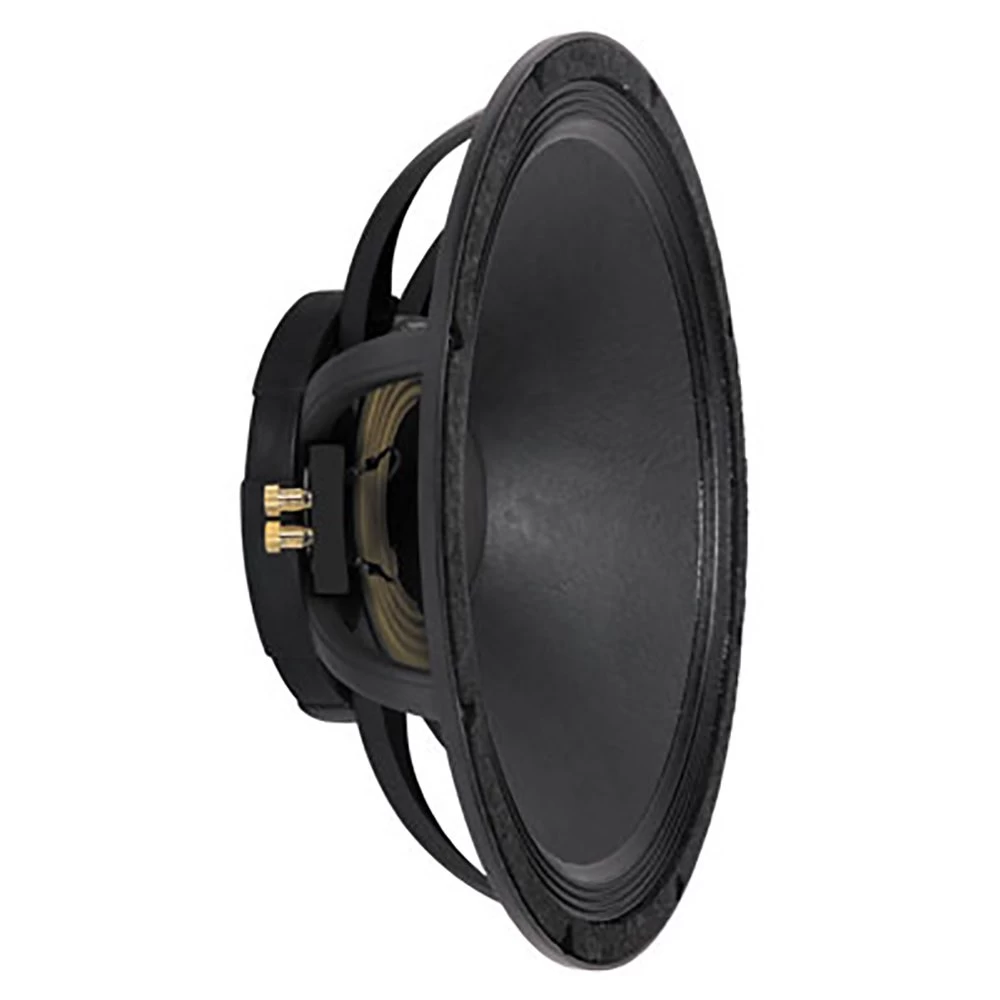

Peavey 1505-8 KA DT Black Widow Low-Frequency 8-Ohm Replacement Speaker/Subwoofer

1505-8 KA DT BW

Features

• Impedance: 8 Ohms
• Power capacity: 1400 W Peak 700 W Program 350 W Continuous
• Sensitivity: 99.0 dB / 1 W 1 m
• Usable freq. range: 40 Hz ~ 2 kHz
• Cone: Kevlar® impregnated cellulose
• Voice coil diameter: 4.0″ / 100 mm
• Voice coil material: Aluminum ribbon wire Polyimide-impregnated fiberglass former Nomex® stiffener Solderless diffusion welded OFHC copper leads
• Net weight lb. / kg: 17 lbs. / 7.7 kg
• Znom (ohms) 8
• Revc (ohms) 5.23
• BL (T/M) 17.70
• Fo (Hz) 50.8
• Vas (liters) 143.5
• Cms (uM/N) 143.3
• Mms (gm) 68.50
• Qms 7.60
• Qes 0.367
• Qts 0.350
• Xmax (mm) 0.9
• Le (mH) 0.28
• SPL (1W 1m) 99.0
• No (%) 4.50%
• Vd (cu. in. / ml) 4.6 / 76
• Pmax (Watts pgm.) 700
• Disp (cu. in. / ml) 197/ 3229
• Sd (Square Meters) 0.084
• 15″
• Weight Unpacked: 16.98 lb(7.7 kg)
• Weight Packed: 18.08 lb(8.2 kg)
• Width Packed: 17.52″(44.5008 cm)
• Height Packed: 18.307″(46.49978 cm)
• Depth Packed: 7.087″(18.00098 cm)
