Quilter Labs Phantom Block Electric Guitar Pre-Amp DI Direct Box Interface

Manufacturer’s Description

Ever arrive at a session only to find your amp is dead, or maybe it’s a “silent stage” with no amps allowed? Acoustic players can plug straight in, but electric guitars need a purpose-built direct interface. The Quilter Phantom Block provides the correct input impedance, gain, tone and overdrive that the electric guitar needs to sound its best. This simple low-cost device gives you the key creative controls you need at your fingertips, and should be in every gig bag as a backup solution.

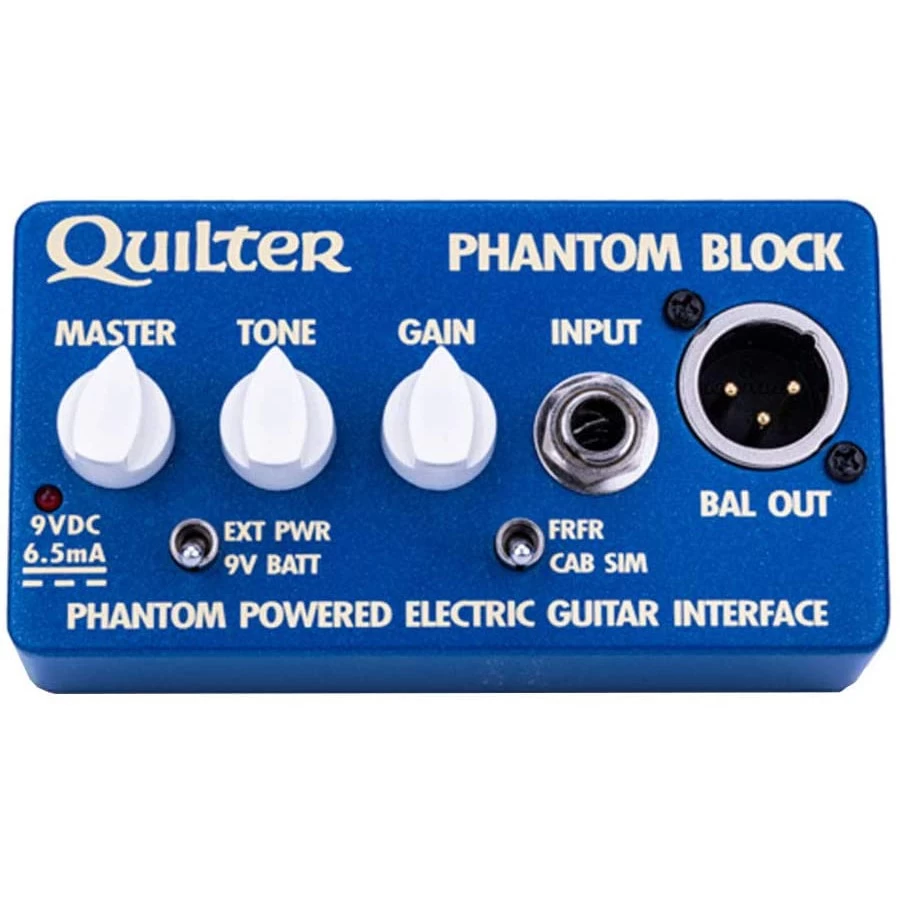

The Phantom Block runs on 48V phantom power via the XLR output, external 9V pedal power, or you can install a 9V battery that will run about 100 hours. The high impedance input gets optimum tone from standard passive pickups, the Gain goes from clean to overdrive, a wide range Tone covers the most popular sounds, and the Master adjusts overall output level. Switchable Cab Sim warms up the sound of the electric guitar, while FR suits other devices such as acoustic guitar and keyboards.

Specifications

• Power: 9 Volt DC battery, 48 Volt Phantom Power
• Weight: 0.65 Pounds (0.3 kg)
• Dimensions: 4 3/8″x2 3/8″x1 7/8″ (11.1cm x 6cm x 4.8cm)
