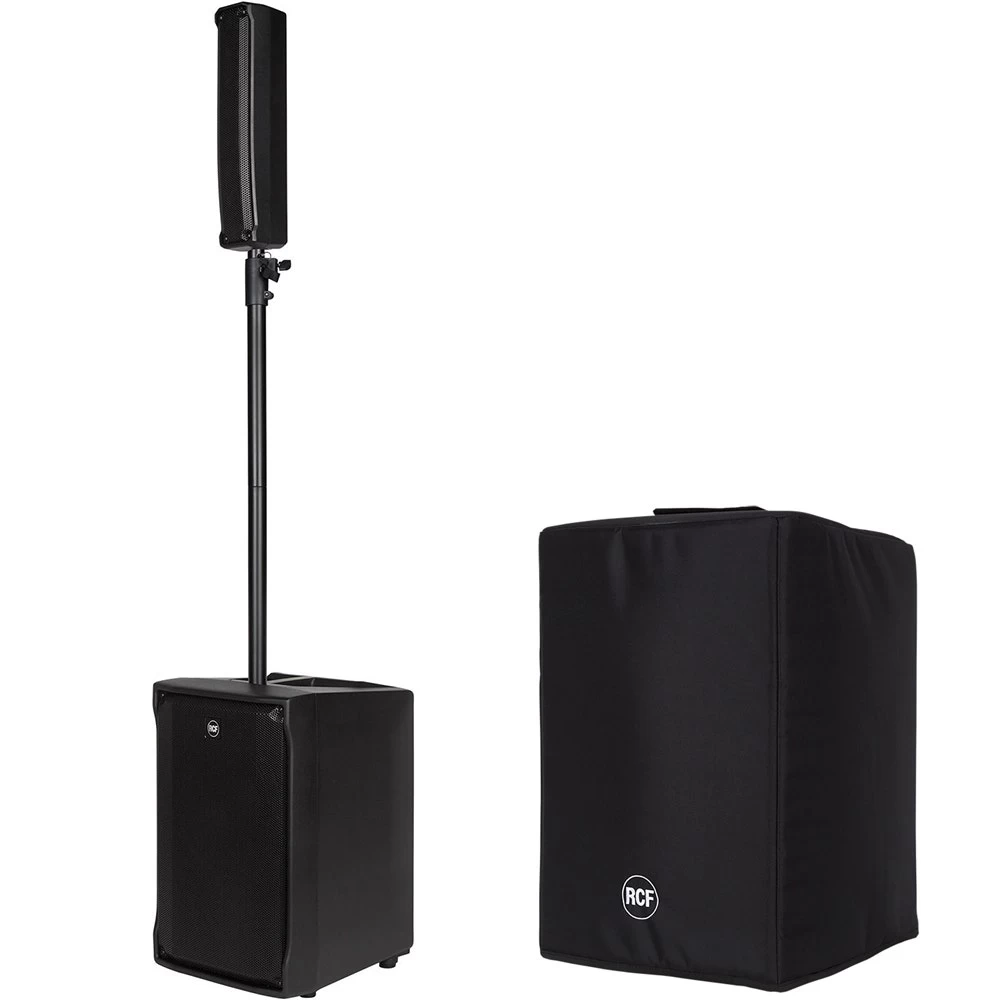

RCF EVOX JMIX8 Active Two-Way Array Speaker System, 1400w, Digital Mixer W/ Cover

RCF EVOX JMIX8 Active Two-Way Array Speaker System, 1400w, Digital Mixer

 Acoustical specifications

• Frequency Response: 40 Hz ÷ 20000 Hz
• Horizontal coverage angle: 120°
• Max SPL @ 1m: 128 dB
• Vertical coverage angle: 30°

Transducers

• Fullrange: 8 x 2.0”, 1.0” v.c
• Woofer: 12”, 2.5” v.c

Input/Output section

• Input connectors: XLR, Jack
• Input sensitivity: -2 dBu/+4 dBu
• Input signal: bal/unbal
• Output connectors: XLR

Processor section

• Controls: Volume, Boost, Mic/Line
• Crossover Frequencies: 220 Hz
• Limiter: Soft Limiter
• Protections: Thermal, RMS

Power section

• Connections: VDE
• Cooling: Convection
• High frequencies: 400 W Peak, 200 W RMS
• Low frequencies: 1000 W Peak, 500 W RMS
• Total Power: 1400 W Peak, 700 W RMS

Electronic specifications

• Frequency Response: 20 Hz ÷ 20 Hz
• THD+N, 20dB gain, 0dBu out (% A-Weighted): 0.004

Processing

• A/D-D/A conversion: 24 Bit @ 48.0 kHz
• Dynamic Range: 108
• Processing Channels: 8
• Signal Processing: 32 Bit Floating Point

Inputs

• A/D Dynamic range (dB): 108 dB
• Gain Range: 0 dB ÷ 45 dB
• Gain Selection: 0 dB ÷ 45 dB
• Stereo Line Gain Selection: 0 dB ÷ 45 dB
• HI-Z Line Inputs Impedance (MOhm): 1 Mohm
• HI-Z Line Inputs: 1
• Mic Inputs Impedance (KOhm): 3 kohm
• Line: 4
• Line Input Impedance (kOhm): 11 kohm
• Low Cut: 20 Hz ÷ 1000 dB
• Mic: 4
• Phantom Power +48V: Yes
• Remote Controlled Storable Gain: Yes
• Stereo Line: 2
• Stereo Line Input Impedence (kOhm): 11 kohm

Outputs

• AUX output: 1
• AUX Send: 1

Outputs specifications

• Aux Out Impedance (Ohm): 150 ohm
• Aux Out Level (dBu): 19 dBu
• D/A Dynamic Range (dB): 108 dB
• Main Out Impedance (Ohm): 150 ohm
• Main Out Level (dBu): 19 dBu

Compressors

• RCF Compressors: 4 mono (6 preset)

EQ

• Description: 3 Band EQ: High and Low band shelving, Mid Band with sweepable frequencyGraphic 7 Band EQ on Main Mix and AUX send.
• Input Channels EQ: 1 Semi Parametric / 2 Shelving

Auxiliary sends

• AUX: 1 PRE/POST
• FX POST: 1

Internal Effects

• MultiFX Insert Effects: 1
• Send Effects: 1

Mastering processors

• Main OUT processors: 1

USB audio

• Play trk: 2

Other features

• Footswitch: Yes

Electrical specifications

• Power supply: Internal

Standard compliance

• CE marking: Yes

Physical specifications

• Cabinet/Case Material: PP Composite
• Color: Black
• Grille: Steel
• Handles: 1 Top

Size

• Depth: 460 mm / 18.11 inches
• Height: 623 mm / 24.53 inches
• Weight: 24.4 kg / 53.79 lbs
• Width: 400 mm / 15.75 inches



RCF 133600407 CVR EVOX J Protective Cover for EVOX JMIX8

Size

• Depth: 490 mm / 19.29 inches
• Height: 590 mm / 23.23 inches
• Weight: 1.19 kg / 2.62 lbs
• Width: 410 mm / 16.14 inches

Standard compliance

• CE marking: Yes

 Manufacturer’s Description

RCF EVOX JMIX8 Active Two-Way Array Speaker System, 1400w, Digital Mixer

Taking the EVOX J Series one step further, RCF has added an 8-input Digital Mixer to the system. The onboard processing power of the innovative Z.CORE DSP provides not only full mix functions; it includes high-quality instrument FX and AMP simulations. An EVOX iOS/Android-compatible app allows to manage the JMIX8. Adding Bluetooth audio and Hi-Z instrument input,the EVOX JMIX8 combines the quality and reliability of RCF transducers and amplification with a powerful remote controllable 8-channel digital mixer

Features





RCF 133600407 CVR EVOX J Protective Cover for EVOX JMIX8

RCF Protective Cover for the Evox J8 Subwoofer.
