Sennheiser Ew 500 Film G4 Wireless Combo System Kit With MKE2 Lavalier Microphone; Band AW+ (470-558 MHz)

EK 500 G4

• Frequency range Aw+: 470 – 558 MHz
• Dimensions: Approx. 82 x 64 x 24 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion: ≤ 0.9 %
• Weight: (incl. batteries)Approx. 130 g
• Audio output: 3.5 mm jack socket: +17 dBu (mono, balanced)
• Signal-to-noise ratio: Line- ≥ 110 dBA, Phones- approx. 90 dBA
• Switching bandwidth: Up to 88 MHz
• Peak deviation: ±48 kHz
• Nominal deviation: ±24 kHz
• Operating time: Typically 8 h
• Modulation: Wideband FM
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption: At nominal voltage: typ. 140 mA with receiver switched off: ≤ 25 µA
• Adjacent channel rejection: Typically ≥ 65 dB
• Intermodulation attenuation: Typically ≥ 65 dB
• Powering: 3 V battery / 2.4 V rechargeable battery
• Receiving frequency: Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
• RF sensitivity: < 1.6 μV for 52 dBA eff S/N
• Squelch: low- 5 dBµV, middle- 15 dBµV, high- 25 dBμV
• Temperature Range: -10 °C to +55 °C
• Receiver Principle: Adaptive diversity
• Blocking ≥: 70 dB

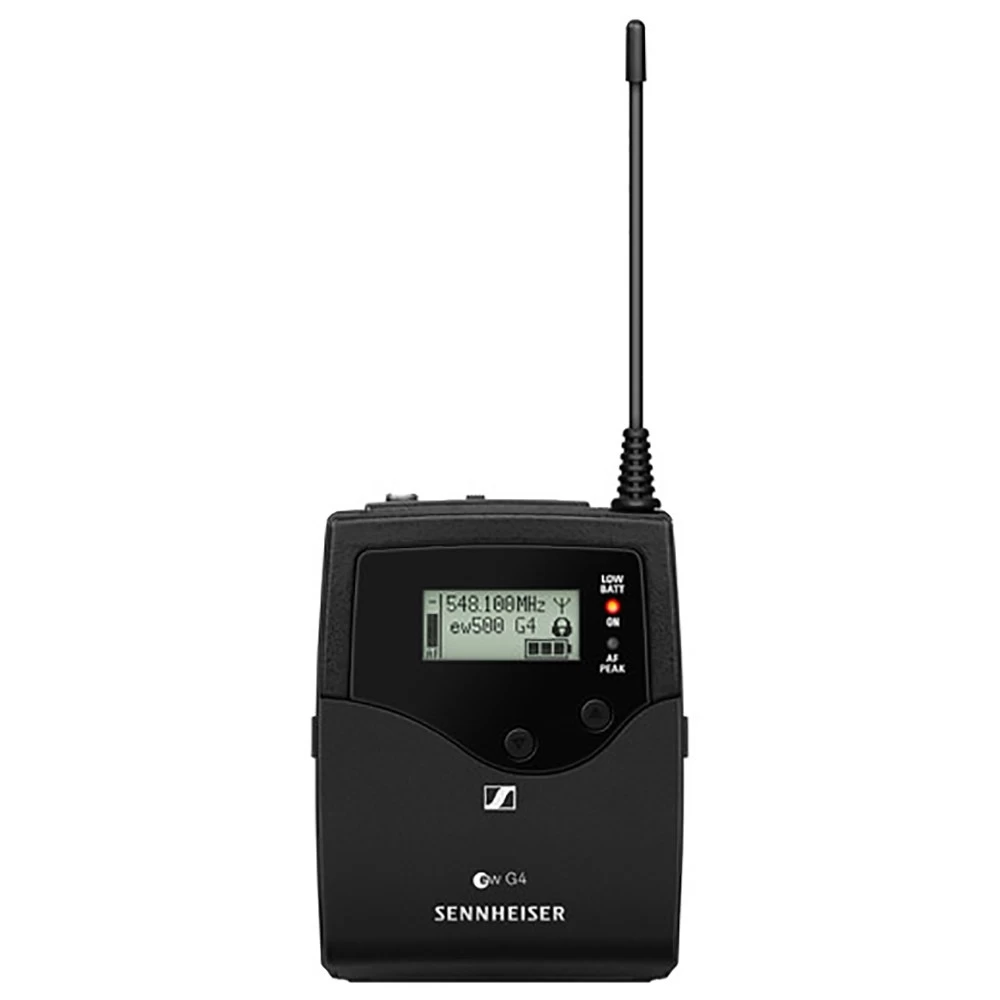

SK 500 G4

• Dimensions: Approx. 82 x 64 x 24 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion: ≤ 0.9 %
• Weight: (incl. batteries) approx. 160 g
• Signal-to-noise ratio: ≥ 115 dBA
• RF output power switchable: Low- typ. 10 mW, Standard- typ. 30 mW, High- typ. 50 mW
• Switching bandwidth: Up to 88 MHz
• Peak deviation: ±48 kHz
• Nominal deviation: ±24 kHz
• Operating time: Typically 8 h
• Modulation: Wideband FM
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption: At nominal voltage- typ. 180 mA with transmitter switched off- ≤ 25 µA
• Input impedance: 40 kΩ, unbalanced / 1 MΩ
• Max. Input voltage: 3 Veff
• Powering: 3 V battery / 2.4 V rechargeable battery
• Transmission frequency: Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
• AF frequency response: Mic- 80 – 18,000 Hz, Line- 25 – 18,000 Hz
• Temperature Range: -10 °C to +55 °C
• Frequency stability: ≤ ±15 ppm

EK 500 G4

• Frequency range Aw+: 470 – 558 MHz
• Dimensions: Approx. 82 x 64 x 24 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion: ≤ 0.9 %
• Weight: (incl. batteries)Approx. 130 g
• Audio output: 3.5 mm jack socket: +17 dBu (mono, balanced)
• Signal-to-noise ratio: Line- ≥ 110 dBA, Phones- approx. 90 dBA
• Switching bandwidth: Up to 88 MHz
• Peak deviation: ±48 kHz
• Nominal deviation: ±24 kHz
• Operating time: Typically 8 h
• Modulation: Wideband FM
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption: At nominal voltage: typ. 140 mA with receiver switched off: ≤ 25 µA
• Adjacent channel rejection: Typically ≥ 65 dB
• Intermodulation attenuation: Typically ≥ 65 dB
• Powering: 3 V battery / 2.4 V rechargeable battery
• Receiving frequency: Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels,
• no intermodulation, 6 frequency banks with up to 32 programmable channels
• RF sensitivity: < 1.6 μV for 52 dBA eff S/N
• Squelch: low- 5 dBµV, middle- 15 dBµV, high- 25 dBμV
• Temperature Range: -10 °C to +55 °C
• Receiver Principle: Adaptive diversity
• Blocking ≥: 70 dB

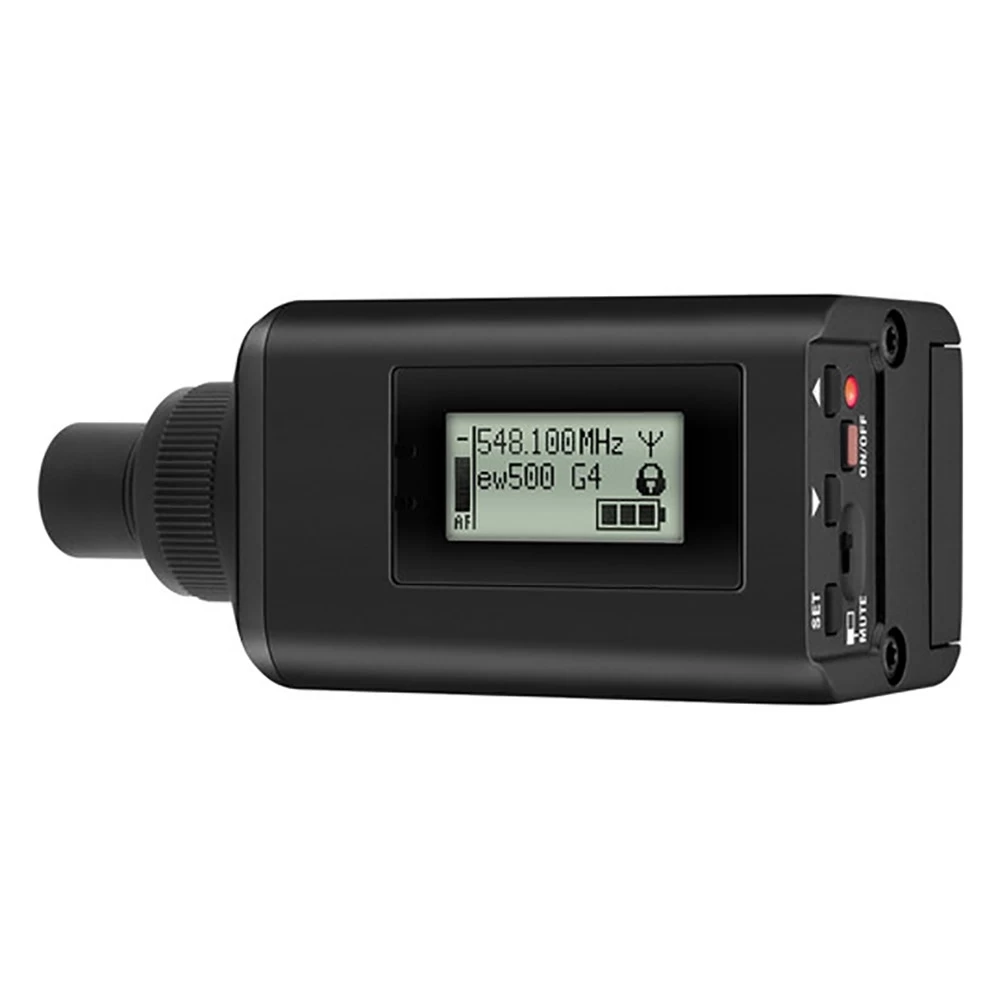

SKP 500 G4

• Dimensions: Approx. 105 x 43 x 43 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion: ≤ 0.9 %
• Weight: (incl. batteries) approx. 195 g
• Signal-to-noise ratio: ≥ 120 dBA
• RF output power: switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
• Switching bandwidth: up to 88 MHz
• Peak deviation: ±48 kHz
• Nominal deviation: ±24 kHz
• Operating time: Typically 8 h
• Modulation: Wideband FM
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption: at nominal voltage: typ. 210 mA, with transmitter switched off: ≤ 25 µA
• Input impedance: 68 kΩ, unbalanced
• Max. Input voltage: 6 Veff
• Powering: 3 V battery / 2.4 V rechargeable battery
• Transmission frequency: Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
• AF frequency response: 80 – 18,000 Hz
• Temperature Range: -10 °C to +55 °C
• Frequency stability: ≤ ±15 ppm

• Connector: 3.5 mm jack
• Frequency response: 20 to 20.000 Hz ± 3 dB
• Max. sound pressure level: 142 dB
• Cable length: Approx. 1.60 m
• Transducer principle: Pre-polarized condensor microphone
• Pick-up pattern: omni-directional
• Sensitivity in free field, no load (1kHz): 5 mV/Pa, ± 3 dB
• Equivalent noise level: 26 dB
• Equivalent noise level weighted as per CCIR 468-3: 39 dB
