Sennheiser XSW2-865 Wireless Handheld Microphone System; Band A (548-572 MHz)

Receivers

• Dimensions: Approx. 200 x 42 x 127 mm
• Weight: Approx. 680g
• Power supply: 12 V DC nom. / 300 mA
• Housing: Metal, ,Microphone: Robust ABS
• AF frequency response: 50 to 16,000 Hz (–3 dB)

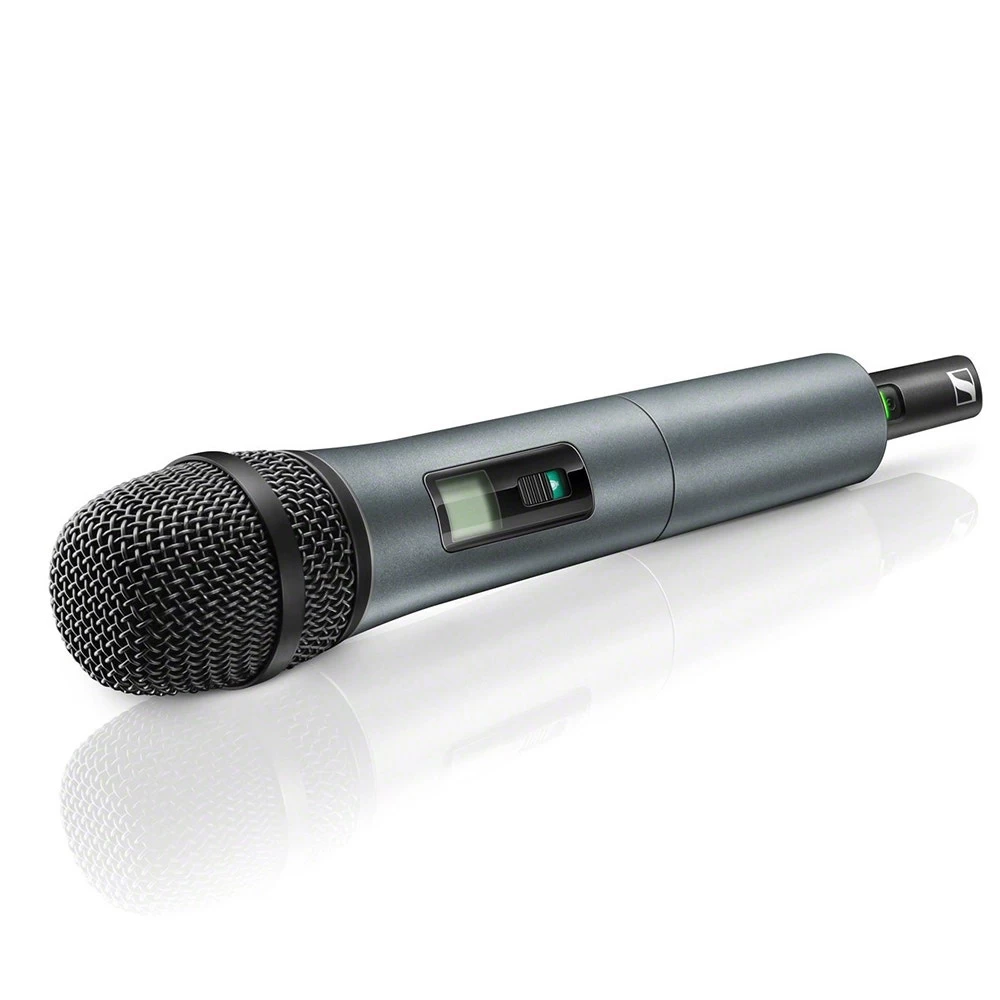

Microphone

• Dimensions: Approx. 260 x 50 mm
• Weight: Approx. 245g
• Operating time: Approx. 10 hrs
• Power supply: 2 AA size batteries, 1.5 V
• AF frequency response: 80-16,000 Hz
• Microphone: condenser
• Frequency response: 50 to 16,000 Hz (–3 dB)
• THD, total harmonic distortion: ≤ 0.9%
• Pick-up pattern: super-cardioid
• Signal-to-noise ratio: ≥ 103 dBA
• RF output power: 10 mW
• Switching bandwidth: Up to 24 MHz
• Modulation: wideband FM
• Output voltage: 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
• Frequency: 8 frequency banks, each with up to 12 factory-preset channels
• Frequency range: A: 548-572 MHz
• Sensitivity: < 3 μV at 52 dB(A)rms S/N
• Squelch: Switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
• Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
• Input sensitivity: 1.8 mV / Pa
• Audio adjustment range: 40 dB, adjustable in 5-dB steps
• Line / Mic level: 20 dB, switchable
• Temperature Range: operation: 0°C to +40°C, storage: –20°C to +70°C
• Receiver Principle: Double superheterodyne
• Diversity principle: True Diversity

Manufacturer’s Description

Raise your voice. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions.
The XS WIRELESS 2 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters featuring Sennheiser’s renowned evolution microphone capsule e865 (condenser, super-cardioid) to capture every detail. True Diversity receiver in a metal housing and rackmount kit included.

Features

• Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules
• True diversity receiver with metal housing
• External antennas
• Automatic frequency management and synchronization via
• Remote channel for easy setup
• Fully tunable over a wide range of UHF frequencies
• Rackmount kit included
• Up to 12 compatible channels

What’s in the box?

• 1 receiver EM-XSW 2
• 1 handheld transmitter SKM 865-XSW
• 1 microphone clamp MZQ 1
• 1 power supply NT 12-5 CW
• 2 AA batteries
• 1 rackmount kit
• 1 pouch
• User manual
