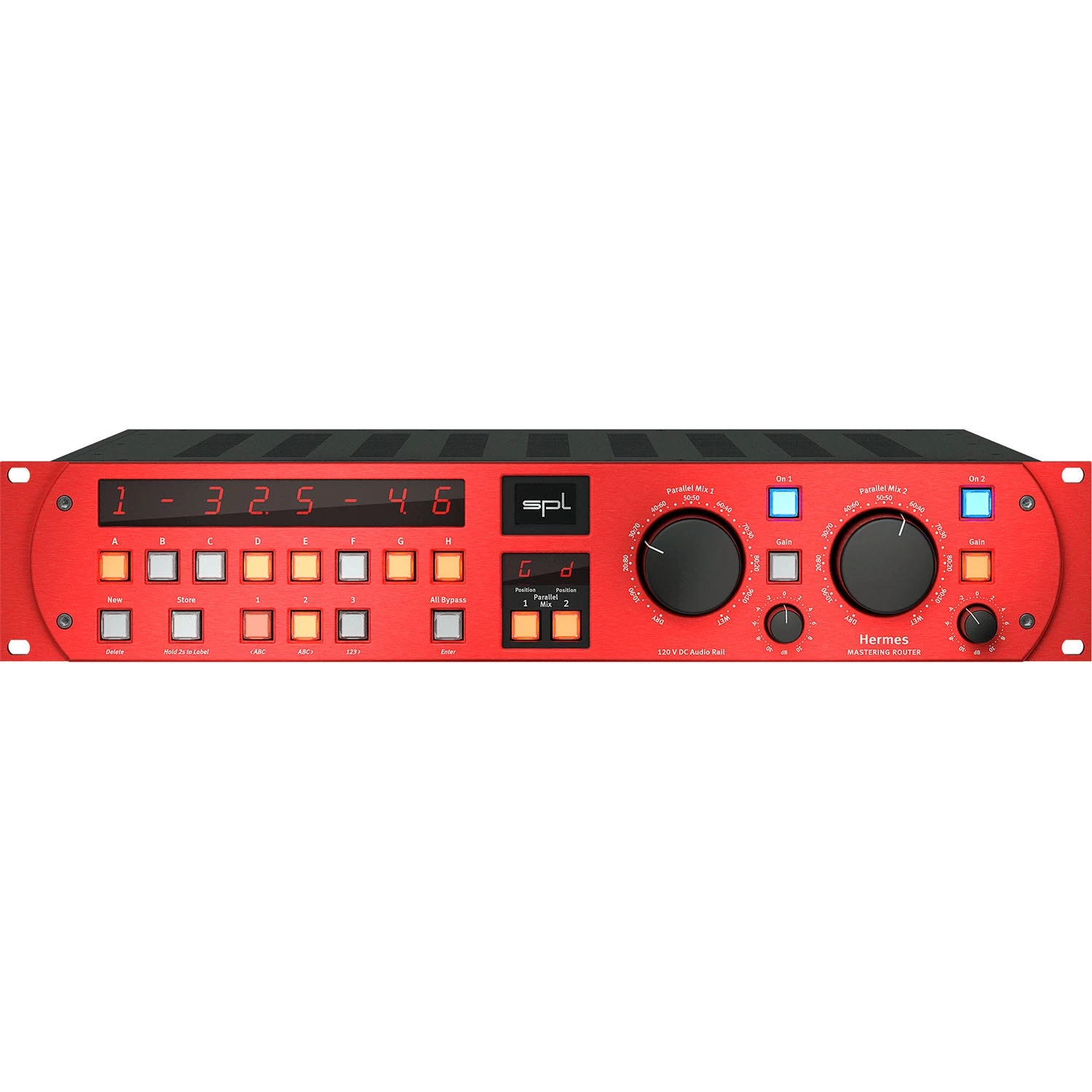

SPL Hermes Mastering Router With Dual Parallel Mix, Red

Manufacturer’s Description

Hermes

Mastering Router with dual Parallel Mix

Hermes revolutionizes mastering. Now it is possible to have an audio signal processed by up to eight 2-channel processors in any order that can be stored. At the push of a button you can compare up to four complex processing chains.

Connect, route, store, compare

Hermes accelerates mastering workflows in an unprecedented achievable way. The time-consuming replugging of the patchbay alone had made true comparison almost impossible.

Now you can change, store and compare processing chains in seconds. All with real buttons, relays and without additional software.

Simply push the processor buttons A to H in the order in which the audio signal should pass through the processors and store it.

All processors can be named for a better overview. The name always appears briefly in the display when an insert button is pressed.

Free routing of two parallel mix stages

Hermes has two parallel mix stages that can be freely assigned to each of the eight processors and stored with a processing chain.
This means that even two compressors with different parallel mix settings can be compared quickly and easily.

The routing is completely passive with gas-encapsulated and gold-plated high-end relays.

All active stages, such as the input/output stages and the parallel mix stages work in 120V technology.

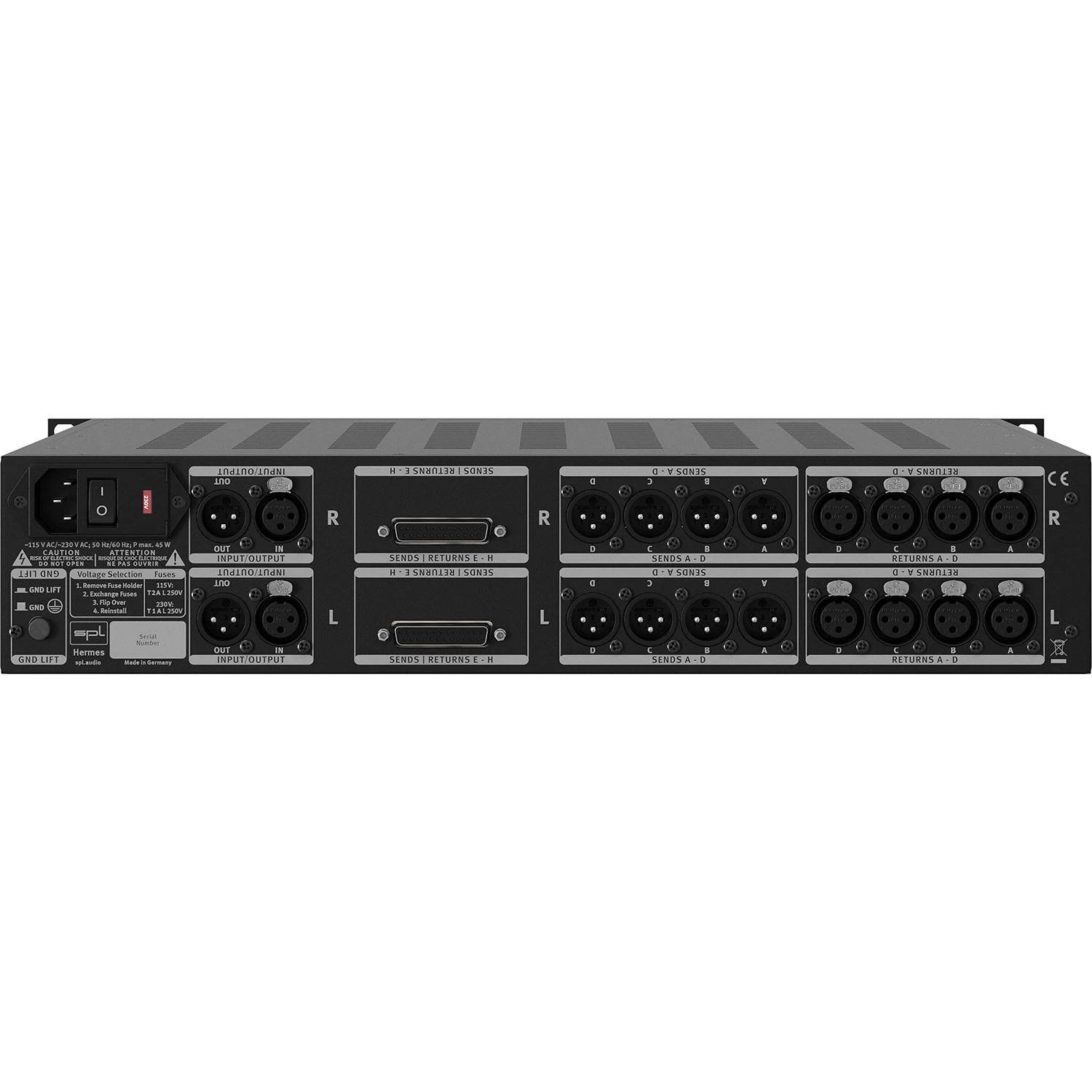

Sends & Returns

The stereo channels are strictly separated on two boards to achieve the highest possible channel separation.

The inserts are connected with XLRs for the first four stereo processors and with DB25 for the second four stereo processors.

The 120V technology

The 120V technology is our reference technology. The 120V technology is unique in the world. It operates at a DC voltage of 120 volts. This is four times that of IC-based semiconductor op-amps.

The highest possible audio quality requires the highest possible audio operating voltage.

The 120V technology works with +/-60 V. To be able to handle such a high voltage, we have developed special proprietary operational amplifiers that can operate with a DC voltage of +/-60 V: the SPL 120V SUPRA operational amplifiers.
This high voltage would destroy conventional components and operational amplifiers.

The idea for SPL 120V technology and the SUPRA operational amplifier based on this technology were developed in the 1990s by SPL founder and chief developer Wolfgang Neumann.

With the goal of building the best mastering console ever, this basic technological philosophy then took shape for the first time – thus the SPL MMC1 Mastering Console for Galaxy Studios saw the light of day in 2000.

Since that time, 120V technology has been the foundation for all SPL premium products. Meanwhile, not only for mastering applications, but also for the, studio or hifi use.

By the way, the “120V” in the name of the technology has nothing to do with the local mains voltage from the mains power socket. This is about the operating voltage inside the device with which the audio signals are processed.

The mains voltage from the mains power socket is transformed to the required secondary voltage in the device’s internal linear power supply with toroidal transformer. Rectifiers convert this AC voltage into DC voltage required in the audio device.

The outstanding sonic and technical features quickly got around in the scene – so further orders were not long in coming.

Besides the MMC 1, another legendary product with 120V technology was created with the PQ, the “King of Parametric Equalizers”.

Specifications

Analog inputs & output; XLR & DB25 (balanced)

• Maximum input & output gain: 32.5 dBu
• Input impedance: 20 kΩ
• Output impedance: 75 Ω
• Frequency range (-3 dB): 4 Hz to 300 kHz
• Common mode rejection: -75 dBu
• Crosstalk (1 kHz, 0dBu): -130 dBu
• Crosstalk (1 kHz, 0dBu, P-Mix on): -110 dBu
• Noise (A-weighted): -121 dBu
• Noise (A-weighted, P-Mix on): -104 dB

Internal Linear Power Supply with Shielded Toroidal Transformer

• Operating voltage for analog audio: +/- 60 V
• Operating voltage for relays and LEDs: + 12 V

Mains Power Supply

• Mains voltage (selectable, see fuse chamber): 230 V AC / 50; 115 V AC / 60 Hz
• Fuse for 230 V: T 1 A
• Fuse for 115 V: T 2 A
• Power consumption: max. 40 VA

Dimensions & Weight

• W x H x D (width x height x depth): 482 x 88 x 300 mm, 19 x 13.46 x 11.8 inch
• Unit weight: 9 kg, 19.84 lbs
