SPL Tube Vitalizer Program Equalizer

Manufacturer’s Description

Program Equalizer. Patented. Legendary.

A completely different type of EQ, with which almost virtuoso interventions in the sound image become possible. When mixing, mastering and restoring, the Tube Vitalizer goes beyond traditional equalization.

The Vitalizer is based on findings of psychoacoustics and audiometry.

Its filter network is one of the few patented filters.

It makes the richness of detail of audio signals more audible. Interventions in the sound image are more of a musical nature. Music productions sound more natural, lively, differentiated, easier to understand, more deeply layered and more widely spread apart.

Vitalizing

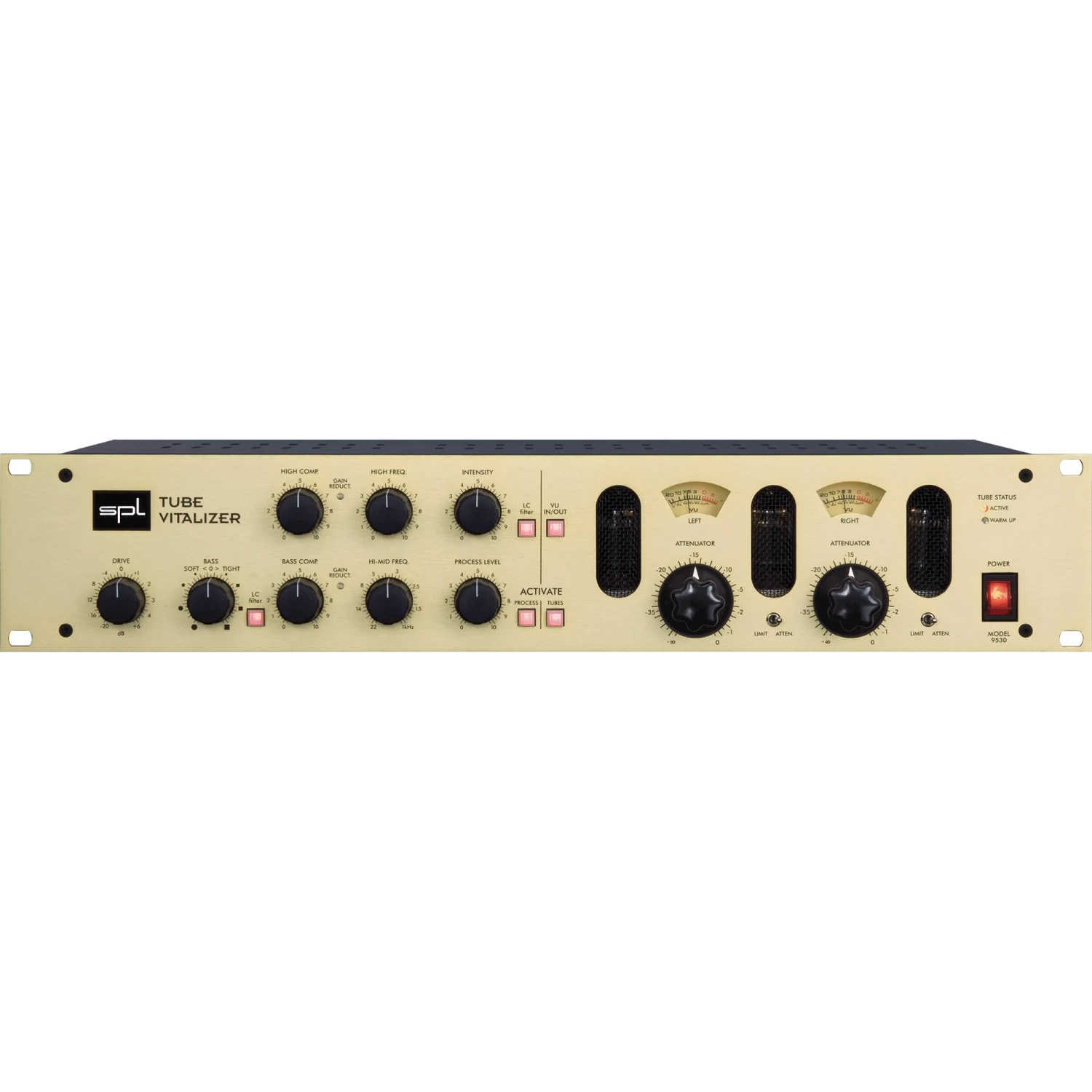

These are the five controls of the Vitalizer core circuit.

Drive controls the level going into the filter network. The bass emphasizes a soft or hard tone. The coil filter (LC) makes the bass more pithy and the compressor catches level peaks.

Mid-Hi Tune sets the frequency of operation above which frequencies are boosted and below which frequencies are cut.

Process Level adjusts the intensity of Mid-Hi Tune and bass.
In addition to the Vitalizer core circuit, the Tube Vitalizer has a high frequency and harmonics processing stage with

Frequency and Intensity controls and switchable coil filter (LC) as well as compressor.
The switchable tube stage is constructed with three tubes: first, left and right pass through their channel output tube, then the channels pass jointly through the third tube as a stereo signal.

As a little treat, the Tube Vitalizer offers a shunt limiter. This limits the level according to a characteristic curve tuned to the tubes and provides the signal with a sonic effect similar to the saturation effect of analog tape machines.

Specifications

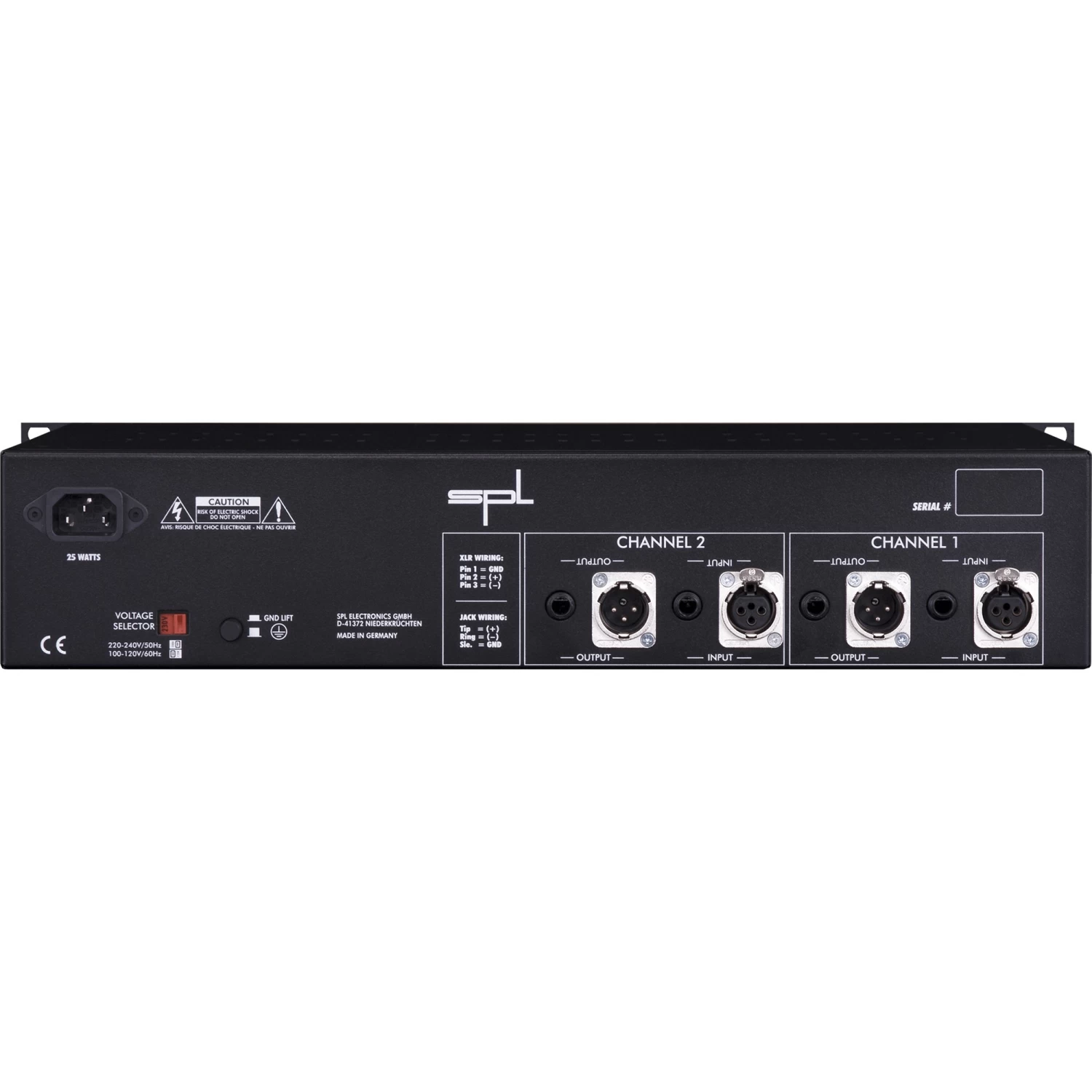

Analog inputs & outputs; XLR & TRS Jack (balanced)

• Maximum input gain : 24 dBu
• Input impedance : 22 kΩ
• Output impedance : 600 Ω
• Common mode rejection (1 kHz) : 70 dB
• Frequency range (-3 dB, tube section off) : 10 Hz – 100 kHz
• Frequency range (-3 dB, tube section on) : 30 Hz – 100 kHz
• THD + N (0 dBu, 10 Hz – 22 kHz) : 0.002 %
• Noise (A-weighted) : -89 dBu
• Dynamic Range : 113 dB

Internal Linear Power Supply with Toroidal Transformer

• Operating voltage for analog audio : +/- 18 V
• Operating voltage for relays and LEDs : +12 V
• Mains Power Supply
• Mains voltage (selectable) : 230 V AC / 50; 115 V AC / 60 Hz
• Fuse for 230 V (primary) : T 500 mA
• Fuse for 230 V (secondary) : T 315 mA
• Fuse for 115 V (primary) : T 1 A
• Fuse for 115 V (secondary) : T 630 mA
• Power consumption : max. 40 W

Dimensions & Weight

• W x H x T (Weite x Höhe x Tiefe) : 482 x 88 x 237 mm / 19 x 3.46 x 9.33 inch
• Unit weight : 4.9 kg / 10.8 lbs
