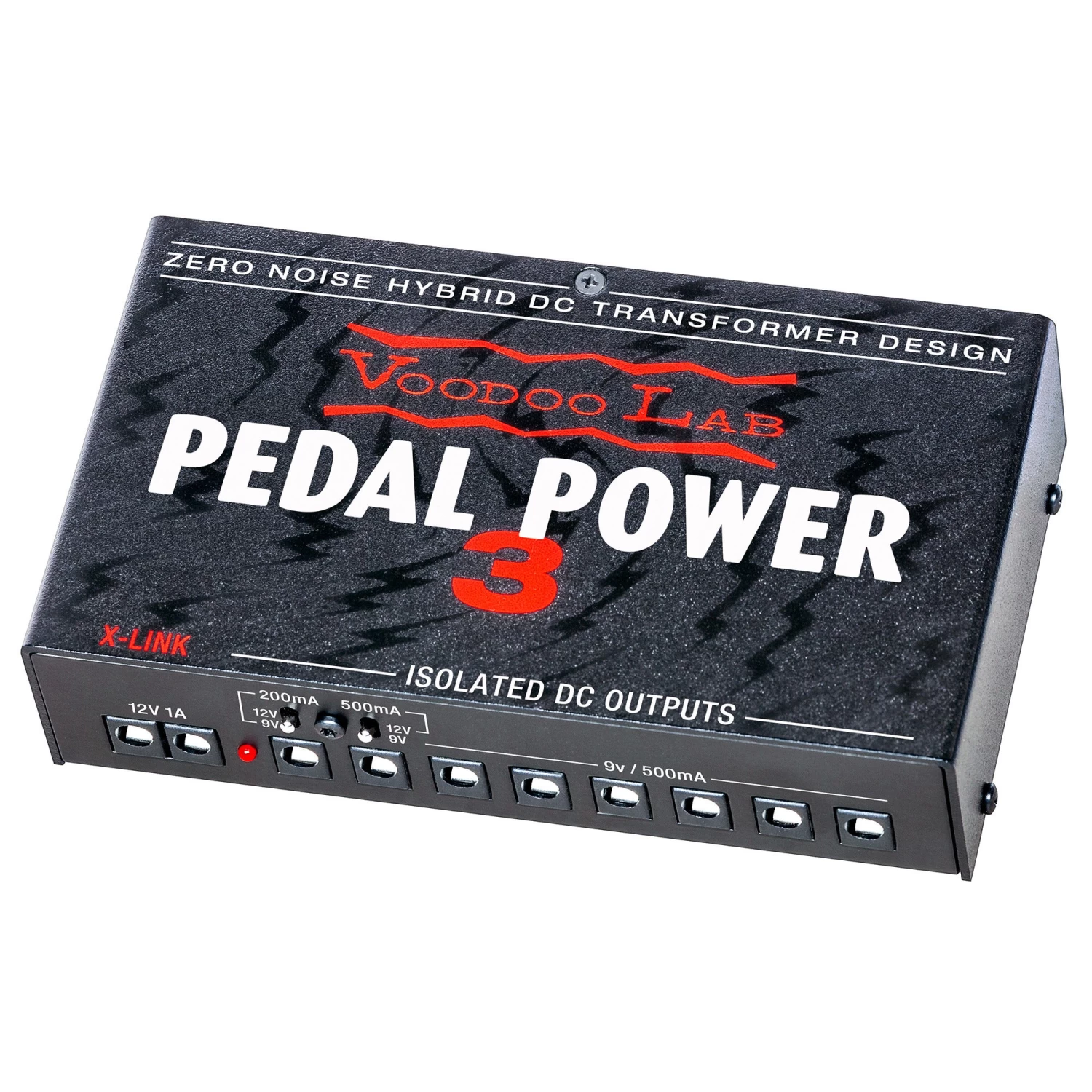

Voodoo Lab Pedal Power 3 High Current 8-Output Isolated Power Supply

Manufacturer’s Description

Pedal Power 3 is the first lightweight, high current, international voltage power supply to deliver zero-noise performance. Its innovative Hybrid DC Transformer design integrates exotic organic and polymer filtering with noise-free linear regulation  to establish industry-leading audiophile-quality power that unveils the hidden sonic potential of any rig. From standard battery-operated pedals to modern high current DSP effects, Pedal Power 3 combines the best of time-tested analog
engineering with cutting-edge technology to produce the cleanest, most reliable power in the business.

ALL ISOLATED OUTPUTS

Equipped with eight galvanically isolated DC outputs, Pedal Power 3 eliminates ground hum and unwanted interaction between pedals. Each output supplies 9V DC with two featuring a voltage selector switch for 12V DC operation. 18V and 24V pedals can be powered by combining outputs with an optional voltage doubler cable or adapter.

POWERFUL

Each Pedal Power 3 output delivers up to 500mA of current to supply power-hungry modern DSP effects. Audiophile specifications also ensure the musical character of the most sensitive vintage stompboxes is preserved. This wide spectrum of flexibility with each output means less guesswork when connecting your pedals.

EXPANDABLE

Never run out of outputs. Pedal Power 3 features two X-LINK ports for adding isolated outputs with Pedal Power X4 and X8. Each adds 4 and 8 isolated outputs, respectively, expanding the capacity of Pedal Power 3 as your pedalboard grows.

GOES ANYWHERE

The low-profile, ultra-lightweight design of Pedal Power 3 easily mounts to any pedalboard, adding an almost undetectable amount of weight. Operating at any input voltage 100V-240VAC, Pedal Power 3 makes international touring convenient and hassle-free. No voltage converters needed. Just hit the road, plug in, and rock out.

SHORT DESCRIPTION

The first lightweight, high current, international voltage power supply to establish zero-noise performance. Pedal Power 3 is equipped with 8 isolated 500mA outputs delivering robust power for modern DSP effects and audiophile specs for the most
sensitive vintage stompboxes. X-LINK ports for expanding with Pedal Power X4 or X8. Hand-built in the U.S.A.

Specifications

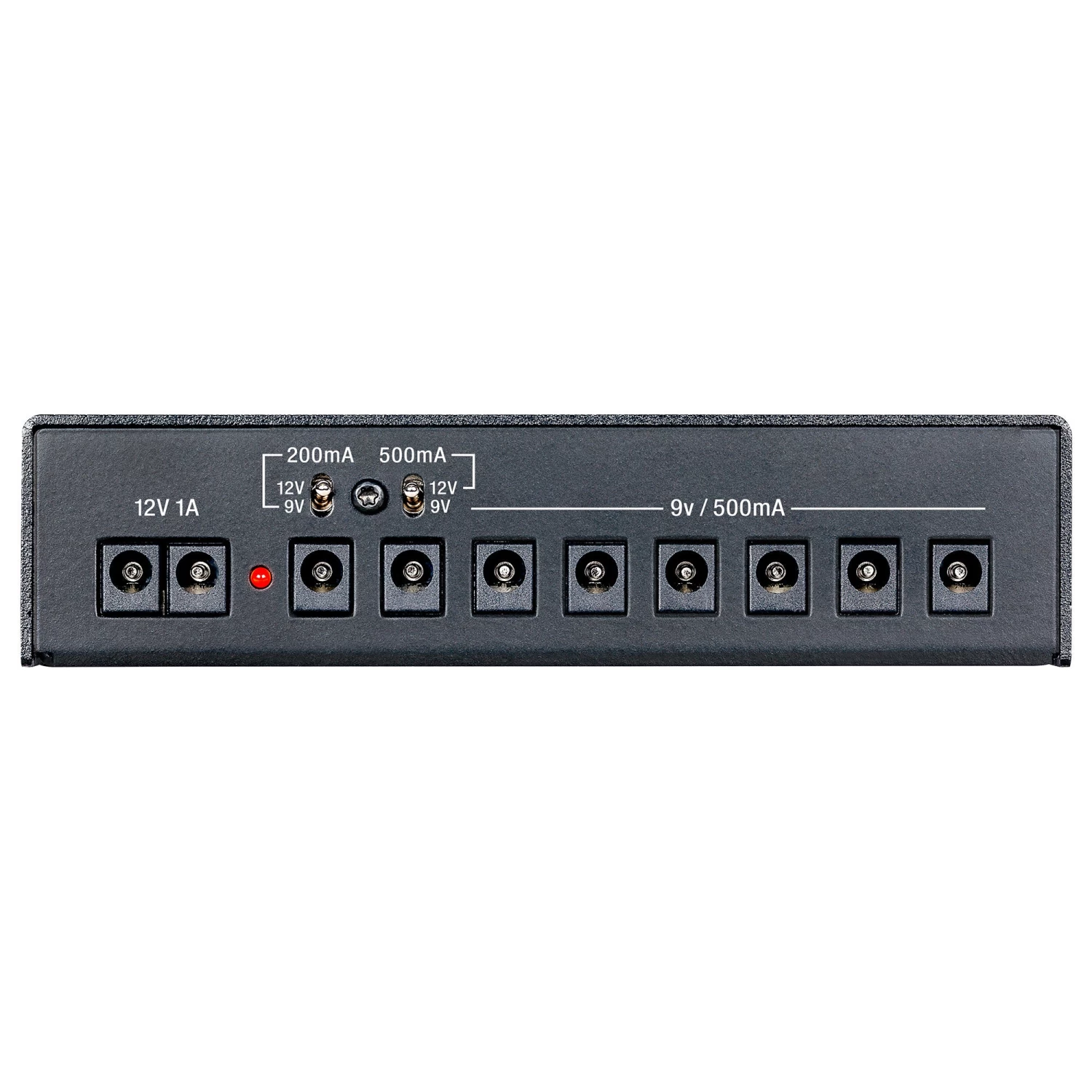

• 8 isolated 500mA DC outputs • 6 x 9V, 2 x Switchable 9V/12V
• Powers standard battery operated and high current DSP effects
• Innovative Zero Noise Hybrid DC Transformer Design
• Audiophile-quality power ensures pedals sound and perform their best
• Exotic organic and polymer filtering with noise-free linear regulation
• Lightweight, low-profile construction
• X-LINK expansion ports connect Pedal Power X4 and X8 units to add isolated outputs
• 100V-240VAC operation for international touring
• Includes DC power cable kit and detachable AC line cable
• Product Dimensions: 6” x 3.4” x 1.5” (127 x 86 x 38 mm)
• Product Weight: 14.4 ounces (0.4 kg)
• 5 Year Warranty*
• Made in the U.S.A.
