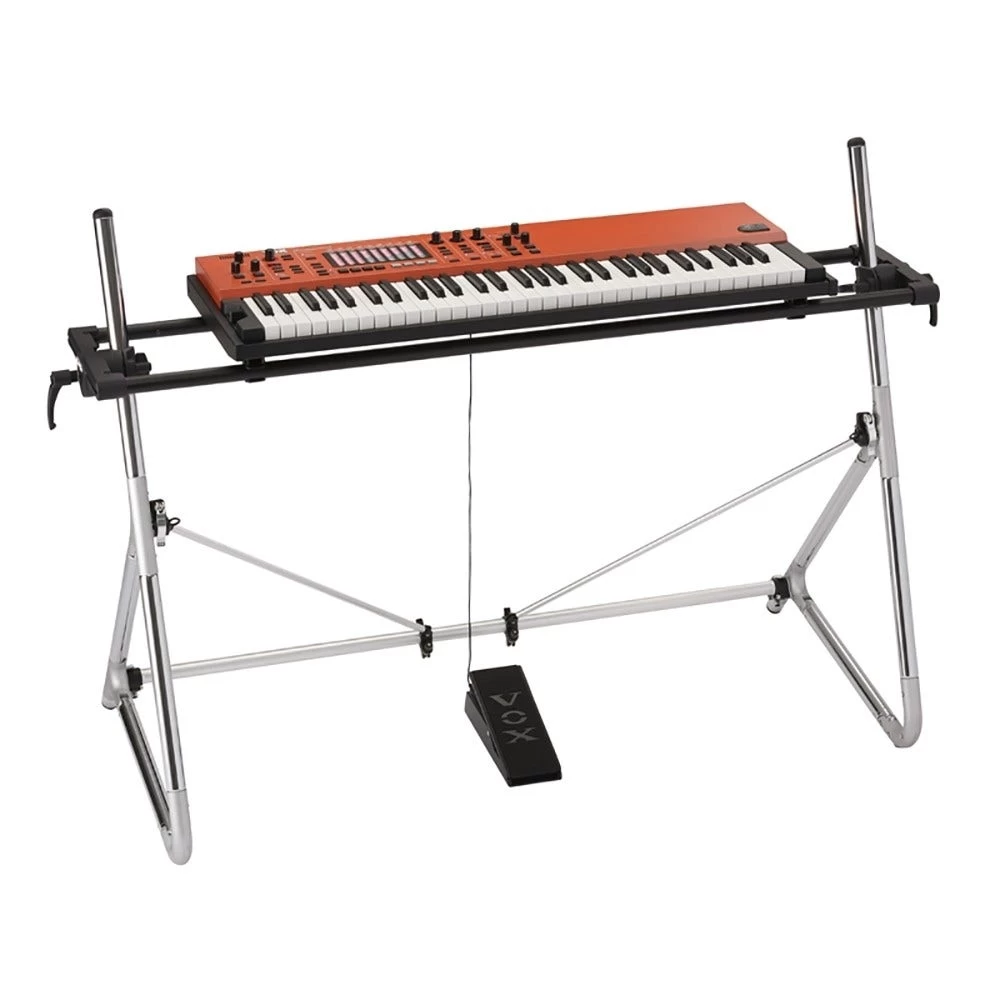

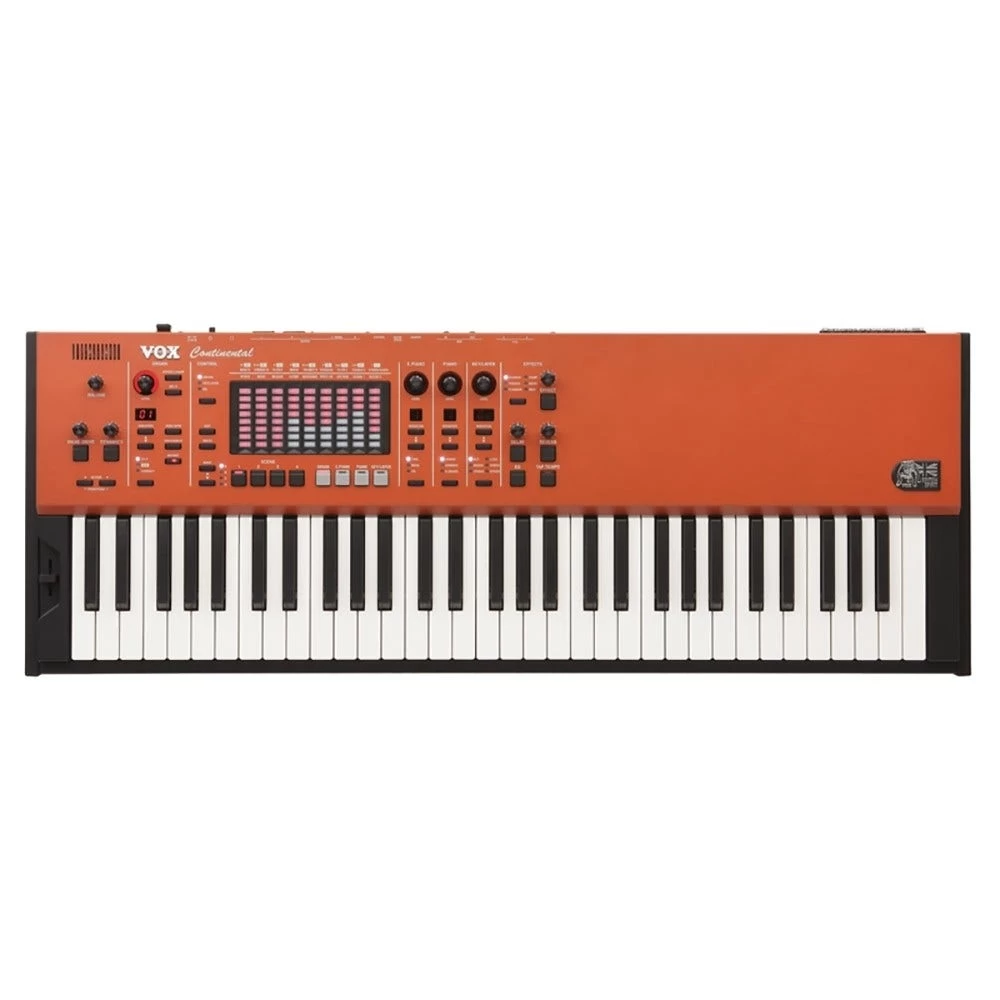

Vox Continental Performance Keyboard 61-Key With Stand

Keyboard

Semi-weighted waterfall (velocity sensitive is supported, after touch is not supported)

     • 61 keys: C2 ─ C7 (transposable in the range of [C0…C5] ─ [C4…C9]), velocity sensitive C2 to C7

Sound Generator

Maximum Polyphony

     • Modeling tonewheel organ sound generator: 128 voices
     • Modeling transistor organ sound generator: 100 voices
     • Modeling electric piano sound generator: 80 voices
     • High-definition Piano sound generator: 60 dual stereo notes (equivalent to 240 voices max)
     • Modeling analog synthesizer sound generator: 36voices
     • PCM sound generator: 64 stereo notes (equivalent to 128 voices max)

PCM Memory

     • Approx. 10.5 GB (in case of 48 kHz, 16-bit Linear PCM converted)

ORGAN Part

     • 3 types (CX-3, VOX, COMPACT)
     • Draw bar, Percussion ON/OFF, Split function, Vibrato/Chorus ON/OFF, Rotary Speaker ON/OFF)

E.PIANO Part

     • 3 types (TINE, REED, FM)

PIANO Part

     • 3 types (GRAND, UPRIGHT, E.GRAND)

KEY/LAYER Part

     • 6 types (KEY, BRASS, STRINGS, LEAD, SYNTH, OTHER)

Preset variations

     • 150

Scene

     • 16 (4 x 4)
     • It is available to save 100 sets to external USB

Effects

Insert Effects

     • EFFECT: CHORUS, PHASER, FLANGER, COMP, DRIVE, WAH (control via pedal)

Master Effects

     • DELAY: 1. DELAY, 2. CROSS, 3. TAPE, 4. MOD DLY
     • REVERB: 1. HALL1, 2. HALL2, 3. ROOM1, 4. ROOM2, 5. SPRING

EQ

     • 9-band stereo input/output

VALVE DRIVE

     • Vacuum tube Nutube 6P1

DYNAMICS

     • Control the amount of change in volume and tone produced by your keyboard playing dynamics.

Controllers

Bend Lever

     • ORGAN: Rotary Slow/Fast
     • E.PIANO: Tremolo ON/OFF
     • KEY/LAYER: Pitch bend

Touch sensors (electrostatic capacitance type)

     • ORGAN: Drawbars
     • KEY/LAYER: Sound controls
     • EQ: 9 band equalizer

Frequency Characteristics

     • 20Hz ─ 22kHz　±1.0dB　10k Ω load

THD+N

     • 20Hz ─ 22 kHz　0.005% (standard) 10k Ω load

S/N Ratio

     • 105dB (standard)

Audio Output

OUTPUT L/MONO, R

     • Connector: 6.3 mm (1/4″) monaural phone jack, unbalanced
     • Output impedance: 1.1 Ω (when outputting in stereo), 600 Ω (L/Mono jack, when outputting in mono)
     • Maximum level: +16.0 dBu
     • Load impedance: 10k Ω or more

OUTPUT L, R

     • Connector: XLR-3-32 type (balanced) + LIFT – GND switch
     • Output impedance: 350 [Ω] (when outputting in stereo)
     • Maximum level: +16.0 [dBu]     • Load impedance: 10k Ω or more

HEADPHONES

     • Connector: 6.3 mm (1/4″) stereo phone jack
     • Output impedance: 50 Ω
     • Maximum level: 150 + 150 mW @32 Ω

Control Inputs

DAMPER

     • KORG DS-1H damper pedal (supports half-damper), PS-1 and PS-3 pedal switches

ROTOR SPEED

     • KORG PS-1 pedal switches

CONTROL

     • V861 VOL/EXP pedal volume/expression pedalV861

Other Sounds

MIDI

     • IN, OUT

USB

     • USB A (TYPE A): Saving/loading scene data
     • USB B (TYPE B): MIDI interfaces: 1 (16 ch) in/1 (16 ch) out
     • Complies with USB specification Ver. 2.0, High speed (up to 480 Mbps)

Main Specifications

Power

     • AC adapter connector (DC 15 V), power button

Dimensions (W x D x H)

     • 61-key model: 939 mm x 350 mm x 86 mm/ 36.97″ × 13.78″ × 3.39″

Weight

     • 61-key model: 7.2 kg / 15.87 lbs

Power Consumption

     • 16W

Included Items

     • AC adapter, Power cord, V861 Volume/Expression pedal, ST-Continental keyboard stand (for 61-key model)
