Yamaha DM3-D Professional 22-Channel Ultracompact Digital Mixer With Dante

Manufacturer’s Description

The DM3-D is an ultra-compact 22 Channel digital mixer sure to get you your next gig. Capable of 96kHz sample rates and Dante connectivity, the DM3 Series continues the Yamaha legacy of sonic purity, offering you the perfect canvas for mixing, recording, and streaming from a company that knows how to create music. When not on stage, DM3-D can be used as a DAW controller in the home studio. Built to make mixing easy, the console encourages the engineer to focus on the music, utilizing a best in class, 9” touchscreen and a single Touch & Turn knob for managing most of the operation.

Features

• Renowned Yamaha sound quality with 96kHz sample rate
• 22 Channels (16 Mono / 1 ST / 2 ST FX RTNs)
• 6 Mono or 3 ST Mixes / 2 Matrices / 1 ST Bus
• 16 Professional Yamaha Preamps (12x XLR + 4x Combo Jack)
• 8 Analog Outputs (XLR)
• 16×16 Dante Interface
• 18×18 USB Audio Interface for playback and recording and 2×2 USB recorder
• Best in Class 9″” Touch Screen
• DAW Remote Mode including transport control
• Custom control via OSC, USB-MIDI and Provisionaire
• Bundled with Cubase Al

Specifications

• Input Channels: 16 Mono, 1 Stereo, 2 FX Return
• Buses: 1 Stereo, 6 Mix, 2 FX, 2 Matrix (Input to Matrix supported)

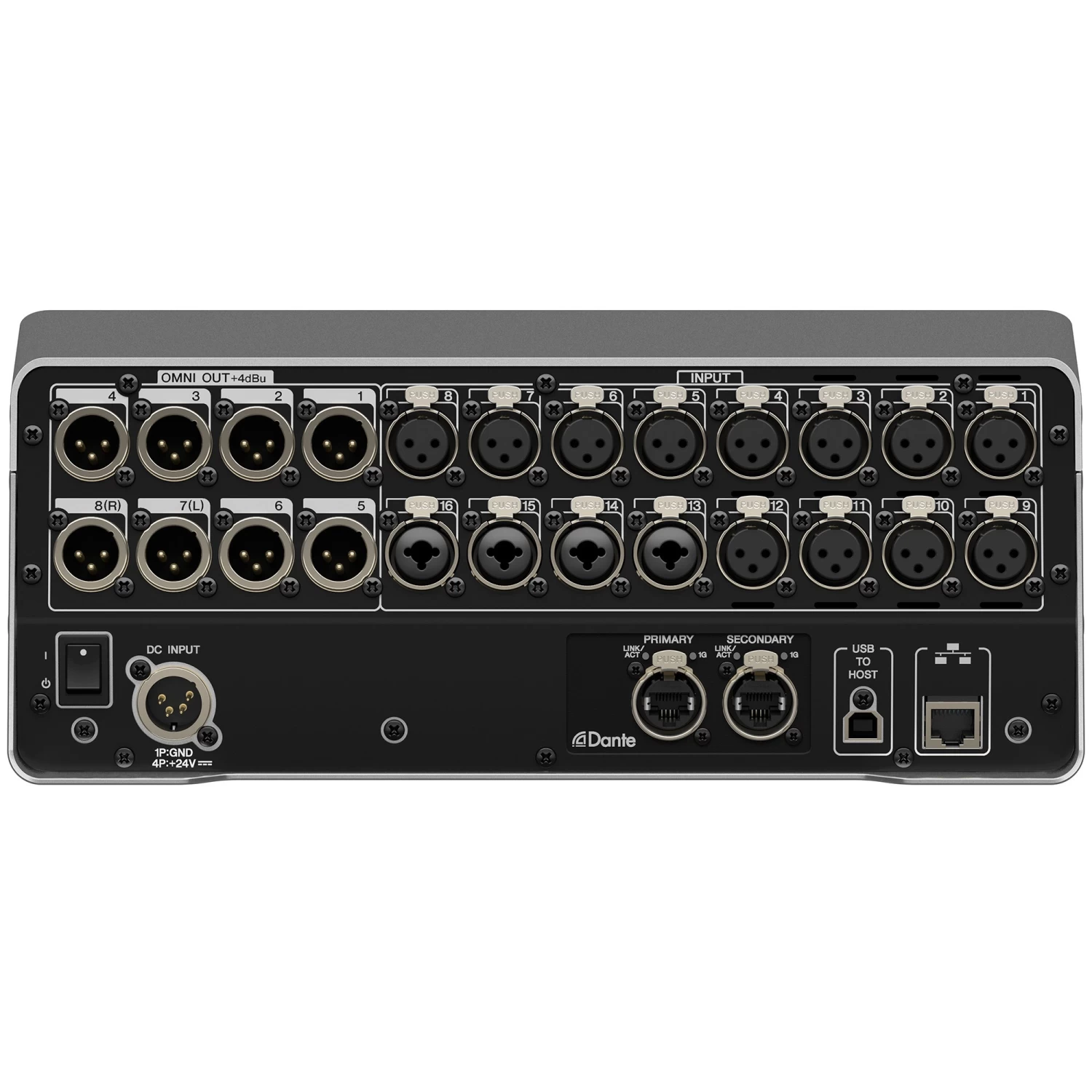

• Analog In: 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo)
• Analog Out: 8 (XLR)
• Dante I/O: 2 (etherCON : Primary/Secondary, 16 In/Out)
• Ethernet: 1 (RJ-45)
• USB to Host: 1 (USB Type-B)
•  USB to Device: 1 (USB Type-A)
• Phones: 1 (TRS Phones)
• DC IN: 1 (XLR 4 pin)

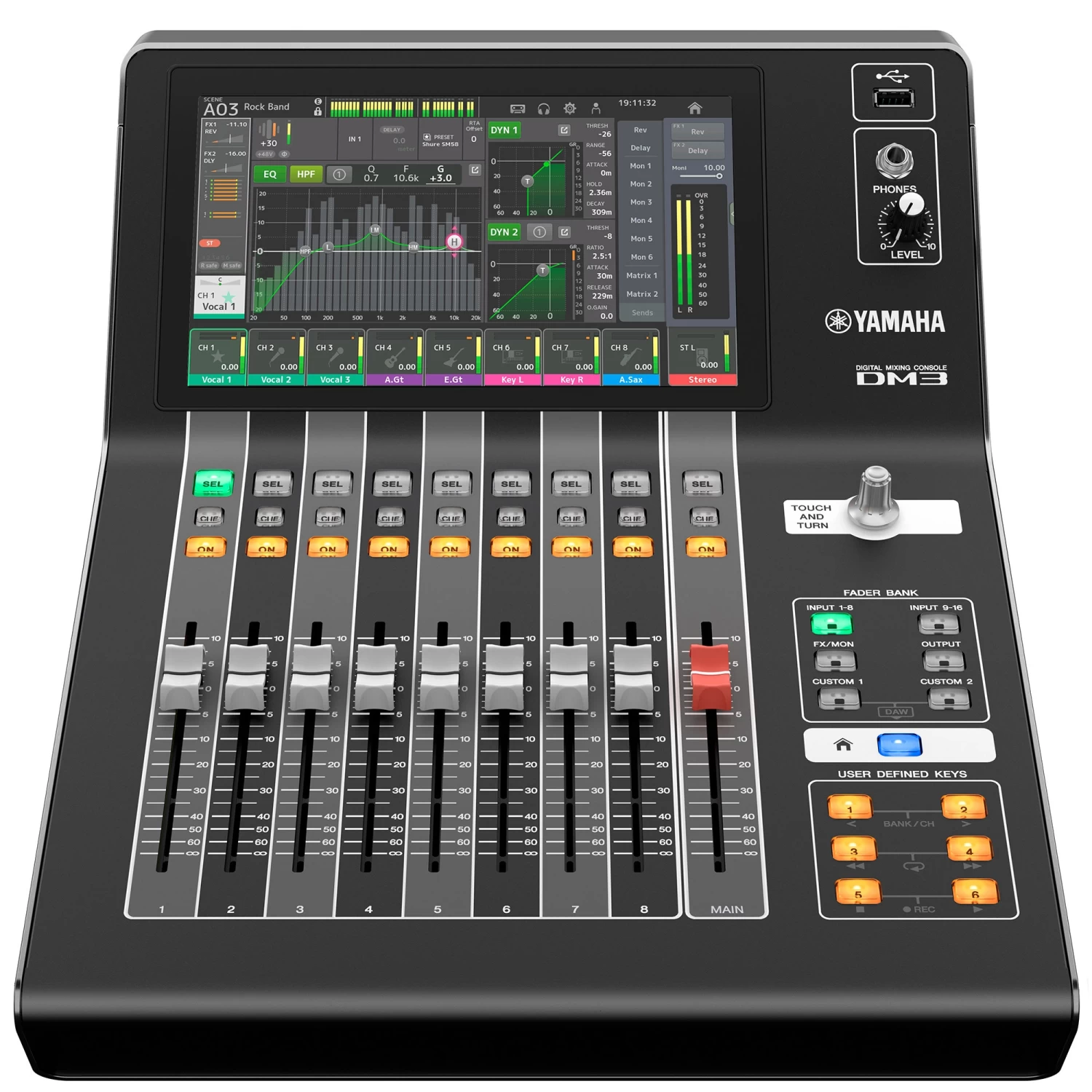

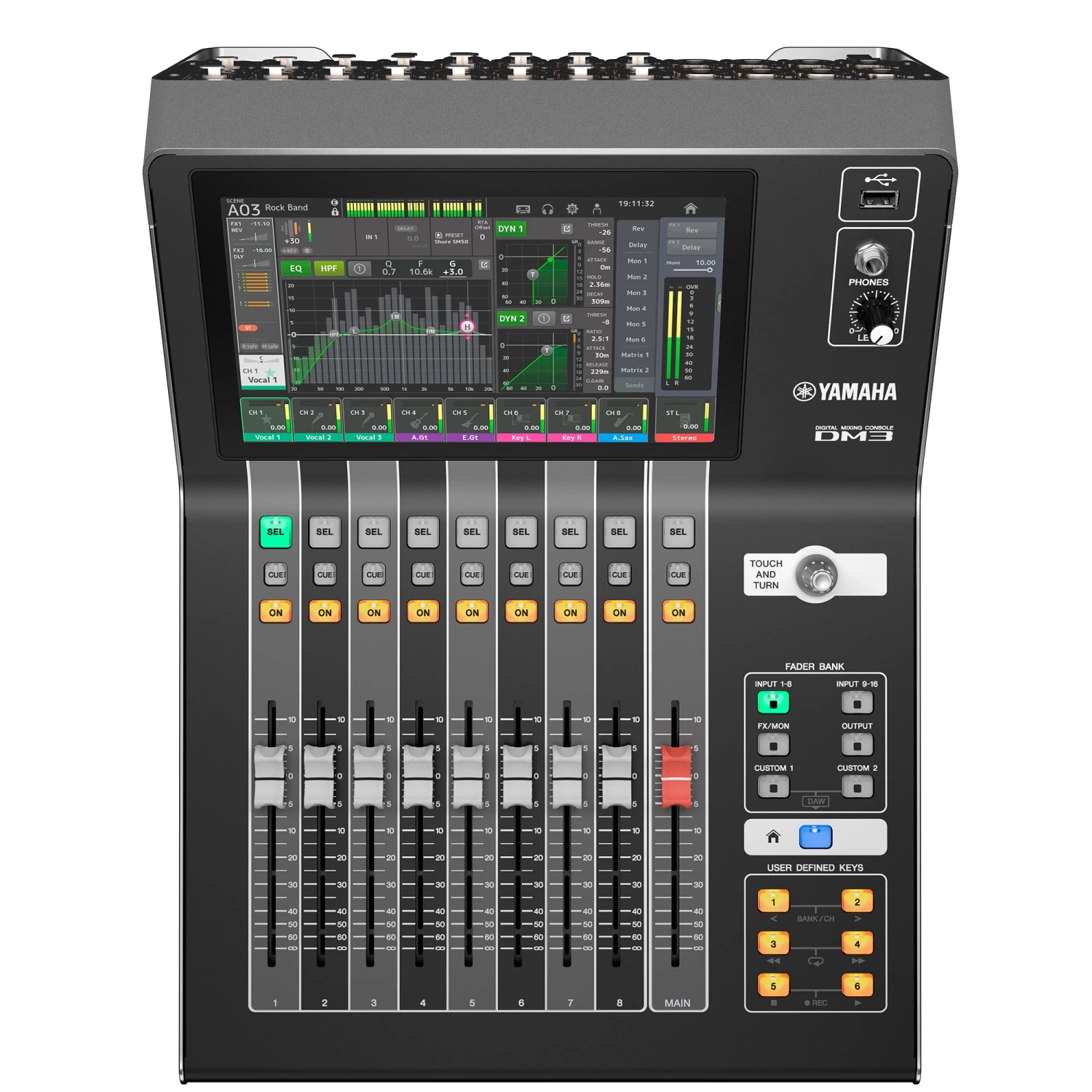

• User Interface
  • 9-inch multi-touch screen
  • 9 x 100mm Motorized fader (8 channels + 1 master)
  • 1 x Rotary Encoder (Touch and Turn)
• Recording & Playback: 18 tracks (PC USB 2.0), 2 tracks (USB Storage Device)
• Sampling rate: 96 kHz/48 kHz
• Power Requirements: DC24 V/2.5 A, PA-L500 (100 V-240 V, 50 Hz/60 Hz)
• Power Consumption: 43 W
• Dimensions (W x H x D) inches: 12.6 x 17.9 x 5.5
• Weight: 14.33 lbs
• Temperature Range: Operating Temperature Range: 0 to 40°C; Storage Temperature Range: -20 to 60°C
• Included Accessories: Owner’s Manual, Power Adapter (PA-L500, including power cord), CUBASE AI
• Download Information
• Optional Accessories: Rack mount kit RK-DM3, I/O RACK Tio1608-D2
• Software: DM3 Editor, DM3 StageMix, MonitorMix, ProVisionaire Control/Touch
