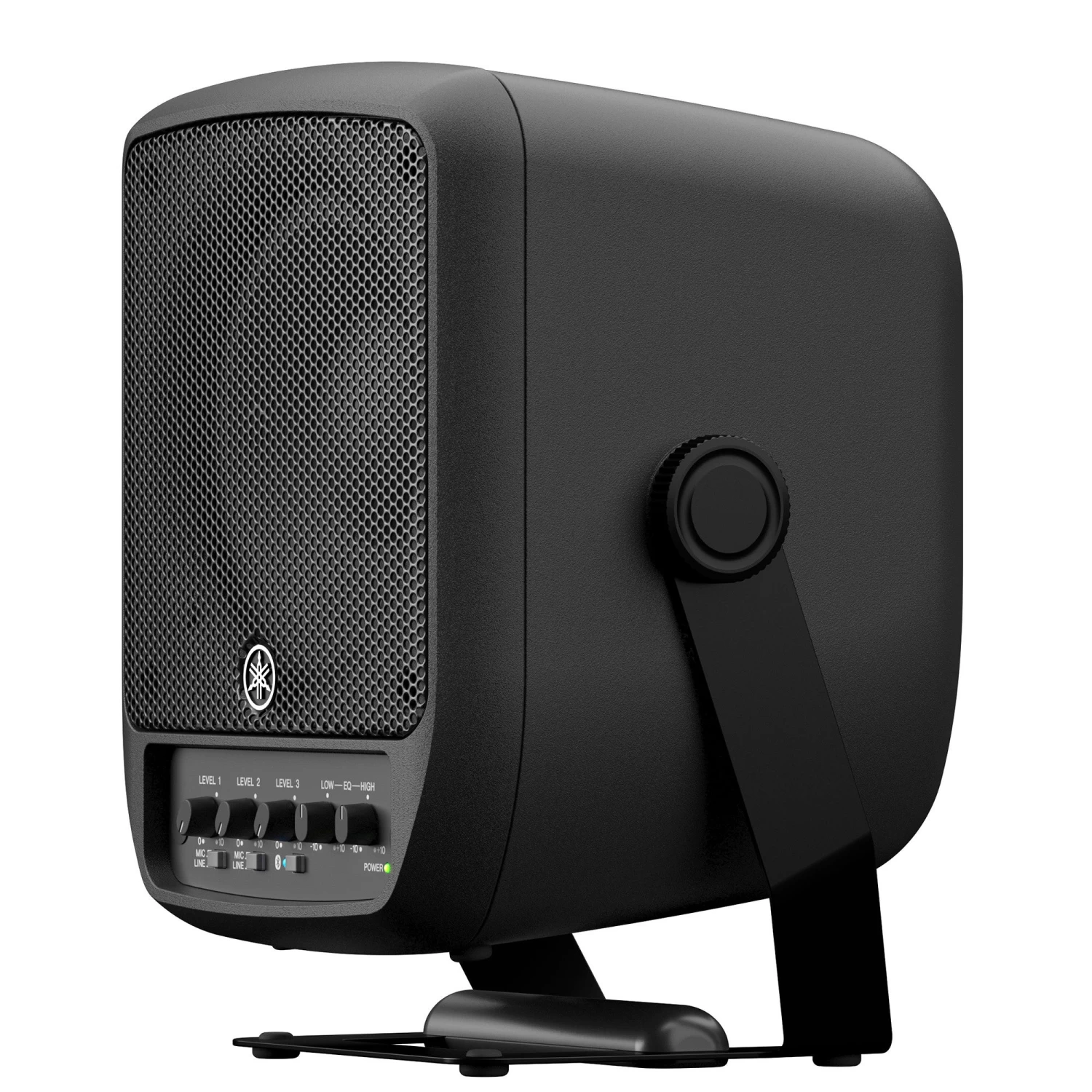

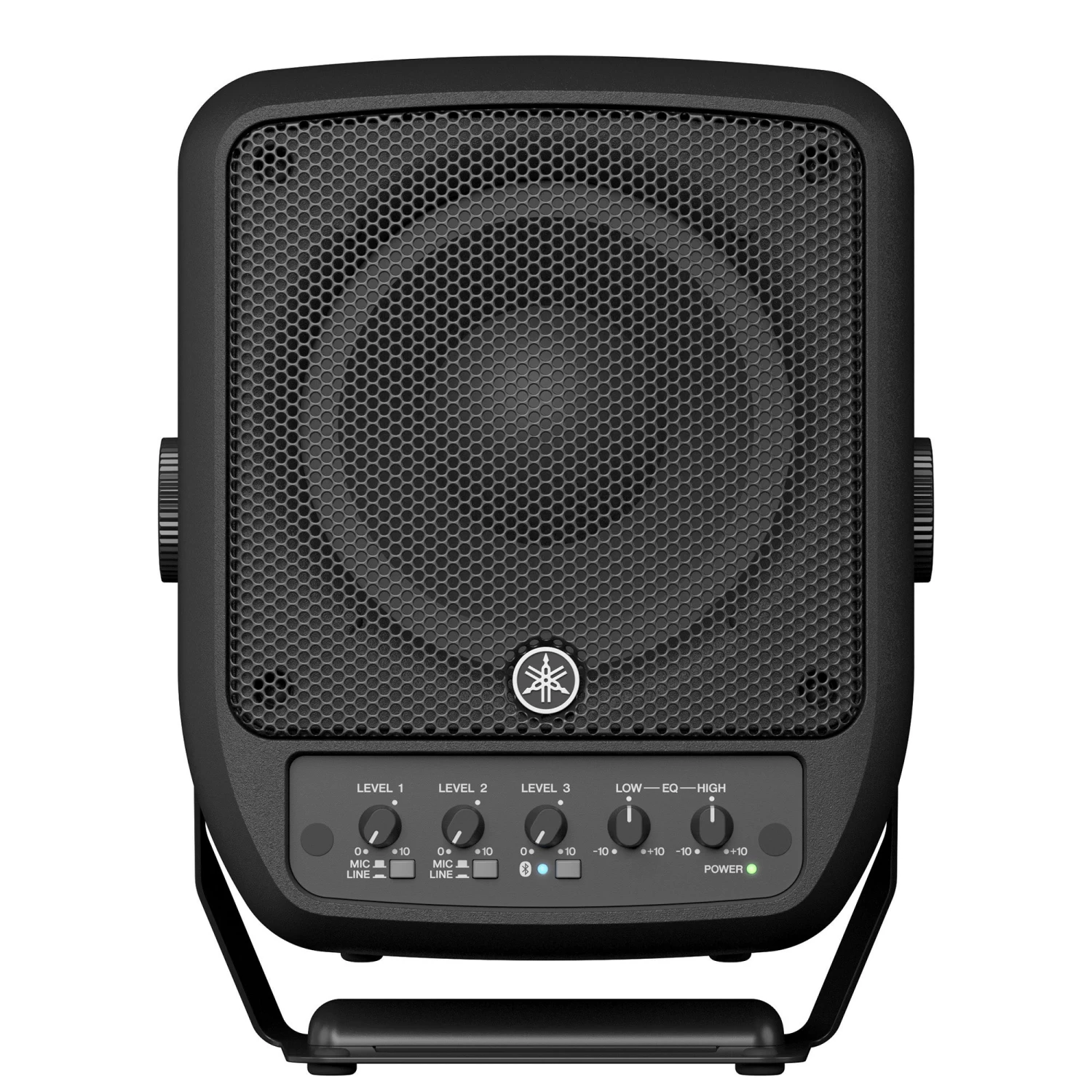

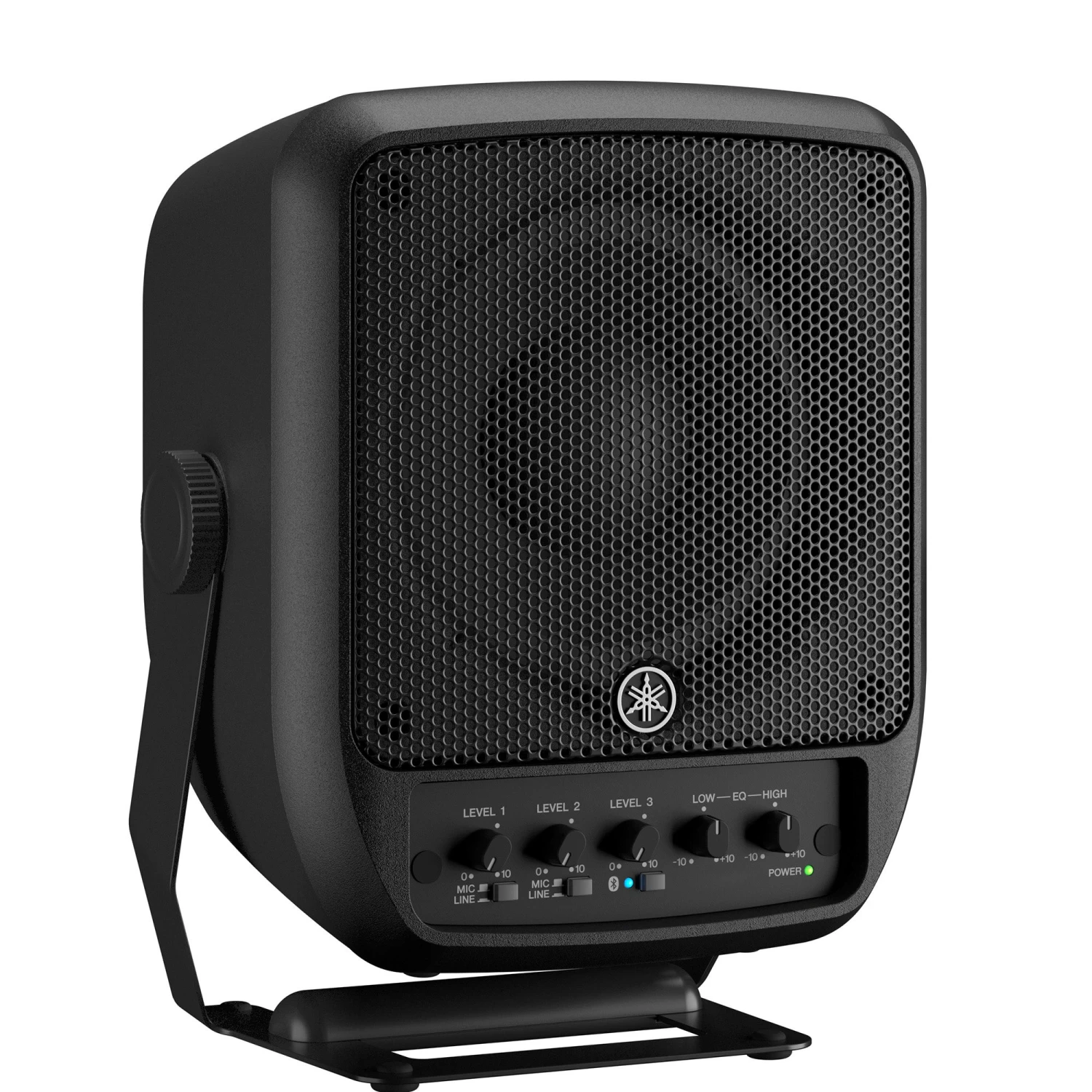

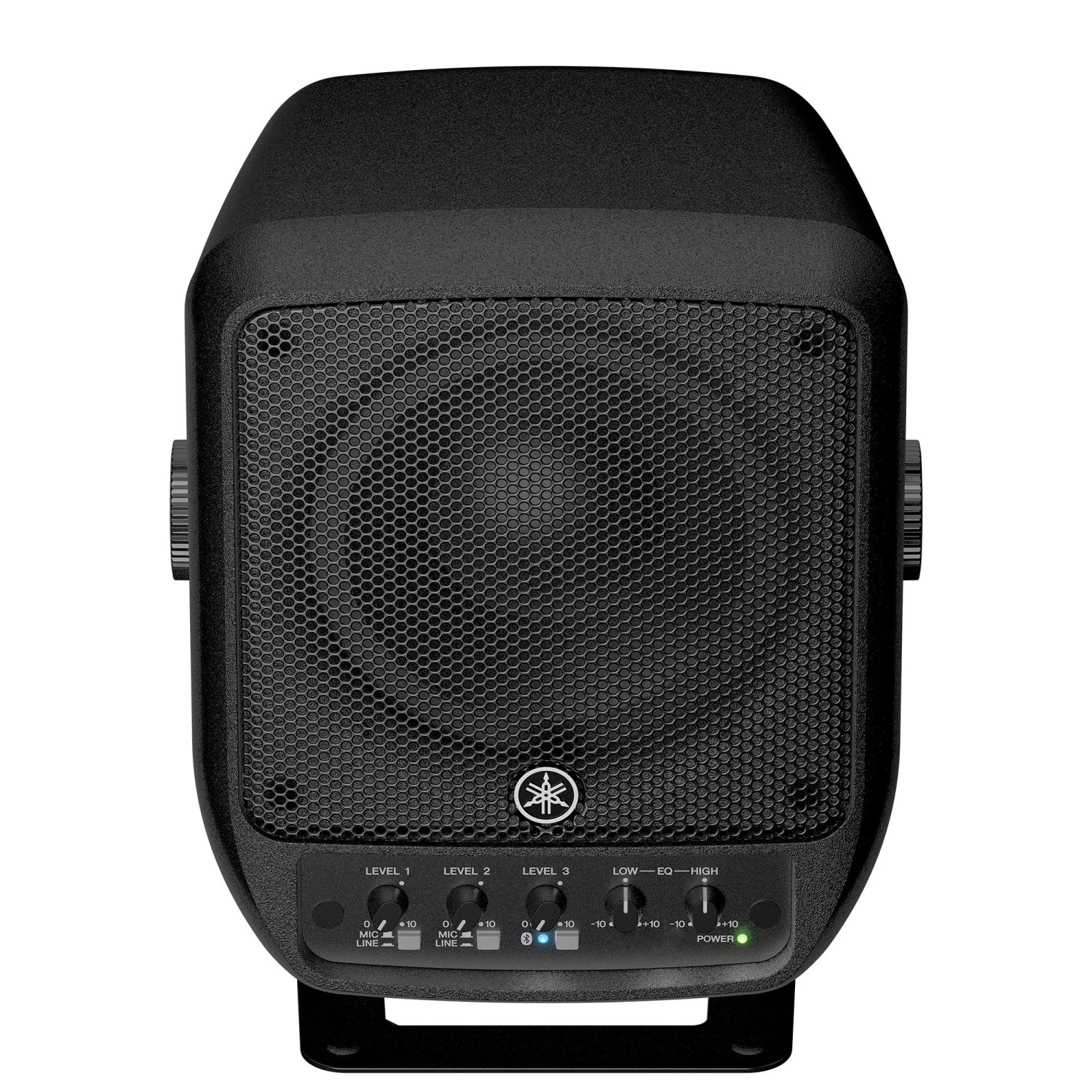

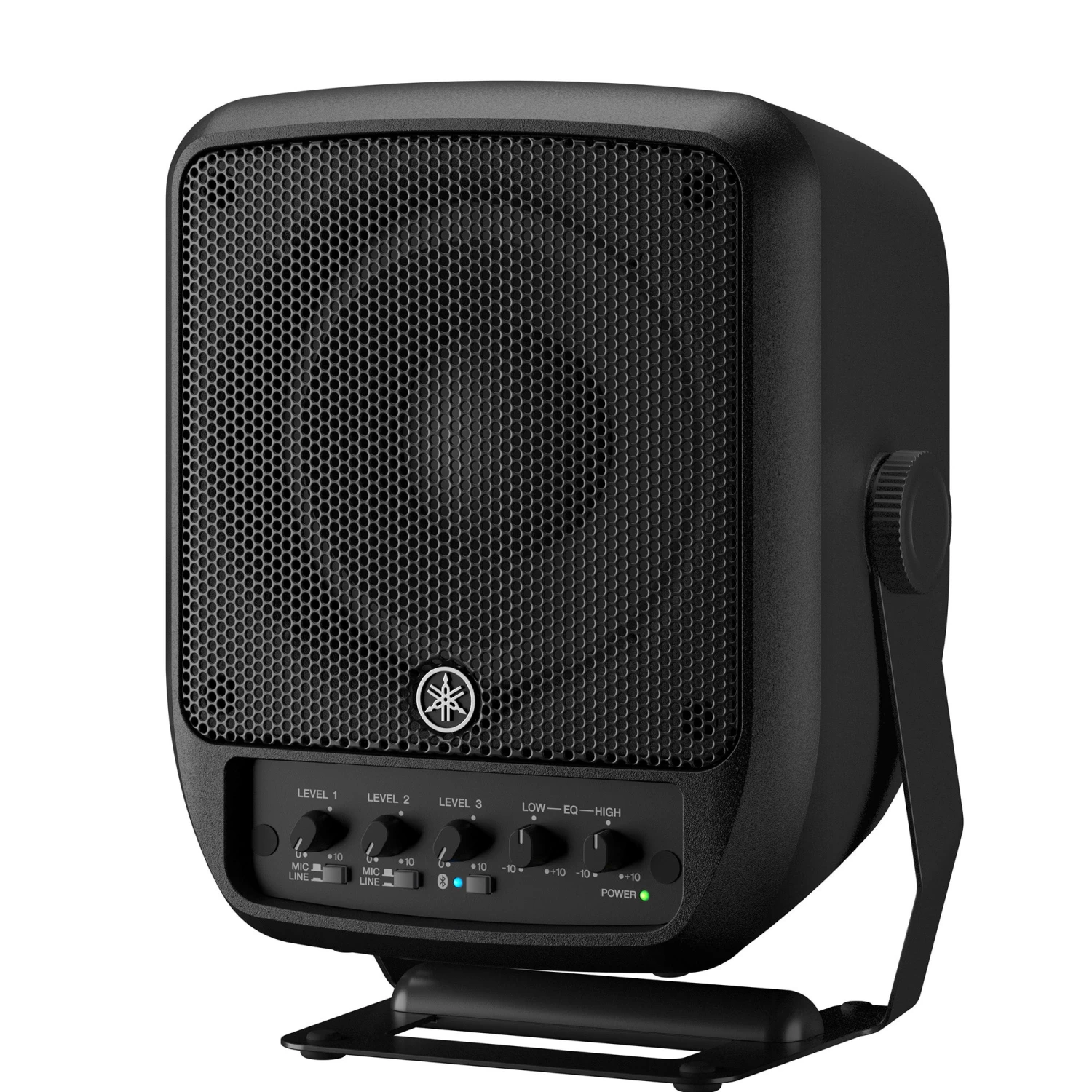

Yamaha STAGEPAS 100 Portable 6.5″ Powered PA System With 3-Channel Mixer

Manufacturer’s Description

With all the essentials for a compact PA packed into a durable cabinet weighing just 11 lbs., the STAGEPAS 100 takes portability to a whole new level. Far more than just a speaker that amplifies your mic or instrument inputs, this diminutive package delivers impressive sonic performance by leveraging some of the same technologies used in our high-end professional products. A powerful, high-quality coaxial compression driver combined with Yamaha’s FIR-X filters for the HF and LF crossover deliver sound pressure, precise phase response, and a natural dispersion that will ensure every nuance of your performance is conveyed loud and clear to your audience. With all of this paired with an unrivaled ease of operation and a setup requiring mere seconds, the STAGEPAS 100 will have you sounding great and performing in an instant, anywhere, anytime.

Features

• 100 W Class-D amplifier
• 1.4” HF + 6.5” LF high-quality coaxial compression driver using an FIR filter for the crossover
• 3-channel mixer (2 monaural mic/line + 1 line)
• Equipped with a 2-band master EQ
• Compatible with Hi-Z input (Channel 2 only)
• Equipped with mix-out

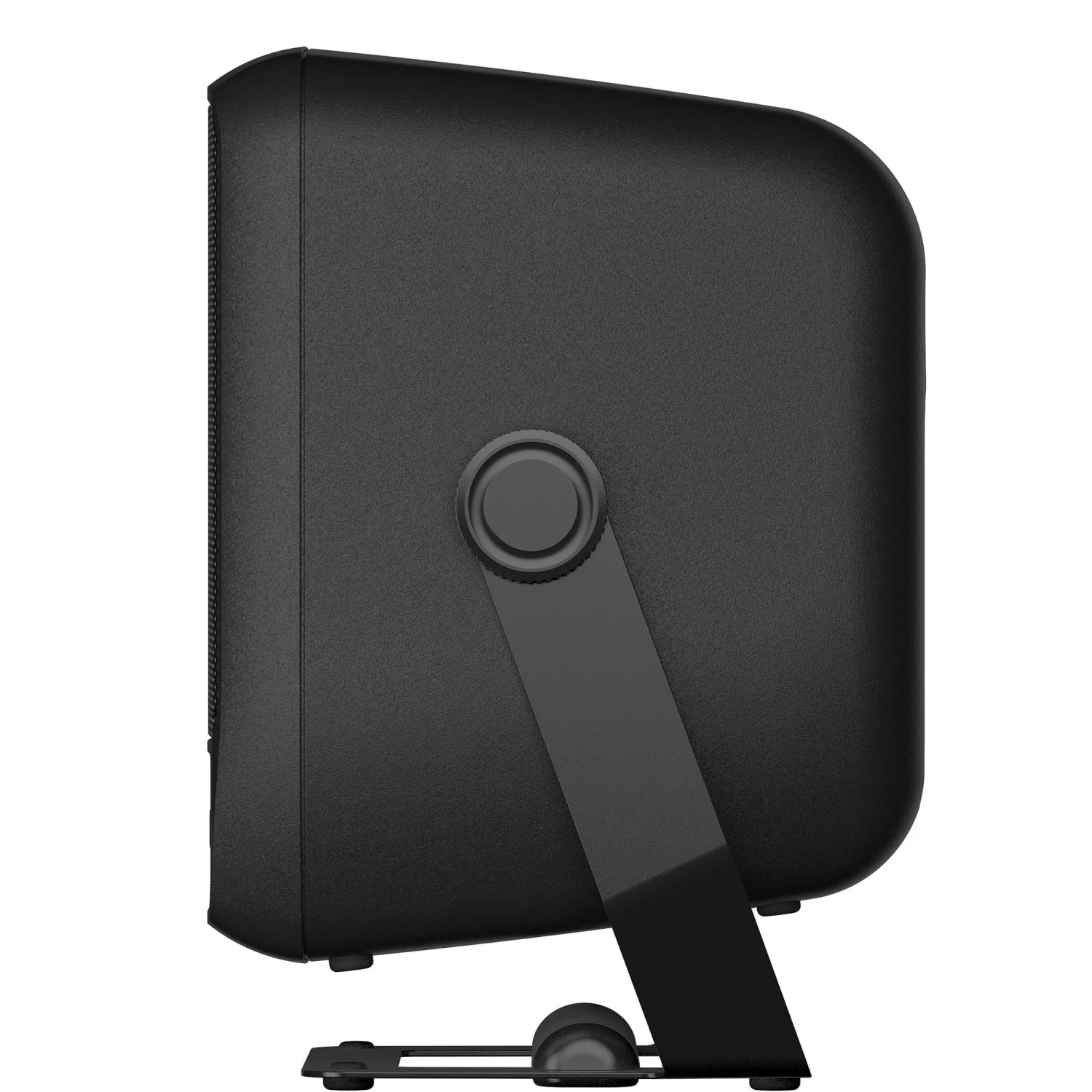

• Carrying handle doubles as an adjustable stand
• Multipoint Bluetooth connectivity for wireless audio playback
• Optional carrying bag (BAG-STP100) available for convenient transport
• System Components
• STAGEPAS 100
• Power cord
• AC adaptor (PA-500)
• Manuals and safety guide

Specifications

Type

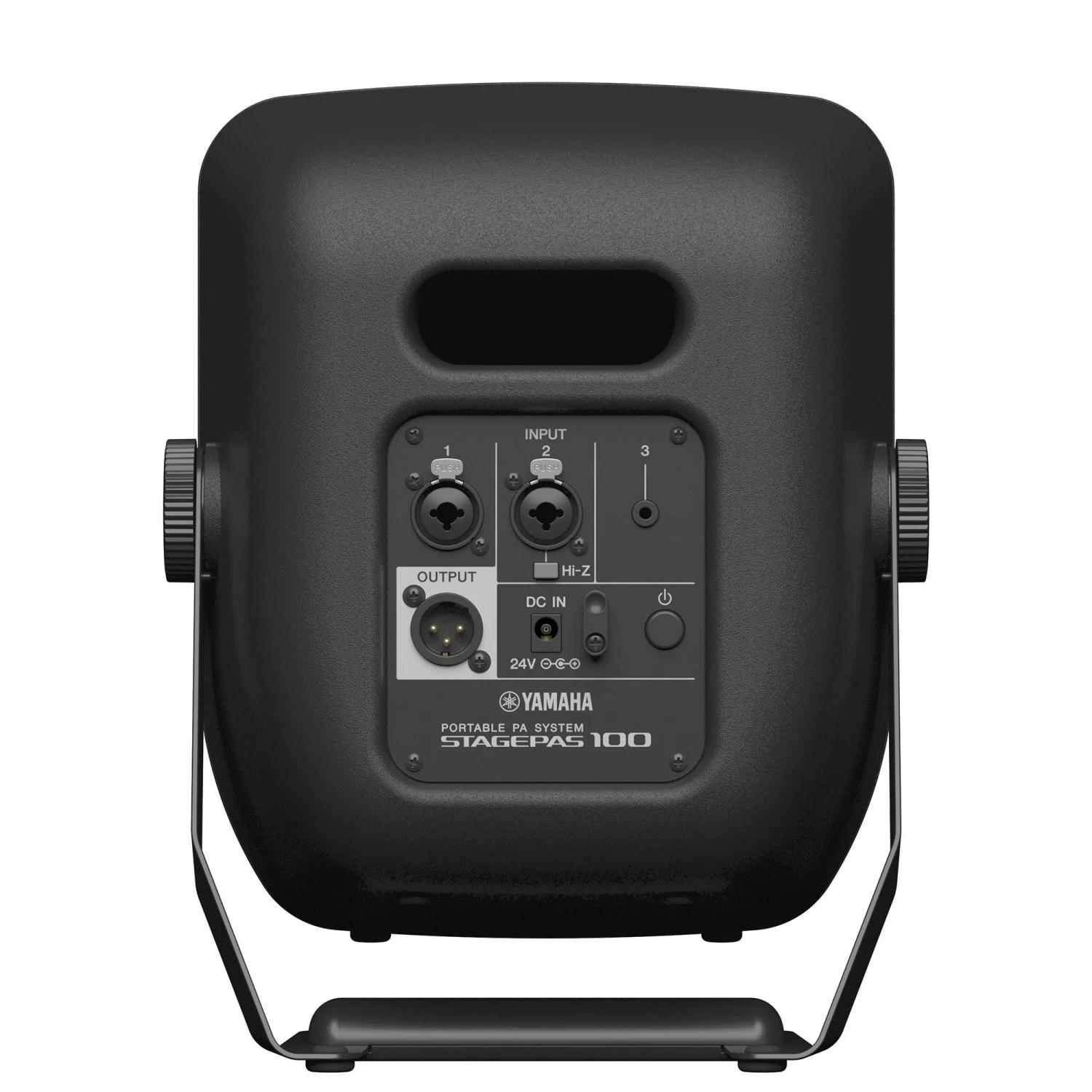

• INPUT 1: Combo (mic/line), INPUT 2: Combo (mic/line, Hi-Z), INPUT 3: Stereo Mini x 1 (line)
• I/O
  • Inputs: Mono x 3 (mic/line) + Stereo/Mono x 1 (line)
  • Outputs: OUTPUT: XLR3-32 (INPUT 1-3 mix)
  • Bluetooth: Ver.5.0, A2DP (SBC, AAC), Class 1
• Processors: 2 Band EQ

General Specifications

• Speaker type: Coaxial speaker with compression driver
• Frequency range: (-10dB) 70 Hz – 20 kHz
• Coverage area: H 90″ x V 90″
• Crossover: 1.8 kHz (FIR-X)
• Maximum output level (1m; on axis): 120 dB SPL *1
• Components
  • LF: 6.5″ Cone, 1.7″ voice coil
  • HF: 1″ throat compression driver, 1.4″ voice coil
• Amplifier class: Class-D
• Power rating: Dynamic 100 W (LF: 93 W, HF: 7 W)
• Cooling: Natural convection (no fan)
• Power consumption: 10 W (Idle), 30 W (1/8 power)
• Power requirements: 100-240 V 50/60 Hz
• Cabinet material: Plastic (PP)
• Handle: Bottom x 1 (Rotatable)

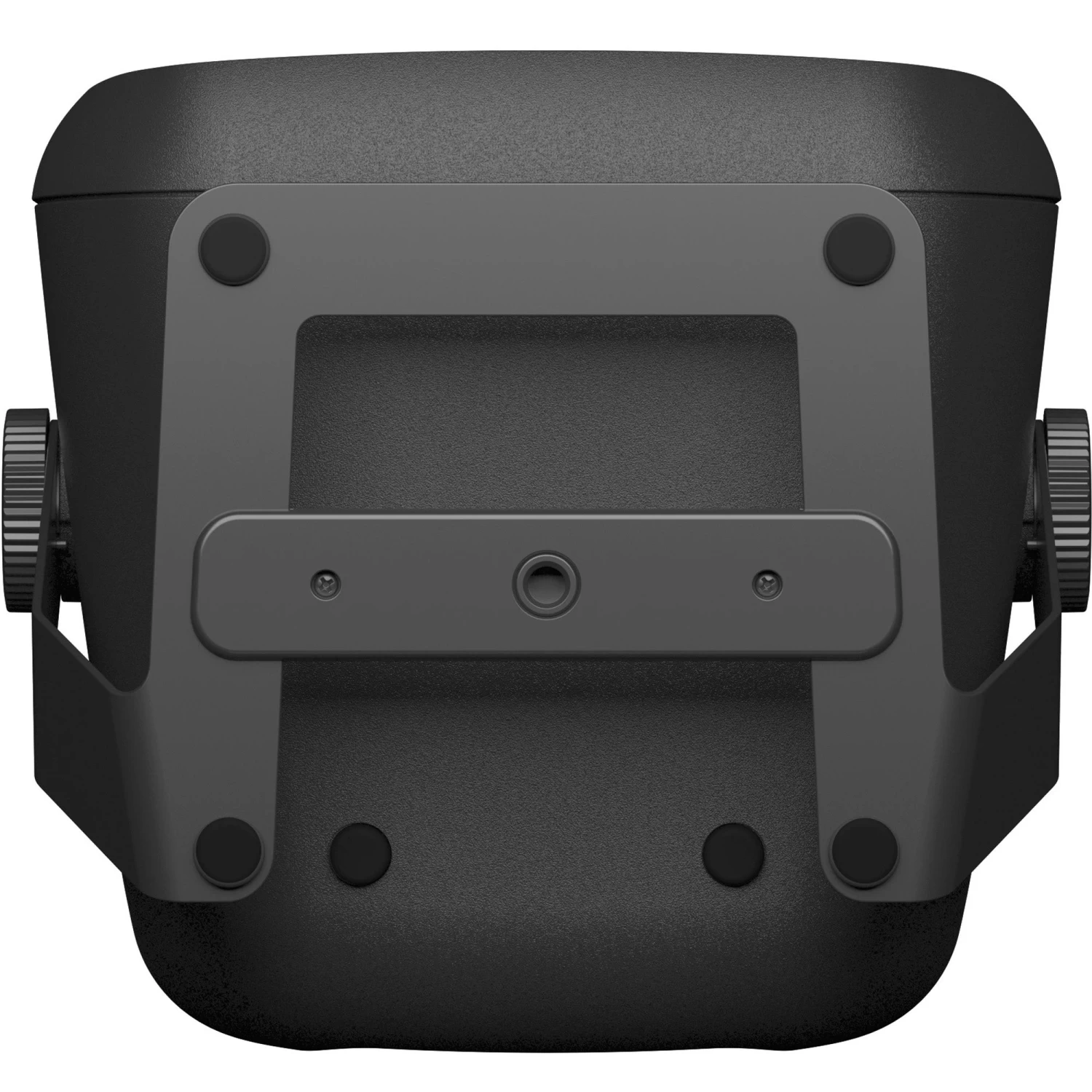

• mounting hardware: 1 × 3/8″, depth 12 mm (center of handle)
• Dimensions (W x H x D): 239 x 310 x 215 mm (9.5″ x 12.3″ x 8.5″), with handle
• Weight: 5.2 kg (11.5 lbs), without AC adaptor
• Included Accessories: Power cord x 1, AC adaptor (PA-500) x 1
• Option: Carrying bag: BAG-STP100
