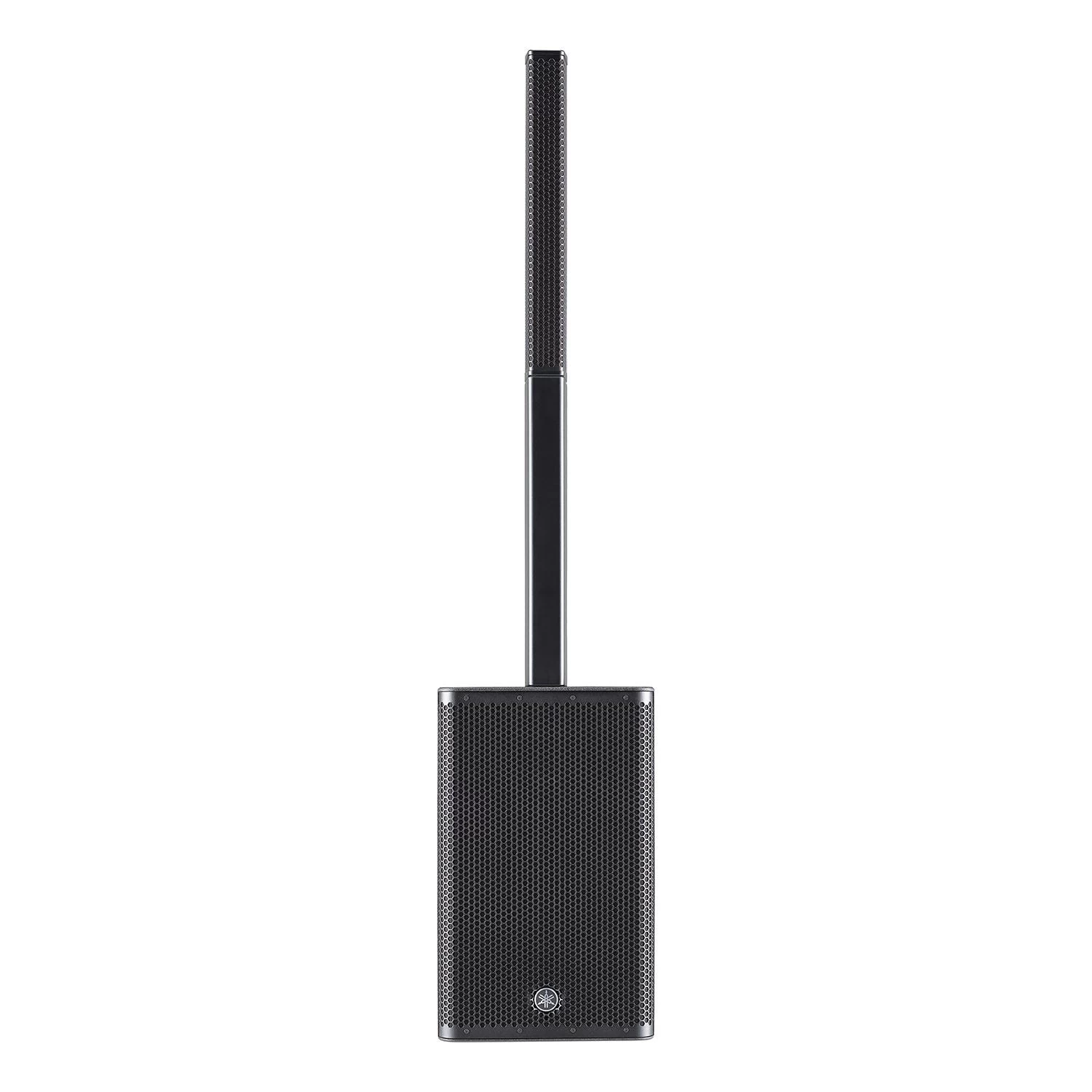

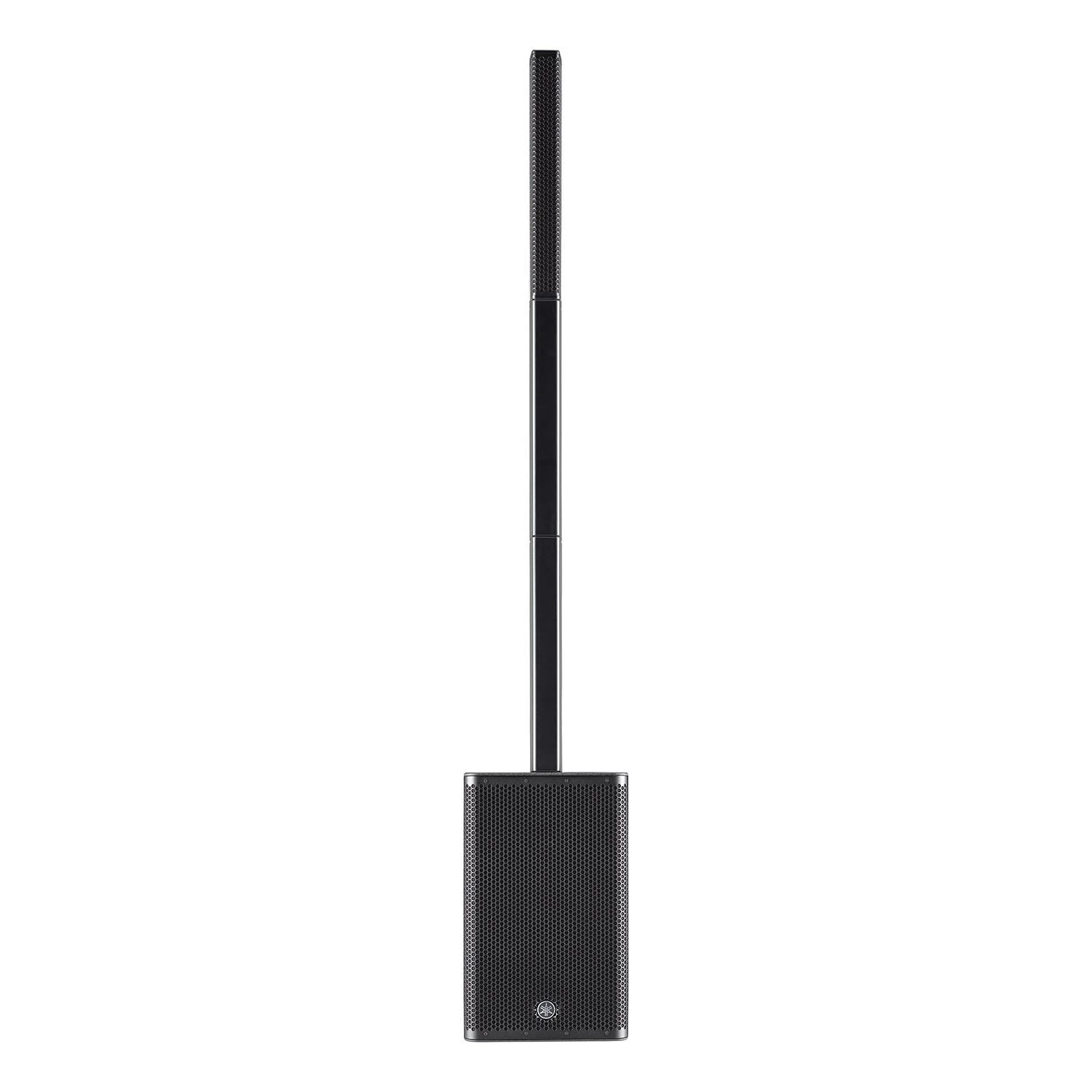

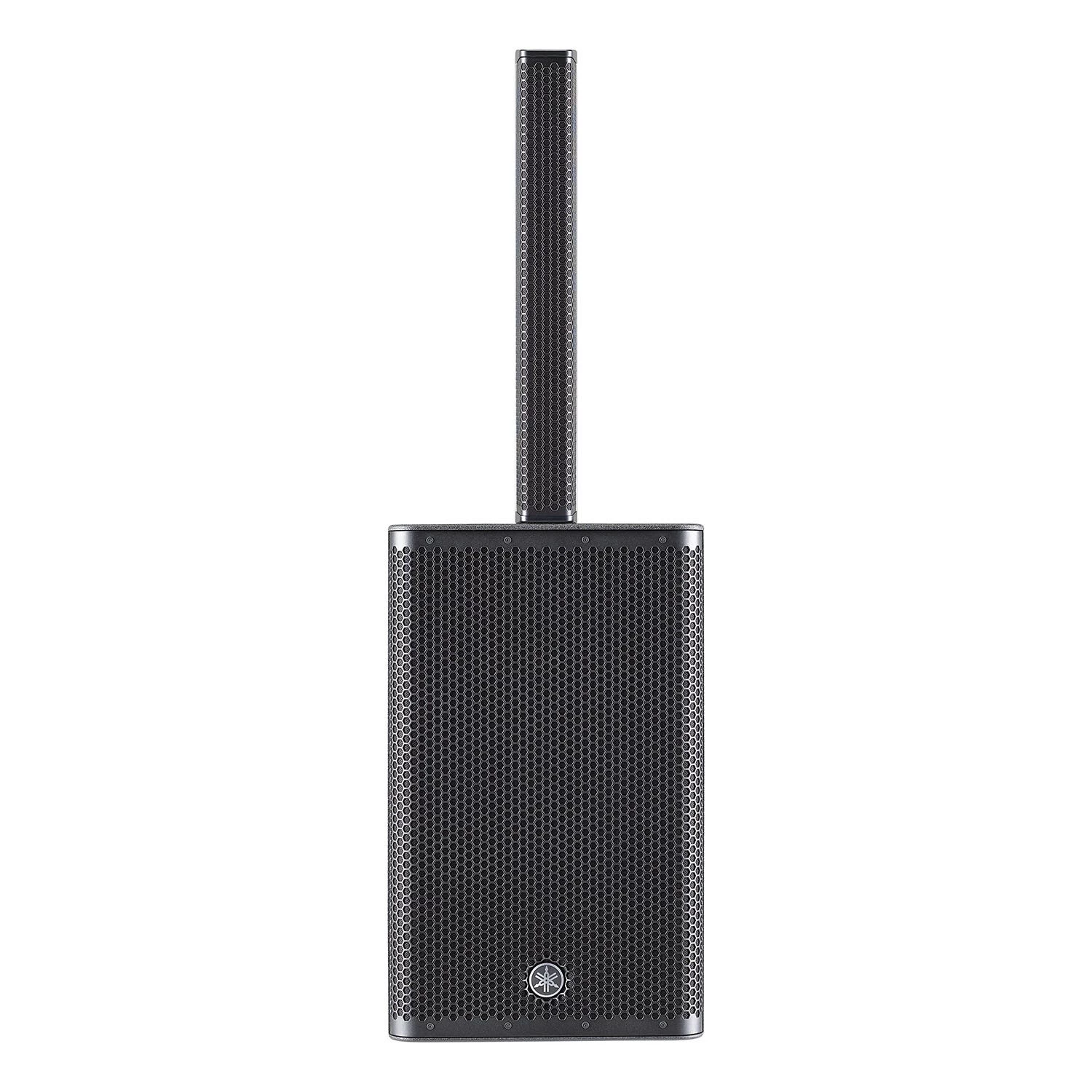

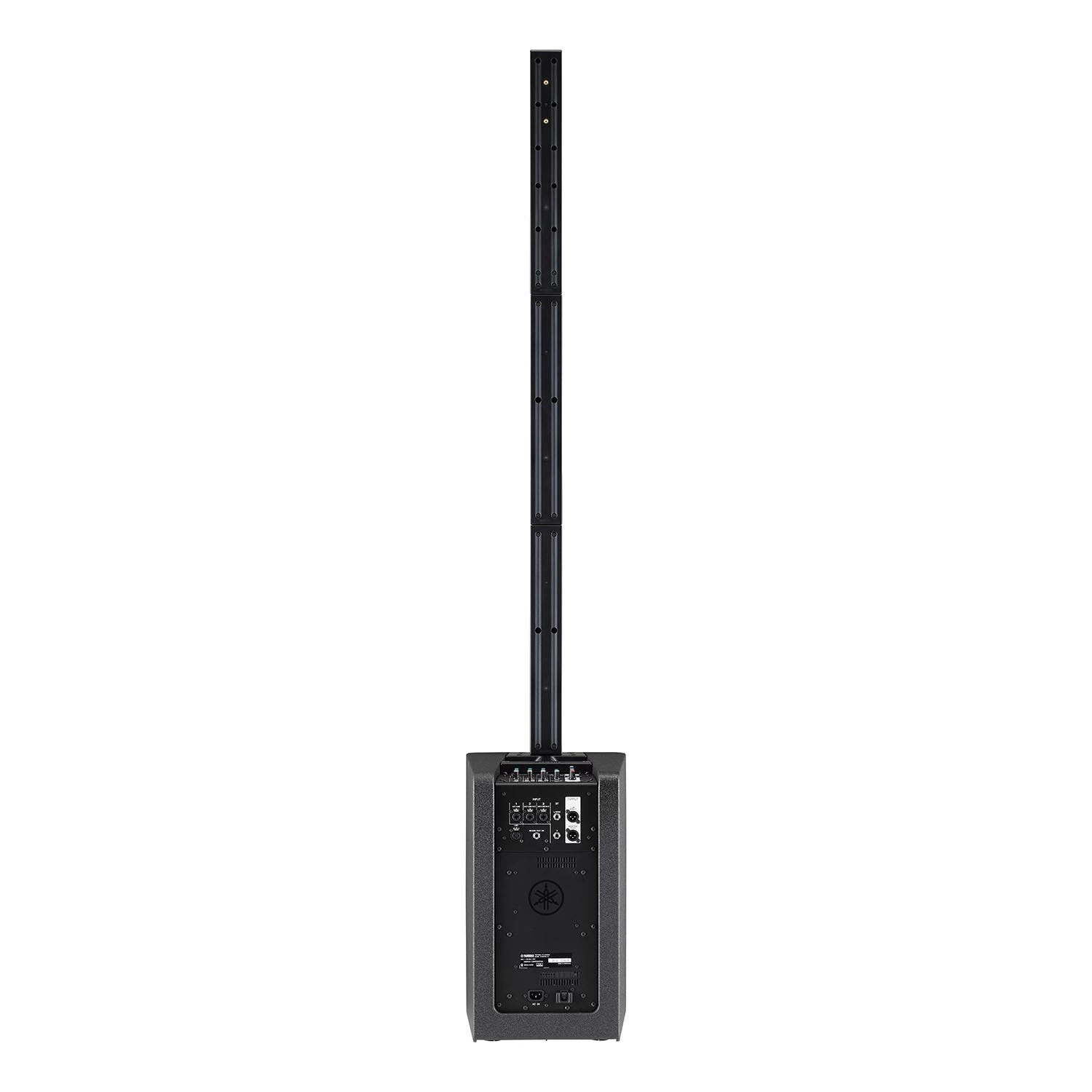

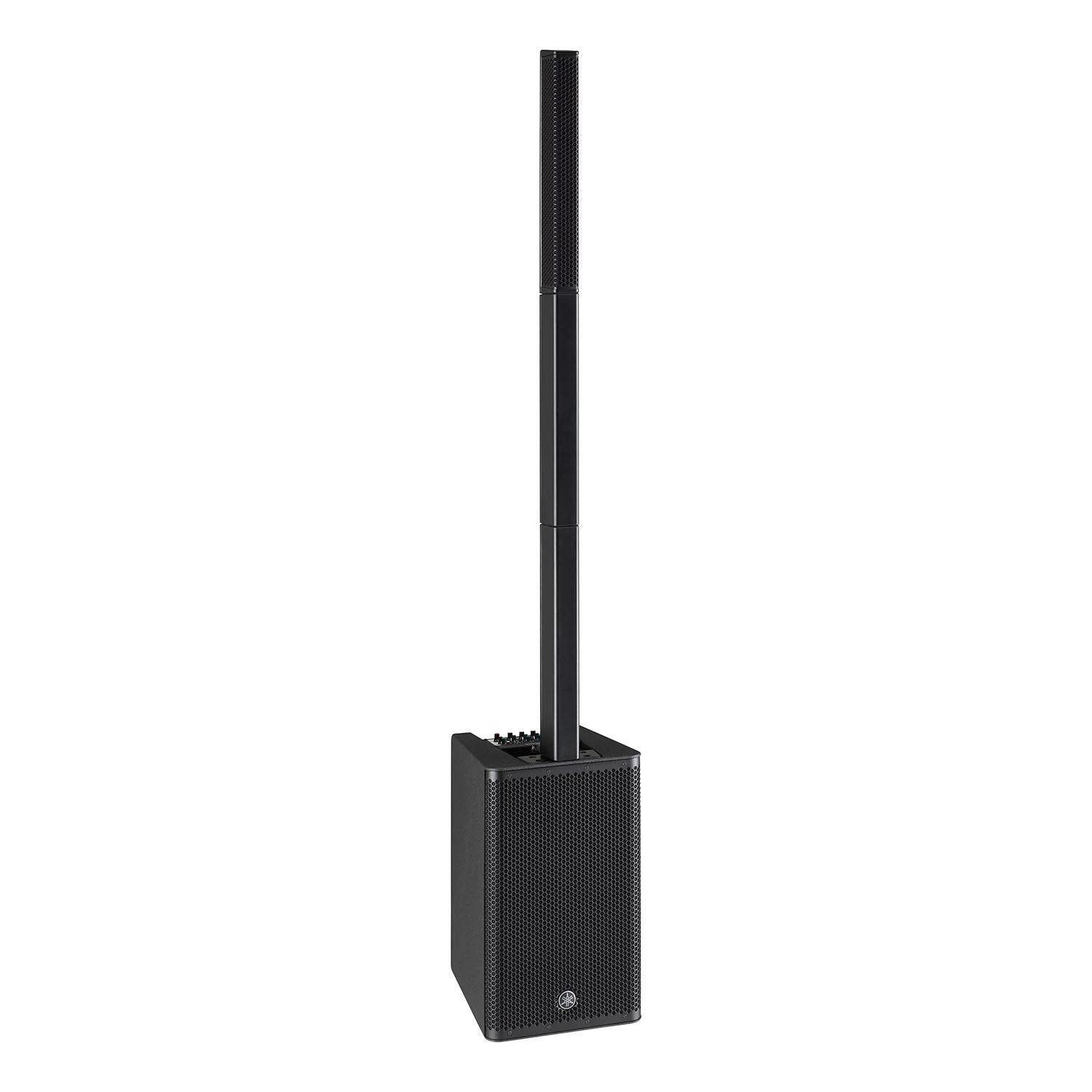

Yamaha StagePas 1K MkII 1100-Watt Portable Line Array PA Speaker W/ 5-Channel Mixer

Manufacturer’s Description

The primary focus of the STAGEPAS 1K mkII was to design a complete sound system that delivers professional quality sound despite a very simple setup and operation process that allows users to focus on what matters most — their performance. Leveraging our extensive experience and accrued knowledge as a musical instrument manufacturer and audio technology pioneer, the STAGEPAS series has made it possible for users to create their own high-quality, high-output sonic environment that combines a lightweight, portable cabinet design with a comprehensive digital mixer that can be set up virtually anywhere in a matter of minutes.

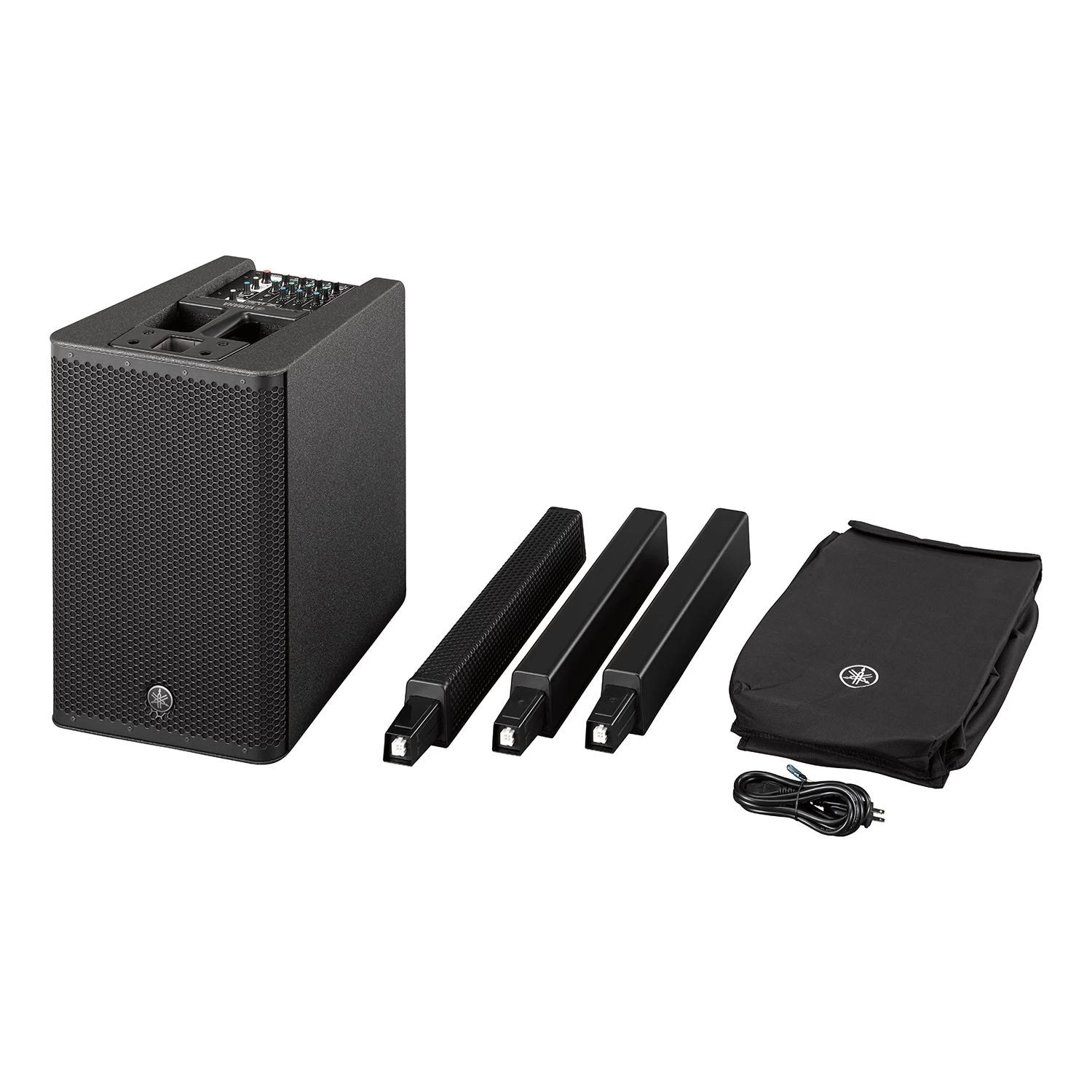

System Components

• STAGEPAS 1K MKII PA system

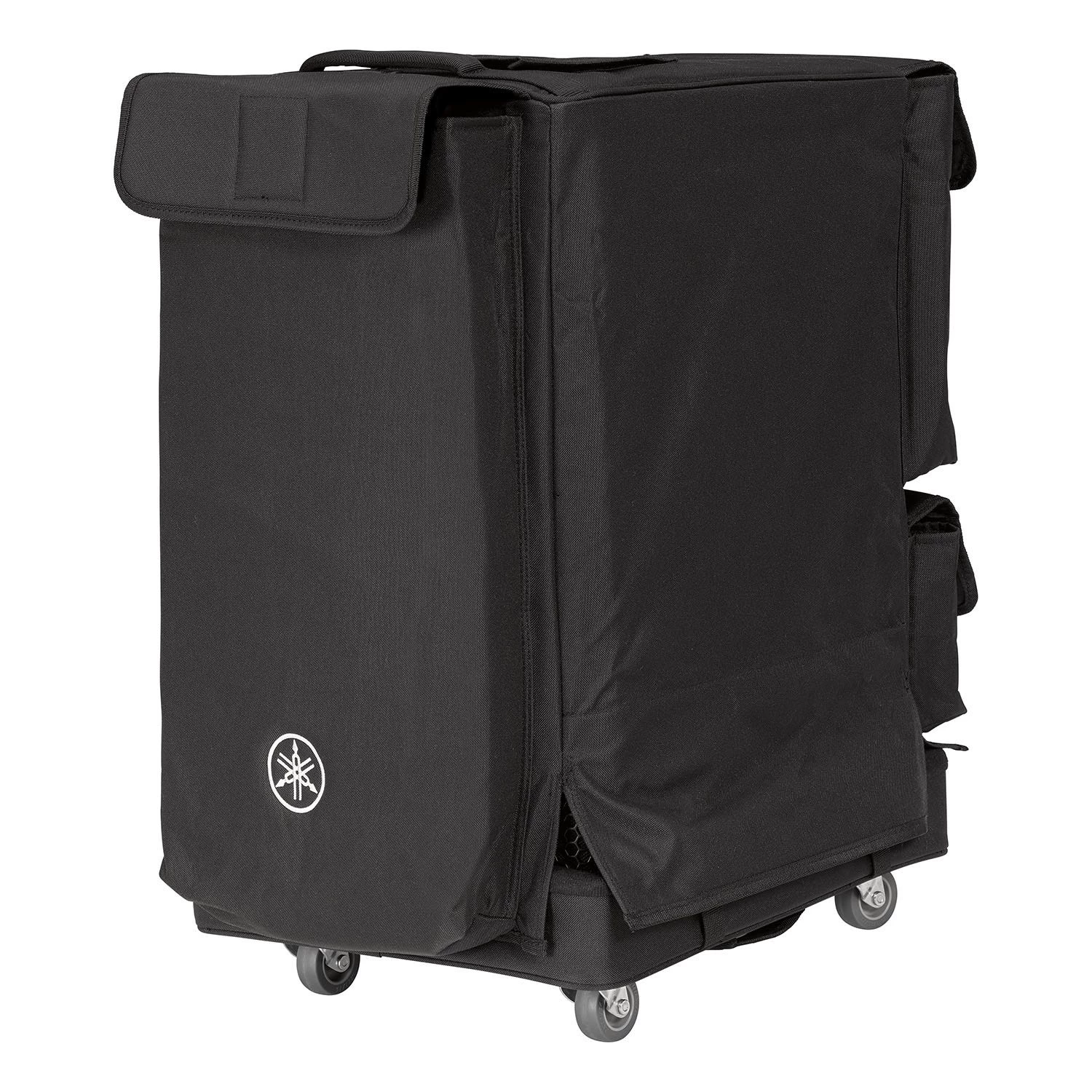

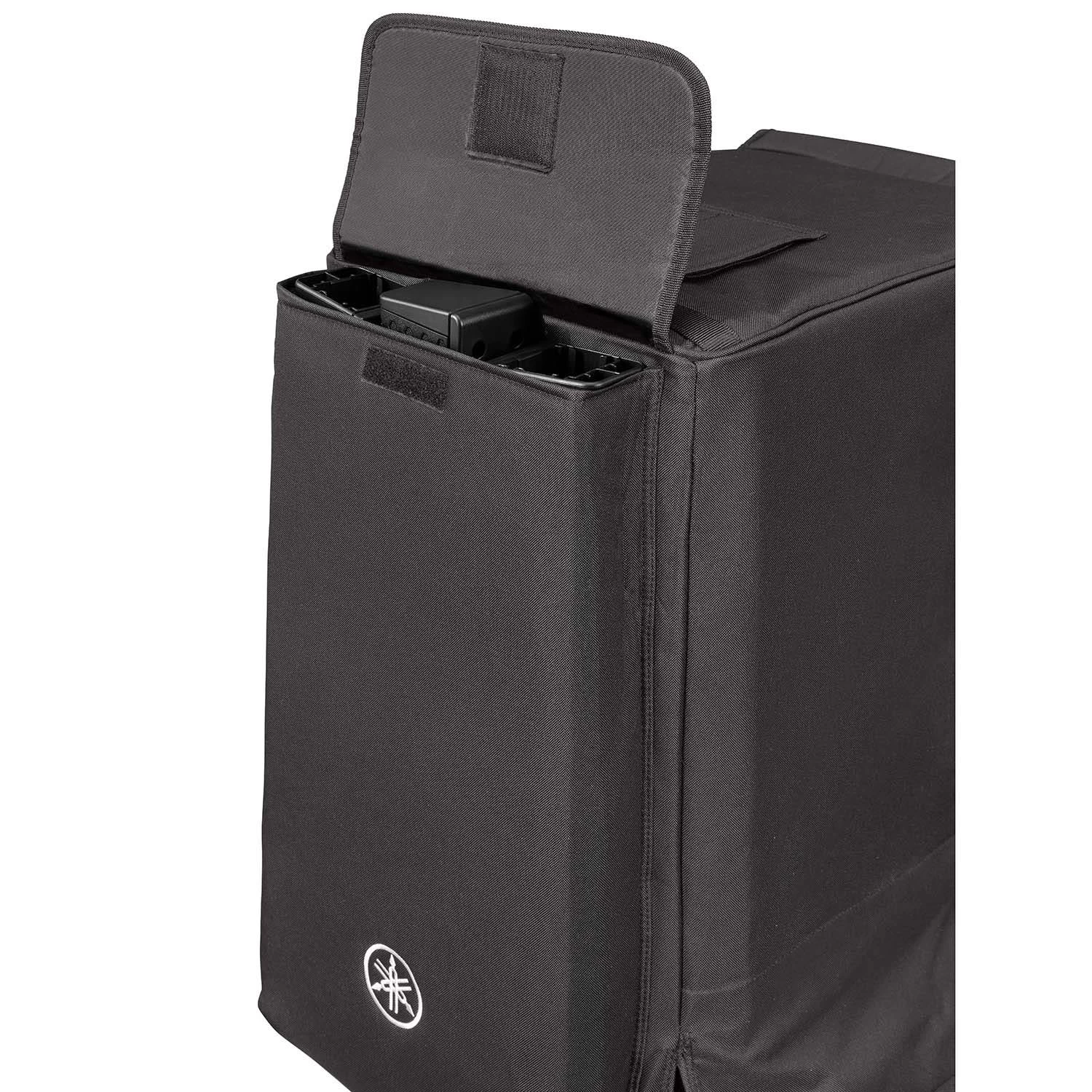

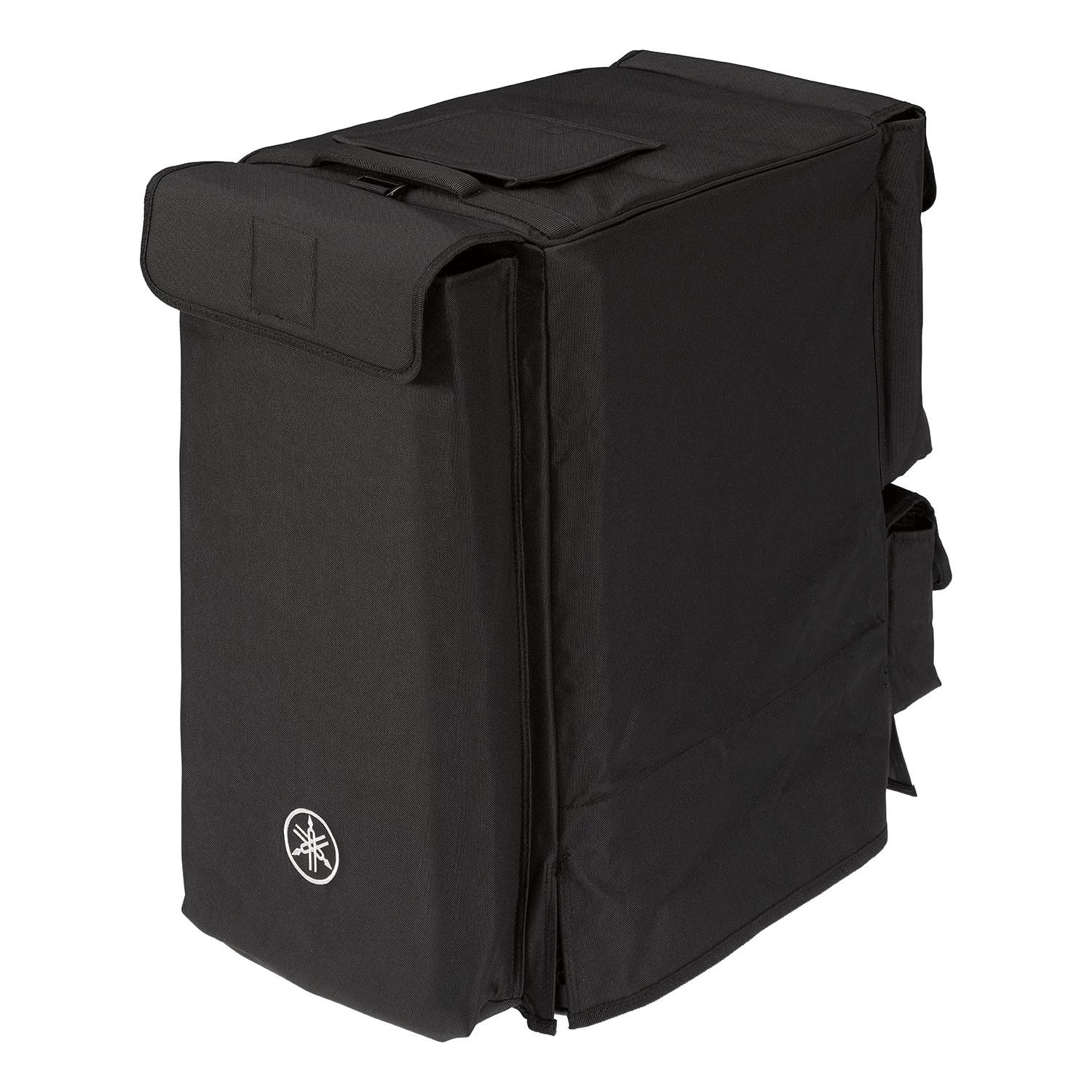

• Dedicated Cover
• AC power cable

Optional accessories

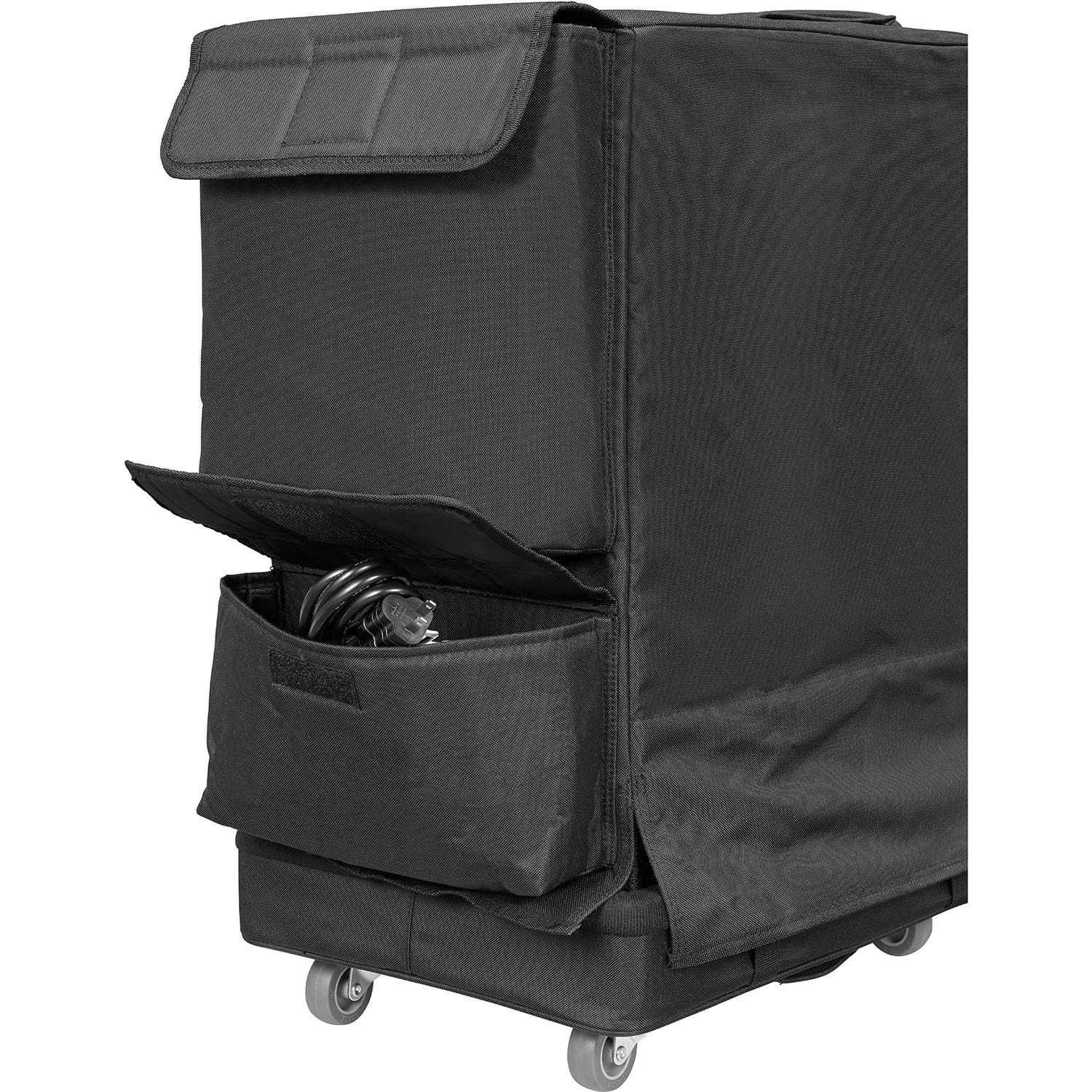

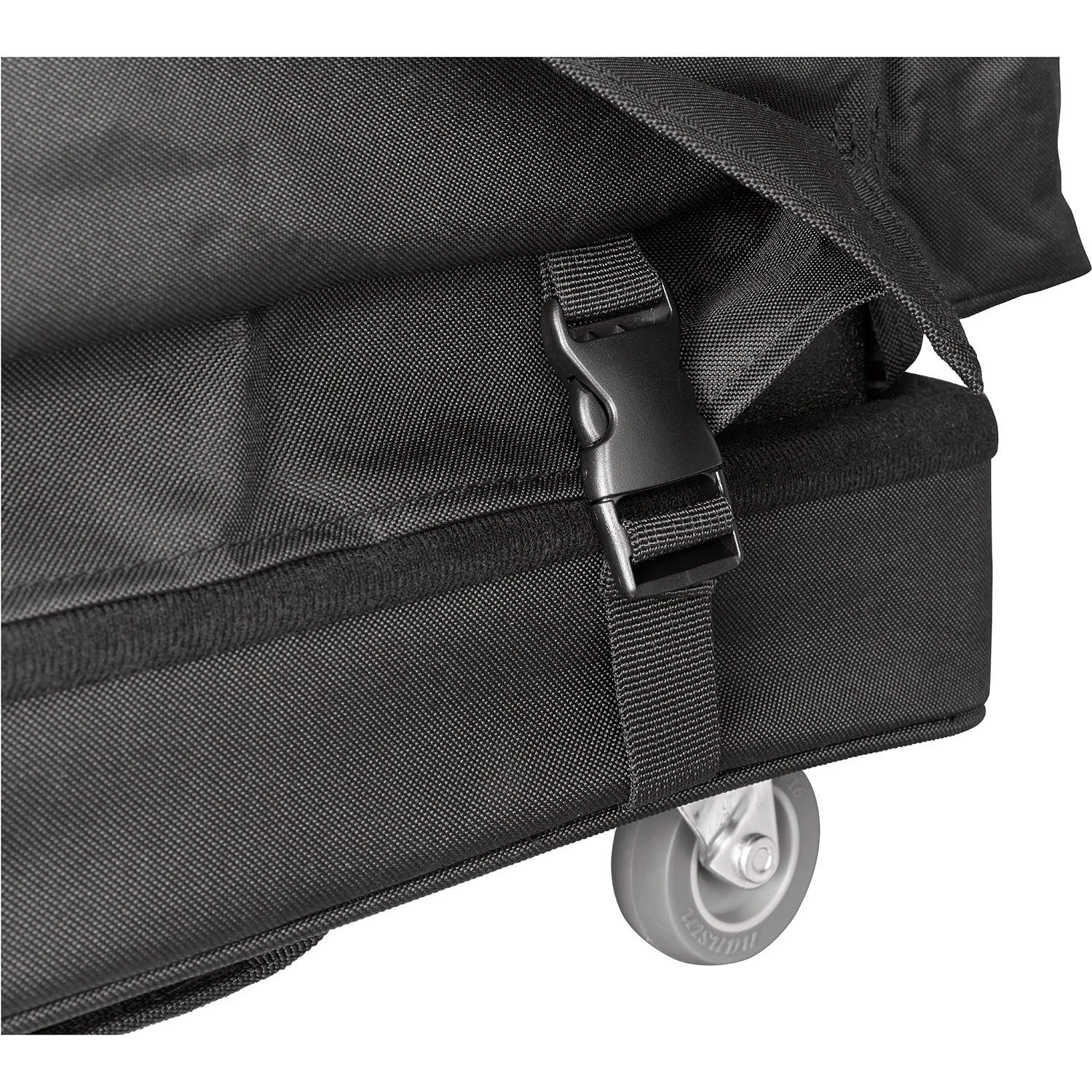

• DL-SP1K transport dolly
• FC5 footswitch

Specifications

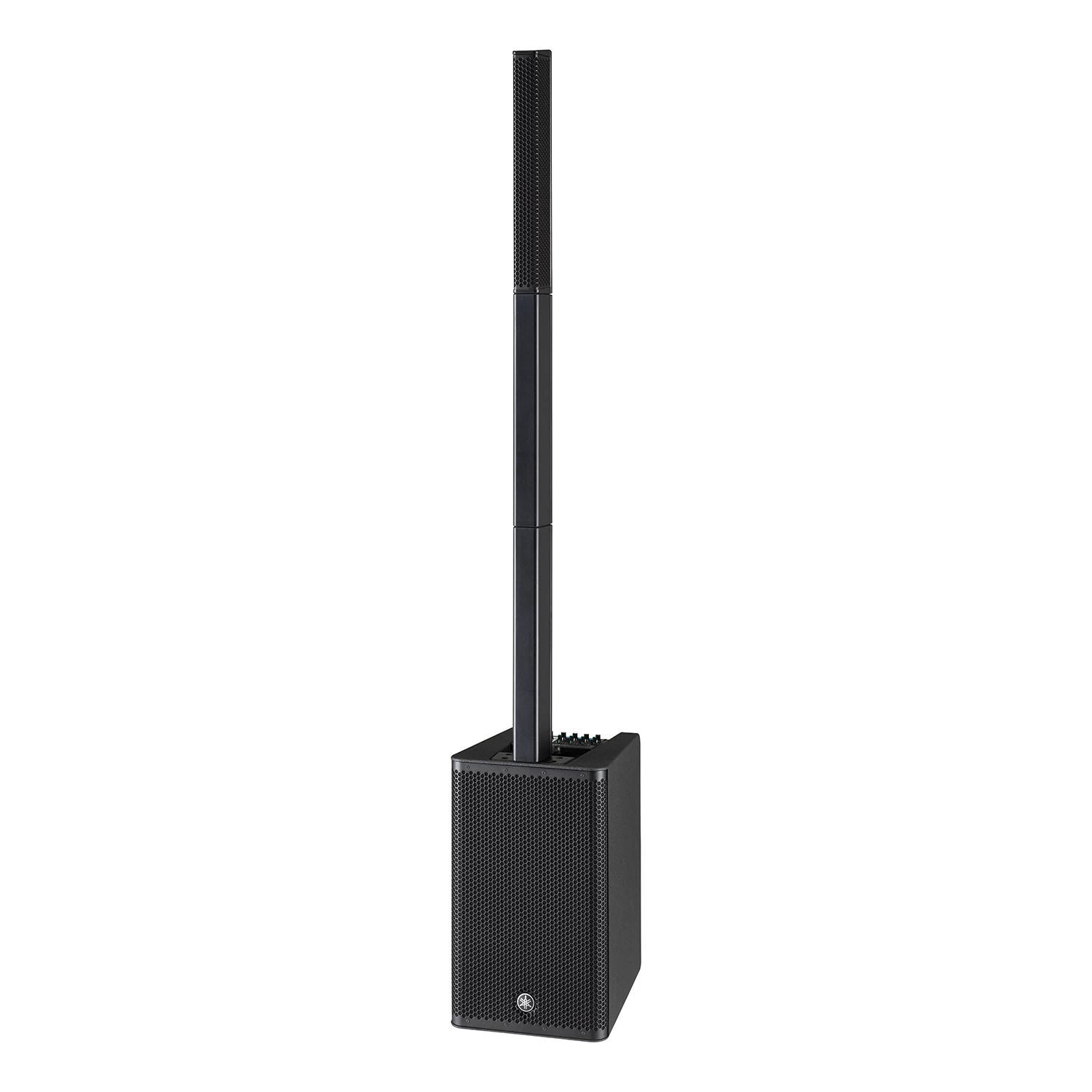

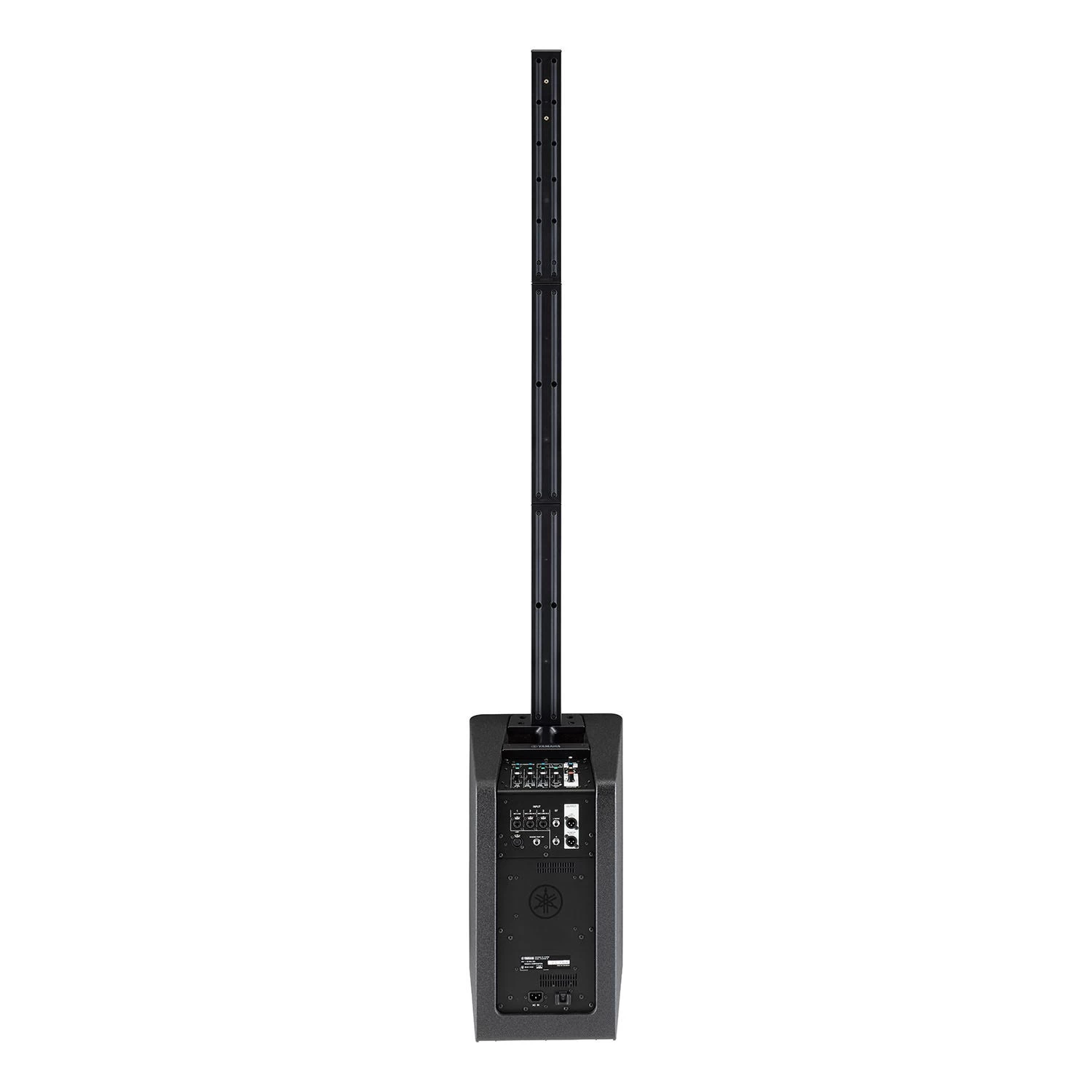

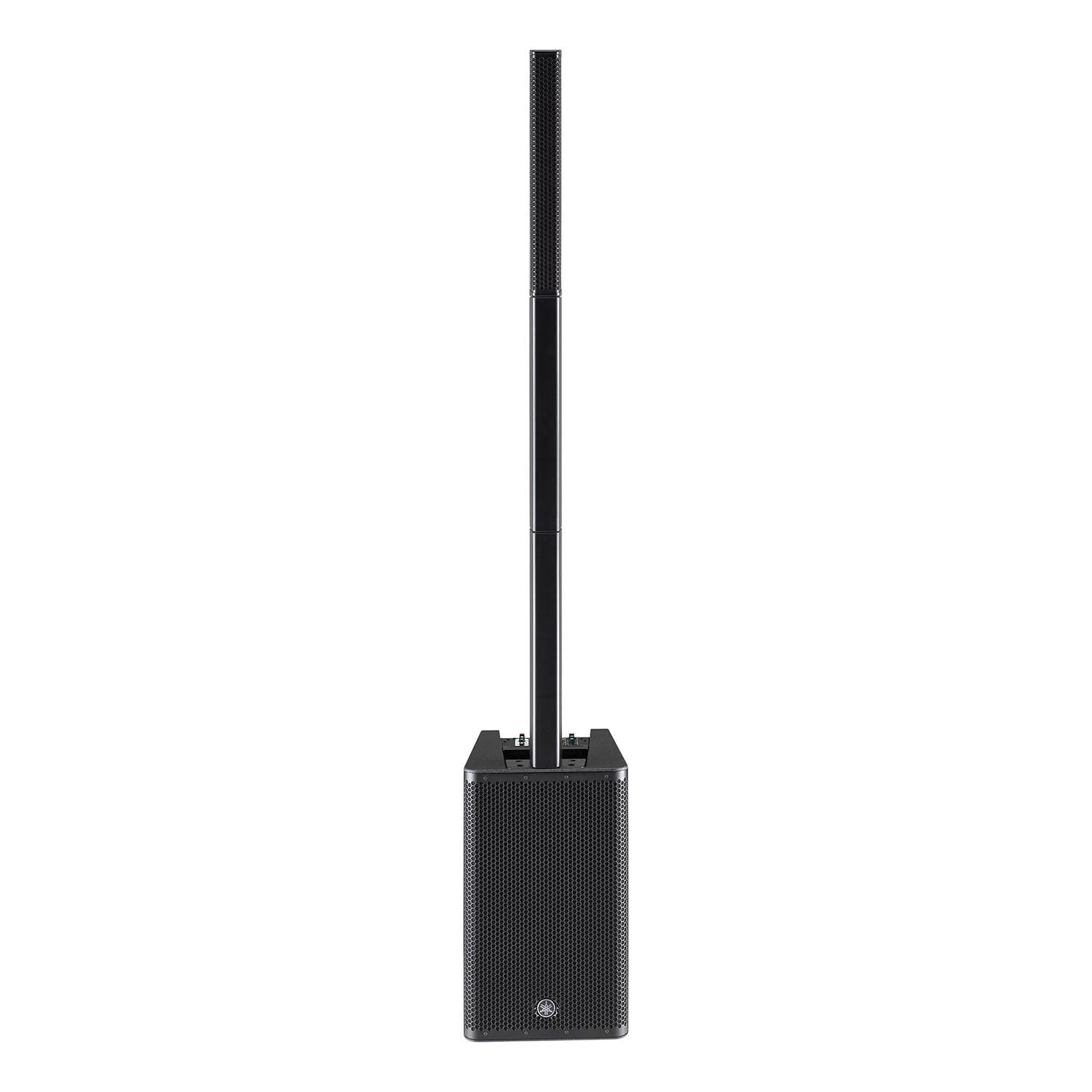

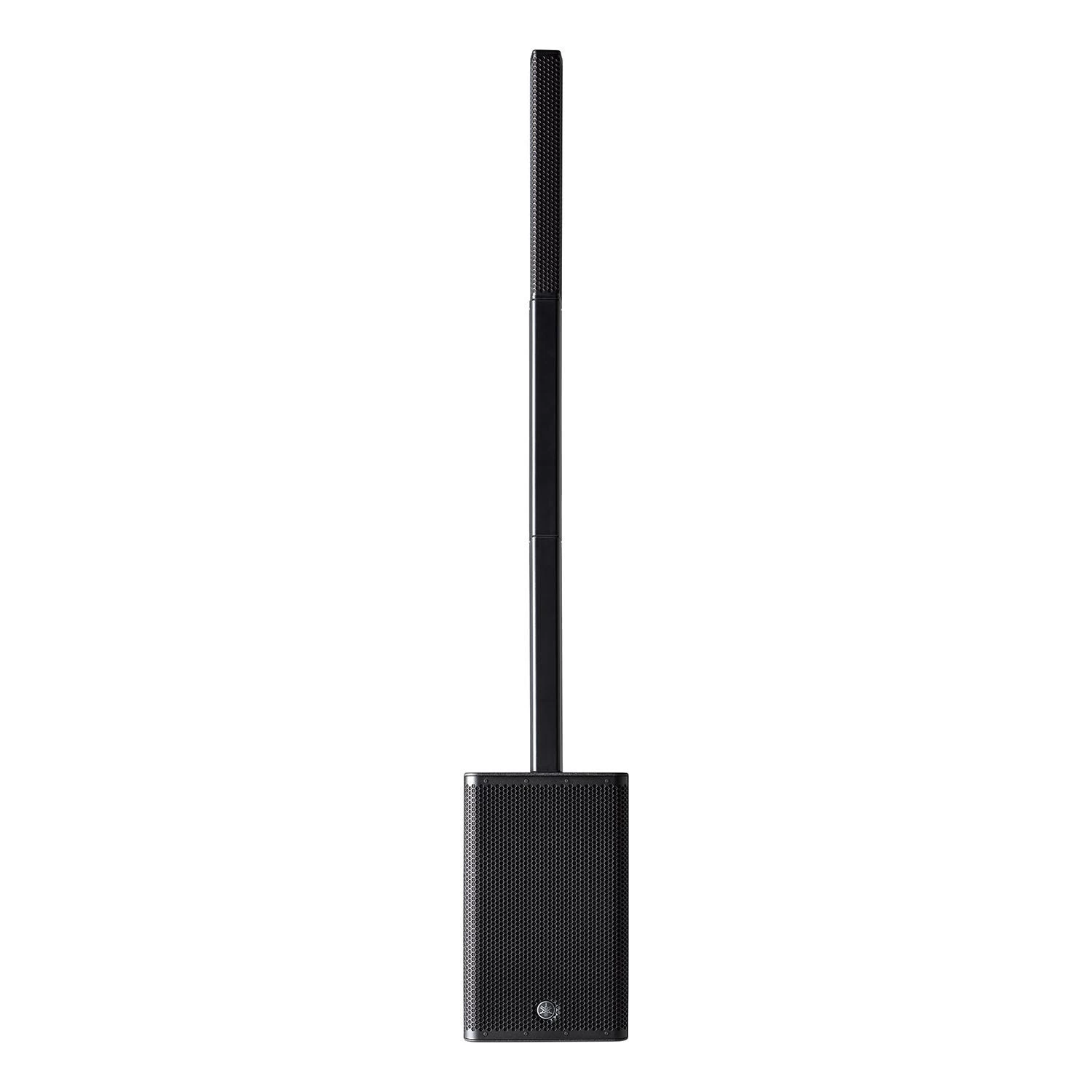

• System Type: Powered subwoofer with a line array speaker
• Frequency Response (-10 dB): 37 Hz – 20 kHz
• Coverage Angle (Horizontal x Vertical): 170° x 30°
• Crossover Frequency: 240Hz
• Maximum Output Level (Measured peak、IEC noise@1m): 125 dB SPL
• Power Requirements:
  • J: 100V, 50/60Hz
  • CHN: 220 – 230V, 50/60Hz
  • K: 220 – 230V, 60Hz
  • BRA: 110V/220V, 60Hz
  • UEBT: 110 – 120V, 60Hz, 220 – 240V, 50/60Hz
  • INA: 220V, 50Hz
• Power Consumption: 25 W (Idle), 91 W (1/8 power)
• Dimensions (W x H x D): System 334 x 2,000 x 418 mm
• Weight: 23.0 kg

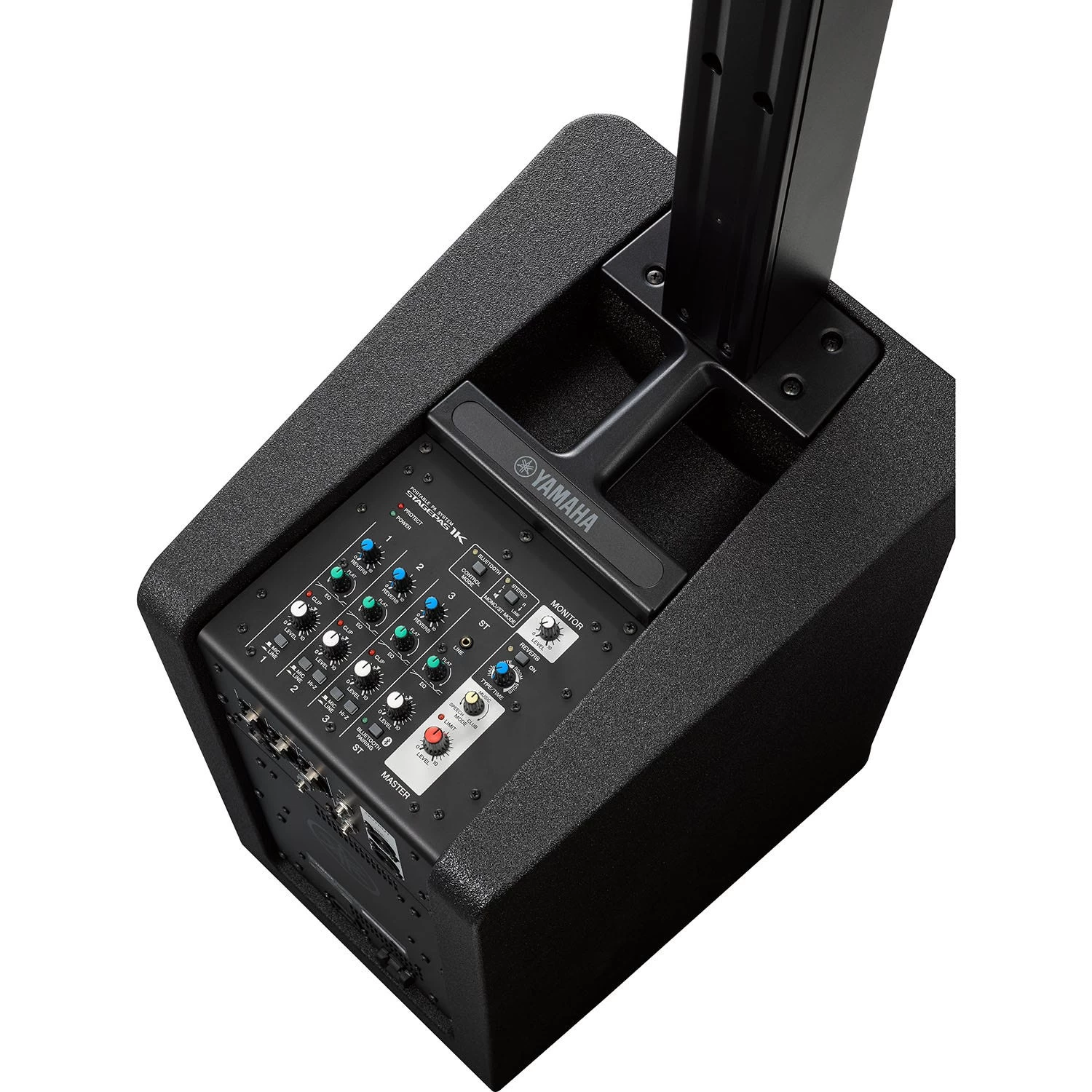

• The number of Mixing Channels: 5

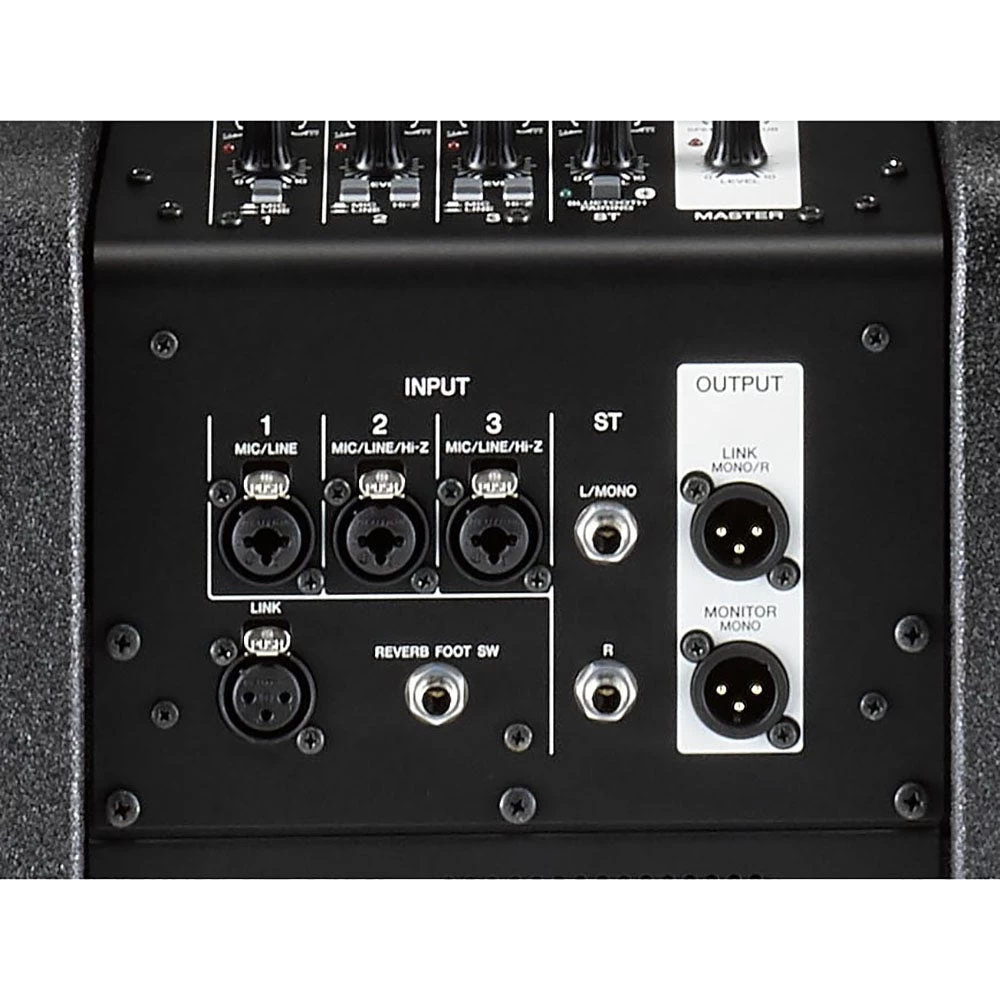

• Analog Inputs
  • Mono mic/line x 3 + mono line x 2, stereo line x1
  • LINK IN（MONO）
• Bluetooth Audio Inputs: A2DP（SBC, AAC）
• Content Protection Method: SCMS-T
  • Bluetooth Version: Ver 5.0
  • Transmission Frequencies: 2,402～2,480MHz
  • Wireless Output: Class 1
  • Maximum Wireless Output Power (EIRP): 15dBm（32mW）
  • Maximum Communication Distance: 70m
• Channel Functions: Hi-Z switch : CH2/3
• EQ / Effects:
  • 1-knob EQ : CH1/2/3/ST
  • MODE（SPEECH/MUSIC/CLUB）
  • 4 types of reverb (HALL/PLATE/ROOM/ECHO) : CH1/2/3
• Outputs:
  • LINK OUT（MONO/R）
  • MONITOR OUT（MONO）
• External Controls: Reverb foot switch
• Amplifier Design: Class-D
• Rated Output:
• Dynamic: 1,100W（Subwoofer : 500W, Line array speaker : 600W）
• Maximum Output:
  • THD+N=1%, 1kHz: Line array speaker : 250W（4Ω）
  • THD+N=1%, 200Hz: Subwoofer : 250W（4Ω）
• Frequency Response:
  • 1kHz, 20kHz（REF=4kHz）,1W,8Ω: Line array speaker : -3dB, +1dB
  • 40Hz, 5kHz（REF=1kHz）,1W,4Ω: Subwoofer : -3dB, +1.5dB
  • 20Hz, 20kHz（REF=1kHz）,+10dBu,10kΩ: LINK OUT : -2dB, +1dB
  • 20Hz, 20kHz（REF=1kHz）,+10dBu,10kΩ: MONITOR OUT : -2dB, +1dB
• THD+N:
  • 1kHz 20kHz LPF, 8Ω, Half power: Line array speaker : 0.2 %
  • 1kHz 20kHz LPF, 4Ω, Half power: Subwoofer : 0.2 %
  • 1kHz 20kHz LPF, +10dBu, 10kΩ: LINK OUT : 0.05%
  • 1kHz 20kHz LPF, +10dBu, 10kΩ: MONITOR OUT : 0.05%
• Protection:
  • Speaker: DC-fault, Over Voltage
  • Amplifier: Thermal, Over Current, Integrated Power Limit
  • Power supply: Thermal, Over Voltage, Under Voltage
• Enclosure: Line array speaker : Enclosed
• Speaker Unit
  • Line array speaker : 1.5” (3.8 cm) Cone x10
  • Subwoofer : 12” (30 cm) Cone
• Dimensions (W x H x D)

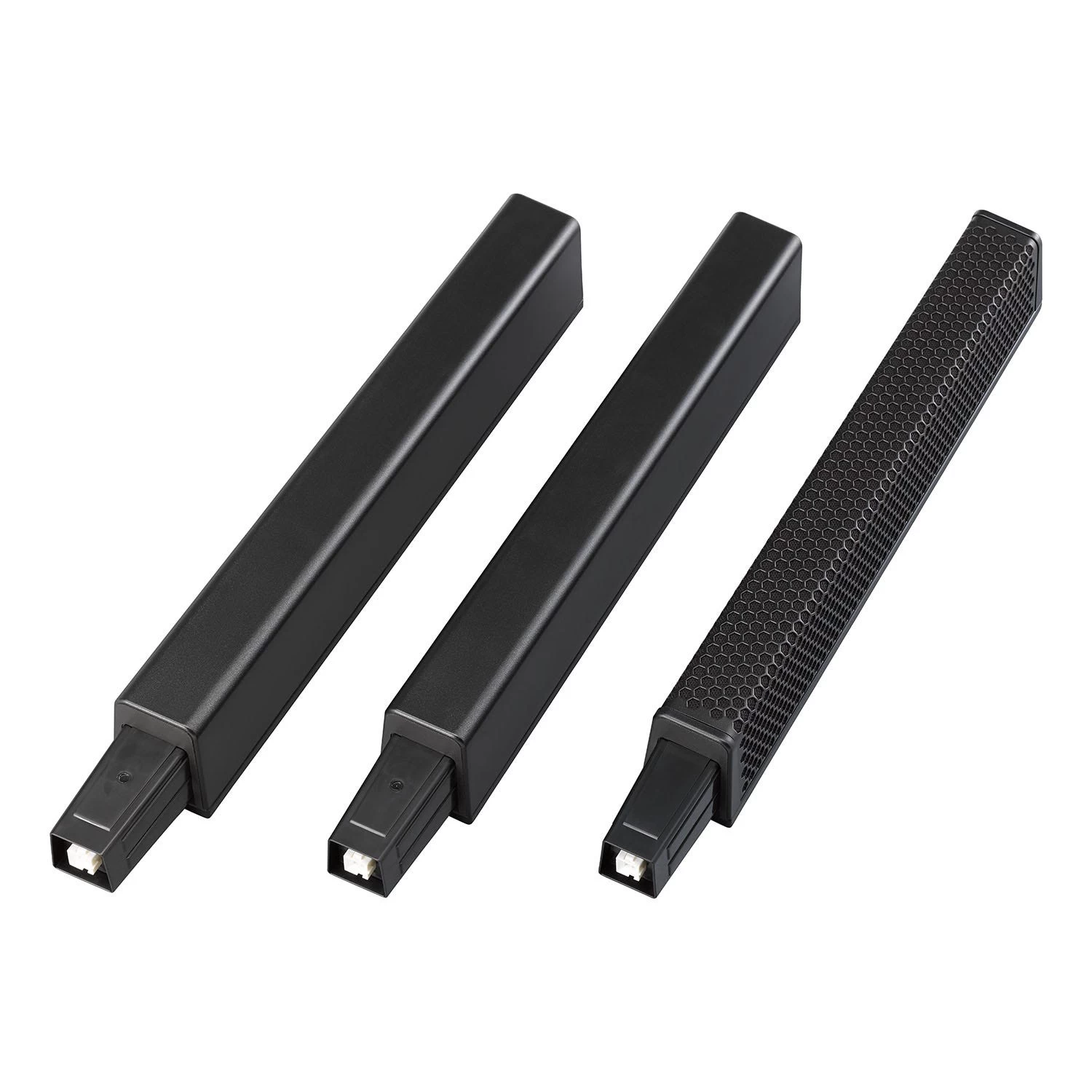

  • Line array speaker : 67 x 582 x 86 mm
  • Spacer (each) : 67 x 555 x 86 mm
  • Subwoofer : 334 x 550 x 418 mm
• Weight
  • Line array speaker : 1.8 kg
  • Spacer (each) : 0.6 kg
  • Subwoofer : 20.0 kg
• Included in the package
  • Power cord x1,
  • cover x1, Owner’s Manual
• Optional accessories
  • DL-SP1K (dedicated dolly)
  • FC5 (Foot switch for reverb ON/OFF)
