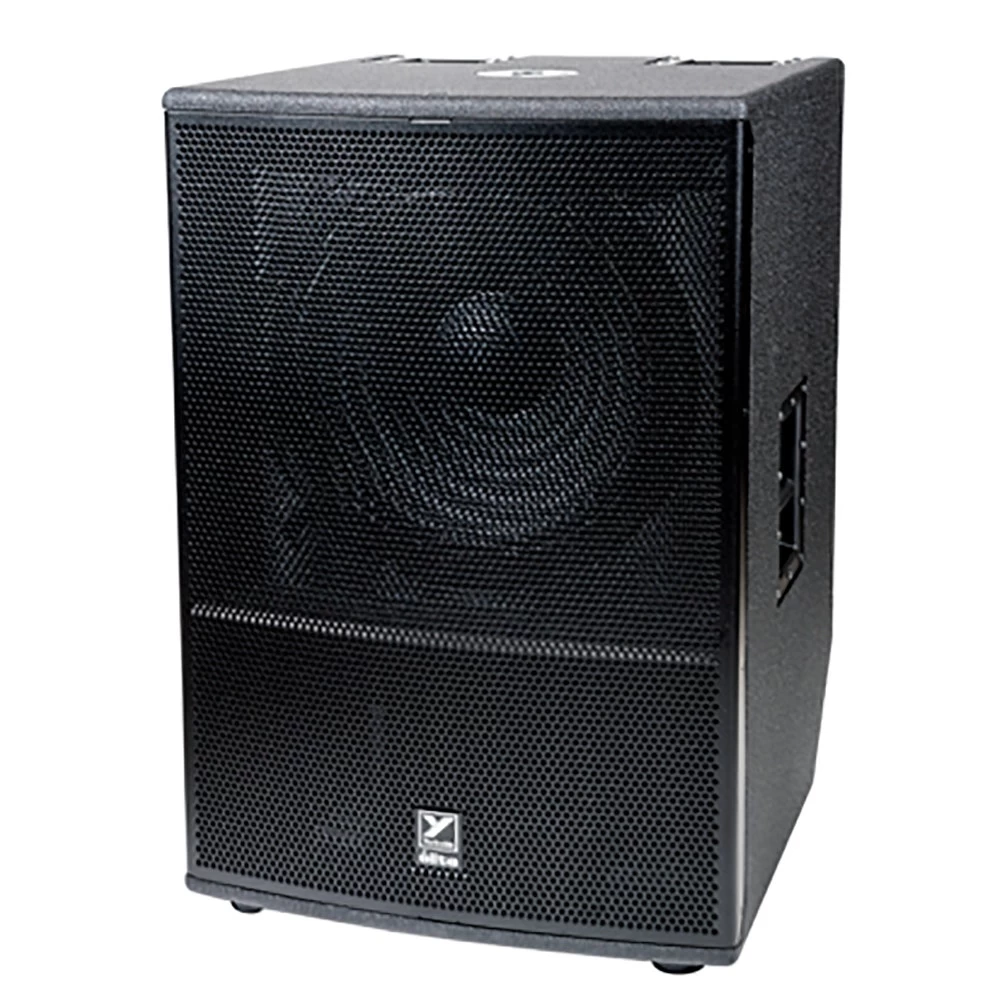

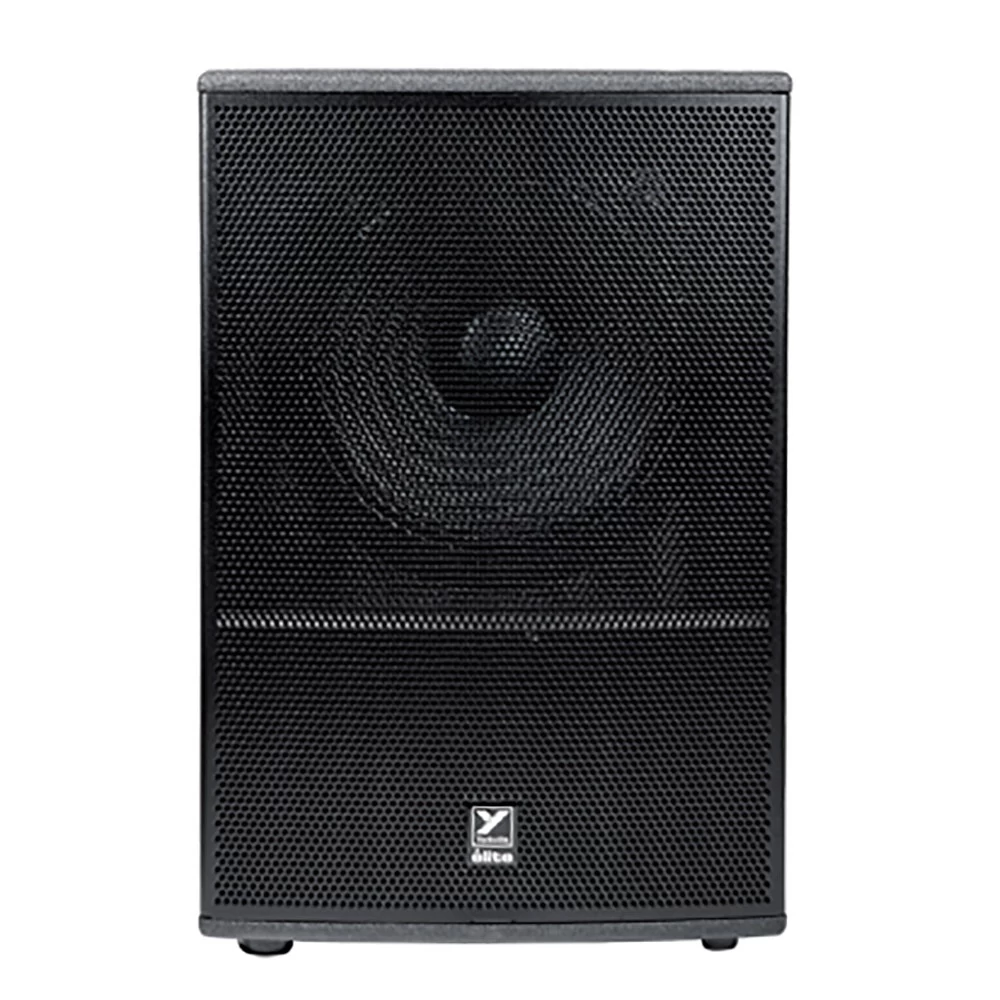

Yorkville Elite Series ES18P 18″ 1600-Watt Horn-Loaded Powered Subwoofer

Manufacturer’s Description

The ES18P is a modern-day update of our flagship ‘giant killer’, the LS801P. The cabinet dimensions have been altered to offer better mobility, but the punch is still there. We’ve also added a little-brother to the family, by scaling down the 18″ subwoofer design into a 15″ platform. The ES15P design dials up the watts and incorporates a custom engineered 15″ woofer to produce an astonishing amount of low end output in a 15″ subwoofer.

Features

• Next Generation Rear Horn Loaded Powered Subwoofer Design
• Class Leading Output and Bass Response
• Astonishing Output for a ‘Car Friendly’ 18-inch Subwoofer
• Custom Designed Long Excursion Cast Frame 18-inch Driver with 4-inch Voicecoil
• Proprietary DSP Based Limiters for Increased Output, Improved Sonic Quality and Greater Long Term Reliability
• Three DSP Based Preset Modes for Increased Flexibility in Any Live Sound or Club Application (Punchy, Smooth or Deep Response Curves)
• iOS and Android App for Added Subwoofer Control (Coming Soon)
• Made in Canada

Specifications

• System Type: Rear Horn Loaded Subwoofer
• Active or Passive: Active
• Power Rating (Watts): 1600 Watts (3200 Watts Peak)
• Max SPL (dB): 140dB Peak (134dB Continuous)
• Frequency Response (Hz +/- 3dB): 43 – 150 (Hz +/- 3dB)
• LF Driver(s): 18-inch Cast Frame Woofer w/4-inch Voicecoil
• Power Consumption (typ/max): 120V (4A /4.5A), 230V (2A / 2.3A)

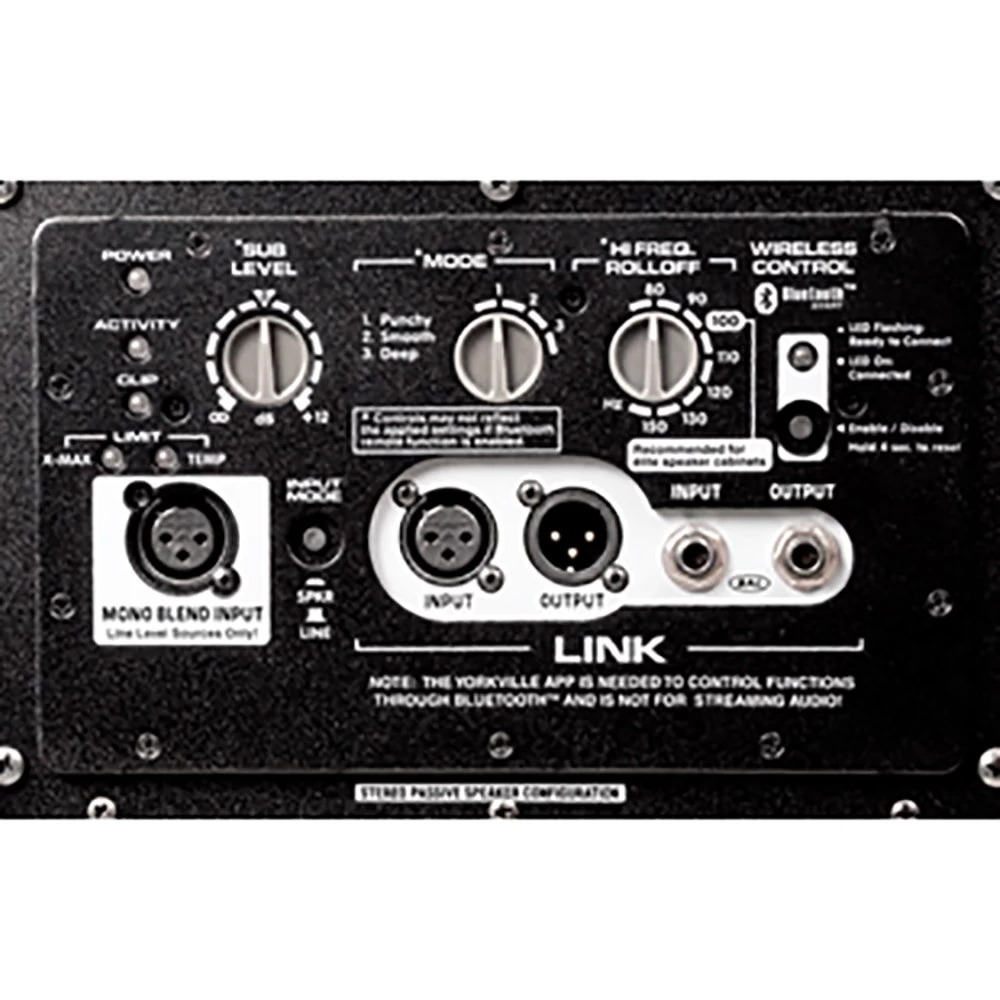

• In / Out Connections: 1 x XLR Input
  • 1 x XLR Mono Blend Input
  • 1 x ¼-inch Link Input
  • 1 x ¼-inch Link Output
  • 1 x XLR Link Output
• Level Controls: Master
• LED Indicators: Power, Activity, Protection (Clip, X-Max, Temp) &
• Other Controls / Features: Active Controls: Mode – 1 Punchy, 2 Smooth, 3 Deep
• High Frequency Roll-off – 80Hz to 150 Hz

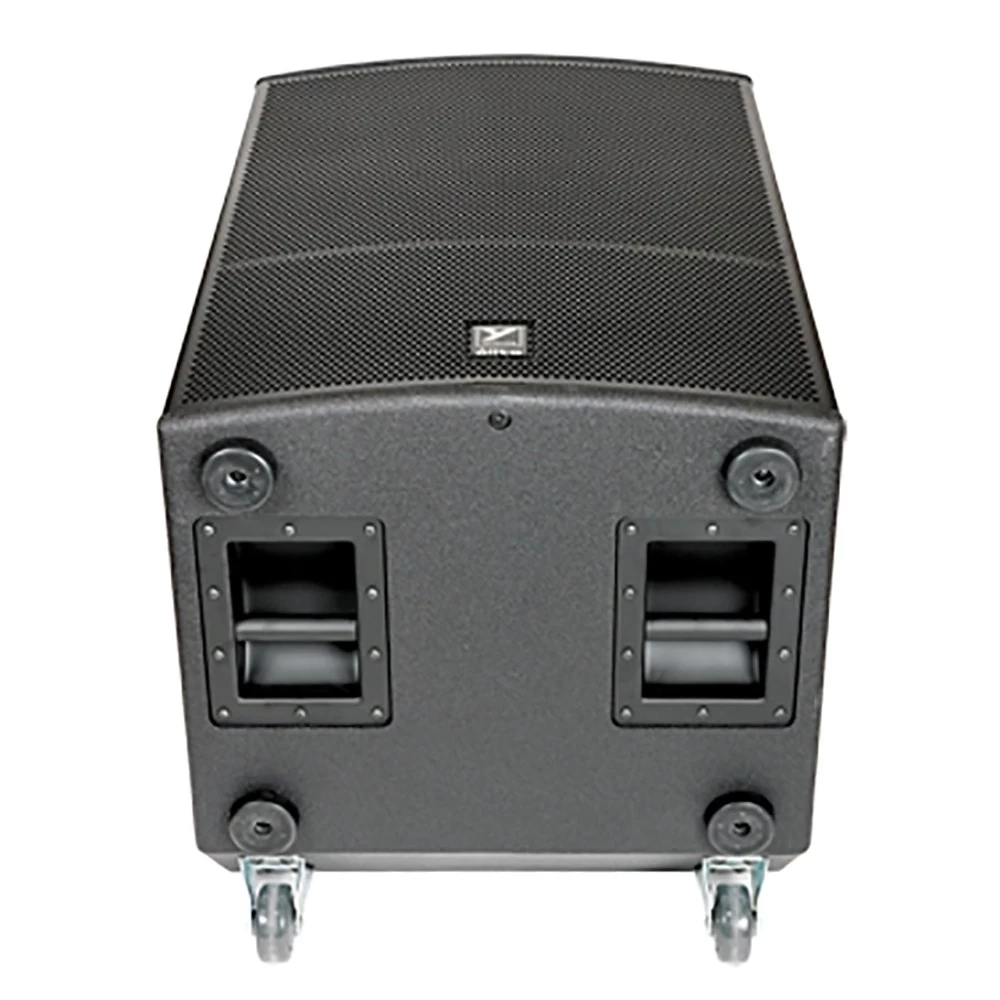

• Bar Handles: 2 x top, 2 x bottom
• Pole Mount Adapter (1 3/8″-3.5cm): 1 (Top) (1 3/8″-3.5cm)
• Enclosure Materials: 15mm (5/8inch) 11-ply Russian Birch
• Covering / Finish: Black Ultrathane Paint
• Dimensions (DWH xbackW, inches): 24.1 x 22.84 x 34.65
• Dimensions (DWH xbackW, cm): 61 x 58 x 88
• Weight (lbs/kg): 137 / 62
