Yorkville YXL10P 10-Inch 2-Way 1000-Watt Powered PA Speaker W/ Bluetooth

Manufacturer’s Description

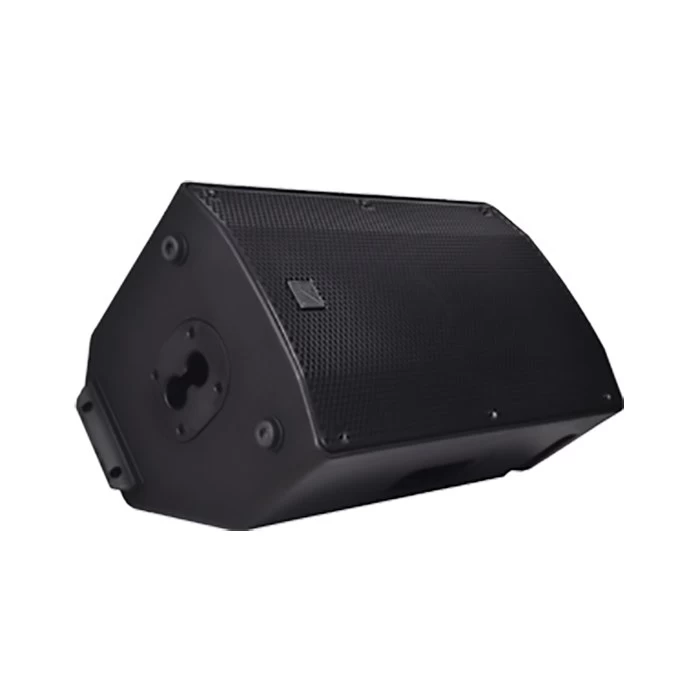

The YXL cabinets use a single driver and 90 x 60 degree horn with 1-inch throat and 1-inch compression driver. Constructed from strong Polypropylene, YXL is poised to uphold Yorkville’s reputation for reliability and durability. The cabinets can be positioned upright or used as a monitor wedge.

Designed as an all-purpose speaker with the Musician & DJ in mind, each YXL cabinet features 3 channels. The cabinet supports Bluetooth streaming and EQ pushbutton controls for Concert, Club & Monitor modes.

Features

• 1000 Watts (Peak) 500 Watts (Program)
• 10-inch woofer with 2-inch voice coil
• 3 Channels plus Master level
• 1-inch compression driver
• 90° x 60° HF dispersion
• Polypropelene cabinet construction
• Integrated 3 channel mixer with 2X 1/4″, 2X XLR and 1/8″ inputs
• Bluetooth streaming
• 3 performance modes (Concert, Club, Monitor)

Specifications

• System Type: Active Loudspeaker
• Active or Passive: Active
• Power Rating (Watts): 500 Watts Program (1000 Watts Peak)
• Max SPL (dB): 126dB Peak
• Frequency Response (Hz +/- 3dB): 55 – 16k (Hz +/-3dB)
• Dispersion (°H x °V): 90 x 40
• Crossover Frequency (Hz): 1.6kHz
• HF Horn: Integrated into Baffle
• LF Driver(s): 10-inch (2-inch voice coil)
• LF Power Rating(Watts): 450 Watts Program (900 Watts Peak)
• HF Power Amplifier (Watts): 50
• HF Amplifier Type: Class A/B
• LF Amplifier Type: Class D
• Cooling Scheme: Speed controlled fan
• Power Cable: Yes
• Power Switch: Yes
• Inputs: 2 x XLR, 2 x 1/4″, 1/8″, Bluetooth and Main in (XLR)
• Level Controls: x3 Chanels + Master
• EQ Controls: Push button select, Concert, Club, Monitor
• Limiter: Multiband excursion, RMS, rail
• Other Controls / Features: Sub mode HP filter, Mixer IN/OUT,
• Stereo/Mono out, 3.5mm Aux in, BT streaming
• Feet: Rubber
• Bar Handles: 1 x Side / 1 x Back
• Flying Hardware: 2 (Top)
• Optional Flying Hardware: Yes
• Enclosure Materials: Polypropelene, Metal grille
• Baffle Material: Polypropylene
• Grille: Powder Coated Steel with Grille Cloth
• Other Details: Rubber feet on bottom and side with the monitor Wedge
• Dimensions (DWH xbackW, inches): 11 x 13.25 x 20.5
• Dimensions (DWH xbackW, cm) : 28 x 33.5 x 52
• Weight (lbs/kg): 28 / 14
