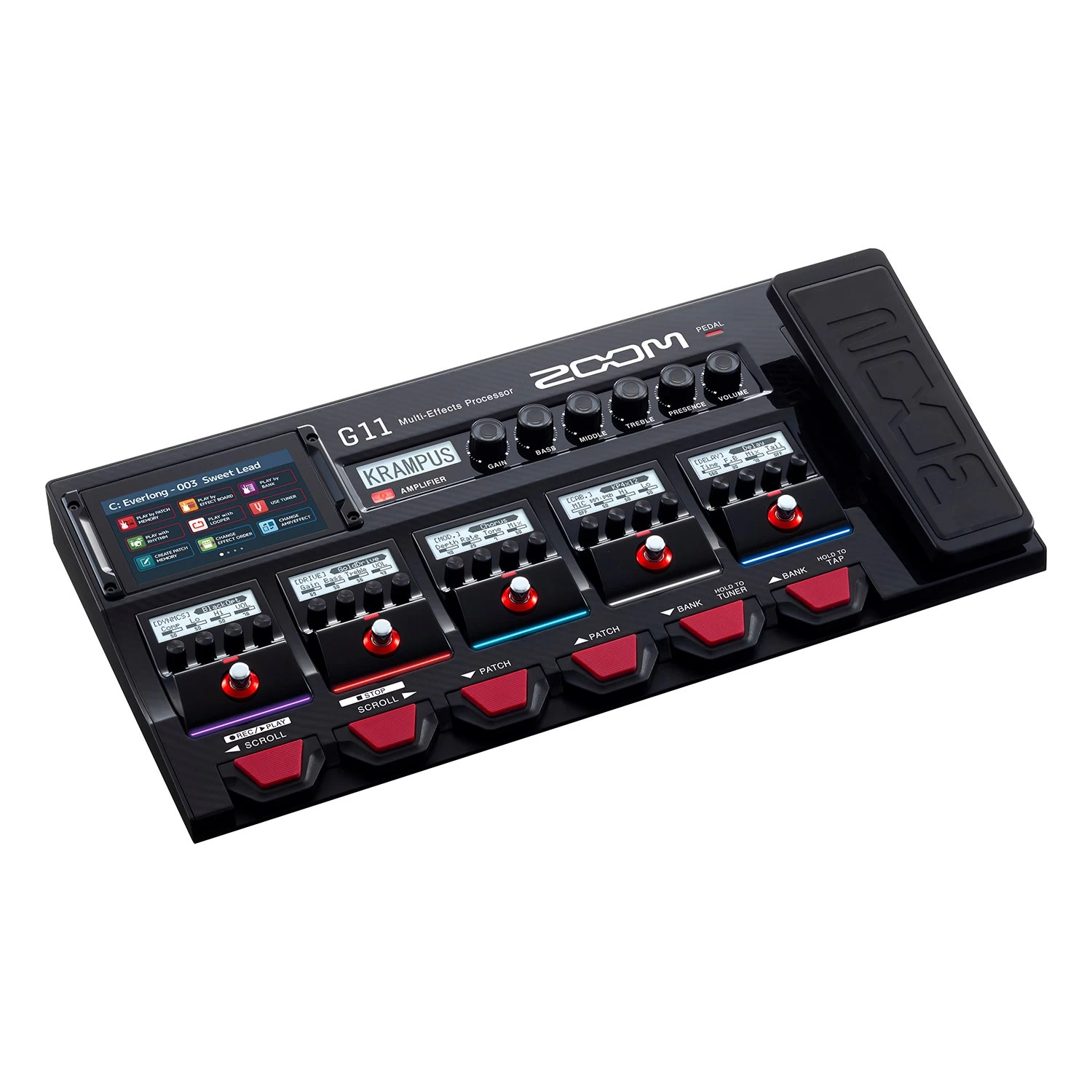

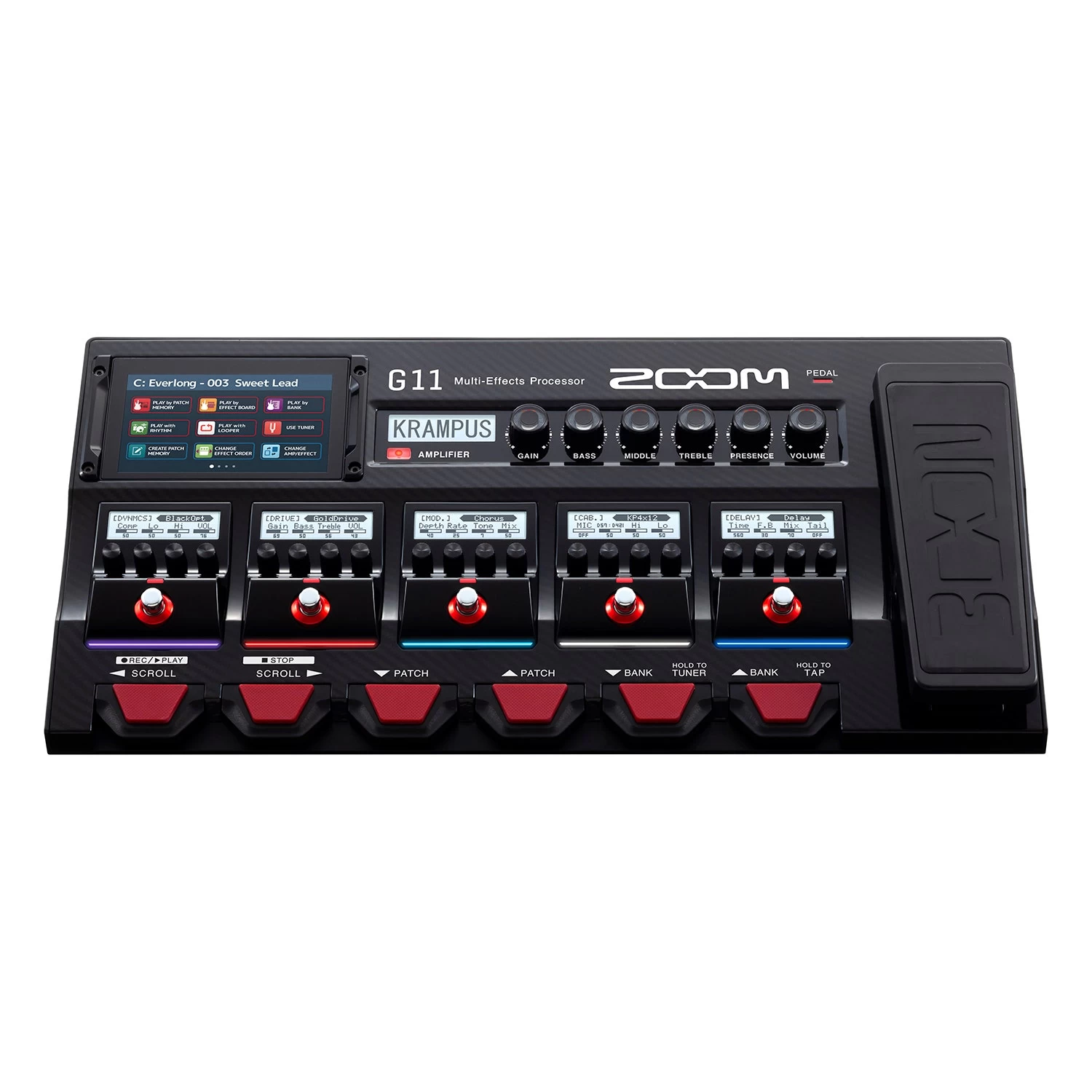

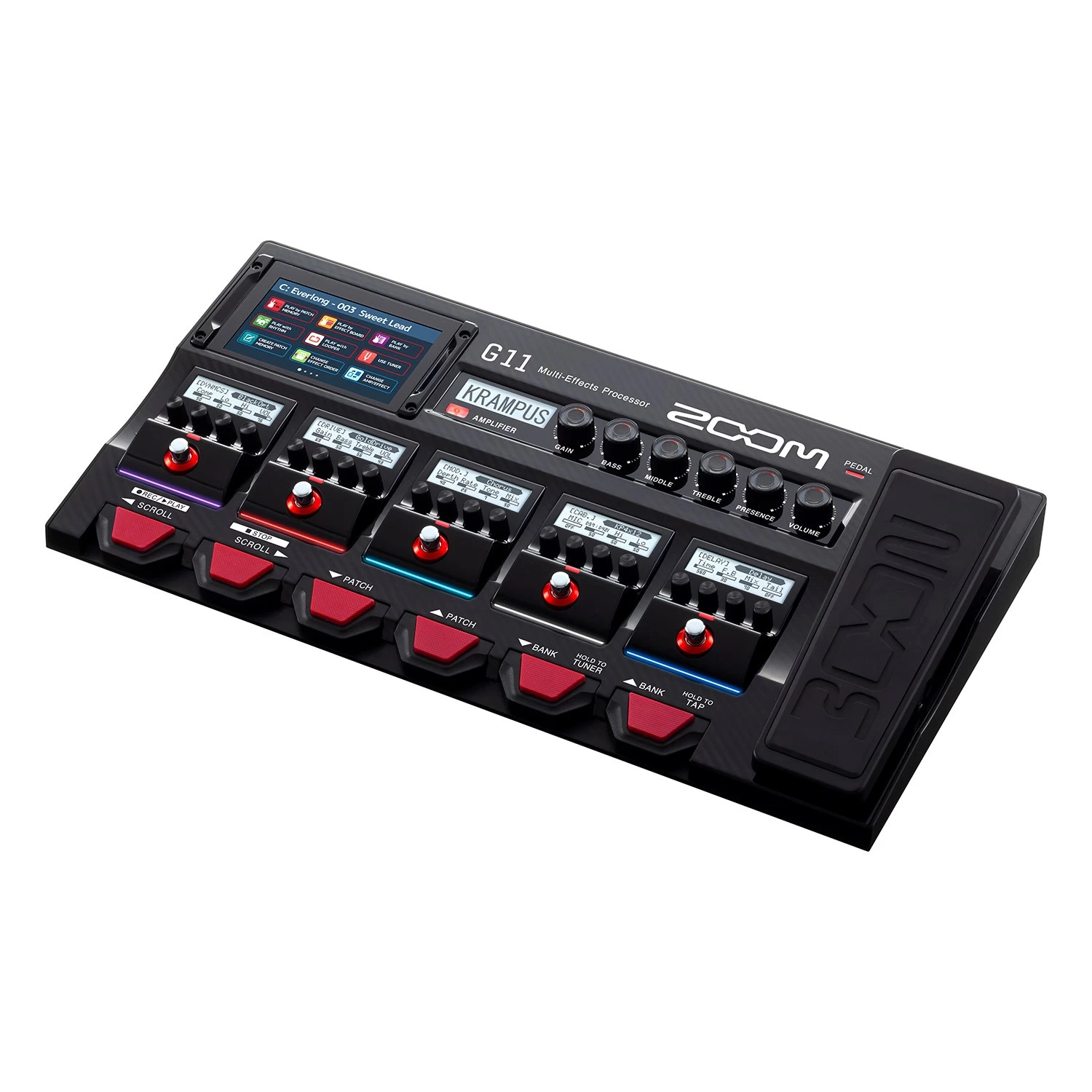

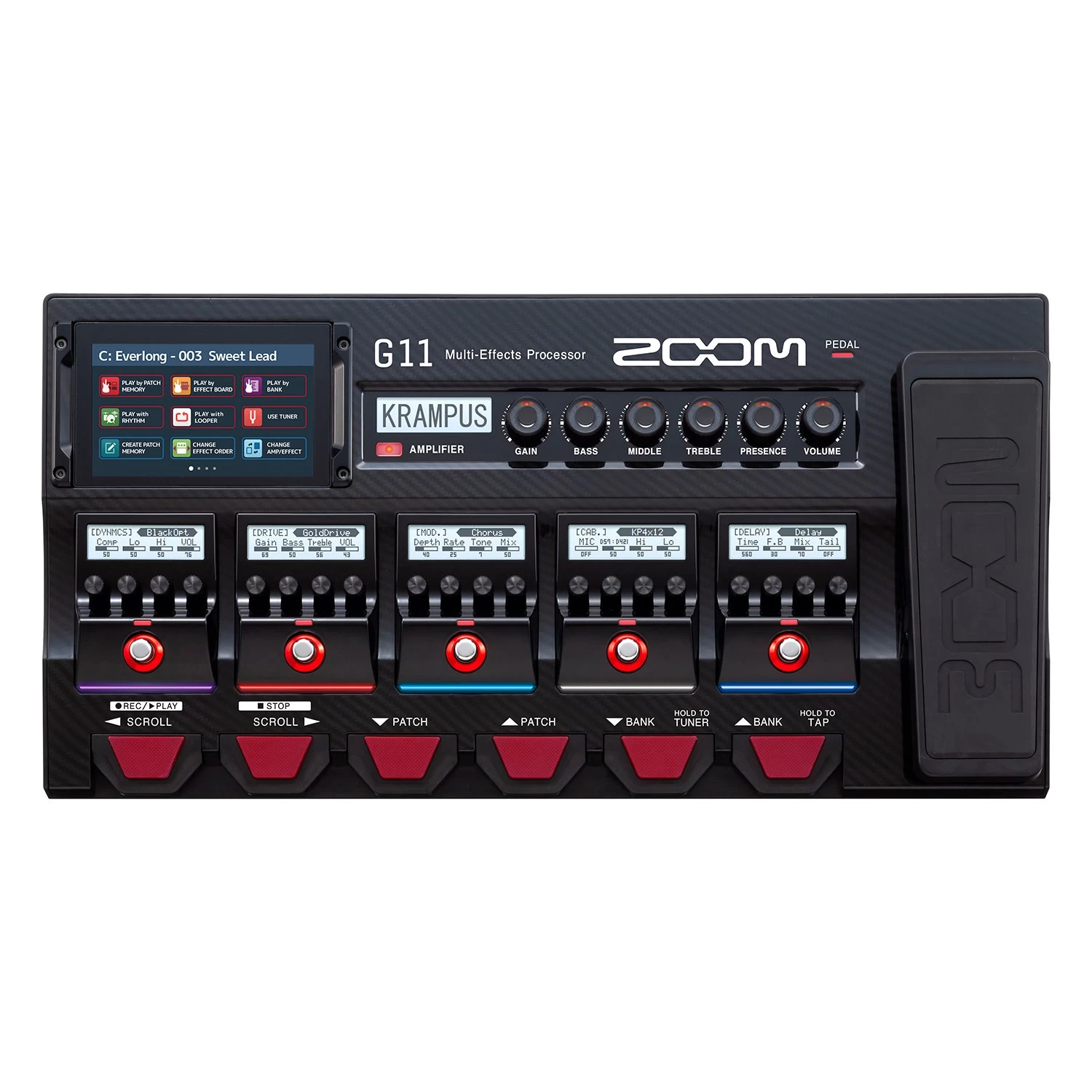

Zoom G11 Multi-Effects Processor For Guitar W/ 5-Inch Color Touchscreen

Manufacturer’s Description

The ZOOM G11 Multi-Effects Processor for Guitarists

At Zoom, we’ve been designing Multi-Effects for guitar players for over 30 years. The G11 represents the culmination of our engineering and passion.

Let Your Creativity Soar

Our best engineers took the tonal qualities of the greatest amps in history, combined them, and crafted all new amp models designed to give you new palettes of tone, to take your creativity to a whole new level.

Effects You Love + More

In addition to the classic effects you love, the G11 offers brand new Distortion and Modulation effects, unlocking endless new tone possibilities.

More Cabinet Sounds Than Ever

G11 provides 22 cabinet emulations of all modeling amps plus 70 pre-loaded full impulse response (IR) data, that were captured with different microphones in various positions, providing you a wide spectrum of cabinet sounds to choose from. Additionally, you can import up to 130 of your own IR’s.

Touch and Go

Your sounds may be complex but building them shouldn’t be. With easy-to-use, application driven technology, the G11’s 5-inch color touchscreen lets you drag, drop and swipe your way to new sounds.

It Feels Like Home

While the G11 is our most advanced pedal ever, it’s super familiar. From the stompbox control to the amp panel, you’ll feel like you’ve been here before.

Loop & Groove

With a 5-minute looper add layers to solo performances. Choose your groove from 68 built-in rhythm patterns in various genres and time signatures.

Audio Interface

The G11 is a full-on audio interface for Mac and PC. Record directly to your favorite DAW via USB. Cubase LE is bundled in the box.

Features

• Integrated pedal board with dedicated amp modeling panel, five stomp switches and expression/volume Control
• Touchscreen interface on color LCD with drag and swipe functions for easy and fast navigation
• Chain up to nine effects plus an amplifier emulation
• Original amp modeling combinations
• Original distortion and modulation effects
• 70 built in IR emulations plus 130 available slots for user uploaded IR’s
• Two send/return effects loop plus MIDI in/out
• 5-minute stereo looper
• 68 built-in rhythm patterns
• USB audio interface for direct recording to your DAW
• Remote iOS connection for using Guitar Lab via Bluetooth adapter (BTA-1)
• Compatible with Zoom Guitar Lab to download additional effects

Specifications

General

• Maximum number of simultaneous effects: Amplifier + 9 effects
• User patches: 240
• Sampling frequency: 44.1 kHz
• A/D conversion: 24-bit 128× oversampling
• D/A conversion: 24-bit 128× oversampling
• Signal processing: 32-bit
• Frequency characteristics: 20 Hz – 20 kHz (+1 dB/−2 dB) (10kΩ load)
• Displays: 5″ TFT color LCD (800×480)
  Dot-matrix LCDs (128×32)(6)
• Inputs
  • INPUT: Standard mono phone jack
               Rated input level: -20 dBu
               Input impedance (line): 500 kΩ
  • RETURN: Standard mono phone jacks (2)
                  Rated input level: -20 dBu
                  Input impedance (line): 1 MΩ
  • AUX IN:   Stereo mini jack
                  Rated input level: -10 dBu
                  Input impedance (line): 10 kΩ
• OutputsInput S/N : 123 dB
  • Left/Right: Standard mono phone jack
                  Maximum output level: INST/LINE +11.4 dBu/+19 dBu(when output impedance 10 kΩ or higher)
  • PHONES: Standard stereo phone jack
                  Maximum output level: Line +11.4 dBu (when output impedance 10 kΩ or higher)
                  Headphones 24 mW + 24 mW (at 32Ω load)
  • SEND:     Standard mono phone jacks (2)
                  Maximum output level: Line +11.4 dBu (when output impedance 10 kΩ or higher)
• Noise floor (residual noise): Left/Right : INST/LINE −99.5 dBu/−92.5 dBu
• SEND: -99.0 dBu
• MIDI IN/OUT: 5-pin DIN jacks
• Control input: FP02M input
• USB DEVICE:
  • Connector: USB2.0 Type-C / Supported cable: Type-C cable
  • GuitarLab: USB1.1 Full Speed
  • Audio Interface: USB2.0 High Speed, 44.1 kHz/32-bit 4in 4out
  • Use cables for data transfer.
  • USB bus power not supported.
• USB HOST:REMOTE: ZOOM BTA-1 or other dedicated wireless adapter
  • Connector: USB2.0 Type-A / Standard: USB 2.0 High Speed
  • Use a USB thumb drive.
• External dimensions: 253 mm (D) × 495 mm (W) × 64 mm (H)
• Weight: 2.8 kg

What’s in the Box

• G11 Multi-Effects Guitar Processor
• Zoom AD-19 Power Adaptor
• Quick Start Guide
